Seeed Studio  |  SKU: 114992711

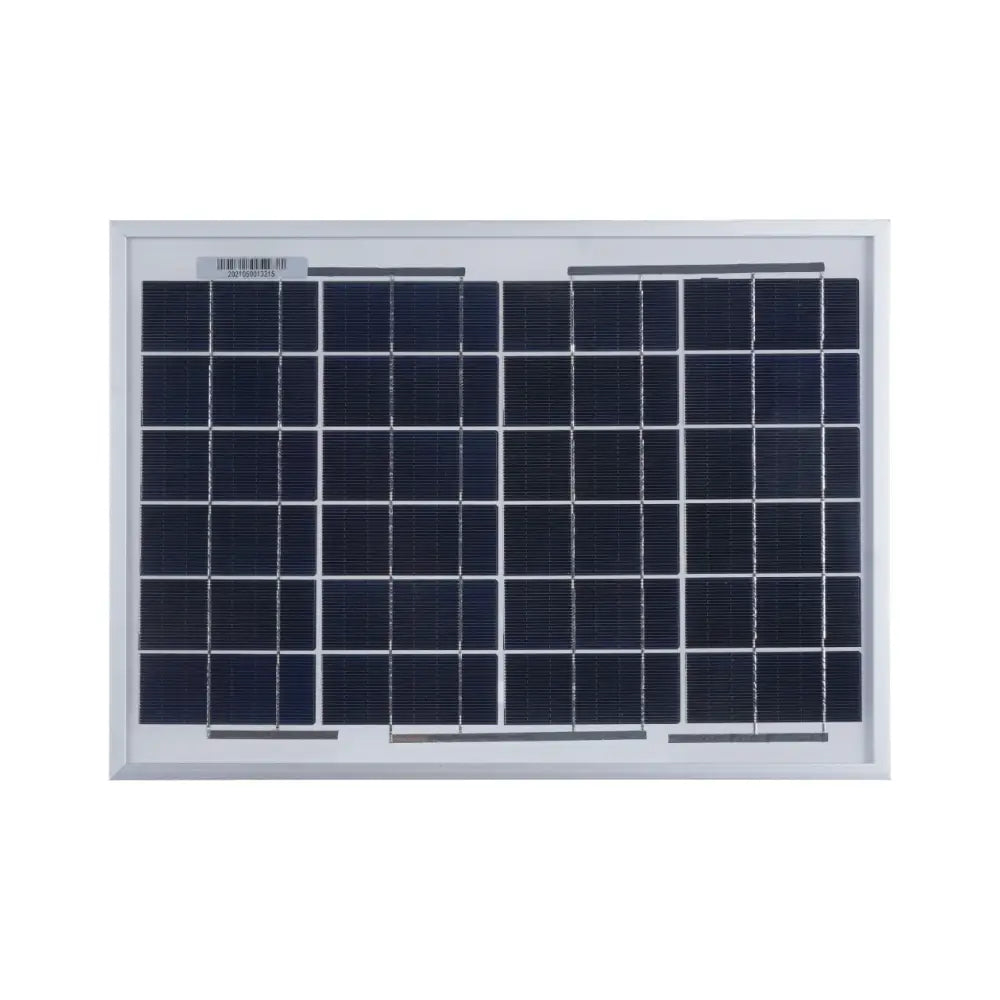

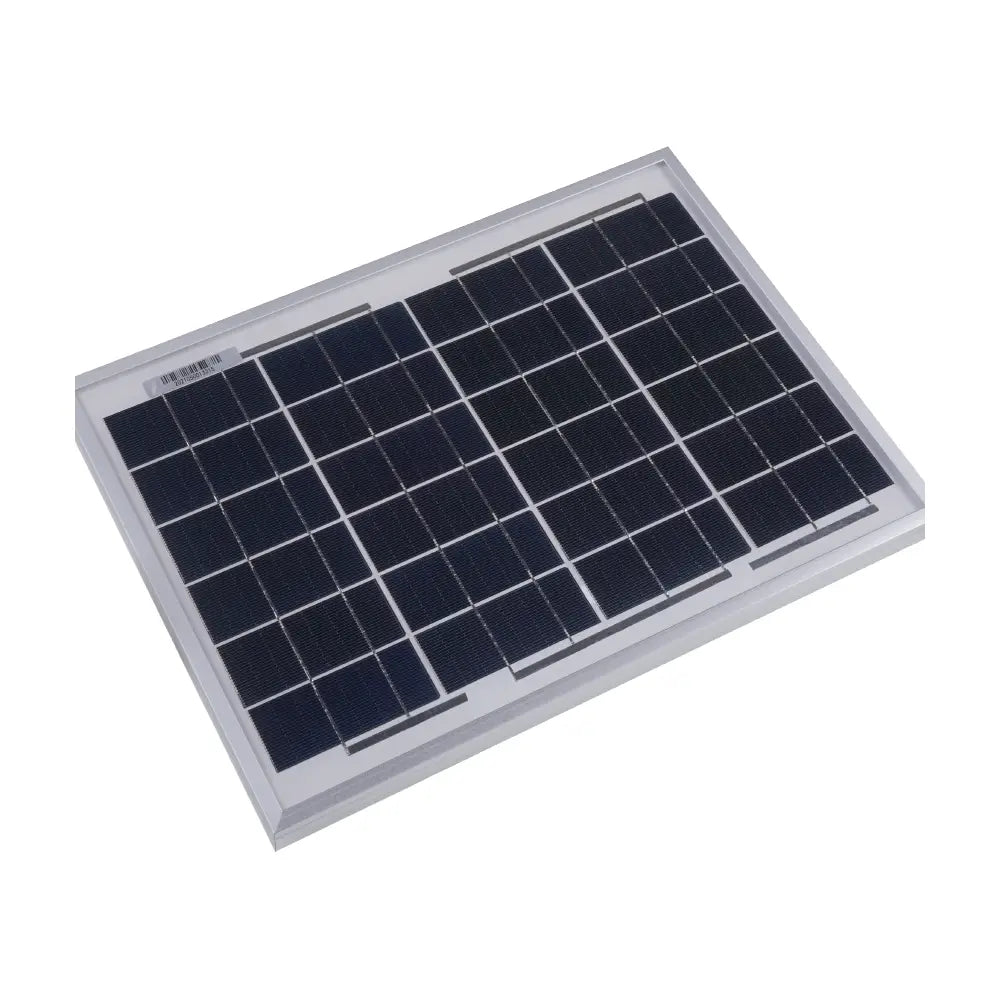

Seeed Studio PV-12W | 12W Monocrystalline Solar Panel with Mounting Bracket

€93,00
Versand wird beim Checkout berechnet.

A 12W monocrystalline solar panel with mounting bracket and 6-pin waterproof connector for off-grid outdoor IoT and smart agriculture power supply.

  • Output: 12Wp Peak | 12V / 1A | >19% Cell Efficiency
  • Build: Monocrystalline | Al Alloy Frame | 15+ Yr Life
  • Cable: 1.5m | 6-Pin Waterproof Connector
  • Rated For: 2400Pa Wind | 5400Pa Snow | −20°C to 70°C

Mehrwertsteuerfreie Transaktionsoption

Unser Shop zeigt die Preise standardmäßig ohne Mehrwertsteuer an. Für Unternehmen mit Sitz in der EU und einer gültigen Umsatzsteuer-Identifikationsnummer gelten innergemeinschaftliche Umsatzsteuerbefreiungen. Sie können Ihre Umsatzsteuer-Identifikationsnummer während des Bezahlvorgangs überprüfen, um eine korrekte Abrechnung sicherzustellen.

Sichere Zahlung & Garantie
  • Verschlüsselter Checkout: Kaufen Sie vertrauensvoll über Shopify Payments oder PayPal Express für vollständig sichere, PCI-konforme Transaktionen ein.
  • B2B Flexible Abrechnung: Für Großbestellungen von Infrastruktur bieten wir Direkte Banküberweisungsoptionen (SEPA/SWIFT) an. Bitte kontaktieren Sie unser Team für eine Proforma-Rechnung.
  • Qualität garantiert: Alle professionellen IoT-Hardware wird durch eine 2-jährige Herstellergarantie und technischen Support unserer Engineering-Experten bei shopioT abgesichert.

Lieferung und Versand

Zuverlässiger, verfolgbarer und schneller globaler Versand über FedEx Express. Ihre professionelle IoT-Hardware wird innerhalb von 2 Werktagen aus unserem EU-Lager versandt.

Geben Sie Ihren Firmennamen und eine gültige EU-USt-IdNr. auf der Checkout-Seite für eine mehrwertsteuerfreie Transaktion ein.

Beschreibung

The Seeed Studio PV-12W is a 12W monocrystalline silicon solar panel designed to provide reliable, off-grid power for outdoor IoT deployments. With a 12V working voltage, 1A working current, and >19% cell conversion efficiency, the PV-12W delivers stable solar energy generation across a wide operating temperature range of −20°C to +70°C. The panel is built with a lightweight aluminium alloy frame rated to withstand 2400 Pa wind pressure and 5400 Pa snow load, making it suitable for permanent outdoor installation in challenging environments. It includes a 1.5m cable with a 6-pin waterproof connector for tool-free connection to compatible data loggers and IoT gateways, and ships with a mounting bracket for rapid deployment. The PV-12W is designed as the primary power accessory for the Seeed SenseCAP Sensor Hub 4G Data Logger, enabling completely grid-free operation in remote monitoring applications.

Core Features

High-Efficiency Monocrystalline Cells Cell conversion efficiency exceeding 19% with an attenuation rate of less than 5% within 2 years and less than 10% within 10 years, ensuring long-term energy output reliability. Excellent low-light power generation performance maintains charging in overcast conditions.
Rugged Outdoor Construction Lightweight aluminium alloy frame rated for 2400 Pa wind pressure and 5400 Pa snow load. A unique anti-freeze and anti-deformation design prevents water ingress into the frame. Operating temperature range of −20°C to +70°C with a 15+ year design life.

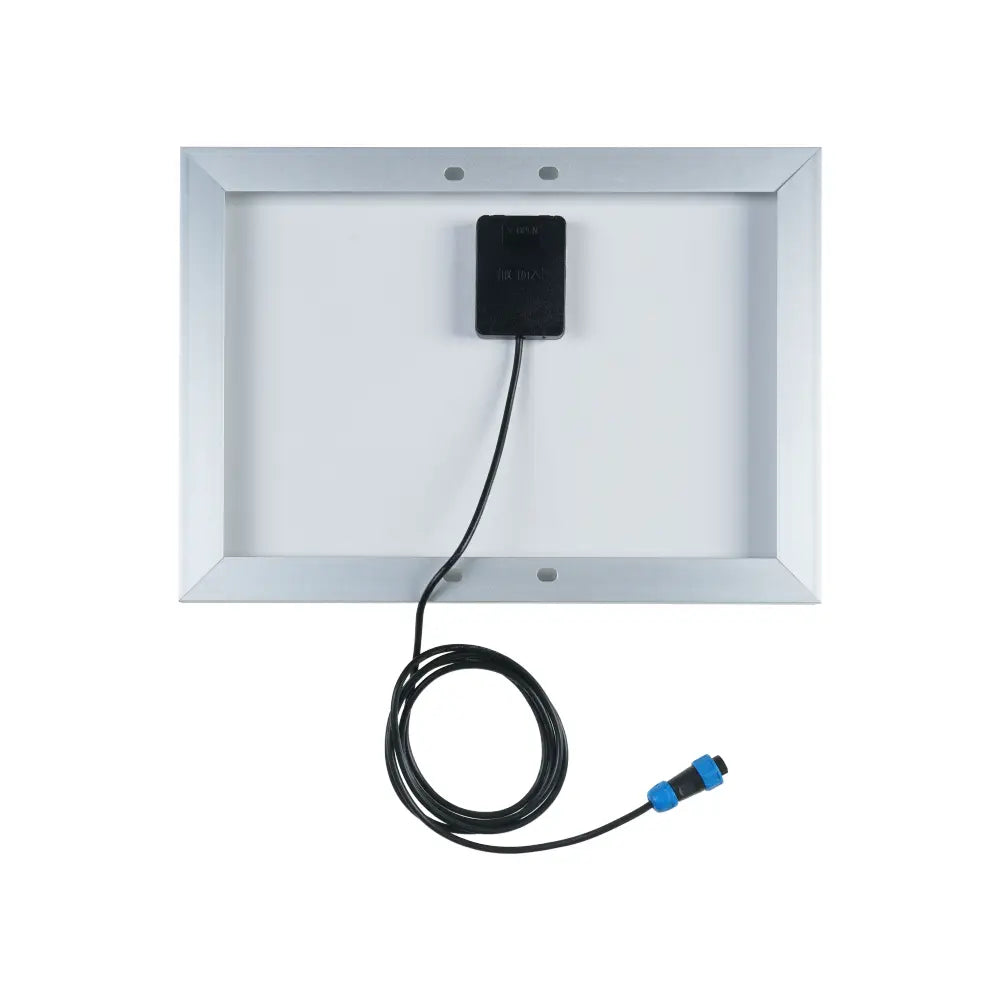

Plug-and-Play 6-Pin Waterproof Connector Ships with a 1.5m cable and 6-pin waterproof connector (GND on pins 4–6, VCC on pins 1–3) for direct, tool-free connection to the Seeed SenseCAP Sensor Hub 4G Data Logger and compatible IoT devices. Enables rapid deployment without additional wiring components.

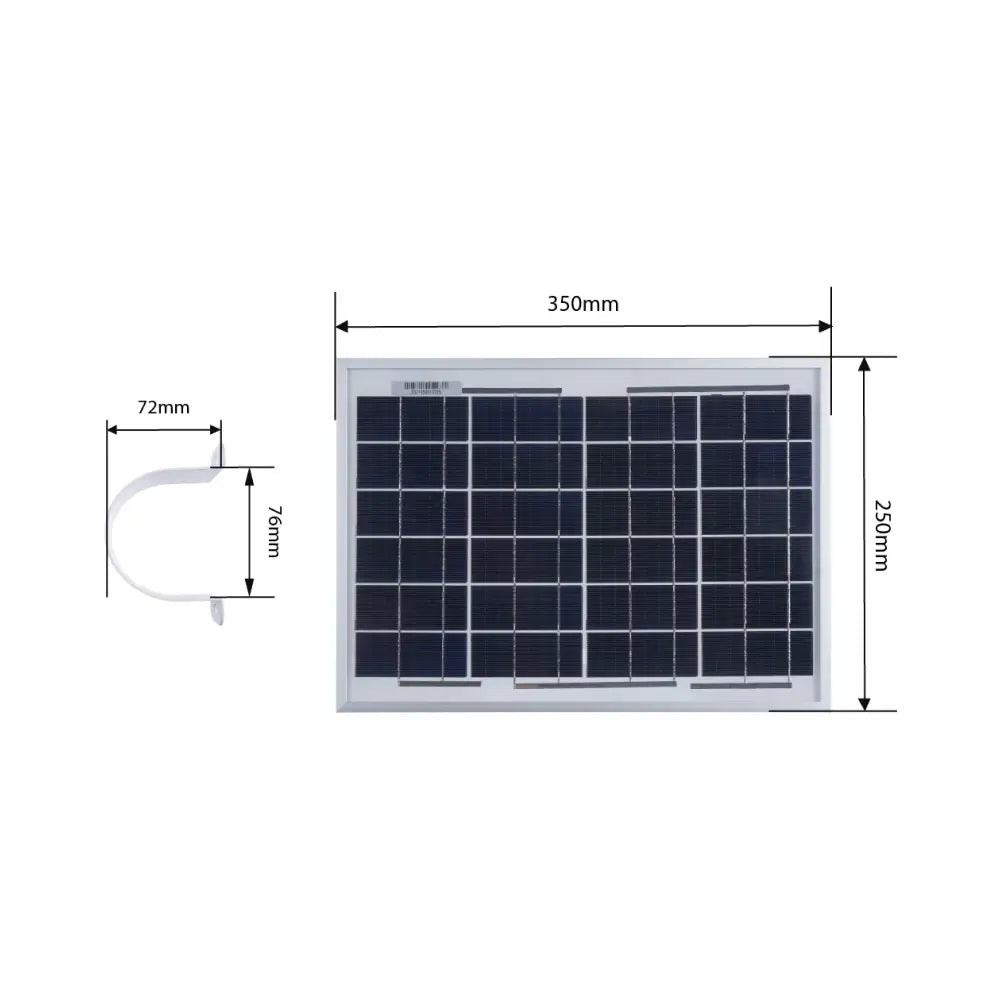

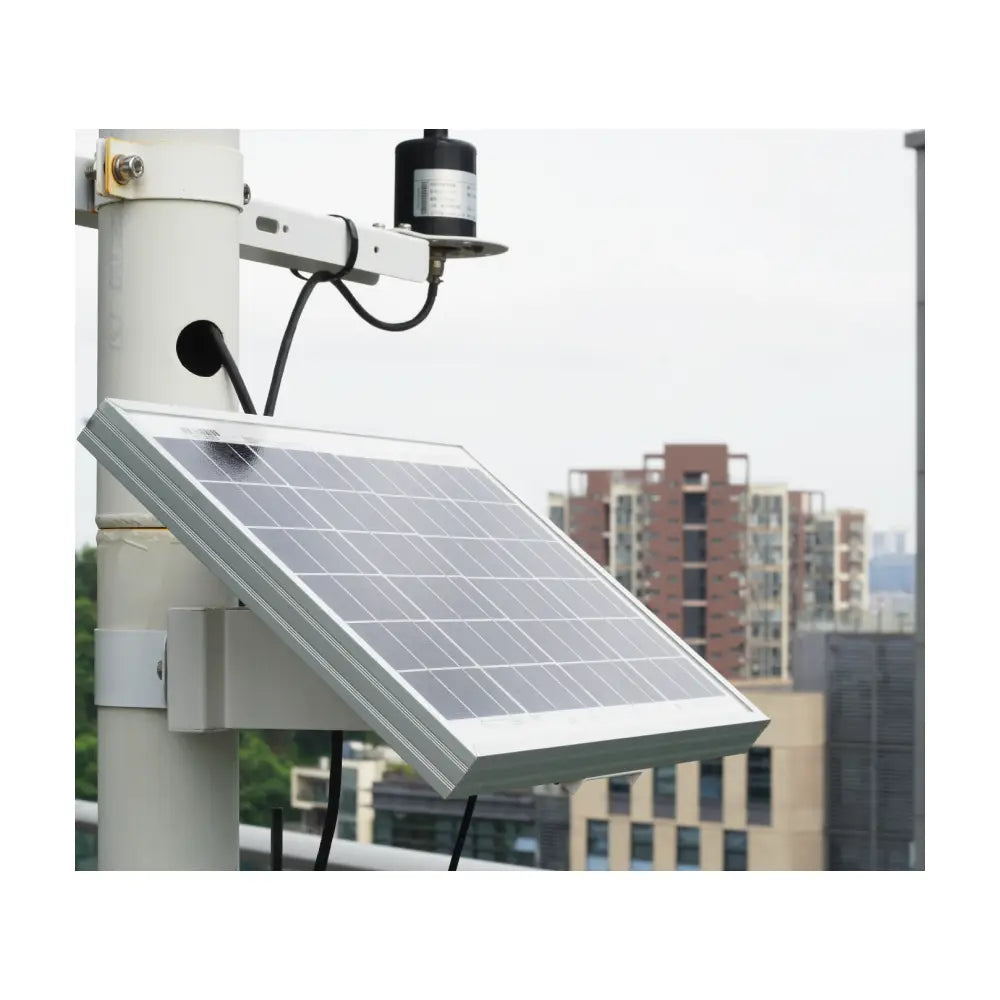

Mounting Bracket Included Includes a dedicated mounting bracket for fixed installation on poles, walls, or enclosure frames. Modular design supports quick disassembly for repositioning or maintenance with no specialist tools required. The panel can be customised in scale and orientation for site-specific deployments.

Typical Applications

• Remote IoT & Sensor Node Power: Primary power source for off-grid outdoor IoT installations including LoRaWAN® gateways, NB-IoT sensor nodes, weather stations, and environmental monitoring systems where grid power is unavailable or cost-prohibitive.
• Smart Agriculture: Powers soil, weather, and crop monitoring sensor networks in fields and greenhouses where permanent cable runs are not feasible, enabling autonomous, low-maintenance agricultural IoT deployments.
• Infrastructure & Environmental Monitoring: Suitable for power line monitoring, river and flood level sensors, bridge and road monitoring, and natural disaster early-warning systems deployed in remote or difficult-to-access locations.
• Smart City & Traffic Systems: Provides off-grid power for smart city edge devices including traffic monitoring cameras, parking sensors, air quality monitors, and urban environmental sensor nodes requiring a compact and self-sustaining energy source.

Compatibility & Integration

The PV-12W is the recommended solar power accessory for the Seeed SenseCAP Sensor Hub 4G Data Logger (with built-in rechargeable battery version), providing a complete off-grid data acquisition solution for outdoor industrial and environmental IoT applications. The 6-pin waterproof output connector is compatible with the Seeed SenseCAP ecosystem. For system design guidance, battery sizing, or multi-panel deployments, contact the ShopIoT technical team.

What’s in the Box

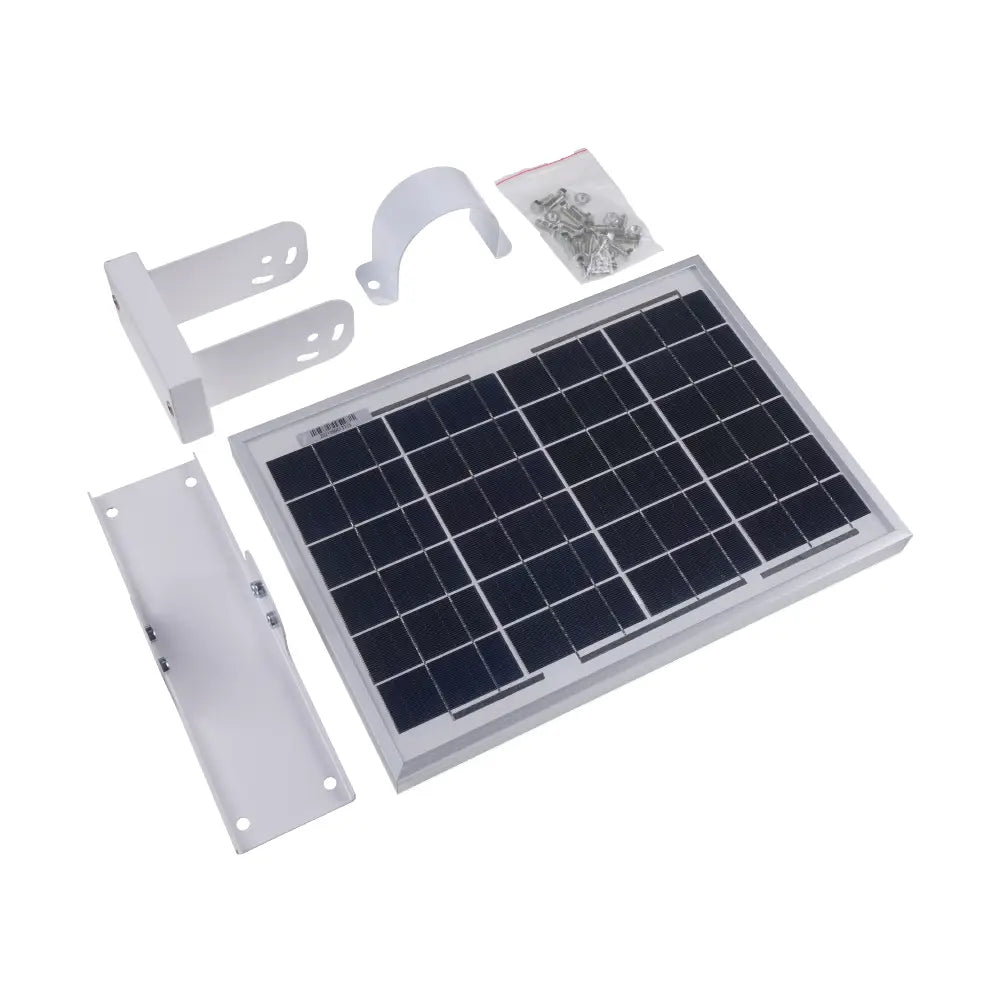

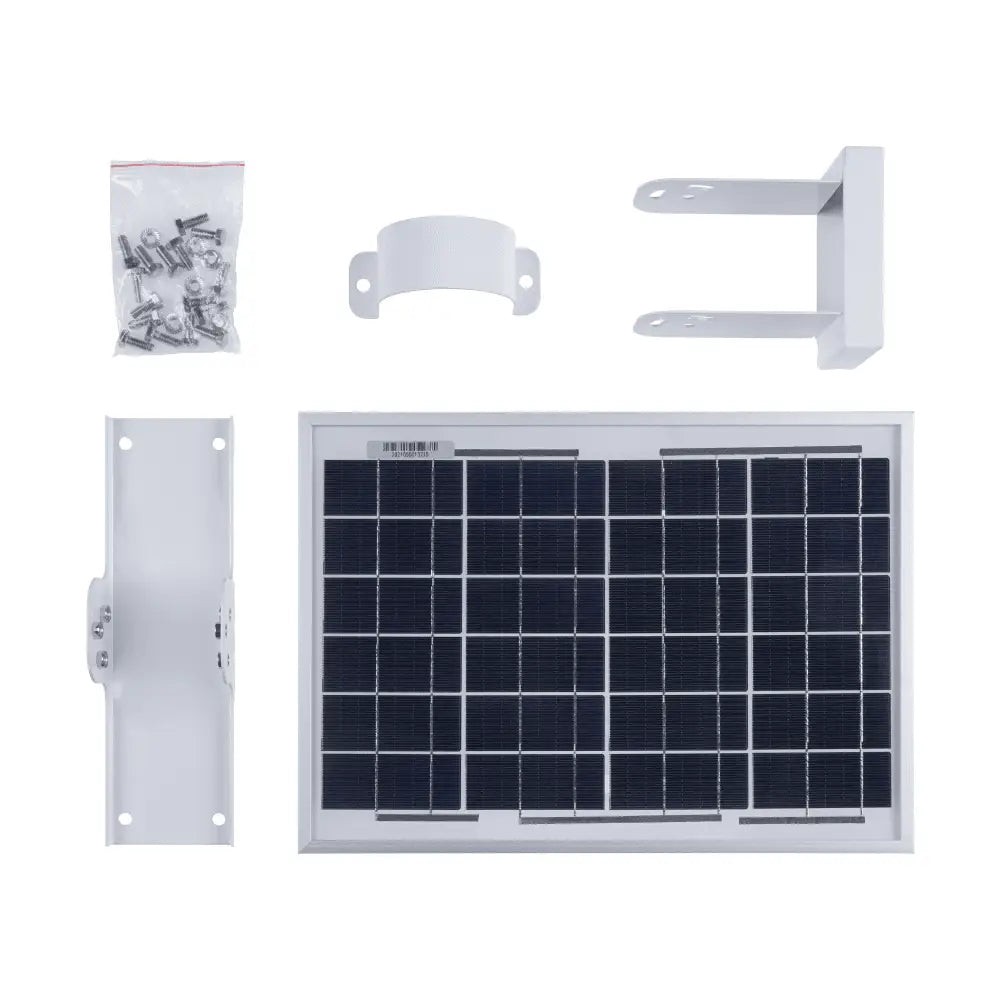

1 × 12W monocrystalline solar panel (with 1.5m cable and 6-pin waterproof connector) • 1 × Mounting bracket stand • 1 × Packaging box

Spezifikation
  • Umgebungsbewertung
    Outdoor, Industrial
  • Betriebstemperatur
    -20°C to 70°C
  • Gehäusematerial
    Aluminum Alloy
  • Schnittstellen (E/A)
    DC Output (12V)

Dokumentenbibliothek

PV-12W Datasheet
