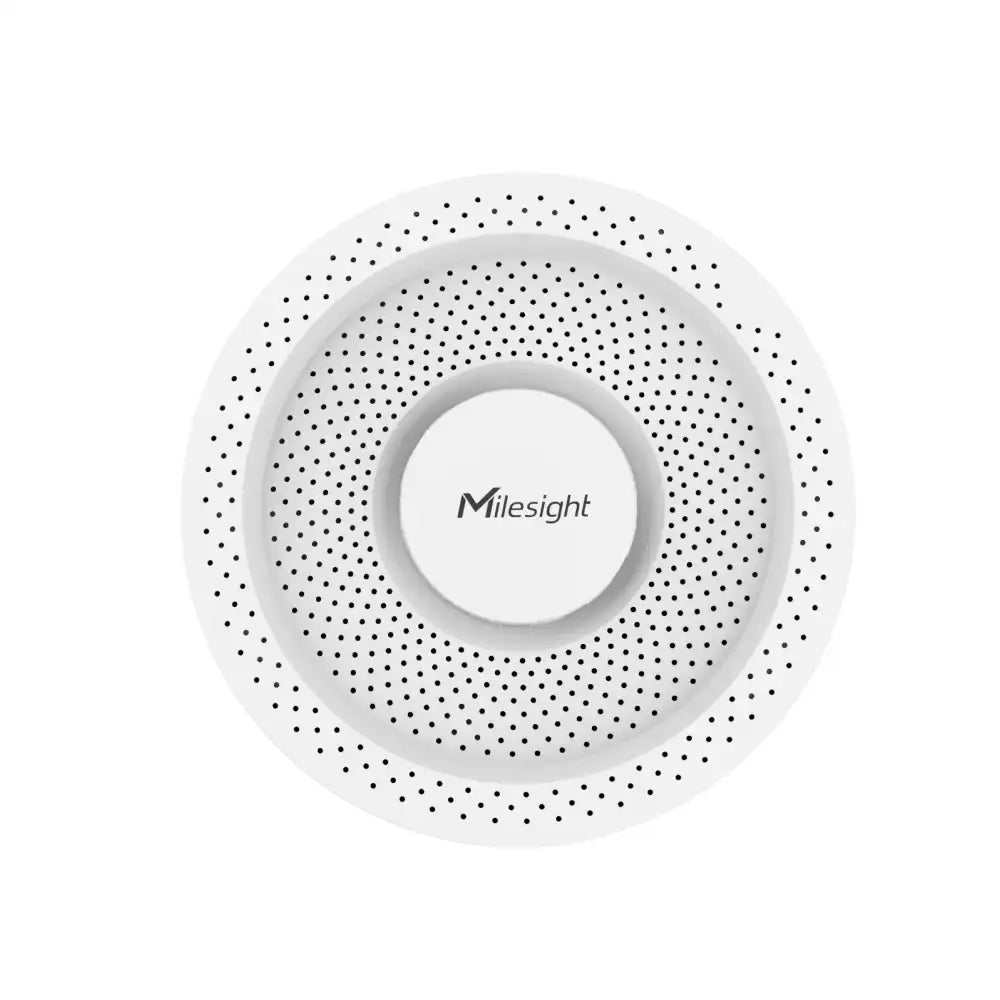

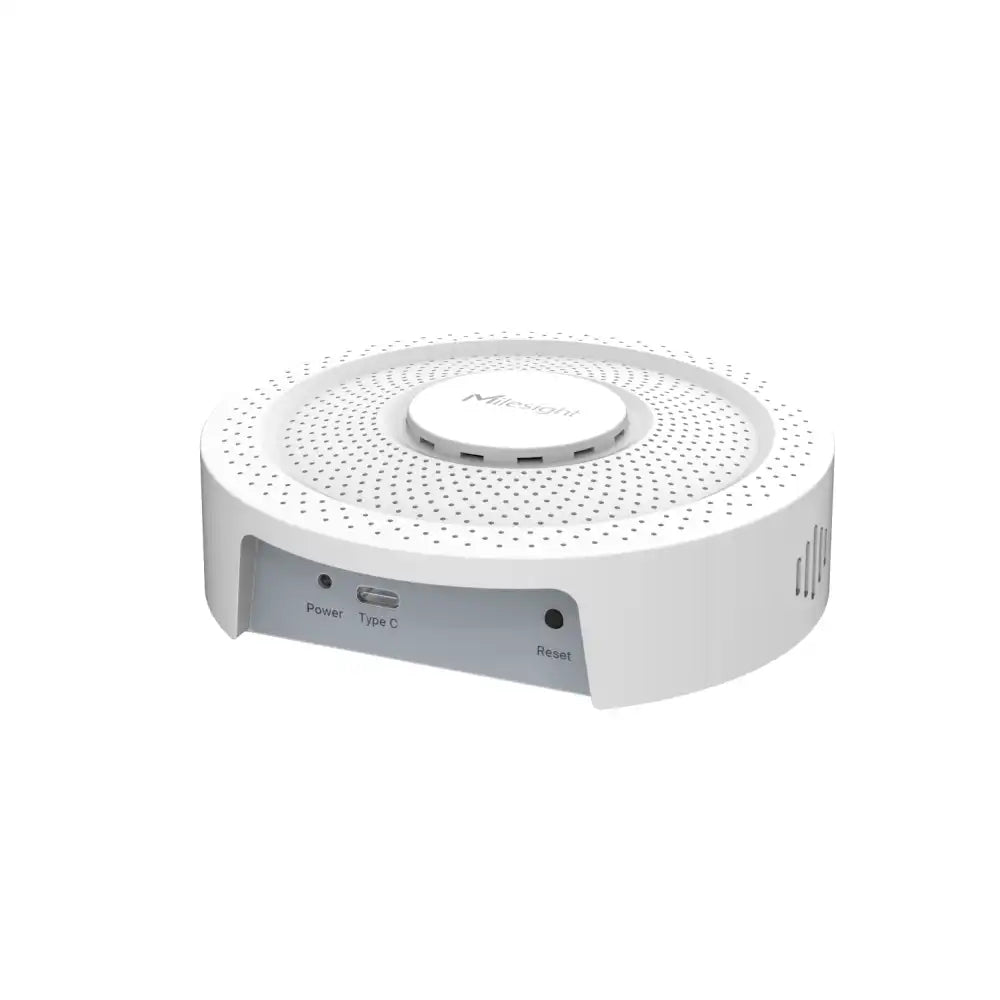

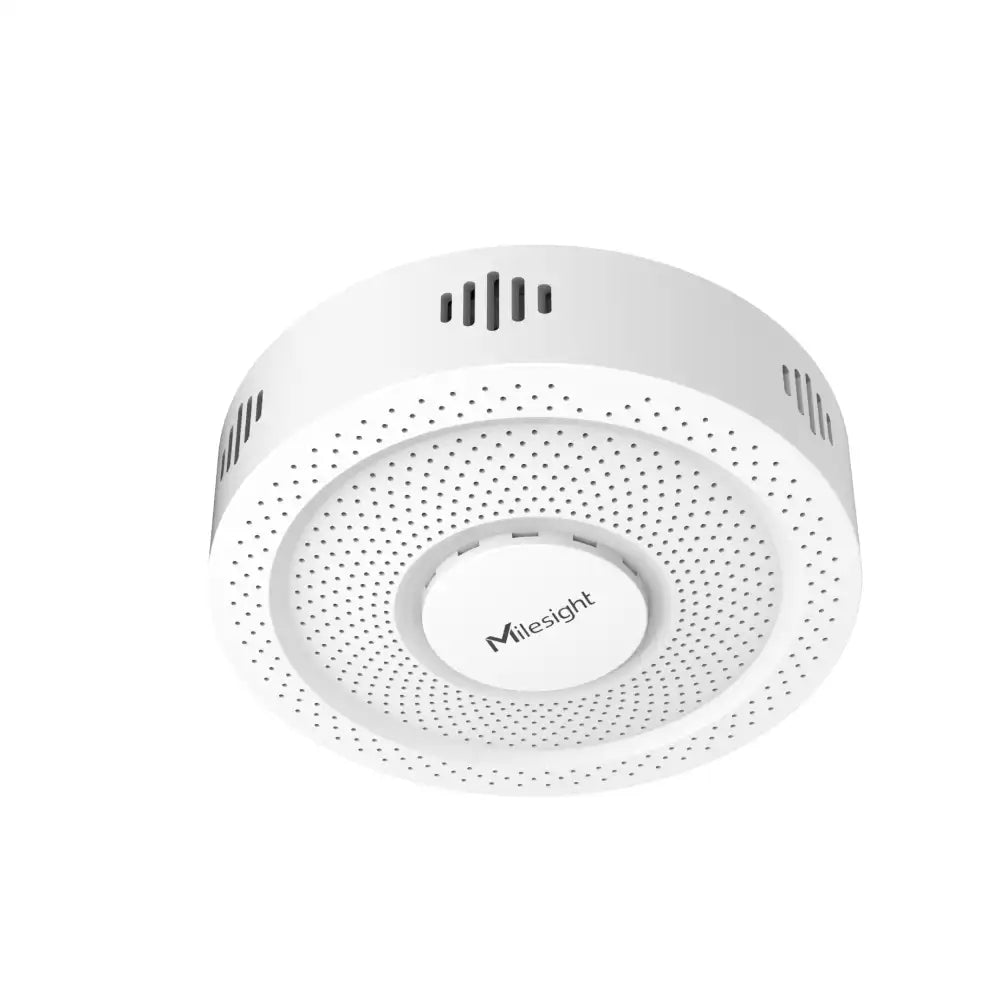

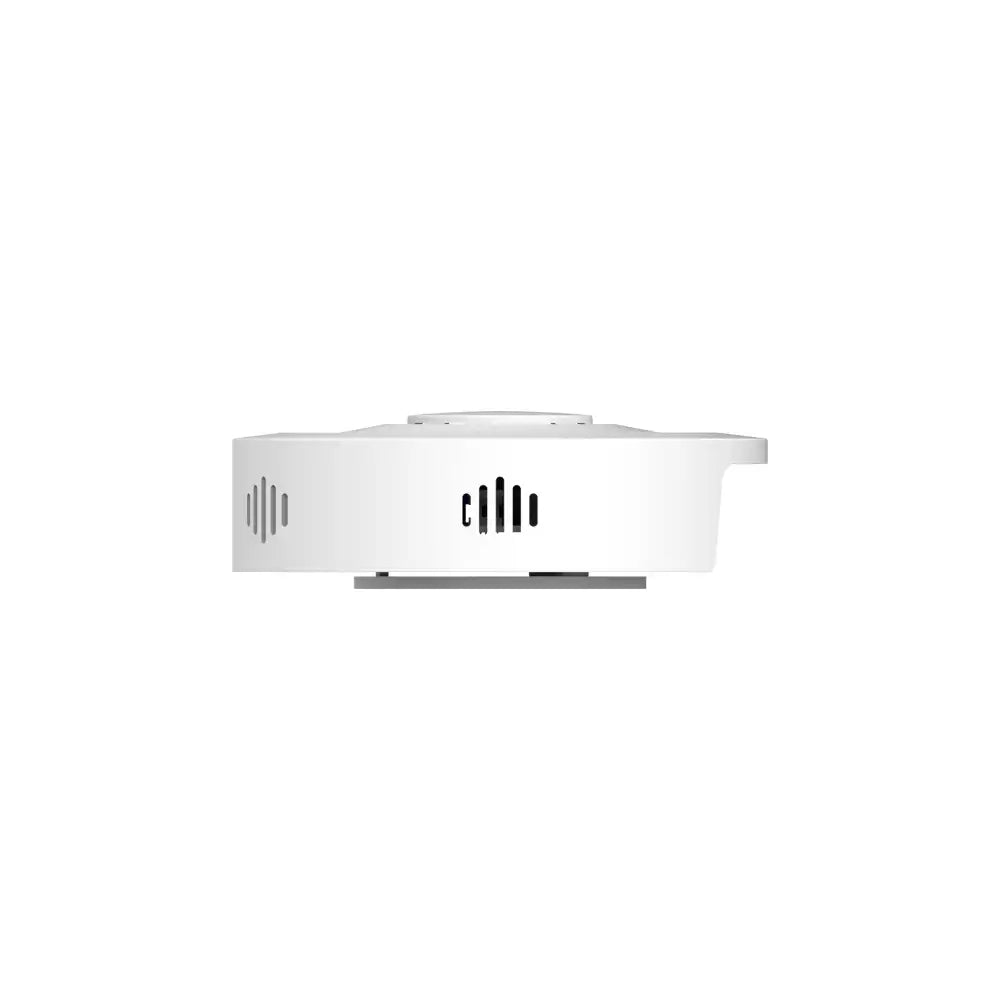

Milesight GS601 LoRaWAN® Vape & Smoke Detector | 7-in-1 IAQ Sensor for Schools & Restrooms

€190,00

Frais de livraison calculés lors du paiement.

The Milesight GS601 is a LoRaWAN® vape & smoke detector that monitors 7 air-quality parameters, suppresses false alarms from shower steam, and triggers local + remote alerts with tamper and burning detection — built for schools, restrooms, and rental properties.

Detection: Vape Index + Smoke | TVOC, PM1.0/2.5/10 | Temp & Humidity
Connectivity: LoRaWAN® Class C | NFC Config | FUOTA
Alarms: 70 dB Buzzer + LED | Burning & Tamper Detection | Anti-Vapour Filtering

Frequency/Region

Option de transaction hors TVA

Notre boutique affiche les prix hors TVA par défaut. Pour les entreprises basées dans l'UE et disposant d'un numéro de TVA valide, les exonérations de TVA intracommunautaire s'appliquent. Vous pouvez valider votre numéro de TVA pendant le processus de commande pour assurer une facturation correcte.

Paiement sécurisé et garantie

Paiement crypté : Achetez en toute confiance via Shopify Payments ou PayPal Express pour des transactions entièrement sécurisées et conformes à la norme PCI.
Facturation flexible B2B : Pour les commandes d'infrastructures à grande échelle, nous proposons des options de virement bancaire direct (SEPA/SWIFT). Veuillez contacter notre équipe pour une facture pro forma.
Qualité garantie : Tout le matériel IoT professionnel est couvert par une garantie fabricant de 2 ans et un support technique de nos experts en ingénierie chez shopioT.

Livraison

Expédition mondiale fiable, suivie et rapide via FedEx Express. Votre matériel IoT professionnel est expédié depuis notre entrepôt basé dans l'UE sous 2 jours ouvrables.

Saisissez le nom de votre entreprise et un numéro de TVA intracommunautaire valide sur la page de paiement pour une transaction exonérée de TVA.

Description

The Milesight GS601 is a professional LoRaWAN® vape and smoke detector that identifies vaping and smoking events in real time and triggers both local and remote alerts — with no camera or microphone, so it protects privacy in sensitive spaces like restrooms.

A suite of embedded sensors simultaneously measures vape index, temperature, humidity, TVOC, PM1.0, PM2.5, and PM10, while built-in anti-water-vapour filtering suppresses false alarms from shower steam and other gas interference. When thresholds are exceeded, the GS601 sounds a 70 dB buzzer and LED alarm on-site and reports remotely over LoRaWAN®. A vibration sensor flags tampering, and NFC tap configuration enables tool-free setup. Designed for ceiling installation in schools, hotels, public buildings, and rental properties.

Core Capabilities

7-in-1 Multi-Sensor Detection Simultaneously monitors vape index, temperature, humidity, TVOC, PM1.0, PM2.5, and PM10 from a single ceiling-mounted device — comprehensive air-quality and vaping data without separate sensors per parameter.

Anti-Interference Smart Filtering Built-in algorithms suppress false alarms from water vapour (shower steam) and other gas interference, and report interference status separately — ensuring high-fidelity detection in humid restrooms and locker rooms.

Local & Remote Alarm with Tamper Detection A 70 dB buzzer and LED indicator give on-site alerts for vaping, burning conditions (temperature > 70°C or ΔT > 15°C within 15 s), and tampering via the built-in vibration sensor. Configurable buzzer hibernate periods prevent false alarms during installation or testing.

NFC Configuration & FUOTA Support Tool-free setup via NFC tap using the Milesight ToolBox app, with template-based bulk configuration and multicast control for large rollouts. Firmware Update Over the Air (FUOTA) and downlink commands enable ongoing remote management.

Typical Applications

School & University Restrooms: Detect vaping in student bathrooms, locker rooms, and changing areas without compromising privacy — no audio or video capture. Real-time alerts notify staff for rapid response and incident logging.

Hospitality & Hotel Rooms: Enforce smoke-free policies across hotels, B&Bs, and serviced apartments. The GS601 alerts management to smoking events for accurate room status and cleaning-charge enforcement.

Public Buildings & Workplaces: Monitor non-smoking compliance in office restrooms, stairwells, healthcare and government buildings, and transport hubs — with audit-ready remote logging via LoRaWAN®.

Multi-Dwelling & Rental Properties: Detect unauthorised smoking and vaping in apartments, dormitories, and short-term rentals to protect property, enforce lease terms, and trigger early fire-risk alerts via burning detection.

Technical Integration

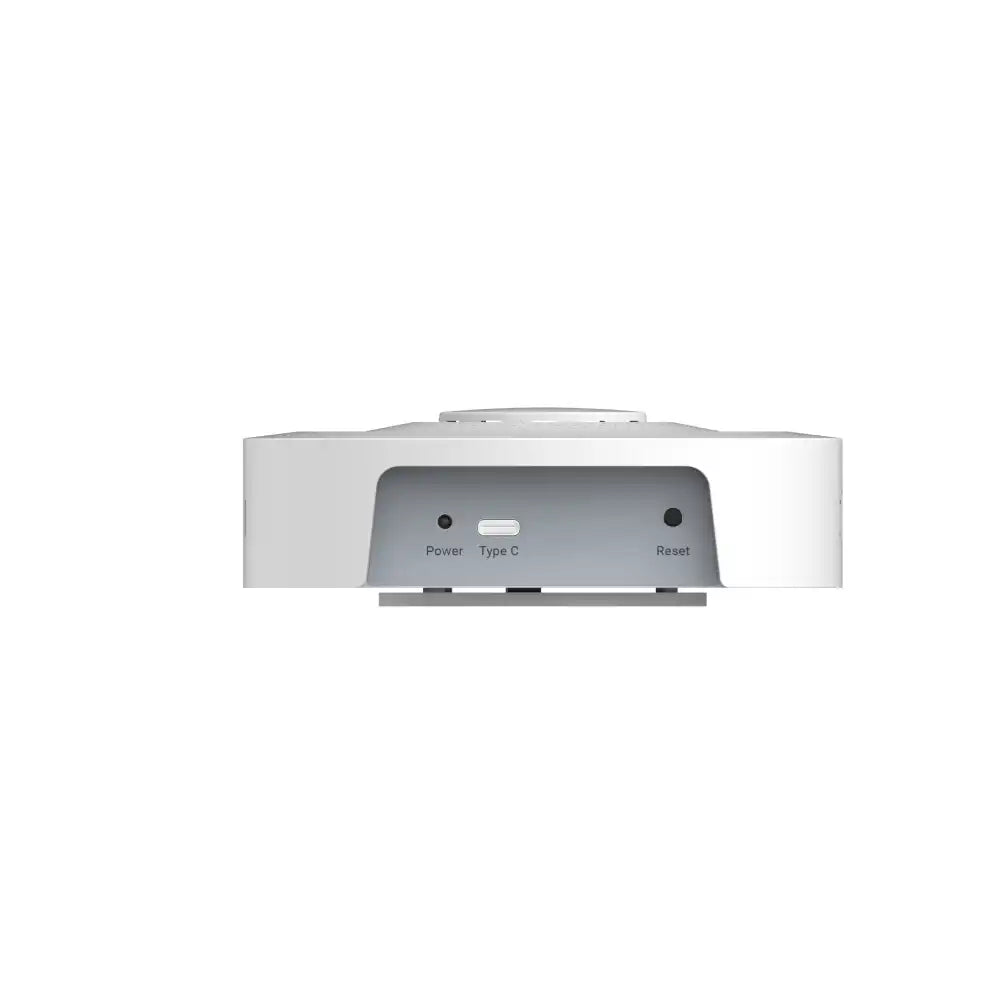

The GS601 operates on LoRaWAN® Class C with OTAA or ABP join modes across EU868, US915, AU915, AS923, KR920, IN865, and RU864 bands. Power is supplied via USB Type-C (5V/1A) using the included adapter, or optionally via a PoE splitter for sites with Ethernet infrastructure. It integrates natively with Milesight LoRaWAN® gateways (UG65, UG67) and the Milesight Development Platform for visualisation, threshold alerts, and bulk template configuration, and is compatible with standard LoRaWAN® network servers including The Things Network, ChirpStack, and AWS IoT Core. Recommended ceiling mounting height is 2.4–3 m. For deployment sizing, gateway selection, or platform integration, contact the ShopIoT technical team.

What's in the Box

1×GS601 Vape Detector

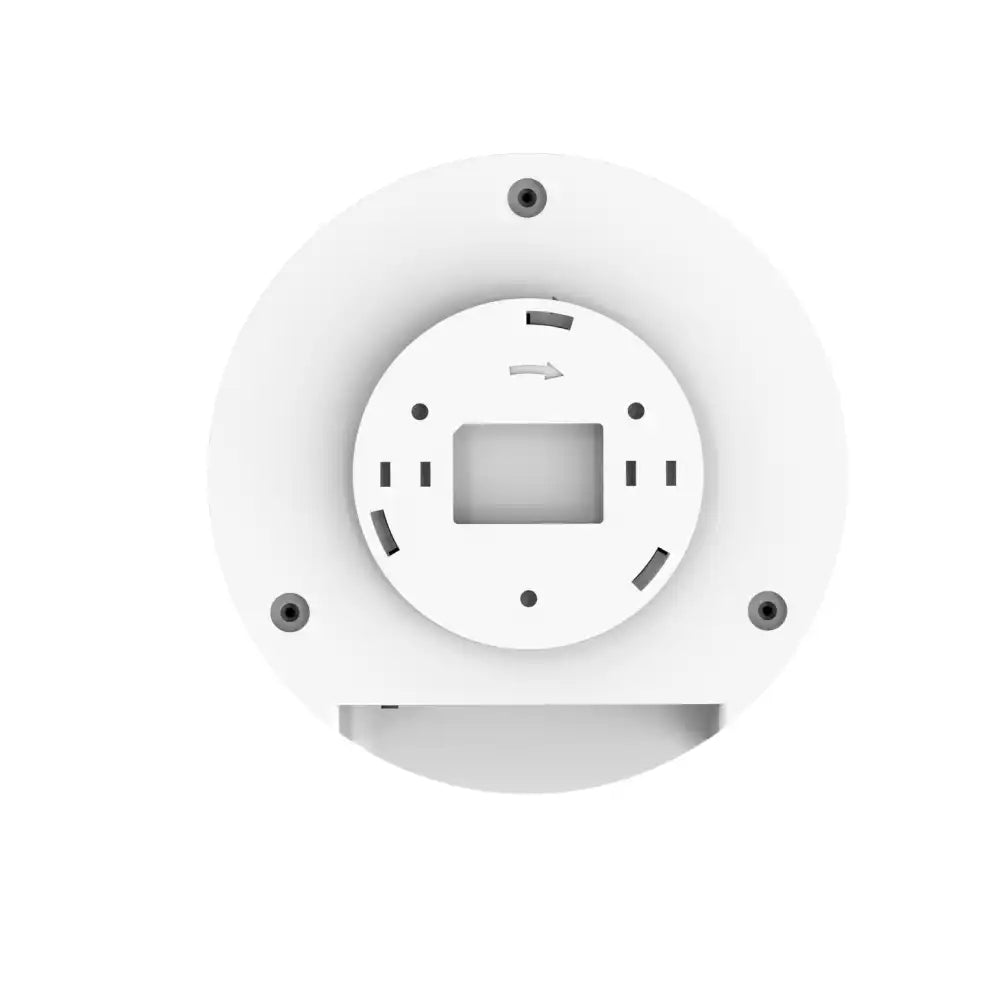

4×Ceiling Mounting Kits

1×USB Type-C Cable (1.2 m) & Power Adapter

1×PoE Splitter (optional)

1×Quick Guide

1×Warranty Card

Note: a LoRaWAN® gateway is required for remote reporting and is sold separately.

Frequently Asked Questions

Does the GS601 record audio or video?

No. The GS601 has no camera or microphone — it detects air-quality and vaping parameters only, so it protects privacy in restrooms and changing areas.

What does it detect?

Vape index, smoke, TVOC, temperature, humidity, and particulate matter (PM1.0, PM2.5, PM10), plus tampering and burning conditions.

Will shower steam cause false alarms?

No. Built-in anti-water-vapour filtering suppresses false alarms from steam and other gas interference, and reports interference status separately.

Does it need a LoRaWAN gateway?

Yes. The GS601 reports over LoRaWAN® (Class C) and works with standard gateways and network servers (e.g. The Things Network, ChirpStack) and Milesight UG65/UG67. A gateway is sold separately.

How is it powered?

Via the included USB Type-C power adapter (5V/1A), or optionally through a PoE splitter where Ethernet is available.

Where should it be installed?

On the ceiling at 2.4–3 m height in areas where smoking may occur, ideally 30–70 cm from exhaust fans and away from doors, windows, and air vents. Plan roughly a 1.5 m detection radius per device.

Certifications

FCC

RoHS

Planning a vape-detection rollout?

Talk to our IoT specialists, or explore the hardware you'll need.

Talk To Our IoT Team Shop LoRaWAN Gateways Browse Air Quality Sensors

Spécifications

Protocole de communication principal

LoRaWAN
Fréquence/Région

EU868
Type d'antenne

Internal
Méthode de configuration

NFC, Downlink
Méthode d'activation

OTAA, ABP
Classement environnemental

Indoor
Indice de protection (IP)

IP30
Température de fonctionnement

-5°C to +45°C
Matériau du boîtier

PC (Polycarbonate)
Consommation électrique

5V / 1A (Type-C powered)
Technologie de mesure
- Digital CMOSens® MEMS — temperature & humidity
- Laser Scattering — vape index, PM1.0/2.5/10
- MOX (MEMS) — TVOC
- Vibration sensor — tampering
Plage de mesure
- Temperature: −20°C to +60°C
- Humidity: 0% to 100% RH
- Vape Index: 0 to 100
- PM1.0 / PM2.5 / PM10: 0 to 1,000 μg/m³
- TVOC: 0 to 2,000 μg/m³
Précision de mesure
- Temperature: ±0.2°C
- Humidity: ±2% RH
- Vape Index: ±10
- PM1.0/2.5: ±10 μg/m³ (0–100); ±10% (100–1000)
- PM10: ±25 μg/m³ (0–100); ±25% (100–1000)
- TVOC: 20 μg/m³ ±15% (1–500 μg/m³)
Résolution de mesure
- Temperature: 0.1°C
- Humidity: 0.5% RH
- Vape Index: 1
- PM1.0 / PM2.5 / PM10: 1 μg/m³
- TVOC: 1 μg/m³
Interfaces (E/S)

USB Type-C, NFC
Paramètres de surveillance

TVOC (Total Volatile Organic Compounds), PM2.5 (Particulate Matter), PM10 (Particulate Matter)

Bibliothèque de documents

GS601 Datasheet

GS601 User Manual

Payload Decoder

Firmware & SDK Download
