Milesight  |  SKU : TS602-L0DEU

Milesight TS602 | IP67 Cellular Temperature & Humidity Sensor with OLED Display

€103,00
Frais de livraison calculés lors du paiement.

An IP67 cellular temperature and humidity sensor with OLED display and multi-probe support for cold chain, pharma, and industrial IoT.

  • Display & Probes: OLED Screen | PT100, DS18B20 & TH Probe Support
  • Connectivity: LTE Cat.1 | MQTT, TCP, UDP & AWS IoT Core
  • Protection: IP67 Food-Grade Enclosure | -35°C to +70°C Range

Option de transaction hors TVA

Notre boutique affiche les prix hors TVA par défaut. Pour les entreprises basées dans l'UE et disposant d'un numéro de TVA valide, les exonérations de TVA intracommunautaire s'appliquent. Vous pouvez valider votre numéro de TVA pendant le processus de commande pour assurer une facturation correcte.

Paiement sécurisé et garantie
  • Paiement crypté : Achetez en toute confiance via Shopify Payments ou PayPal Express pour des transactions entièrement sécurisées et conformes à la norme PCI.
  • Facturation flexible B2B : Pour les commandes d'infrastructures à grande échelle, nous proposons des options de virement bancaire direct (SEPA/SWIFT). Veuillez contacter notre équipe pour une facture pro forma.
  • Qualité garantie : Tout le matériel IoT professionnel est couvert par une garantie fabricant de 2 ans et un support technique de nos experts en ingénierie chez shopioT.

Livraison

Expédition mondiale fiable, suivie et rapide via FedEx Express. Votre matériel IoT professionnel est expédié depuis notre entrepôt basé dans l'UE sous 2 jours ouvrables.

Saisissez le nom de votre entreprise et un numéro de TVA intracommunautaire valide sur la page de paiement pour une transaction exonérée de TVA.

Description

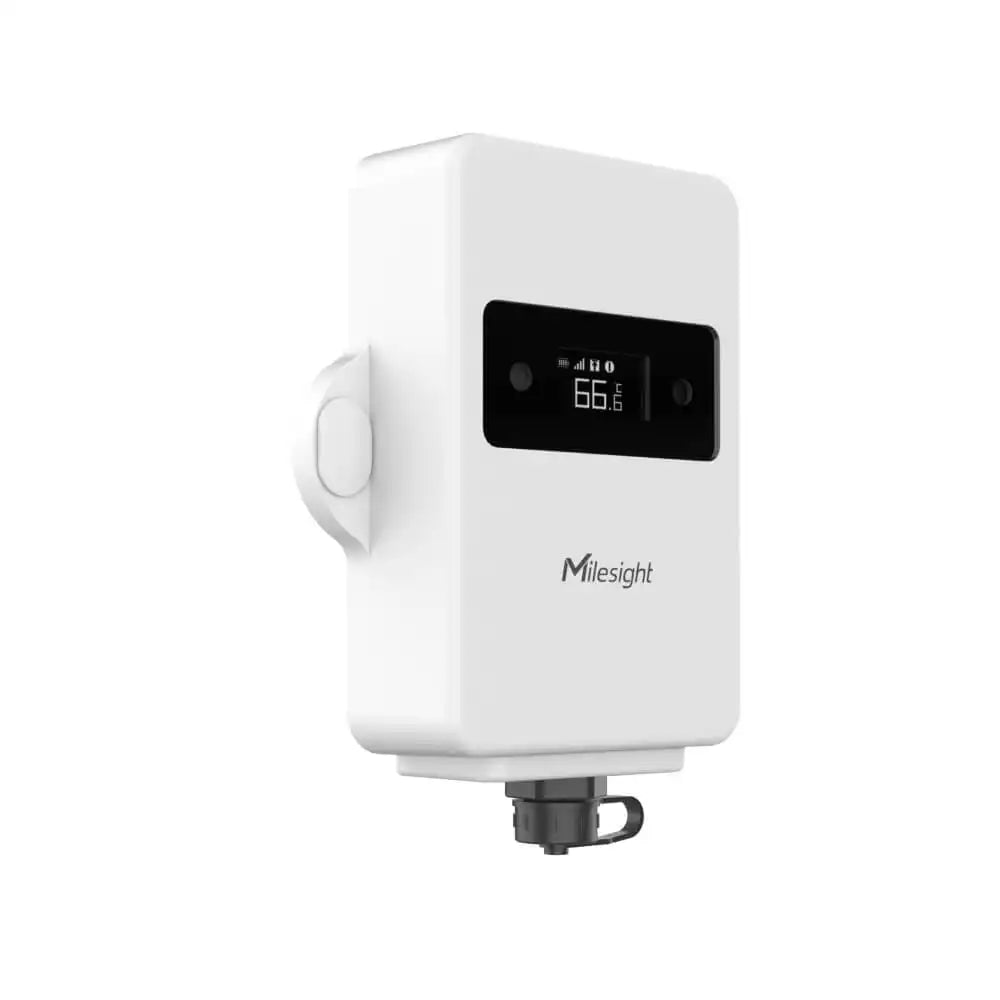

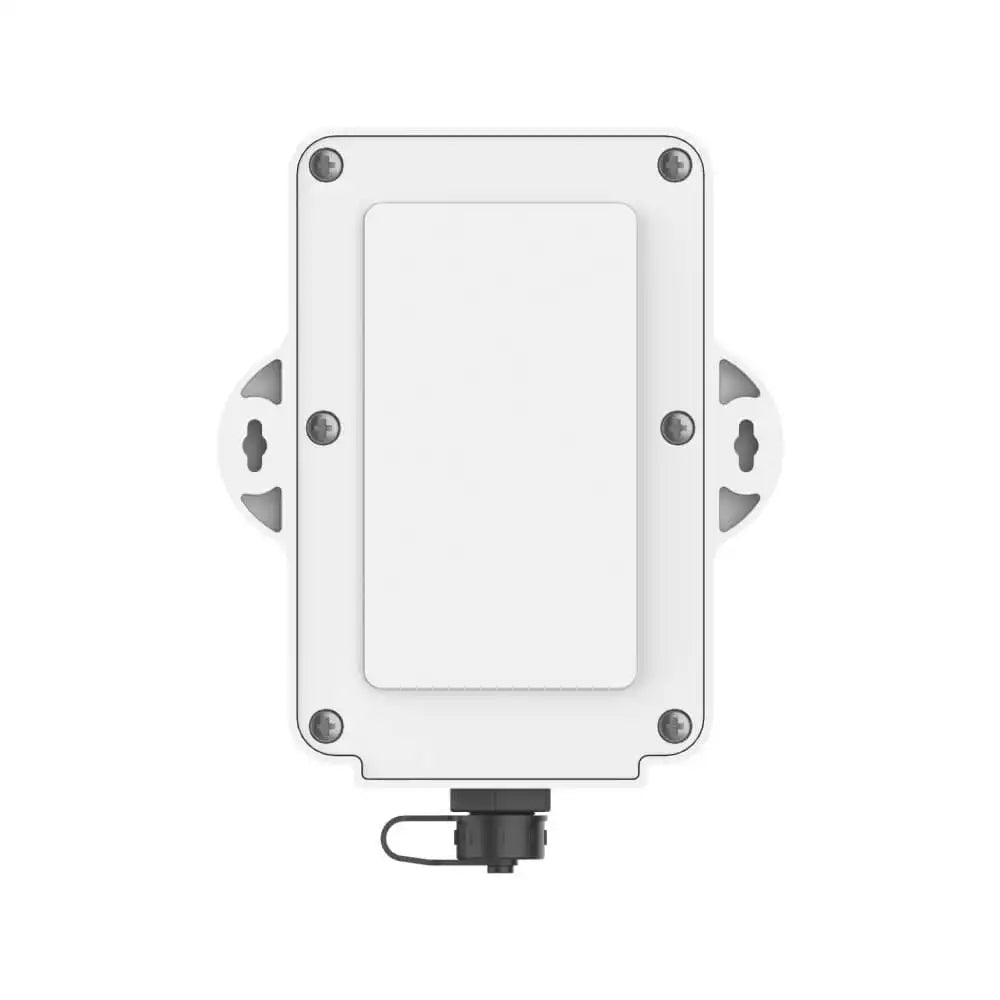

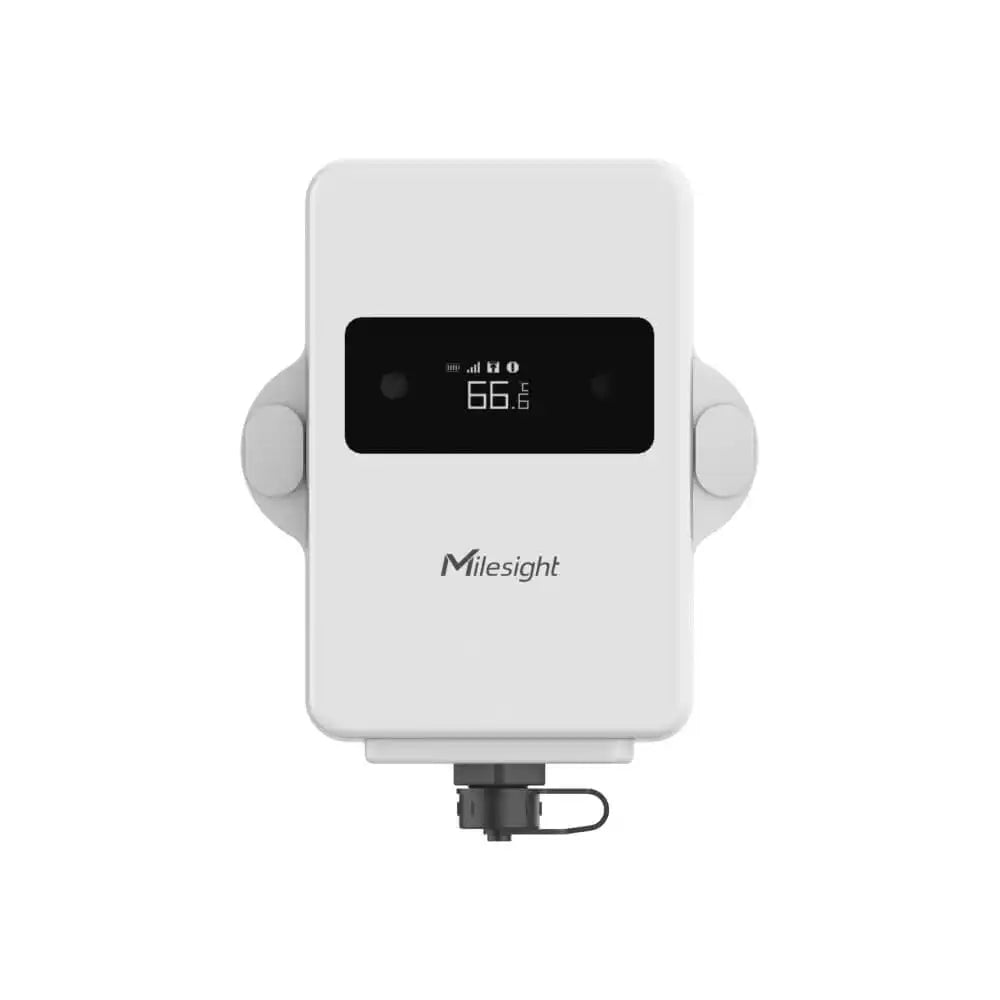

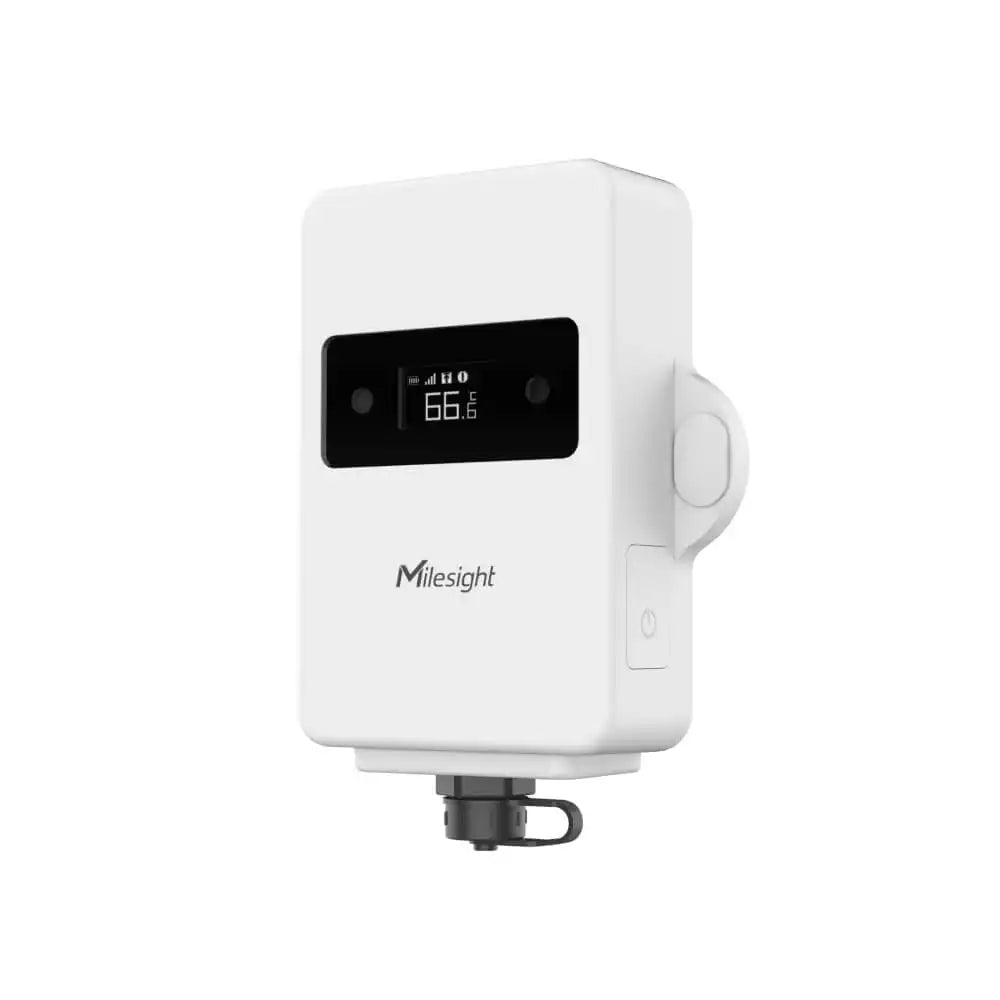

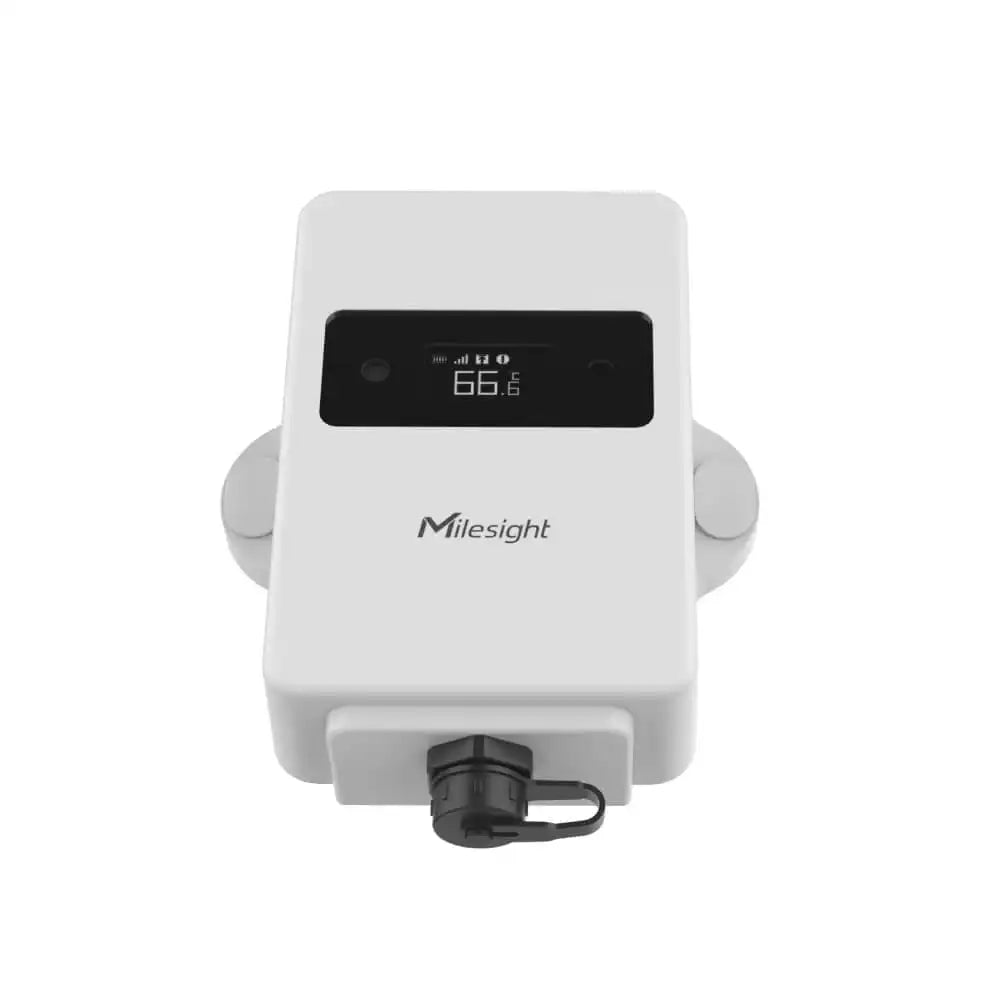

The Milesight TS602 is a compact, IP67-rated cellular temperature and humidity sensor engineered for precise environmental monitoring across cold chain logistics, food storage, pharmaceutical transport, and industrial applications. Powered by LTE Cat.1 connectivity and featuring a 0.96-inch OLED display for real-time on-device data readout, the TS602 supports a versatile range of optional external probes — including PT100, DS18B20, and TH sensors — enabling deployment across demanding temperature ranges from -200°C to +500°C. Built with a food-grade ABS+PC enclosure, it allows direct contact with food and pharmaceutical products without contamination risk, while NFC-based configuration via the Milesight ToolBox app keeps field deployment fast and toolless.

Core Capabilities

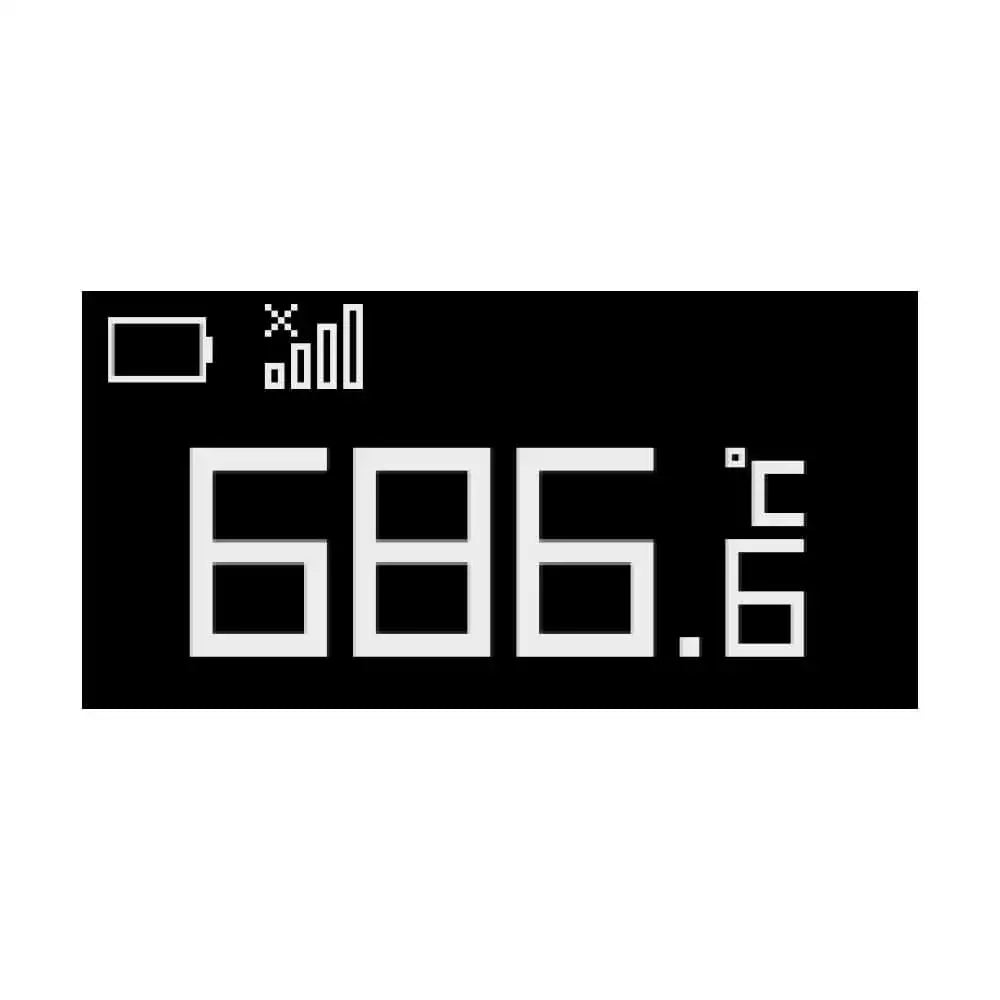

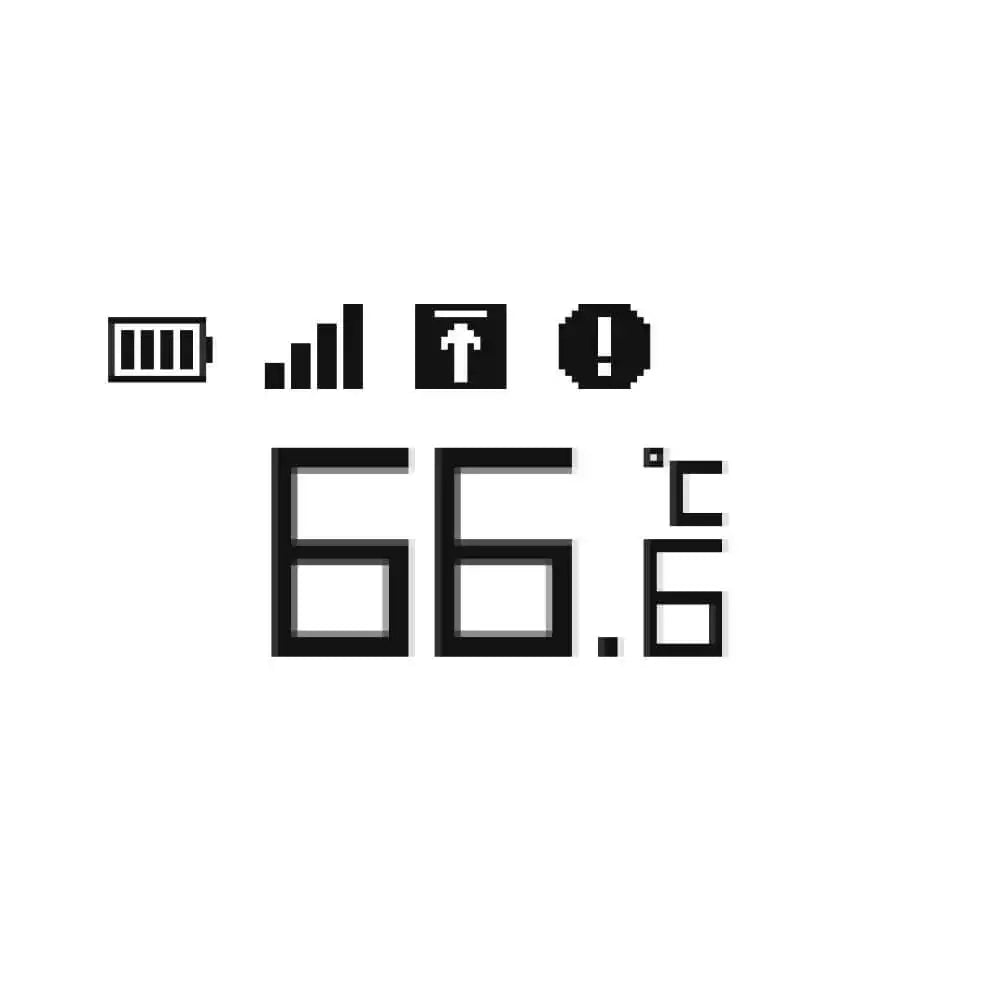

OLED Display & Probe Flexibility0.96-inch OLED for live T&H readout. Supports PT100, DS18B20, and TH external probes via 5-pin M12 connector.
Multi-Platform LTE ConnectivityLTE Cat.1 backhaul with support for TCP, UDP, MQTT, AWS IoT Core, and Milesight Development Platform.
Advanced Alarm IntelligenceConfigurable temperature/humidity threshold alarms, shift alarms, light alarm for case opening detection, tilt, and drop alarms.
Data Integrity & ResilienceLocal storage of up to 5,000 entries with automatic data retransmission after network recovery to prevent data loss.

Industrial Applications

•Cold Chain Logistics: Monitor temperature and humidity in real time during road and air transport of pharmaceuticals, vaccines, perishables, and food products, with full data traceability.
•Pharmaceutical & Food Storage: Ensure regulatory compliance for temperature-controlled storage environments using food-grade certified enclosure materials.
•Industrial Process Monitoring: Deploy with PT100 probes for high-accuracy measurement in industrial applications ranging from cryogenic conditions to high-temperature processes up to +500°C.
•Asset & Shipment Tracking: Leverage built-in base station positioning, 3-axis accelerometer, and light sensor for cargo monitoring, tamper detection, and door opening alerts.

Technical Integration

The TS602 is configured wirelessly via NFC using the Milesight ToolBox mobile application, requiring no tools or physical connections in the field. It supports OTA firmware upgrades and remote management through both the Milesight Development Platform and AWS IoT Core. Flight mode compliance ensures safe operation on air freight shipments. The optional Glass Bead Thermal Buffer Bottle kit improves measurement stability in freezers and refrigerators. For probe selection, deployment planning, or integration guidance, contact the ShopIoT technical team.

Certifications

CE
RoHS

Certification details confirmed on official Milesight product page (www.milesight.com).

What's in the Box

1 × TS602 Device
1 × Temperature (Humidity) Probe
2 × Wall Screw Mounting Kits
2 × Screw Caps
1 × Cable Tie (3.6×500mm)
1 × 3M Tape
1 × Quick Guide
1 × Warranty Card
Glass Bead Thermal Buffer Bottle Kit (Optional)

Spécifications
  • Protocole de communication principal
    4G LTE
  • Fréquence/Région
    LTE-FDD: B1/B3/B5/B7/B8/B20/B28 (EMEA + Australia/New Zealand)
  • Type d'antenne
    Internal
  • Méthode de configuration
    NFC
  • Méthode d'activation
    Pre-Provisioned
  • Classement environnemental
    Outdoor, Industrial
  • Indice de protection (IP)
    IP67
  • Température de fonctionnement
    -35°C to +70°C
  • Matériau du boîtier
    ABS Plastic, PC (Polycarbonate)
  • Type de batterie
    Li-MnO2
  • Capacité de la batterie
    5000mAh
  • Consommation électrique
    Battery-powered LTE Cat.1 — approx. 4.8 year battery life (6 reports/day, 8 packages/report, 30-min interval, -20°C, positioning disabled)
  • Technologie de mesure

    • Temperature & Humidity (built-in): Digital CMOSens® technology (MEMS)
    • Temperature (PT100 probes): PT100 (RTD)
    • Temperature (DS18B20 probe): Digital Temperature Sensor
    • Light: Photoelectric
    • Position/Tilt: 3-axis accelerometer

  • Plage de mesure

    Built-in sensor:
    • Temperature: -35°C to +70°C
    • Humidity: 0% to 100% RH
    • Light: 0 to 600 Lux
    • Tilt: -90° to +90° (X, Y, Z axes)

    Optional probes (TS602):
    • PT100 Regular / Food Grade: -40°C to +125°C
    • PT100 Low Temperature: -200°C to +50°C
    • PT100 Industrial: -50°C to +500°C
    • DS18B20: -40°C to +125°C
    • TH Probe — Temp: -40°C to +125°C / Humidity: 0% to 100% RH

  • Précision de mesure

    Built-in sensor:
    • Temperature: ±0.3°C (-35°C to 0°C), ±0.2°C (0°C to 65°C), ±0.5°C (65°C to 70°C)
    • Humidity: ±2% RH (at 25°C)

    External Probes:

    • PT100 Regular (SP11-B05): ±0.5°C (-40°C to 40°C), ±1°C (40°C to 125°C)
    • PT100 Food Grade (SP11-AF10): ±0.4°C
    • PT100 Low Temp (SP11-A03): ±0.5°C (-175°C to 50°C), ±0.55°C (-200°C to -175°C)
    • PT100 Industrial (SP11-A05): ±0.4°C (-50°C to 125°C), ±1.15°C (125°C to 500°C)
    • DS18B20 (SP12): ±0.5°C (-10°C to 85°C), ±2°C (-40°C to -10°C and 85°C to 125°C)
    • TH Probe (SP13) — Temp: ±0.3°C (-40°C to 0°C), ±0.2°C (0°C to 65°C), ±0.5°C (65°C to 125°C) / Humidity: ±2% RH
  • Résolution de mesure

    • Temperature (built-in): ±0.1°C
    • Humidity (built-in): ±0.1% RH
    • Temperature (all optional probes): ±0.1°C
    • Humidity (TH probe): ±0.1% RH

  • Interfaces (E/S)
    USB Type-C, Nano SIM Slot, M12/F 5-pin Connector
  • Paramètres de surveillance
    Temperature, Humidity, Power Status, Battery Voltage

Bibliothèque de documents

TS602 Datasheet

TS602 User Manual
