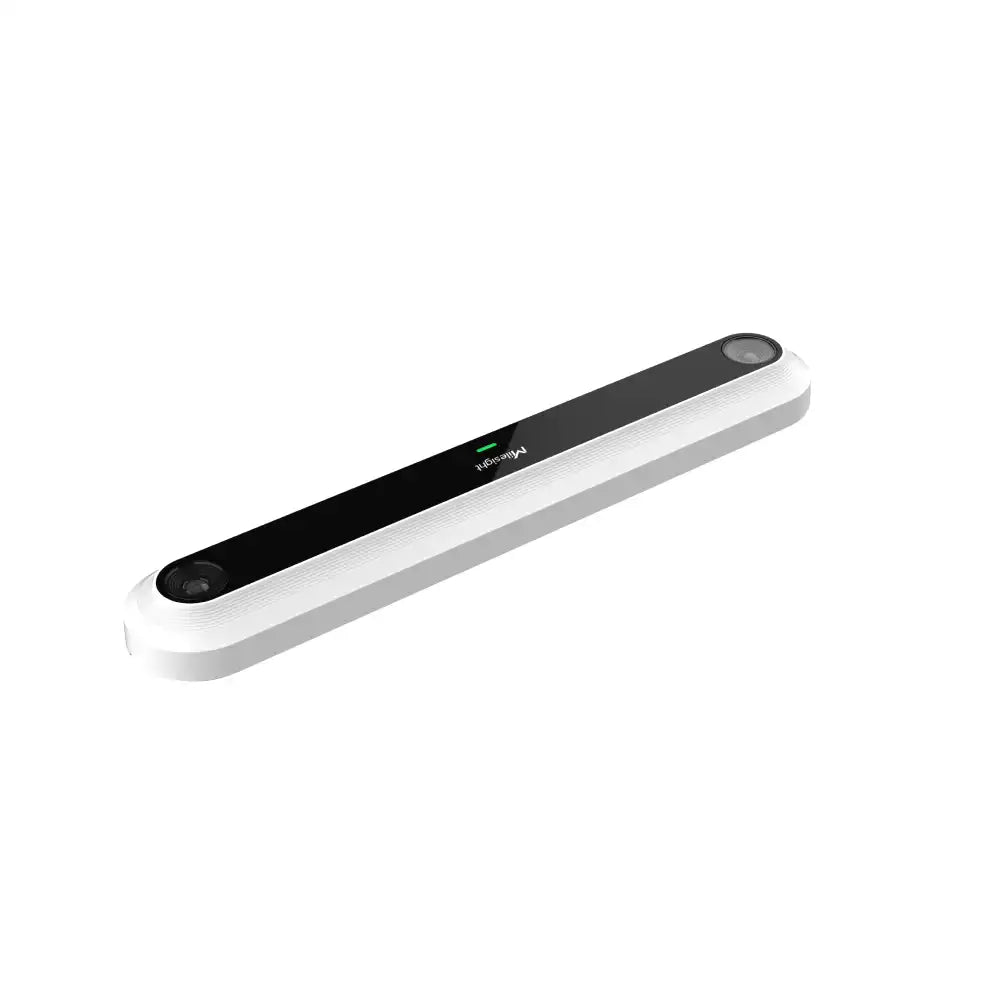

Milesight VS126 | AI Ultra High-Mount People Counter (6-15 m)

€963,00

Versand wird beim Checkout berechnet.

The Milesight VS126 is an AI stereo-vision people counter for very high ceilings, mounting from 6 to 15 metres.

Ultra high-mount: built for 6-15 m ceilings with up to 99.8% counting accuracy.
Day or night: 5MP binocular stereo vision works in low light and total darkness.
Flexible & private: PoE or 4G, heat maps, RS485/DI/DO and GDPR privacy.

Connectivity

Color

Mehrwertsteuerfreie Transaktionsoption

Unser Shop zeigt die Preise standardmäßig ohne Mehrwertsteuer an. Für Unternehmen mit Sitz in der EU und einer gültigen Umsatzsteuer-Identifikationsnummer gelten innergemeinschaftliche Umsatzsteuerbefreiungen. Sie können Ihre Umsatzsteuer-Identifikationsnummer während des Bezahlvorgangs überprüfen, um eine korrekte Abrechnung sicherzustellen.

Sichere Zahlung & Garantie

Verschlüsselter Checkout: Kaufen Sie vertrauensvoll über Shopify Payments oder PayPal Express für vollständig sichere, PCI-konforme Transaktionen ein.
B2B Flexible Abrechnung: Für Großbestellungen von Infrastruktur bieten wir Direkte Banküberweisungsoptionen (SEPA/SWIFT) an. Bitte kontaktieren Sie unser Team für eine Proforma-Rechnung.
Qualität garantiert: Alle professionellen IoT-Hardware wird durch eine 2-jährige Herstellergarantie und technischen Support unserer Engineering-Experten bei shopioT abgesichert.

Lieferung und Versand

Zuverlässiger, verfolgbarer und schneller globaler Versand über FedEx Express. Ihre professionelle IoT-Hardware wird innerhalb von 2 Werktagen aus unserem EU-Lager versandt.

Geben Sie Ihren Firmennamen und eine gültige EU-USt-IdNr. auf der Checkout-Seite für eine mehrwertsteuerfreie Transaktion ein.

Beschreibung

The Milesight VS126 is a professional AI ultra high-mount people counter engineered for installations between 6 and 15 metres. Using 5MP binocular stereo vision and deep-learning AI, it delivers up to 99.8% counting accuracy even in low light or complete darkness, with built-in privacy that complies with GDPR.

Flexible PoE or 4G cellular connectivity and RS485, DI and DO interfaces make it easy to integrate with access control, digital signage and building-management platforms - ideal for high-ceiling spaces such as airports, shopping malls, libraries and stadiums.

Key Features

Made for High CeilingsCounts accurately from 6 to 15 m mounting height, covering large open areas other counters can't reach.

99.8% AI Stereo Vision5MP binocular stereo vision and deep-learning AI count reliably in low light and total darkness with IR illumination.

Flexible ConnectivityChoose PoE or 4G cellular, with RS485, DI and DO interfaces and Wi-Fi AP-mode setup for easy integration.

Analytics & PrivacyLine-crossing and regional counting, dwell time, heat maps and up to 16-device stitching - GDPR-compliant, no personal data transmitted.

Typical Applications

•Airports & transport hubs: count passengers across large, high-ceiling concourses.

•Malls & libraries: measure footfall and dwell for space utilisation and staffing.

•Stadiums & large venues: monitor crowd flow and occupancy across wide areas.

Available Models

Model	Connectivity	Power
VS126-P	PoE (Ethernet RJ45)	802.3af PoE or DC 12V/1A
VS126-L0EGL	4G LTE Cat 1 (global bands), Nano SIM	DC 12V/1A

Technical Integration

•Sensing: 2 × 5MP binocular stereo vision with deep-learning AI; up to 99.8% accuracy; 0 lux with IR illuminators

•Coverage: Installation height 6 to 15 m; detection area up to 10.40 × 7.80 m; up to 4 lines and 4 regions

•Connectivity: PoE (RJ45 10/100) on VS126-P, or 4G LTE Cat 1 (global) with Nano SIM on VS126-L0EGL; Wi-Fi AP mode for setup

•Interfaces: 1 × RS485, 1 × DI, 2 × DO and RJ45; managed via the Milesight Development Platform

•Data: HTTP(s)/MQTT(s) and API; 8 GB local storage (up to 1M records, CSV export) with data retransmission; up to 16-device stitching

•Power: 802.3af PoE or DC 12V/1A (VS126-P); DC 12V/1A (VS126-L0EGL)

•Environment: Operating -20 to +60 °C; humidity 0-95% non-condensing; IP40 (indoor)

•Privacy: GDPR-compliant; customer-defined preview settings, no personal data transmitted

•Setup help: For high-ceiling coverage planning or platform integration, contact the shopioT technical team

What's in the Box

1×VS126 Device

4×Ceiling Mounting Kits

1×Multi-interface Cable

1×Warranty Card

1×Quick Guide

Cellular model also includes a power adapter. SIM card not included.

Frequently Asked Questions

What mounting heights does it support?

The VS126 is designed for high-ceiling installation from 6 to 15 m, with a detection area up to 10.40 × 7.80 m.

What is the difference between VS126-P and VS126-L0EGL?

VS126-P connects over PoE/Ethernet; VS126-L0EGL uses 4G LTE Cat 1 cellular (global bands) with a Nano SIM. Both share the same AI counting engine.

Does it work in the dark?

Yes - up to 99.8% accuracy in low light and complete darkness thanks to 5MP stereo vision with IR illumination.

Is it GDPR compliant?

Yes. Preview privacy settings are customer-defined and no data containing personal information is transmitted.

Counting in High-Ceiling Spaces?

Talk To Our IoT Team Browse People Counters Shop Milesight

Spezifikation

Primäres Kommunikationsprotokoll

Ethernet (PoE), 4G LTE
Frequenz/Region

Global
Antennentyp

Internal
Konfigurationsmethode

Wi-Fi Access Point (AP) Mode, Web GUI (HTTP/HTTPS)
Umgebungsbewertung

Indoor
IP-Schutzart

IP40
Betriebstemperatur

-20°C to 60°C
Stromverbrauch

PoE version: avg 8.0 W (max 11.3 W), Cellular version: avg 5.4 W (max 7.9 W)
Messtechnologie

Two 5MP binocular (dual-lens) stereo-vision sensors with deep-learning AI build a 3D depth view of the scene to count and classify people with up to 99.8% accuracy, including in low light and complete darkness using IR illumination.
Messbereich
- Installation height: 6 to 15 m
- Detection area: up to 10.40 x 7.80 m (at 10 m height)
- Counting zones: up to 4 bi-directional lines and 4 regional areas
- Multi-device stitching: up to 16 devices
Messgenauigkeit

Up to 99.8% people-counting accuracy.
Schnittstellen (E/A)

Ethernet (RJ45), RS485 (Modbus RTU), Digital Input (Dry Contact), Digital Output (Relay), Nano SIM Slot
Überwachungsparameter

People Counting (AI/ToF), People In, People Out, Heat Map

Dokumentenbibliothek

VS126 Datasheet

VS126 User Manual
