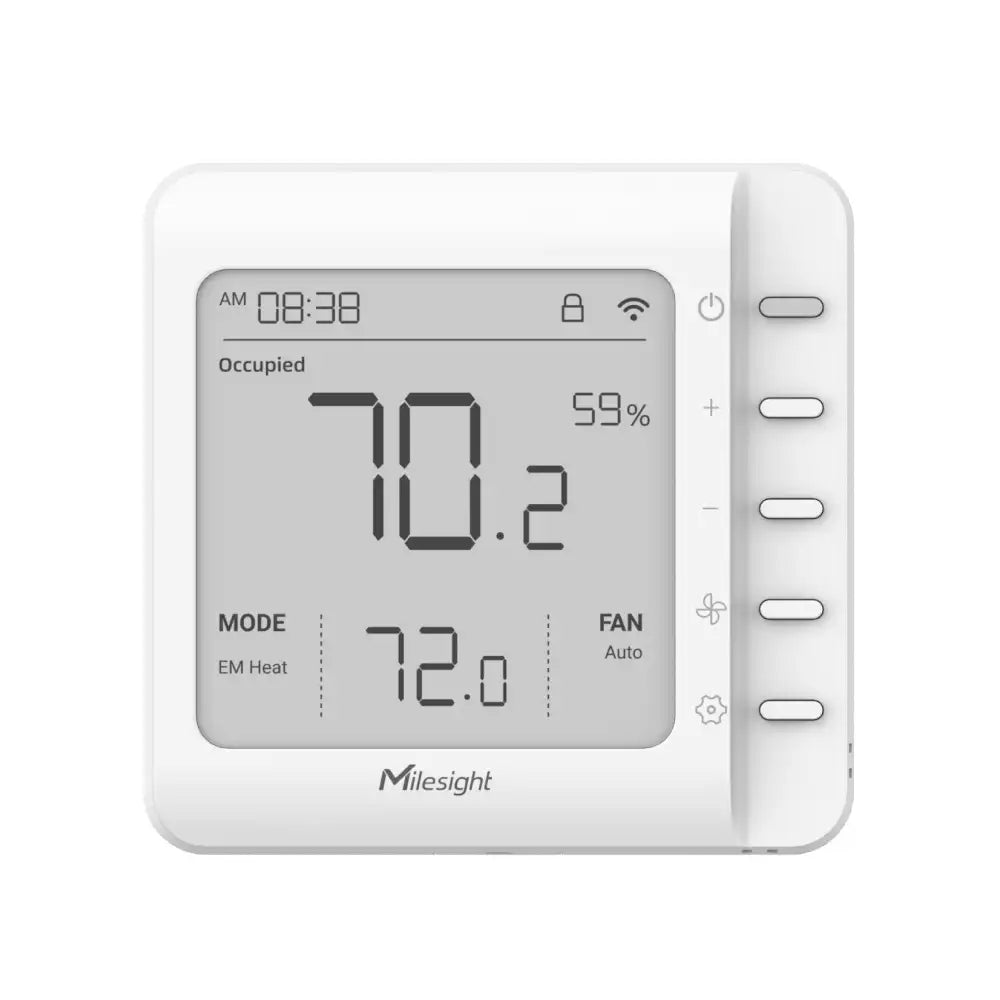

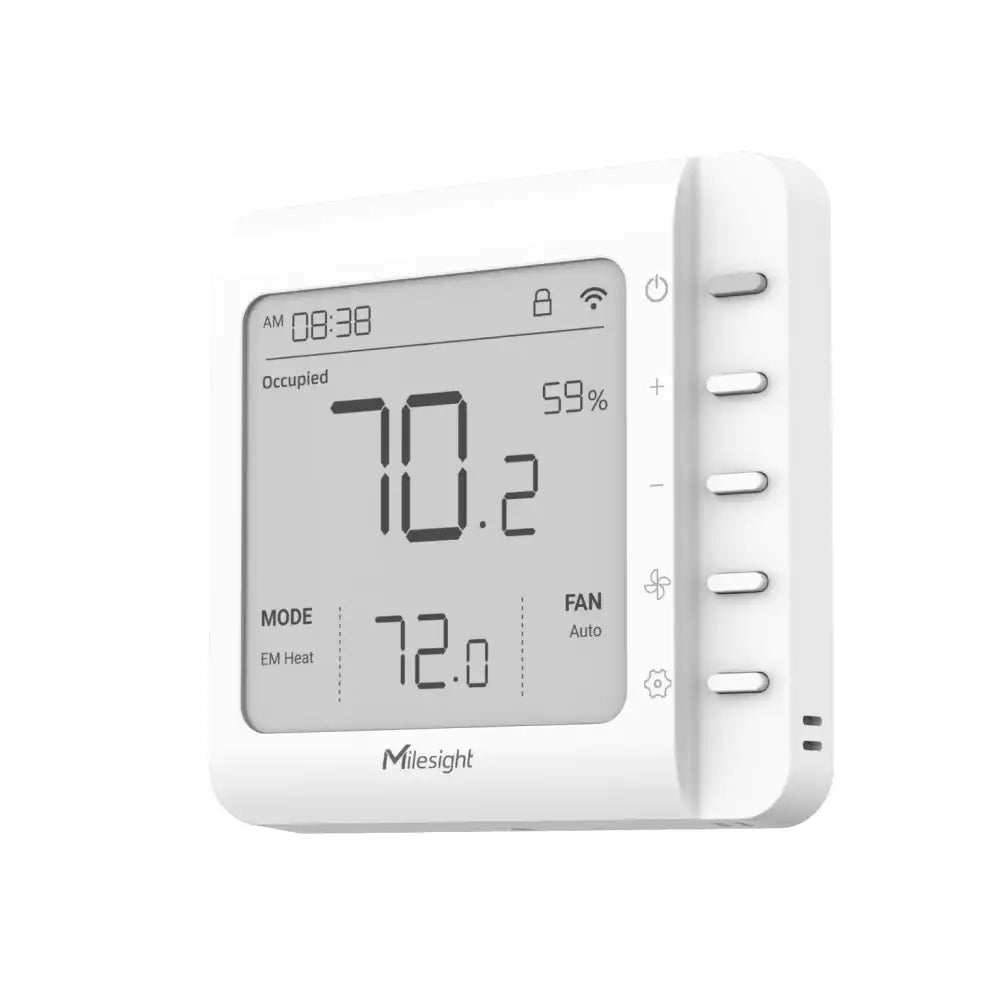

Milesight WT211 | LoRaWAN Smart HVAC Thermostat with LCD (24VAC)

€139,00

Versand wird beim Checkout berechnet.

The Milesight WT211 is a LoRaWAN smart thermostat that controls most 24VAC HVAC systems with a clear LCD display.

Wide HVAC support: heat pumps, AC, furnaces, boilers and PTAC on 24VAC.
4.2-inch LCD: shows room temperature, humidity and status at a glance.
Smart control: schedules, LoRaWAN, Milesight D2D and BACnet integration.

Frequency/Region

Mehrwertsteuerfreie Transaktionsoption

Unser Shop zeigt die Preise standardmäßig ohne Mehrwertsteuer an. Für Unternehmen mit Sitz in der EU und einer gültigen Umsatzsteuer-Identifikationsnummer gelten innergemeinschaftliche Umsatzsteuerbefreiungen. Sie können Ihre Umsatzsteuer-Identifikationsnummer während des Bezahlvorgangs überprüfen, um eine korrekte Abrechnung sicherzustellen.

Sichere Zahlung & Garantie

Verschlüsselter Checkout: Kaufen Sie vertrauensvoll über Shopify Payments oder PayPal Express für vollständig sichere, PCI-konforme Transaktionen ein.
B2B Flexible Abrechnung: Für Großbestellungen von Infrastruktur bieten wir Direkte Banküberweisungsoptionen (SEPA/SWIFT) an. Bitte kontaktieren Sie unser Team für eine Proforma-Rechnung.
Qualität garantiert: Alle professionellen IoT-Hardware wird durch eine 2-jährige Herstellergarantie und technischen Support unserer Engineering-Experten bei shopioT abgesichert.

Lieferung und Versand

Zuverlässiger, verfolgbarer und schneller globaler Versand über FedEx Express. Ihre professionelle IoT-Hardware wird innerhalb von 2 Werktagen aus unserem EU-Lager versandt.

Geben Sie Ihren Firmennamen und eine gültige EU-USt-IdNr. auf der Checkout-Seite für eine mehrwertsteuerfreie Transaktion ein.

Beschreibung

The Milesight WT211 is a LoRaWAN smart thermostat and HVAC controller for most 24VAC heating and cooling systems - heat pumps, air conditioners (2H/2C), heat pumps (4H/2C or 3H/2C + 1-stage AUX), boilers, furnaces and PTAC. Its high-current relays (up to 3 A per channel, 5 A total) drive more demanding equipment than the standard WT201.

A 4.2-inch LCD shows room temperature, humidity and status, while a built-in temperature/humidity sensor enables accurate control. With heat/cool/auto and fan modes, 7 working modes and up to 16 schedules each, it offers precise comfort control - and integrates with hotel key-card systems, BACnet (via Milesight gateways), Milesight D2D and the Development Platform.

Key Features

Broad 24VAC HVAC SupportWorks with heat pumps, ACs, furnaces, boilers and PTAC; high-current relays (3 A/channel, 5 A total) for demanding loads.

Clear 4.2-Inch LCDA backlit segment LCD shows room temperature, humidity and system status at a glance.

Flexible Scheduling4 temperature and 3 fan modes, 7 working modes with up to 16 schedules each, plus freeze protection and dehumidify.

Connected ControlLoRaWAN and Milesight D2D, BACnet via Milesight gateways, multicast and FUOTA; integrates with hotel key-card systems.

Typical Applications

•Hotels & hospitality: room-by-room comfort with key-card integration and central management.

•Offices & commercial buildings: scheduled HVAC control for comfort and energy savings.

•BMS integration: bring HVAC zones into BACnet building-management systems via Milesight gateways.

Technical Integration

•HVAC compatibility: Most 24VAC systems: heat pumps, ACs (2H/2C), 4H/2C or 3H/2C + 1 AUX, boilers, furnaces, PTAC

•Relays: 24VAC, typ. 1 A; max 3 A per channel, 5 A total; terminals RC, RH, C, W1, W2/AUX, E, Y1, Y2, G, O/B and more

•Sensing: Built-in temperature (±0.5 °C) and humidity (±3% RH) sensor; external sensor mode

•Control modes: Heat, EM heat, Cool, Auto; fan Auto/On/Circulate; 7 working modes, up to 16 schedules each

•Connectivity: LoRaWAN (EU868, OTAA/ABP Class C) and Milesight D2D; BACnet via Milesight gateways; multicast; FUOTA

•Inputs & display: 1 x DI (dry contact) for key-card/magnet switches; 4.2-inch LCD; 5 buttons; child lock

•Power & build: 24VAC (±15%); < 1.2 W; PC+ABS (UL94 V0) housing; IP30; operating -20 to 60 °C; wall mounting

•Setup help: For HVAC wiring or BACnet integration, contact the shopioT technical team

What's in the Box

1×Smart Thermostat

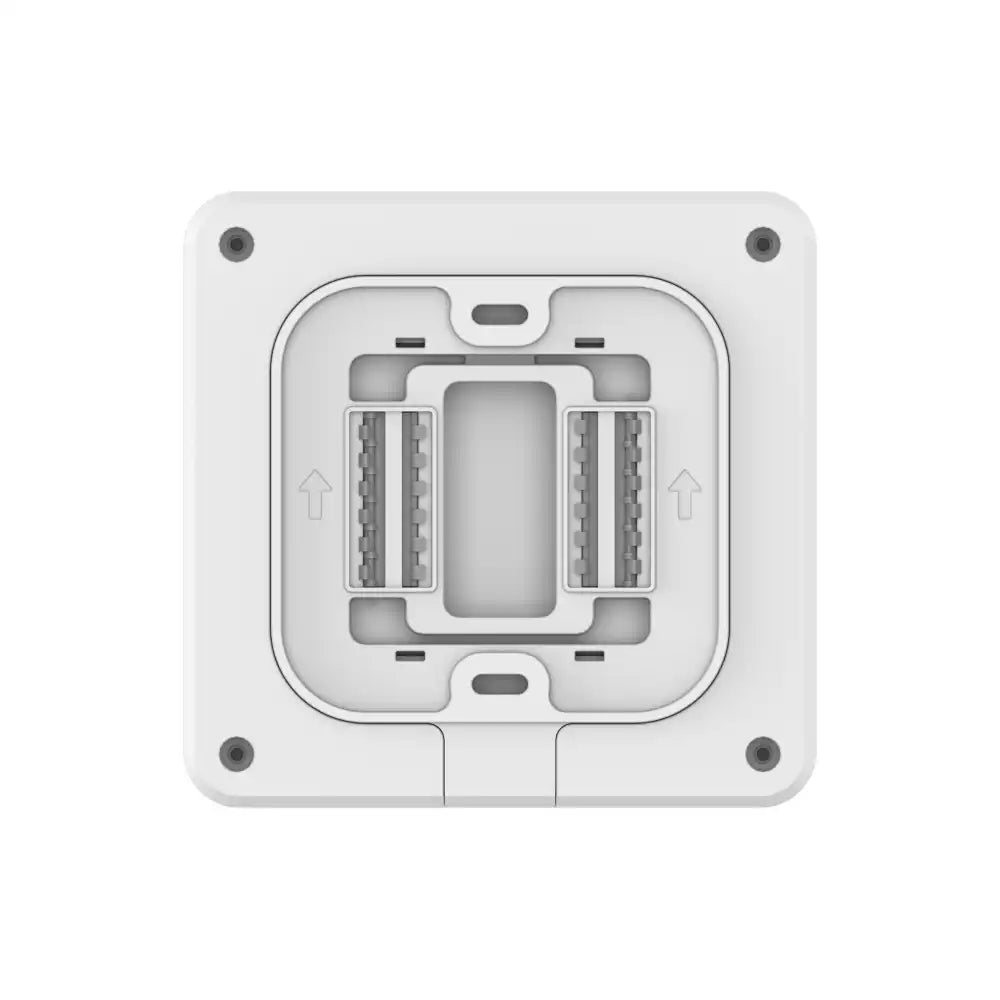

1×Wiring Backplate

1×Decorative Cover Plate

4×Wall Mount Kits

1×Fixing Screw

1×Wire Label Sticker

Frequently Asked Questions

What HVAC systems does it work with?

Most 24VAC systems - heat pumps, air conditioners (2H/2C), 4H/2C or 3H/2C + 1-stage AUX heat, boilers, furnaces and PTAC.

How is the WT211 different from the WT201?

The WT211 has higher-current relays (up to 3 A per channel, 5 A total) for more demanding HVAC equipment.

Can it integrate with a BMS?

Yes - it works with BACnet via Milesight LoRaWAN gateways, and supports Milesight D2D, multicast and the Development Platform.

Is it suitable for hotels?

Yes - it integrates with hotel key-card systems and a DI input for occupancy-based control.

Controlling HVAC & Comfort?

Talk To Our IoT Team Browse HVAC Control Shop Milesight

Spezifikation

Primäres Kommunikationsprotokoll

LoRaWAN, Milesight D2D
Frequenz/Region

EU868
Konfigurationsmethode

NFC, Downlink
Aktivierungsmethode

OTAA, ABP
Umgebungsbewertung

Indoor
IP-Schutzart

IP30
Betriebstemperatur

-20°C to 60°C
Gehäusematerial

ABS+PC
Stromverbrauch

< 1.2 W
Messtechnologie

A built-in digital MEMS temperature and humidity sensor monitors room conditions, while the thermostat drives 24VAC HVAC equipment through multiple relays for precise heating and cooling control.
Messbereich
- Temperature: -20 to 60 degrees C
- Humidity: 0 to 100% RH
Messgenauigkeit
- Temperature: +/-0.5 C (0-60 C), +/-1 C (-20-0 C)
- Humidity: +/-3% RH (40-85%), +/-5% RH (0-40% and 85-100%)
Messauflösung
- Temperature: 0.1 C (reported)
- Humidity: 0.5% RH (reported)
Schnittstellen (E/A)

Digital Input (Dry Contact), Dry Contact Relay (SPST NO), USB Type-C, Button
Überwachungsparameter

Temperature, Humidity

Dokumentenbibliothek

WT211 Datasheet

WT211 User Manual

Payload Decoder

Firmware & SDK Download
