SenseCAP  |  SKU: 114992981

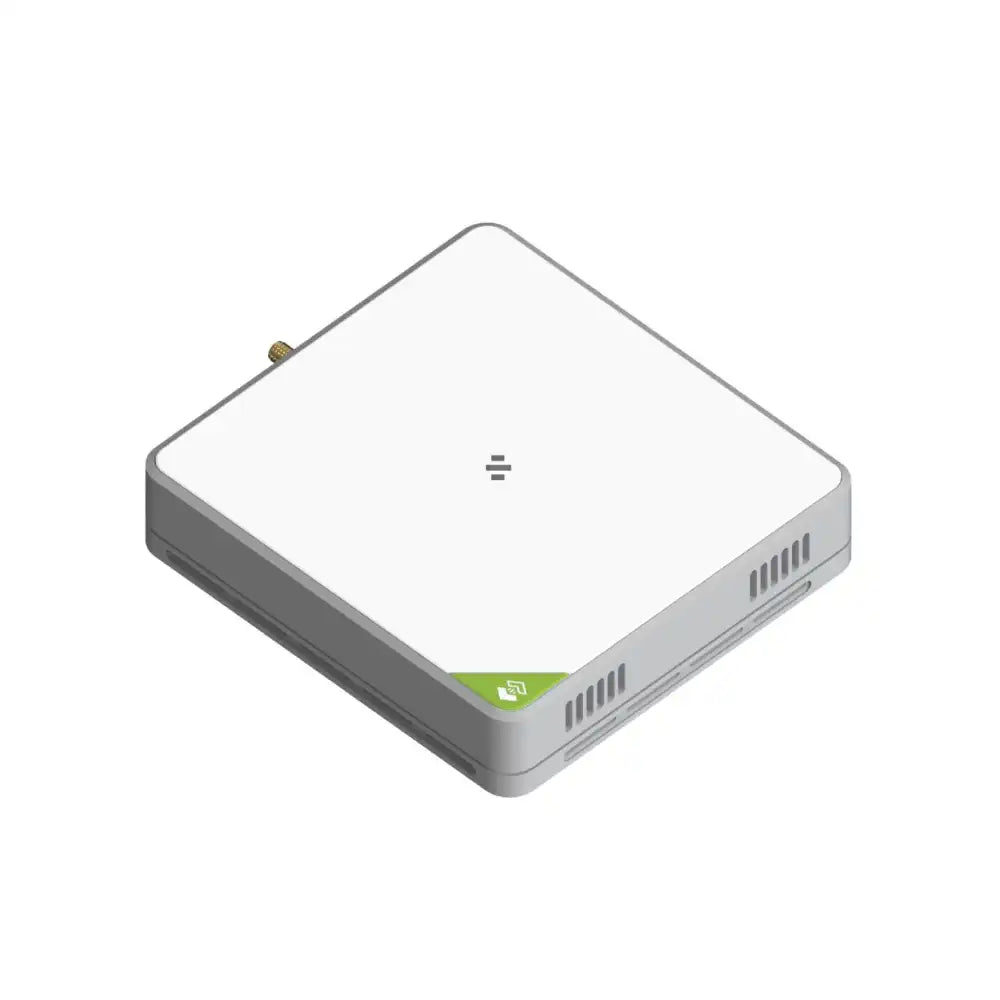

Seeed Studio SenseCAP M2 | Multi-Platform LoRaWAN® Indoor Gateway | SX1302, 8-Channel, Wi-Fi, Ethernet, PoE (Optional 4G)

€94,00
Shipping calculated at checkout.

The SenseCAP M2 is an open-source 8-channel LoRaWAN® indoor gateway (SX1302) with a built-in ChirpStack network server and multi-LNS support — Ethernet/PoE, Wi-Fi, and optional 4G.

  • Capacity: 8-Channel SX1302 | Class A/B/C | Up to 10 km Range
  • Network: Multi-LNS (TTN, ChirpStack, AWS) | Built-In NS | Open-Source
  • Connectivity: Ethernet (PoE) + Wi-Fi | Optional 4G | Web Setup

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Seeed Studio SenseCAP M2 is a fully customizable, open-source 8-channel LoRaWAN® indoor gateway built on the Semtech SX1302 chip and MT7628 platform. It provides up to 10 km of LoRaWAN coverage and connects to virtually any network server — ideal for smart building, environmental monitoring, and precision-farming deployments.

It supports multiple LoRaWAN network servers (AWS, TTN, ChirpStack) via Packet Forwarder / Basics™ Station, plus a built-in ChirpStack network server for standalone use. Set up in minutes through the SenseCAP Local Console (Wi-Fi/Ethernet) or the SenseCAP Mate app and Portal, with Ethernet, PoE, Wi-Fi, and an optional 4G model.

Core Capabilities

8-Channel SX1302 — Up to 10 km 8-channel LoRaWAN on the SX1302 chip with −139 dBm sensitivity (SF12) and up to 26 dBm Tx power for up to 10 km of coverage. Supports LoRaWAN v1.0.3 Class A/B/C with a 3 dBi external antenna.
Multi-Platform & Open-Source Connect to AWS, The Things Network, ChirpStack, and more via Packet Forwarder / Basics™ Station, or run the built-in ChirpStack network server standalone. Open-source firmware lets you customise your own LoRaWAN solution.
Flexible Connectivity & PoE Backhaul over Ethernet (10/100 RJ45 with 802.3af PoE PD) or 2.4 GHz Wi-Fi, with an optional 4G cellular model. PoE lets you power and connect over a single cable for faster, tidier deployments.
Easy Setup & Cloud Management Configure on a Web UI via the SenseCAP Local Console (Wi-Fi AP / Ethernet), or bind in four steps with the SenseCAP Mate app and manage remotely through the SenseCAP Portal.

Typical Applications

Smart Agriculture: Provide wide-area LoRaWAN coverage for soil, climate, and irrigation sensors across farms and greenhouses (add the optional outdoor enclosure for field use).
Smart Buildings & Cities: Aggregate environmental, occupancy, and metering sensors across offices, campuses, and urban areas for densified LoRaWAN coverage.
Environmental Monitoring: Back-haul distributed sensor networks for air, water, and climate monitoring with long-range, low-power LoRaWAN.
Pilots, PoCs & Developers: An affordable, open-source gateway for rapid prototyping, LoRaWAN learning, and custom network-server development.

Technical Integration

The SenseCAP M2 runs an MT7628 processor (128 MB RAM, 32 MB flash) with the SX1302 LoRa chip, supporting LoRaWAN v1.0.3 Class A/B/C. It is offered in EU868, US915, and AS923 regional models (each switchable across related bands), in Ethernet/Wi-Fi or Ethernet/Wi-Fi/4G versions. Power is via DC 12 V / 2 A or 802.3af PoE. Interfaces include 1× RJ45, an RP-SMA antenna connector, a USB-C console, and a microSD slot (future use). It's managed over a Web UI and the SenseCAP Portal, operates from −20 °C to +55 °C, and is designed for indoor use (an optional SenseCAP outdoor enclosure is available). For model/frequency selection or network-server setup, contact the ShopIoT technical team.

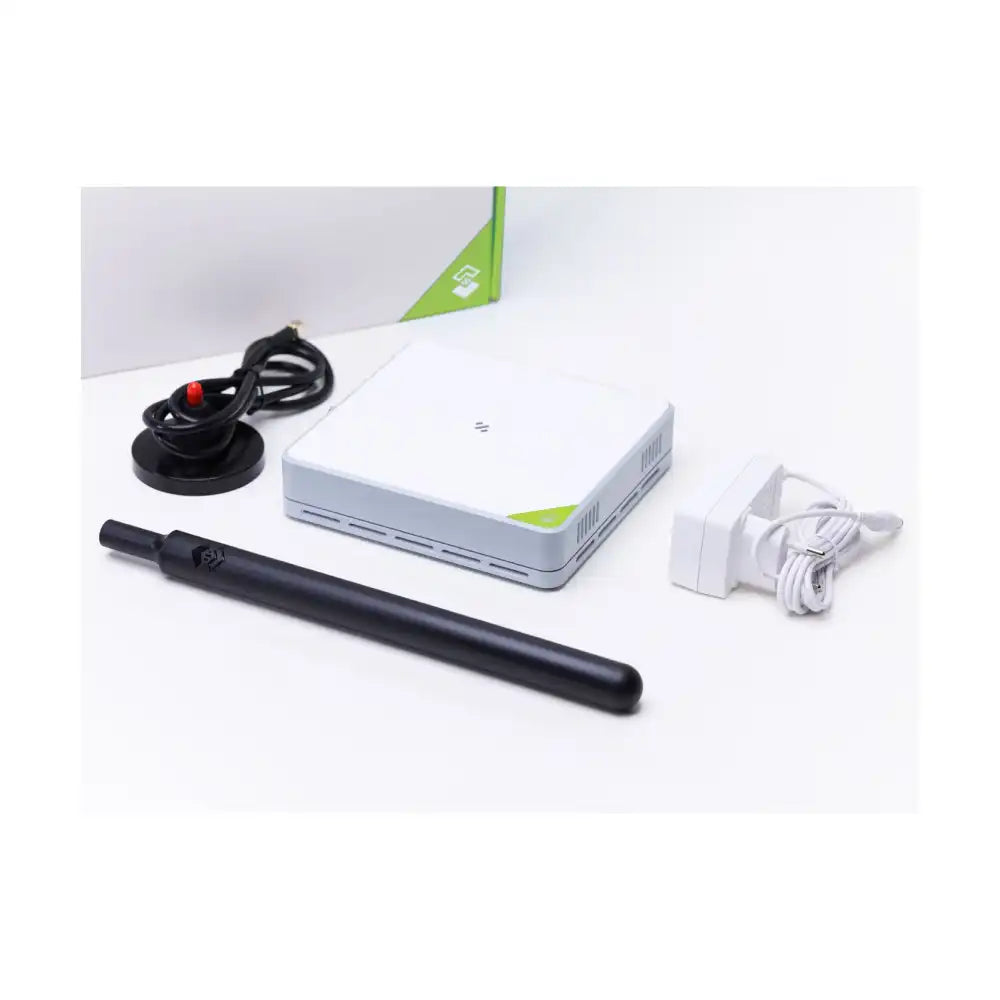

What's in the Box

1×SenseCAP M2 Multi-Platform LoRaWAN® Gateway
1×Power Adapter

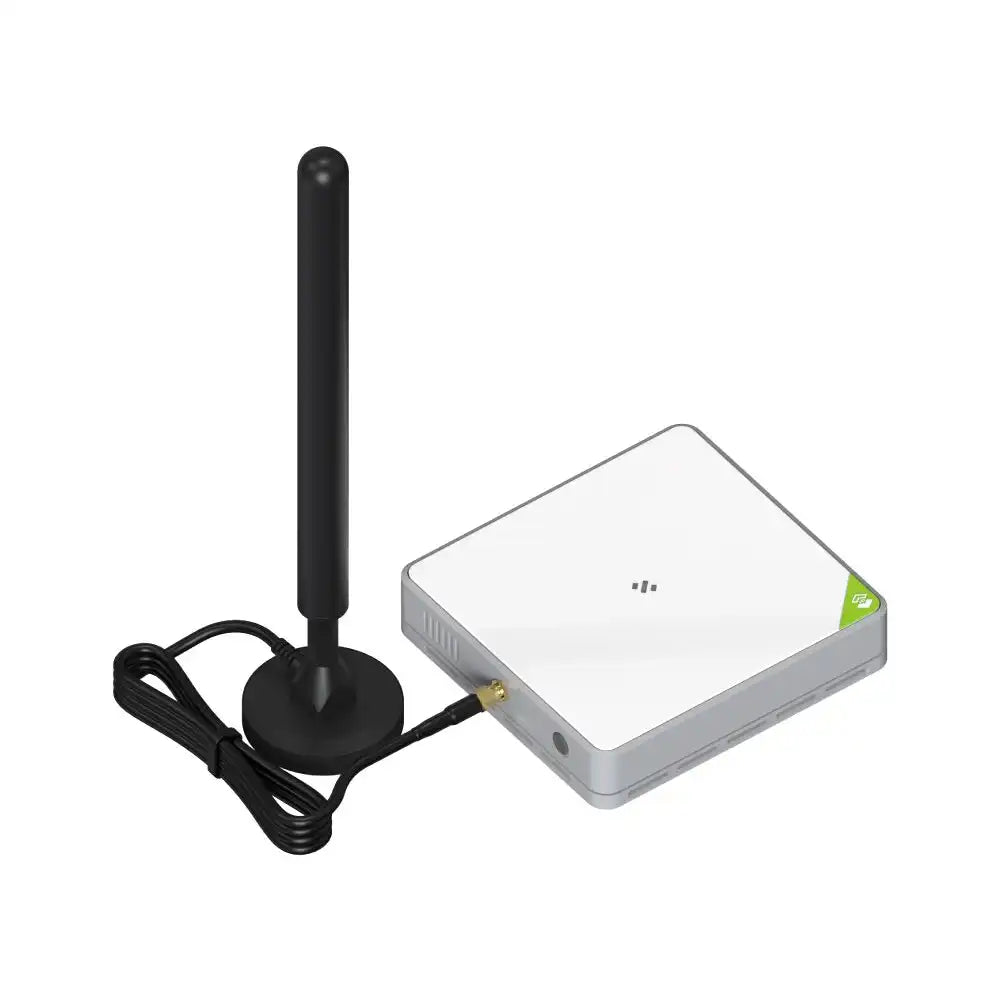

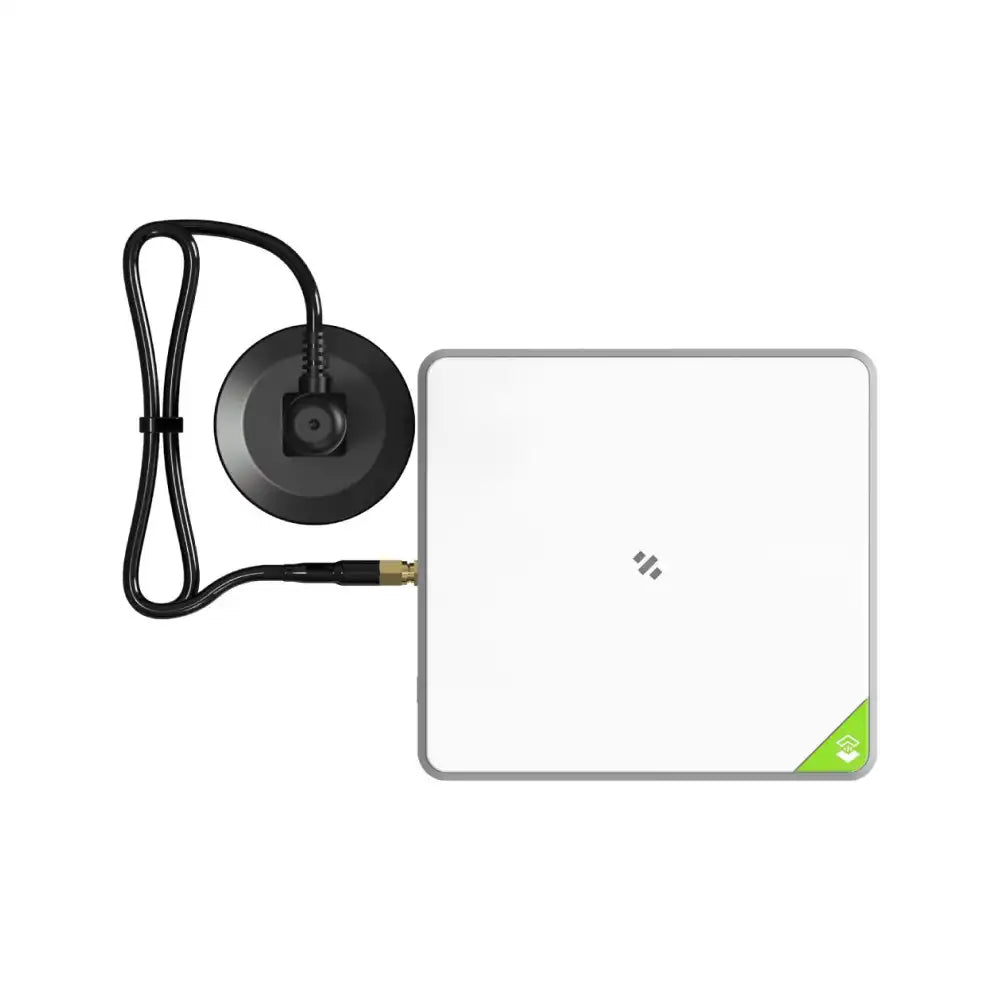

1×3 dBi Long-Range Antenna

Note: an optional SenseCAP outdoor enclosure is available for outdoor deployment. The M2 does not support the Helium network.

Frequently Asked Questions

Is the SenseCAP M2 a Helium miner?

No. It's a standard, multi-platform LoRaWAN gateway and does not support the Helium network or the SenseCAP Hotspot app/dashboard. It connects to LNS platforms like AWS, TTN, and ChirpStack instead.

Which network servers does it work with?

AWS IoT Core, The Things Network, ChirpStack, and others via Packet Forwarder / Basics™ Station — plus a built-in ChirpStack network server for standalone deployments.

Which variant should I choose?

Pick the regional model for your country (EU868, US915, or AS923 — each switchable across related bands), and choose Ethernet/Wi-Fi or the Ethernet/Wi-Fi/4G version if you need cellular backhaul.

How is it powered?

By DC 12 V / 2 A or 802.3af PoE over the Ethernet cable — handy for clean, single-cable installs.

Can it be used outdoors?

It's an indoor gateway (−20 to +55 °C). For outdoor sites, add the optional SenseCAP outdoor enclosure.

How do I set it up?

Via the SenseCAP Local Console Web UI (Wi-Fi AP or Ethernet), or bind in four steps with the SenseCAP Mate app and manage through the SenseCAP Portal.

Certifications

FCC
IC
RoHS

Building a LoRaWAN Network?

Talk to our IoT specialists, or explore the sensors and gateways to pair with it.

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868, US915
  • Antenna Type
    External (RP-SMA)
  • LoRaWAN Channels
    8 Channels
  • Configuration Method
    Wi-Fi Access Point (AP) Mode, USB
  • Environment Rating
    Indoor
  • IP Rating
    IP30
  • Operating Temperature
    -20°C to 55°C
  • Enclosure Material
    Aluminum Alloy
  • Power Consumption
    3W-7W (max. 20W)
  • Interfaces (I/O)
    Ethernet (RJ45), USB Type-C, MicroSD Card Slot
