Milesight | SKU: UG56-868M

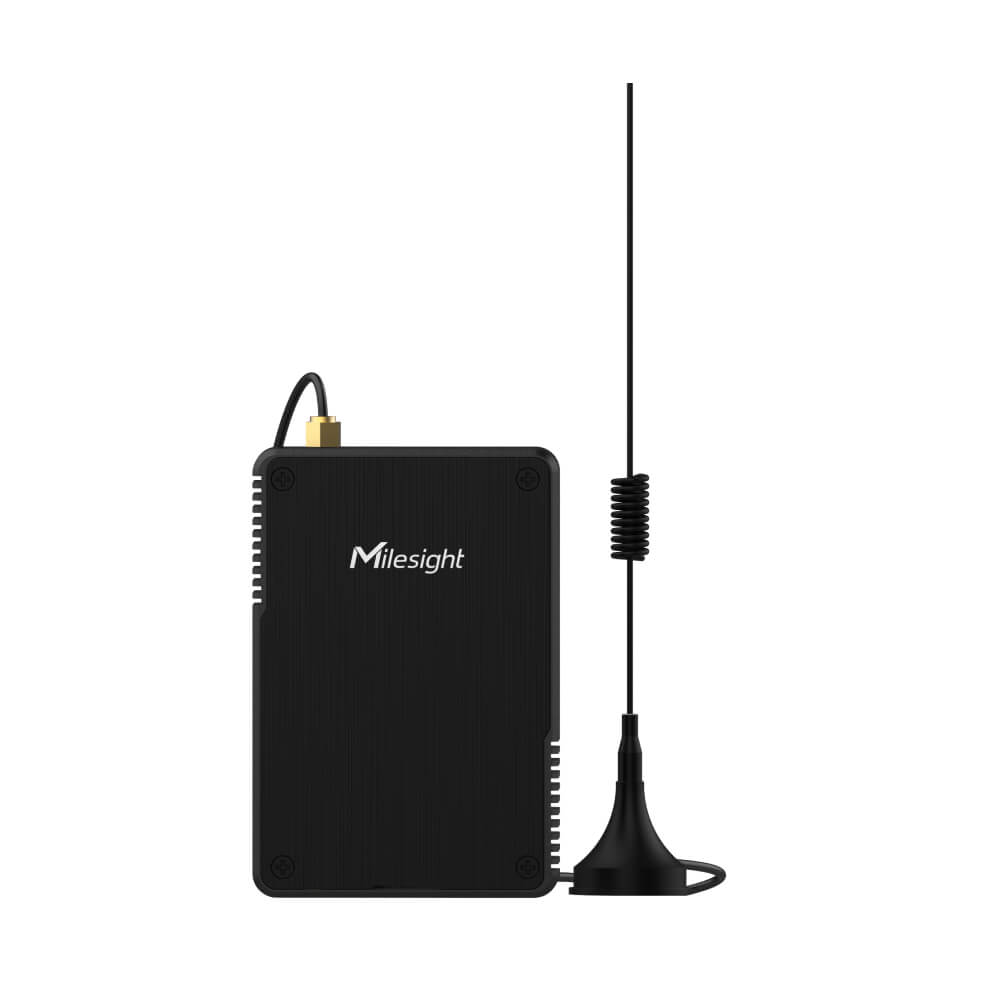

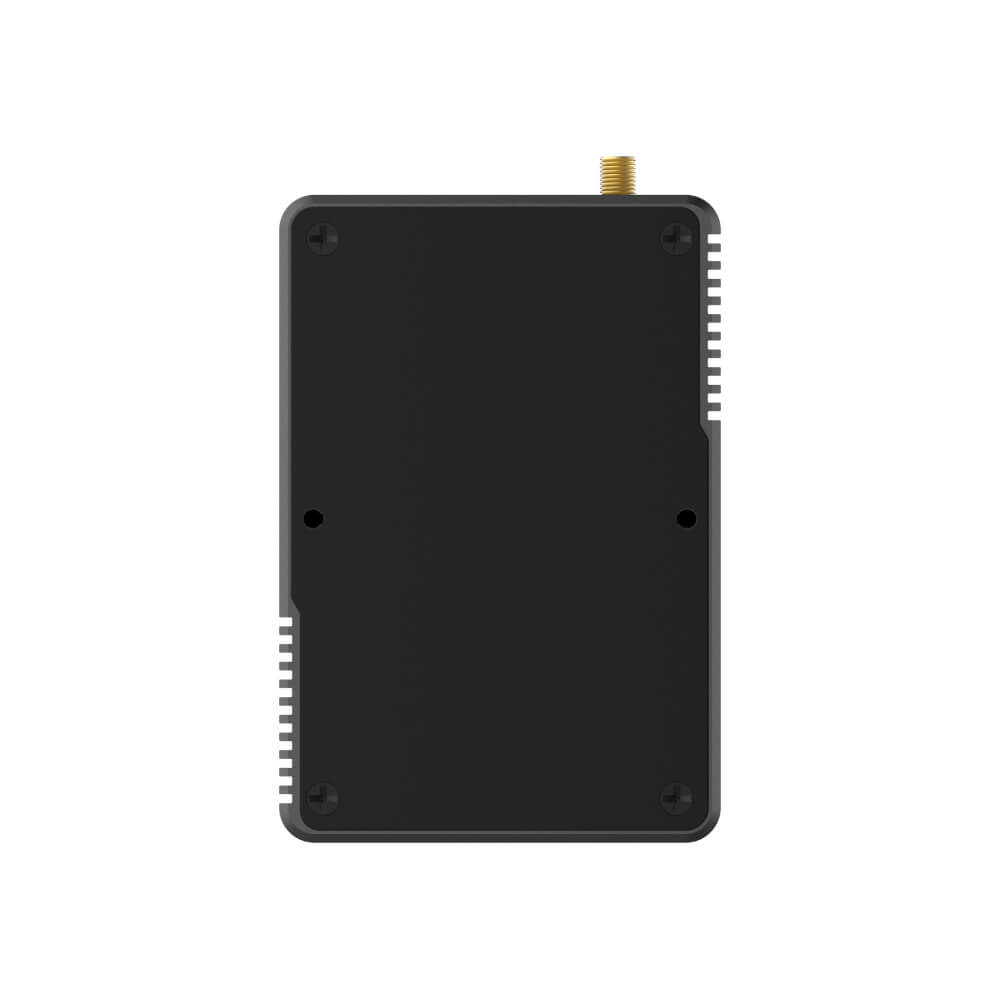

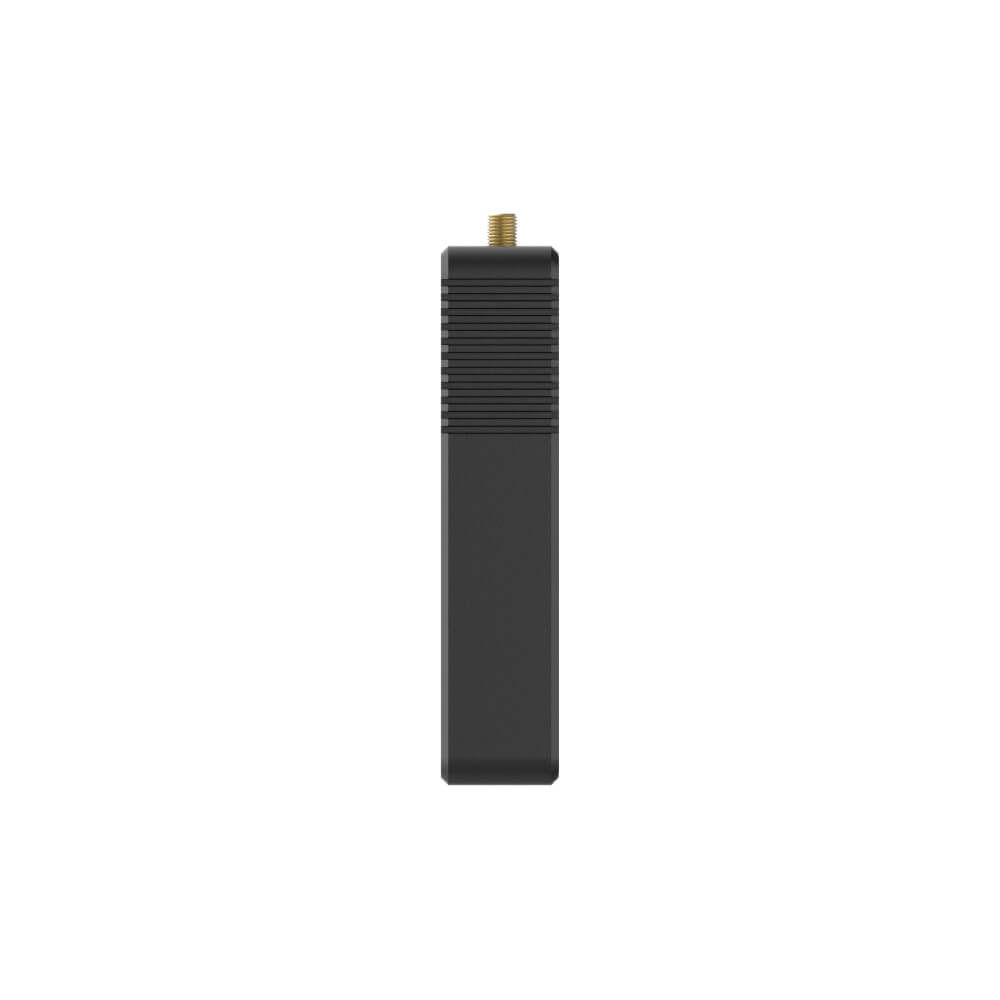

Milesight UG56 | 8-Channel Industrial Indoor LoRaWAN Gateway (EU868)

€237,00

Shipping calculated at checkout.

A robust industrial indoor gateway featuring a rugged metal enclosure and high-performance processing for dense IoT sensor networks.

Industrial Build: Rugged Metal Enclosure | IP30 Rated
Connectivity: Supports 2,000+ Nodes | 15km Line-of-Sight Range
Backhaul: Ethernet, Wi-Fi, and Optional 4G LTE Failover

Frequency/Region

Backhaul Communication

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Add a stand out message for your customers

Description

The Milesight UG56 is a high-performance 8-channel indoor LoRaWAN® gateway designed to provide deep indoor coverage and high-capacity data handling[cite: 184, 189]. Utilizing the advanced SX1302 chip and a quad-core industrial CPU, it supports simultaneous connections with more than 2,000 end-nodes[cite: 189, 208]. With a line-of-sight range up to 15km, the UG56 is an essential bridge for industrial automation and smart building management systems[cite: 190, 193].

Core Capabilities

Industrial Processing Quad-core 1.3 GHz CPU with 512MB DDR3 RAM for high-traffic stability[cite: 207, 221].

Massive Node Support Equipped with SX1302 chip to handle 2,000+ nodes with lower power consumption[cite: 189, 208].

Rugged Enclosure Industrial metal housing for durability in demanding indoor environments[cite: 210, 212].

Network Failover Supports multiple backhaul backups including Ethernet, Wi-Fi, and 4G/3G[cite: 191, 214].

Industrial Applications

• Smart Metering: Facilitate large-scale automated utility data collection in high-density areas[cite: 192].

• Industrial Automation: Monitor machinery and environment parameters in smart factories[cite: 190, 212].

• Smart Campus: Provide seamless wireless coverage for sensors across university and hospital facilities[cite: 202].

Technical Integration

The UG56 comes with a built-in network server and is fully compatible with mainstream LNS providers like The Things Industries (TTI) and ChirpStack[cite: 191, 216]. It supports Node-RED for visual programming and includes a Python SDK for custom secondary development[cite: 218, 219]. For professional system architecture or gateway management via DeviceHub, contact the ShopIoT technical team[cite: 215].

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

Internal, External (SMA)
LoRaWAN Channels

8 Channels
Configuration Method

Web GUI (HTTP/HTTPS), Wi-Fi Access Point (AP) Mode, Cloud Management (SaaS)
Activation Method

OTAA, ABP
Environment Rating

Indoor
IP Rating

IP30
Operating Temperature

-20°C to 60°C
Enclosure Material

Metal
Power Consumption

Typical: 1.8W, Max: 6.9W
Interfaces (I/O)

Ethernet (RJ45), USB Type-C, SIM Slot
Monitoring Parameters

Power Status, Backhaul Status, LoRa Traffic

Document Library

UG56 Datasheet

UG56 User Manual
