SenseCAP  |  SKU: 101991141

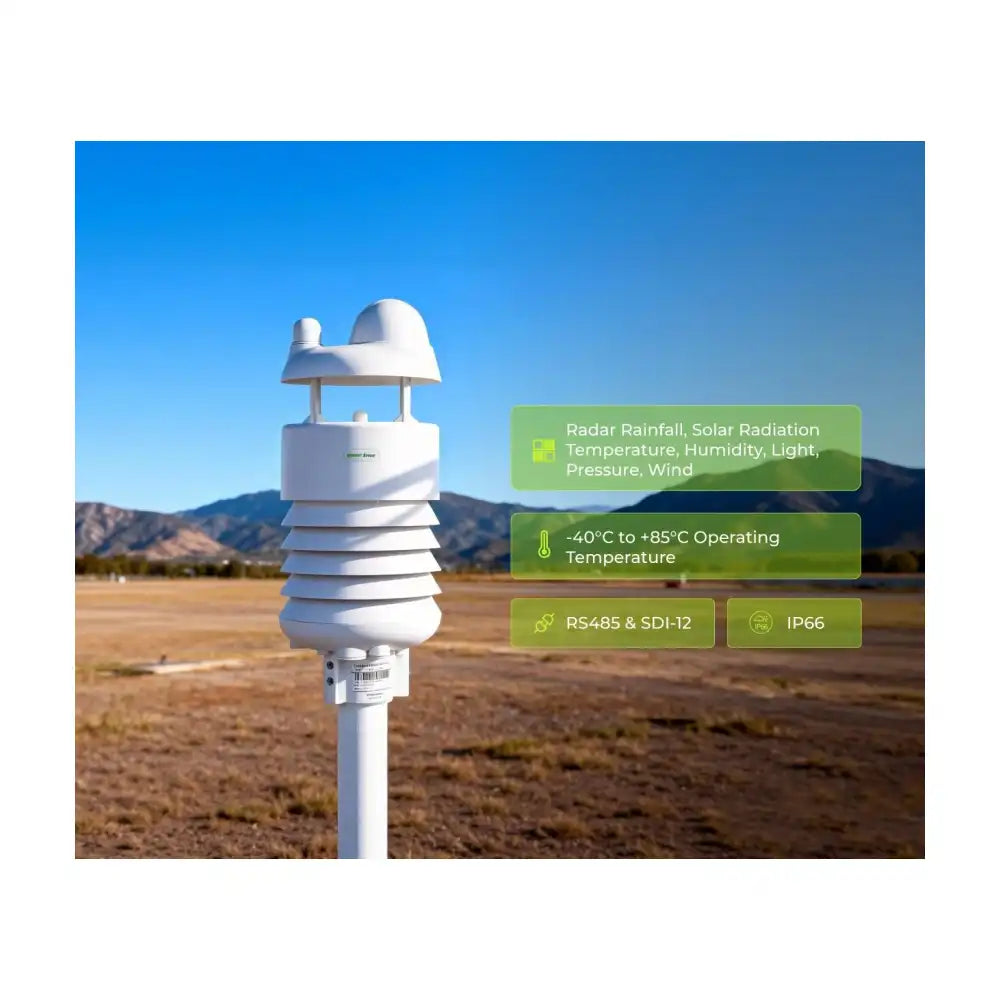

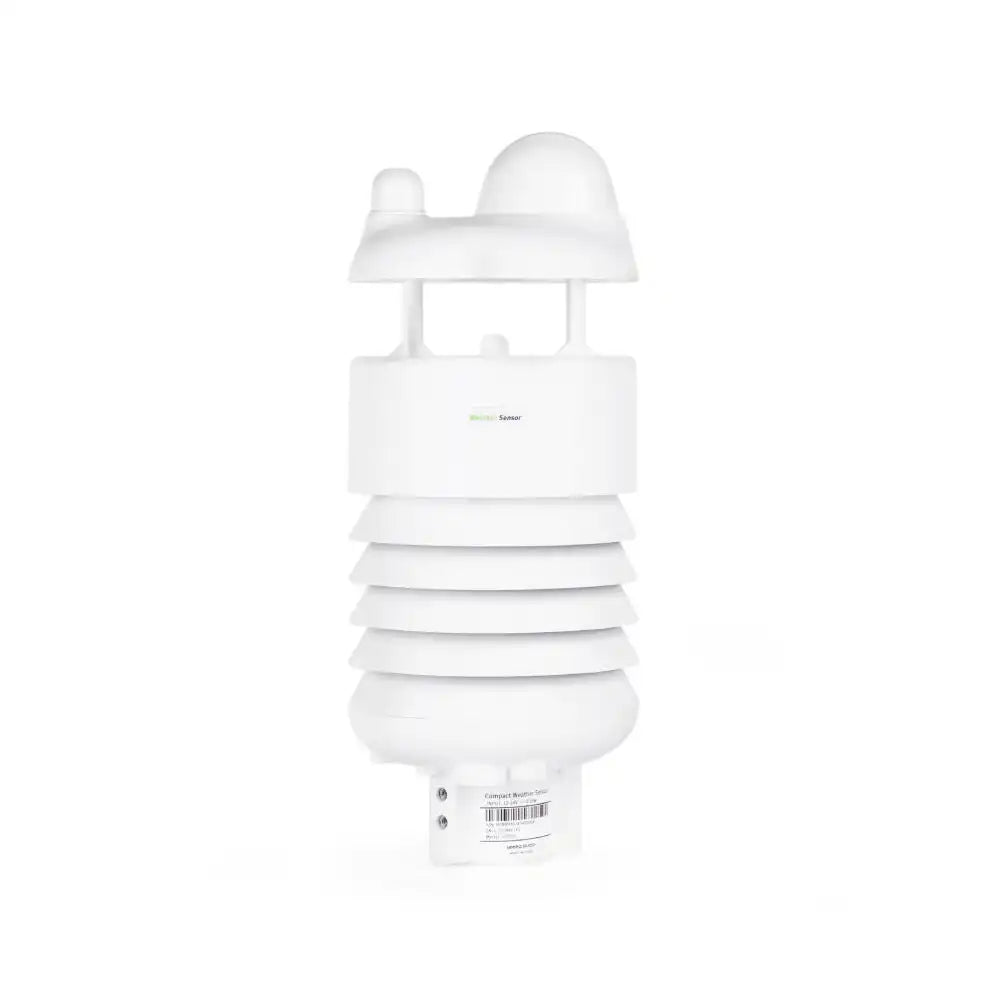

Seeed Studio SenseCAP S700-C | 7-in-1 Compact Weather Station | Solar Radiation, Radar Rain, Ultrasonic Wind, RS485 & SDI-12, IP66

€622,00
Shipping calculated at checkout.

The Seeed Studio S700-C is an all-in-one LoRaWAN weather station.

  • Complete weather picture: solar, radar rain, wind, temp, humidity, pressure
  • High accuracy: temp ±0.1 °C, wind ±0.3 m/s, solar ±3%, rain ±10%
  • All-weather build: IP66, −40 to +85 °C, heated, RS485/SDI-12/ASCII

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Seeed Studio SenseCAP S700-C is a professional-grade 7-in-1 compact weather station measuring air temperature, relative humidity, barometric pressure, global solar radiation (with sunshine duration), rain intensity, wind speed, and wind direction — a complete micro-climate picture from one rugged unit.

It pairs a pyranometer, a radar rain gauge, and an ultrasonic wind sensor (no moving parts) with a built-in heater and an IP66 enclosure rated −40 °C to +85 °C — purpose-built for harsh outdoor, agriculture, and smart-city deployments. Data is delivered over RS485 (Modbus-RTU), SDI-12, and ASCII.

Core Capabilities

7-in-1 High-Accuracy Sensing Air temperature (±0.1°C), humidity (±1.5% RH), barometric pressure (±50 Pa), global solar radiation (0–2000 W/m², ±3%), radar rain (0–300 mm/h, ±10%), wind speed (0–60 m/s, ±0.3 m/s), and wind direction (0–360°, ±3°).

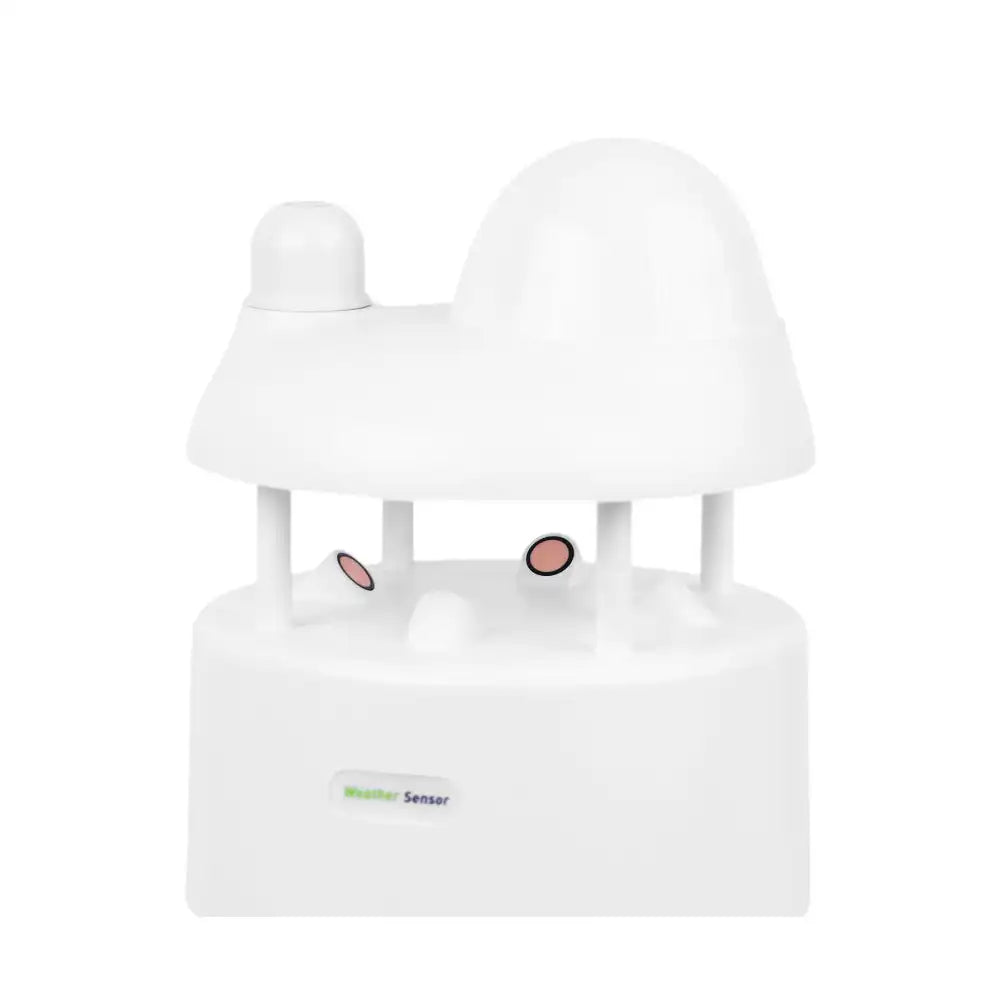

No Moving Parts — Maintenance-Free Ultrasonic wind sensing (0–60 m/s standard, up to 80 m/s withstand) and a radar rain gauge replace spinning cups, vanes, and tipping buckets — eliminating mechanical wear, clogging, and recalibration.
Pyranometer Solar Radiation Measures global solar radiation (0–2000 W/m², 300–1100 nm, <1 s response, ±3%) and sunshine duration — valuable for agriculture and evapotranspiration models, solar/PV yield, and climate research.
Built for Harsh Climates & Easy Integration IP66 enclosure rated −40 °C to +85 °C with a built-in heater for snow and frost. Outputs RS485 (Modbus-RTU), SDI-12, and ASCII via an M12 connector, powered by 12–24 V at just 0.6 W (21 W when heating).

Typical Applications

Smart Agriculture & Agritech: Track micro-climate, solar radiation, and rainfall to guide irrigation, frost protection, spraying windows, and crop-model decisions across fields and greenhouses.
Smart City & Environmental Monitoring: Deploy on poles and rooftops for urban weather, microclimate, and flood-risk monitoring with maintenance-free, heated, all-weather sensing.
Solar & Renewable Energy: Use pyranometer solar-radiation and sunshine-duration data for PV-site assessment, performance benchmarking, and yield forecasting.
Research, Meteorology & Cold Climates: A compact, heated, low-maintenance station for distributed weather networks, hydrology, and sites that see snow and sub-zero temperatures.

Technical Integration

Key points for wiring the S700-C into your system:

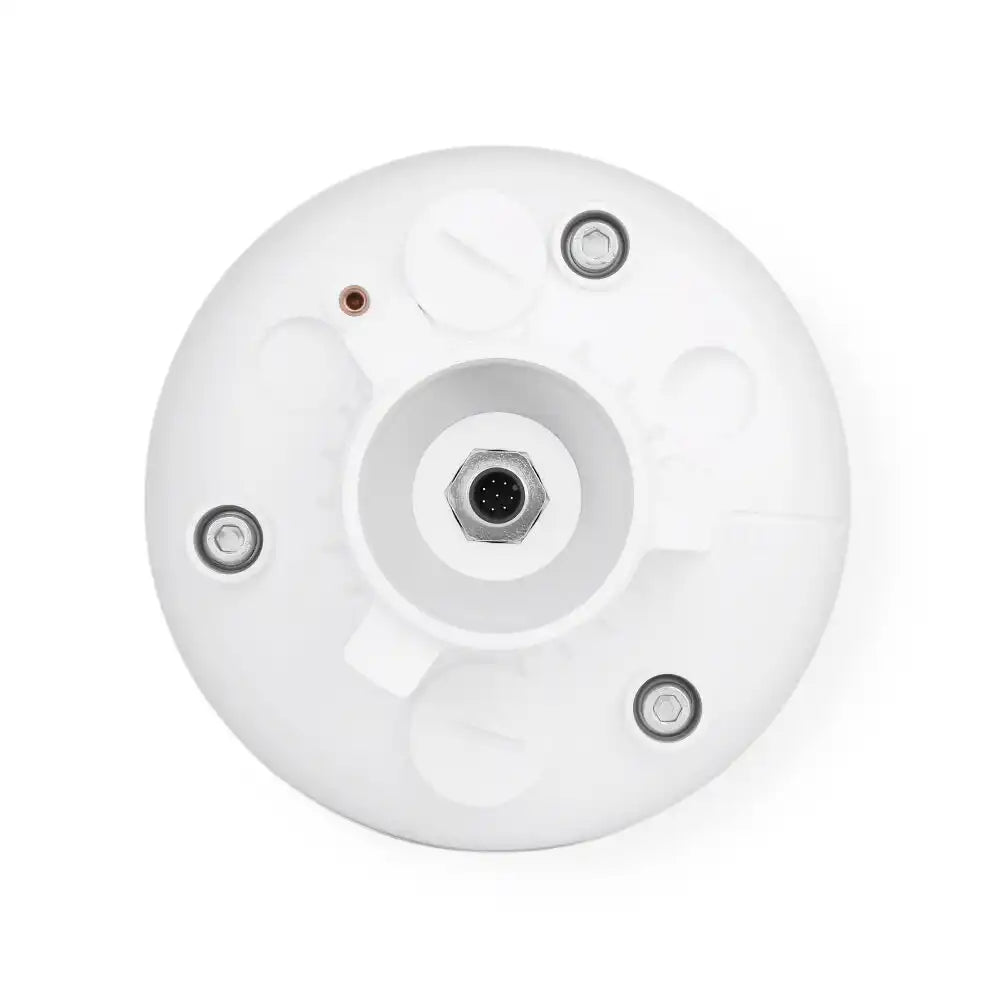

Output & protocols: RS485 (Modbus-RTU), SDI-12, and ASCII via an M12 connector on a 3 m cable; directly compatible with industrial data loggers, controllers, and PLCs.
Cloud backhaul: Pair with a SenseCAP S2100 LoRaWAN data logger or a SenseCAP 4G data logger (sold separately) to send data over LoRaWAN or cellular.
Power: 12–24 V DC (24 V for the heater), at a typical 0.6 W (21 W when heating).
Mounting & environment: IP66 unit (140 × 140 × 350 mm, 1607 g) for pole or cross-arm mounting; operates −40 °C to +85 °C.
Setup help: For sensor selection, data-logger pairing, or integration support, contact the shopioT technical team.

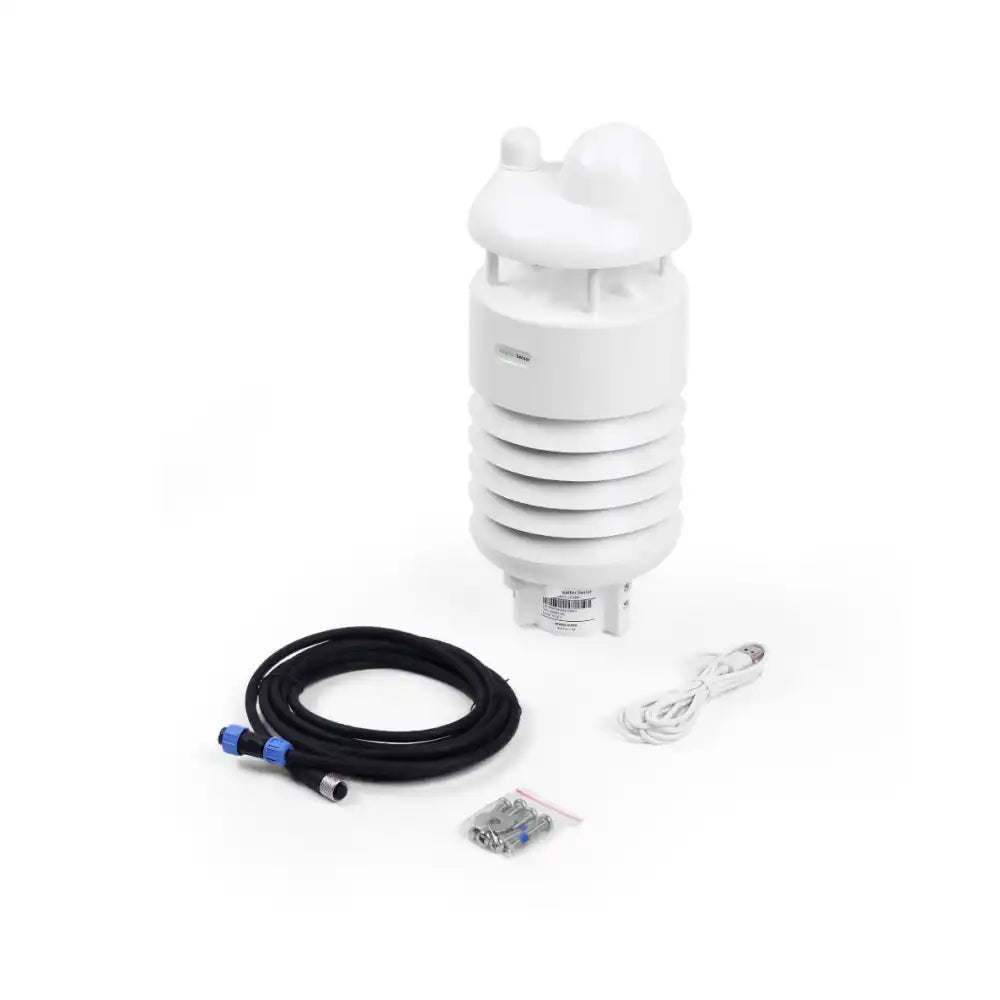

What's in the Box

1×SenseCAP S700-C 7-in-1 Weather Station
1×M12 8-Pin Communication Cable
1×USB Type-C Cable
6×Screws
1×Flat Washer

Note: a SenseCAP data logger (LoRaWAN/4G) or a Modbus/SDI-12 controller is required for data collection and is sold separately.

Frequently Asked Questions

What does the S700-C measure?

Air temperature (±0.1 °C), humidity (±1.5% RH), barometric pressure (±50 Pa), global solar radiation (0–2000 W/m²) and sunshine duration, radar rain intensity (0–300 mm/h), and ultrasonic wind speed (0–60 m/s) and direction (±3°).

Can it operate in snow and freezing conditions?

Yes. It's rated −40 °C to +85 °C and has a built-in heater (24 V, 21 W when heating) to keep the sensors clear of snow and ice in cold climates.

Does it have moving parts?

No. Wind is measured ultrasonically and rain by radar — no spinning cups, vanes, or tipping buckets — minimising wear and maintenance.

How do I get the data to the cloud?

It outputs RS485 (Modbus-RTU), SDI-12, and ASCII via an M12 connector. Pair it with a SenseCAP S2100 LoRaWAN data logger or a SenseCAP 4G data logger, or connect to any Modbus/SDI-12 controller or PLC.

How is the S700-C different from the other S700 models?

The "-C" version combines both the pyranometer (solar radiation) and the radar rain gauge. S700-A adds radar rain, S700-B adds solar radiation, and the base S700 has neither.

How is it powered and mounted?

Powered by 12–24 V DC over the M12 cable (typically via the data logger), drawing 0.6 W (21 W when heating). It mounts on a pole or cross-arm and is IP66-rated for permanent outdoor use.

Certifications

CE
EU DOC
FCC
UK DOC

Planning a Weather Monitoring Deployment?

Talk to our IoT specialists, or explore related sensors.

Specifications
  • Primary Communication Protocol
    Modbus RTU (RS485)
  • Configuration Method
    Modbus Commands, SDI-12 Commands
  • Environment Rating
    Outdoor, Industrial
  • IP Rating
    IP66
  • Operating Temperature
    -40°C to 85°C
  • Power Consumption
    External DC powered; thermostatically-controlled heating draws additional power in cold condition
  • Measurement Technology
    • Ultrasonic (wind speed & direction)
    • Radar (rain intensity)
    • Pyranometer (solar radiation)
    • Digital Temperature/Humidity Sensor
    • Barometric Pressure Sensor
  • Measurement Range
    • Air Temperature:- 40 °C ~ + 85 °C
    • Air Humidity: 0 ~ 100% RH
    • Barometric Pressure: 300 ~ 1250 hPa
    • Wind Speed (Ultrasonic): 0~60 m/s standard range, 0~75m/s extended range, Up to 80m/s withstand range
    • Wind Direction (Ultrasonic): 0 ~ 360° @-40°~60°C
    • Rainfall Intensity (Radar): 0 ~ 300 mm/h
    • Global Solar Radiation (Photoelectric): 0~2000 W/m²
    • Sunshine Duration (Photoelectric): 0~6553.5 h
  • Measurement Accuracy
    • Air Temperature:± 0.1℃
    • Air Humidity: ± 1.5% RH
    • Barometric Pressure: ± 50 Pa
    • Wind Speed (Ultrasonic): ±0.3m/s (≤10m/s), ±3% (10m/s ~ 50m/s), ±5% (>50m/s)
    • Wind Direction (Ultrasonic): ± 3°
    • Rainfall Intensity (Radar): ± 10%
    • Global Solar Radiation (Photoelectric): ±5%
    • Sunshine Duration (Photoelectric): ± 3%
  • Measurement Resolution
    • Air Temperature:0.01 ℃
    • Air Humidity: 0.01% RH
    • Barometric Pressure: 10 Pa
    • Wind Speed (Ultrasonic): 0.1 m/s
    • Wind Direction (Ultrasonic): 0.1°
    • Rainfall Intensity (Radar): 0.01 mm
    • Global Solar Radiation (Photoelectric): 1 W/m²
    • Sunshine Duration (Photoelectric): 0.1h
  • Interfaces (I/O)
    RS485 (Modbus RTU), SDI-12, M12 Connector (Power)
  • Monitoring Parameters
    Temperature, Humidity, Barometric Pressure, Wind Speed, Wind Direction, Rainfall (Total/Intensity), Total Solar Radiation

Document Library

S700-C Datasheet

S700-C User Manual
