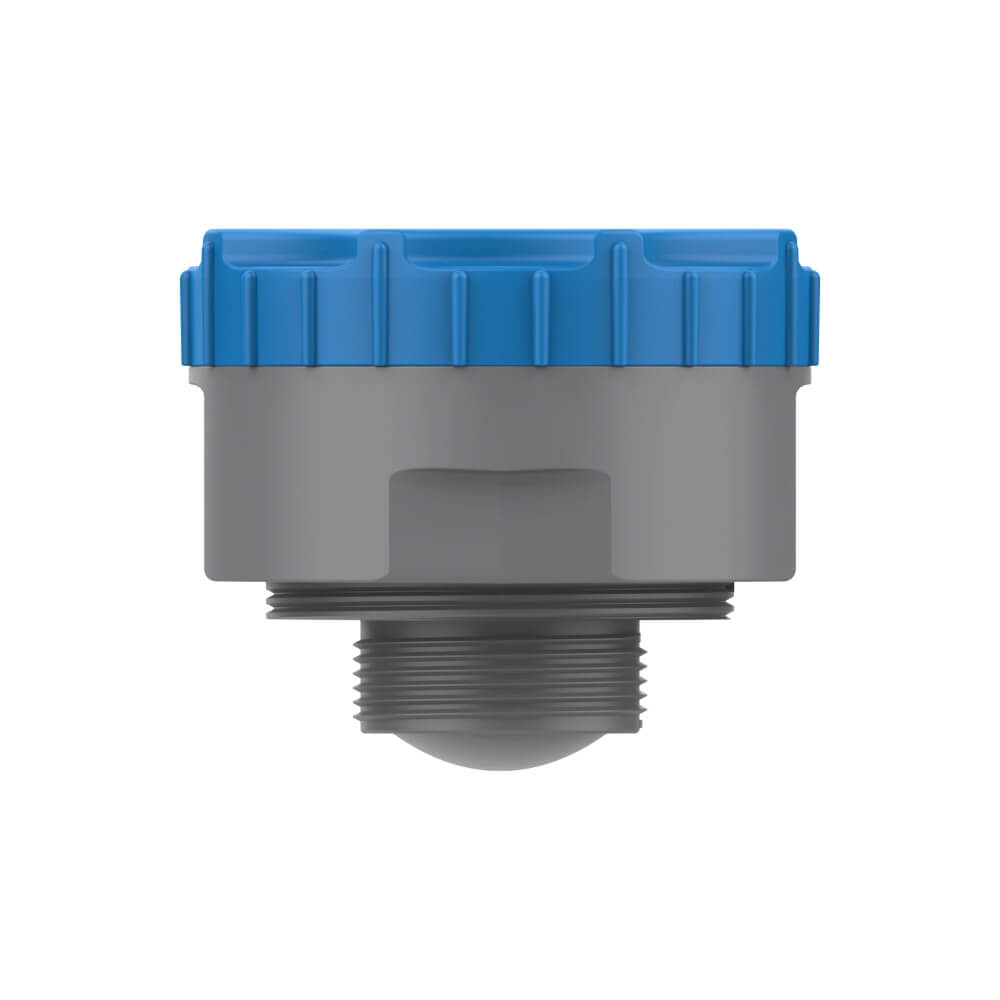

Milesight EM411-RDL | LoRaWAN ATEX Certified Radar Distance & Level Sensor
An intrinsically safe Millimeter Wave radar sensor certified for ATEX Zone 0, designed for precise level monitoring in explosive atmospheres.
- • Certified Safety: ATEX Zone 0 rated for hazardous environments.
- • mmWave Radar: 60GHz technology with a narrow 8° beam angle.
- • Chemical Proof: PVDF enclosure with IP68 ingress protection.
Milesight EM411-RDL | LoRaWAN ATEX Certified Radar Distance & Level Sensor - EU868 / Internal is backordered and will ship as soon as it is back in stock.
Secure Payment & Warranty
Secure Payment & Warranty
- Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
- B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
- Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.
Delivery and Shipping
Delivery and Shipping
Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.
Description
Description

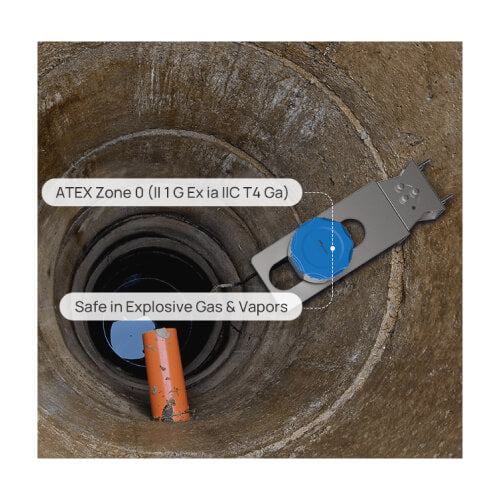

The Milesight EM411-RDL is the intrinsically safe version of the EM41x series, specifically engineered for hazardous locations. Utilizing advanced 60GHz Millimeter Wave (mmWave) radar, it provides non-contact distance and level measurements with millimeter precision across a 15-meter range. Crucially, the EM411-RDL is ATEX Zone 0 certified, making it suitable for permanent installation in explosive atmospheres where flammable gases or vapors are continuously present. Its narrow beam and high-frequency radar ensure stable performance through steam, foam, and dust.
Intrinsically Safe Analytics
Hazardous Area Applications
What is in the Box?
Product Certifications
Specifications
Specifications
-
Primary Communication ProtocolLoRaWAN
-
Frequency/RegionEU868
-
Antenna TypeInternal, External (SMB)
-
Configuration MethodNFC, Bluetooth, Downlink
-
Activation MethodOTAA
-
Environment RatingOutdoor, Industrial, Marine, ATEX
-
IP RatingIP68
-
Operating Temperature-40°C to 70°C
-
Enclosure MaterialPVDF
-
Battery TypeLi-SOCl2
-
Battery Capacity19000mAh
-
Power ConsumptionUp to 10 years battery life (10 min interval)
-
Measurement Technology
-
Measurement Range
-
Measurement Accuracy
-
Measurement Resolution
-
Monitoring ParametersDistance (Radar), Liquid Level (Radar), Tilt/Inclination
