Milesight | SKU: UC511-DI-868M PN: EA

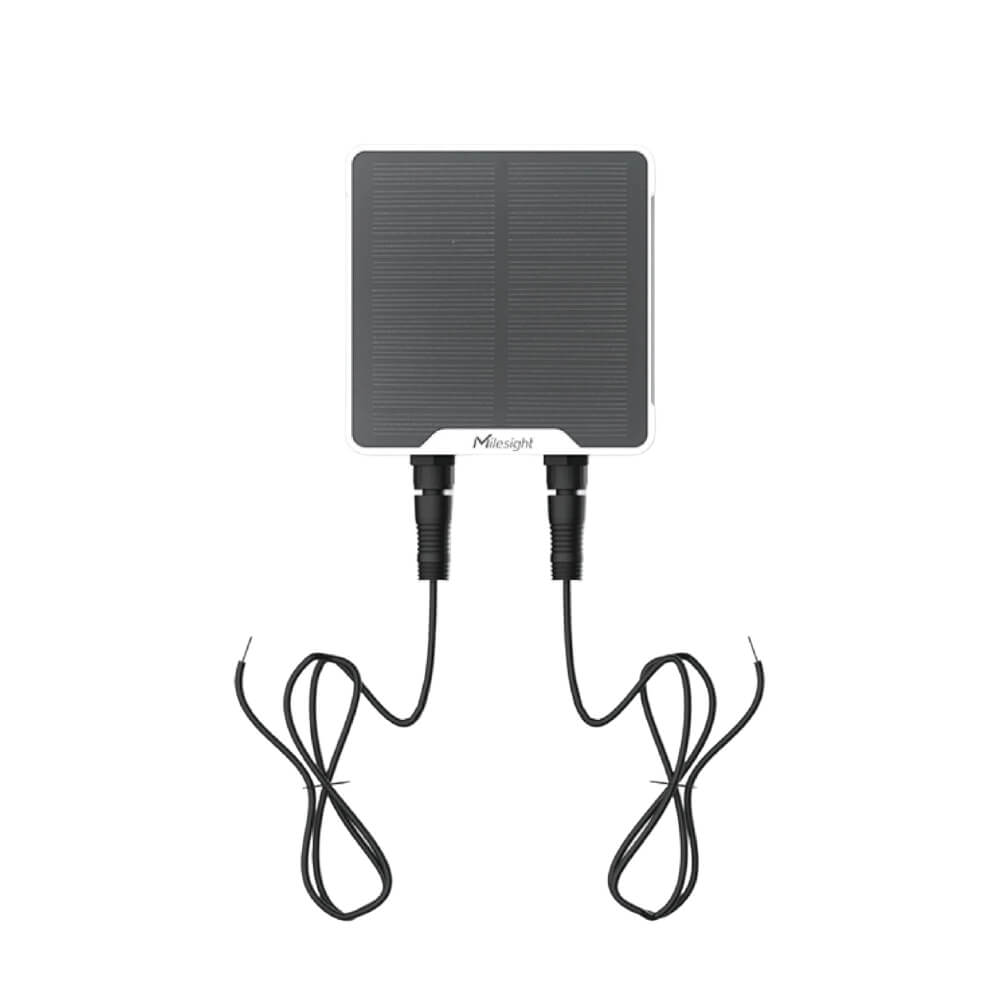

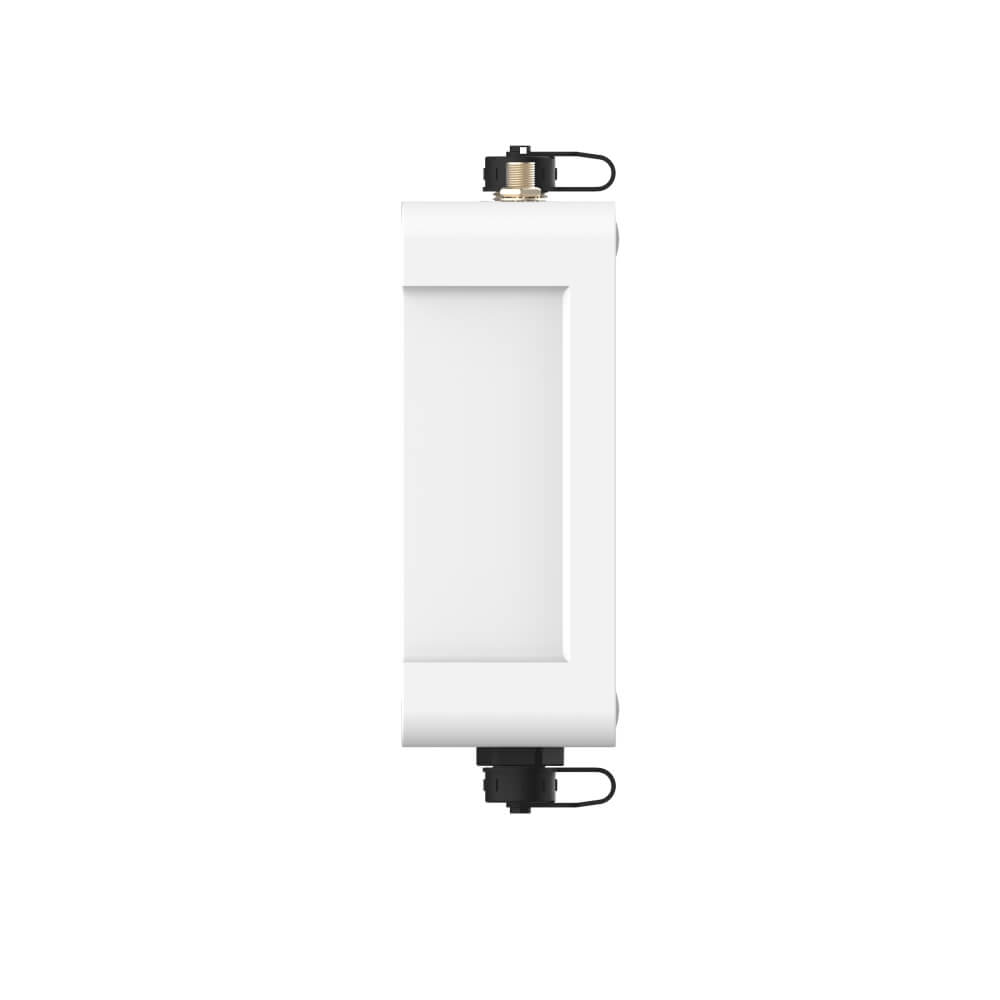

Milesight UC511 | Solar-Powered LoRaWAN Solenoid Valve Controller

€159,00

Shipping calculated at checkout.

A professional-grade outdoor RTU designed for autonomous irrigation management and remote DC latching solenoid valve control.

• Dual Valve Support: Controls 2 x DC latching solenoids (5/9/12V).
• Solar Powered: Integrated 1.6W solar panel and rechargeable batteries.
• Flow Monitoring: 2 x GPIO interfaces for pulse counters or status sensors.

Frequency/Region

With External Antenna

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Add a stand out message for your customers

Description

The Milesight UC511 is a carrier-grade LoRaWAN Solenoid Valve Controller engineered specifically for smart agriculture and professional landscape irrigation. This autonomous unit eliminates the need for expensive trenching and wiring by utilizing solar power and long-range LoRaWAN connectivity. Designed to drive standard DC latching solenoids, the UC511 enables facility managers to execute precise irrigation schedules remotely or locally via mobile app, significantly reducing water waste and manual labor.

Intelligent Outdoor Irrigation Control

Solar Autonomy Features a built-in 1.6W solar panel and dual rechargeable batteries, ensuring maintenance-free operation in remote fields without the need for battery replacements.

Flow & Status Feedback Equipped with two GPIO interfaces that support pulse counting for water meters or digital inputs for valve status monitoring, providing real-time verification of water flow.

Smart Irrigation Scenarios

• Precision Agriculture: Automate water delivery to specific crop zones based on soil moisture data for optimal yield and resource conservation.

• Urban Landscaping: Centrally manage sprinklers and drip systems in public parks and green roofs through the Milesight IoT Cloud.

• Leak Prevention: Combine with flow meters to automatically shut off valves if unusual flow rates are detected, protecting property from water damage.

What is in the Box?

• 1 x Milesight UC511 Controller (Solar Powered)

• 1 x M12 Connector Cable Set

• 1 x Mounting Bracket & Screw Kit

• 1 x Quick Start Guide

Product Certifications

CE FCC IP67 RoHS

Specifications

Primary Communication Protocol

LoRaWAN, Milesight D2D
Frequency/Region

EU868
Antenna Type

Internal, External
Configuration Method

NFC, USB
Activation Method

OTAA, ABP
Environment Rating

Outdoor
IP Rating

IP68
Operating Temperature

-20°C to 60°C
Enclosure Material

PC (Polycarbonate), ABS Plastic
Battery Type

Li-ion
Battery Capacity

5100mAh
Power Consumption

Ultra-low (Solar-assisted)
Measurement Technology
- Dual Solenoid Control: Supports two 2-wire DC latching solenoids with switchable 5V, 9V, or 12V output for universal valve compatibility.
- Integrated Solar Power: Features a built-in 1.6W solar panel and dual rechargeable batteries, ensuring maintenance-free operation in remote fields.
- Flow Monitoring: Two GPIO interfaces support pulse counter mode, allowing for real-time water consumption tracking and leak detection.
- Edge Intelligence & D2D: Supports Milesight D2D protocol for ultra-low latency direct control and autonomous "Rule Engine" for local threshold-based actions.
- Ruggedized Design: Equipped with an IP67 UV-resistant case and industrial M12 connectors to protect against water and dust ingress.
Measurement Range
- Solenoid Voltage: 5V, 9V, or 12V DC (Programmable).
- GPIO Input: Dry Contact (Digital Input or Pulse Counter).
- Transmission: Up to 15km line-of-sight in rural environments.
- Pulse Frequency: Supports high-resolution flow meter monitoring.
Measurement Accuracy
- Time & Flow Control: Precision scheduling via Milesight IoT Cloud for accurate irrigation volume management.
- Data Reliability: Supports historical data storage and retransmission to ensure no flow data is lost during network downtime.
- Industrial Stability: Maintains consistent performance across an outdoor temperature range of -20°C to +60°C.
Measurement Resolution
- Configuration Latency: Immediate NFC-based setup or near-real-time downlink commands (Class C mode).
- Status Monitoring: Reports valve position (Open/Close) and exact pulse totals for analytical water management.
- Power Status: High-resolution reporting of solar charging status and battery voltage levels.
Interfaces (I/O)

Solenoid Valve Output, GPIO
Monitoring Parameters

Valve Opening Percentage (%), Pulse Count

Document Library

UC511 Datasheet

UC511 User Manual
