Dragino  |  SKU: AIS01-LB-868
Sold out
6% off

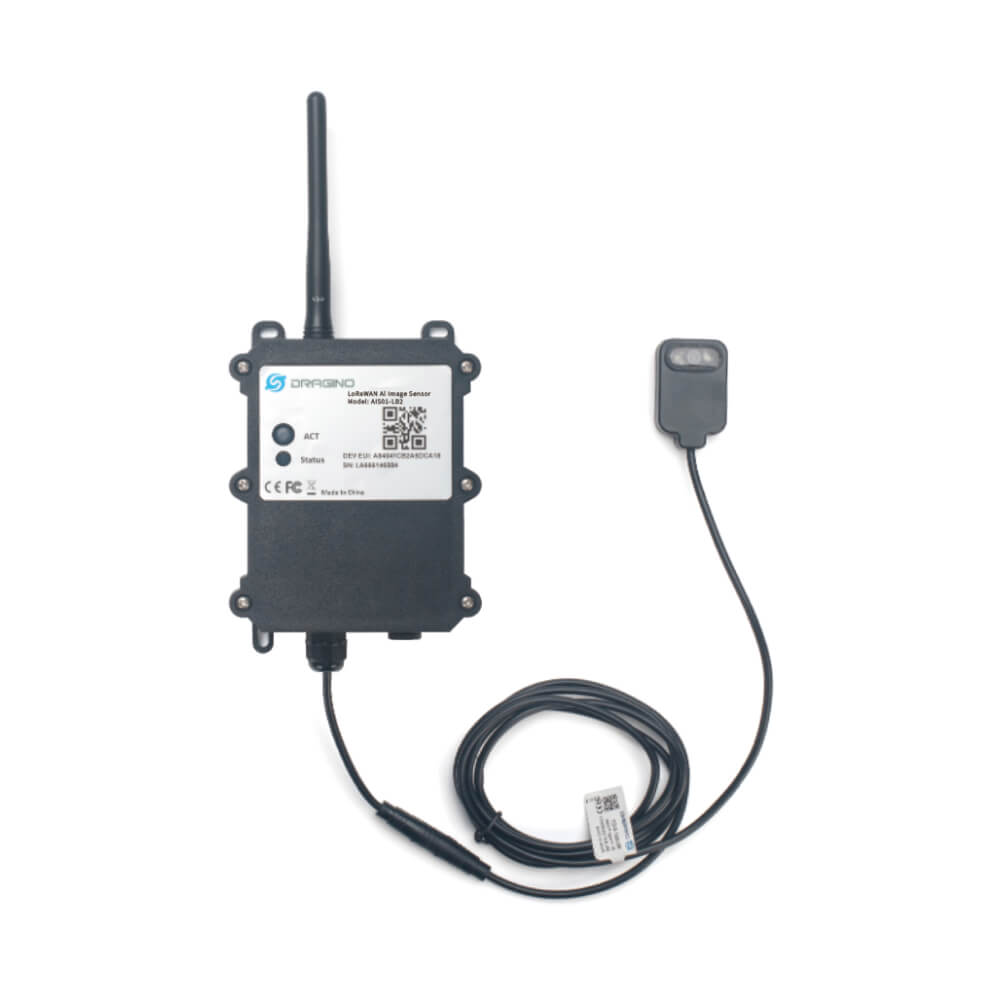

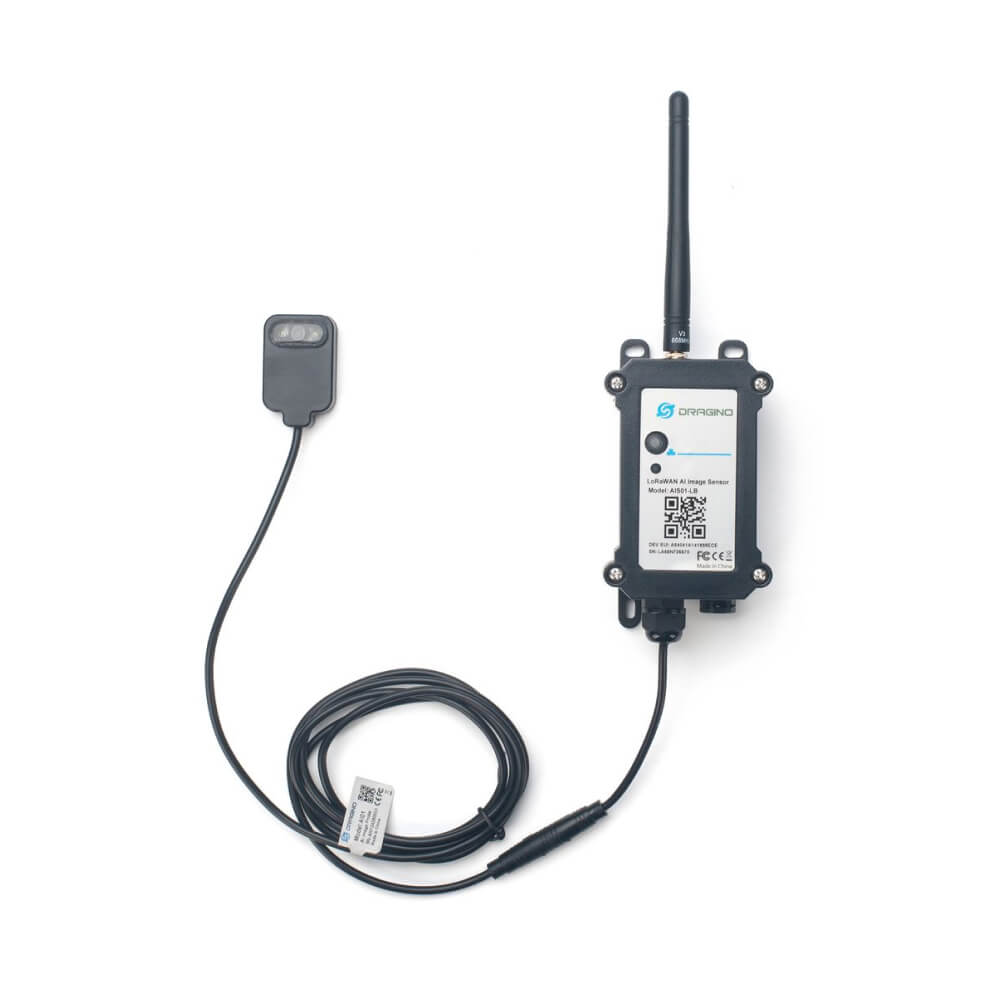

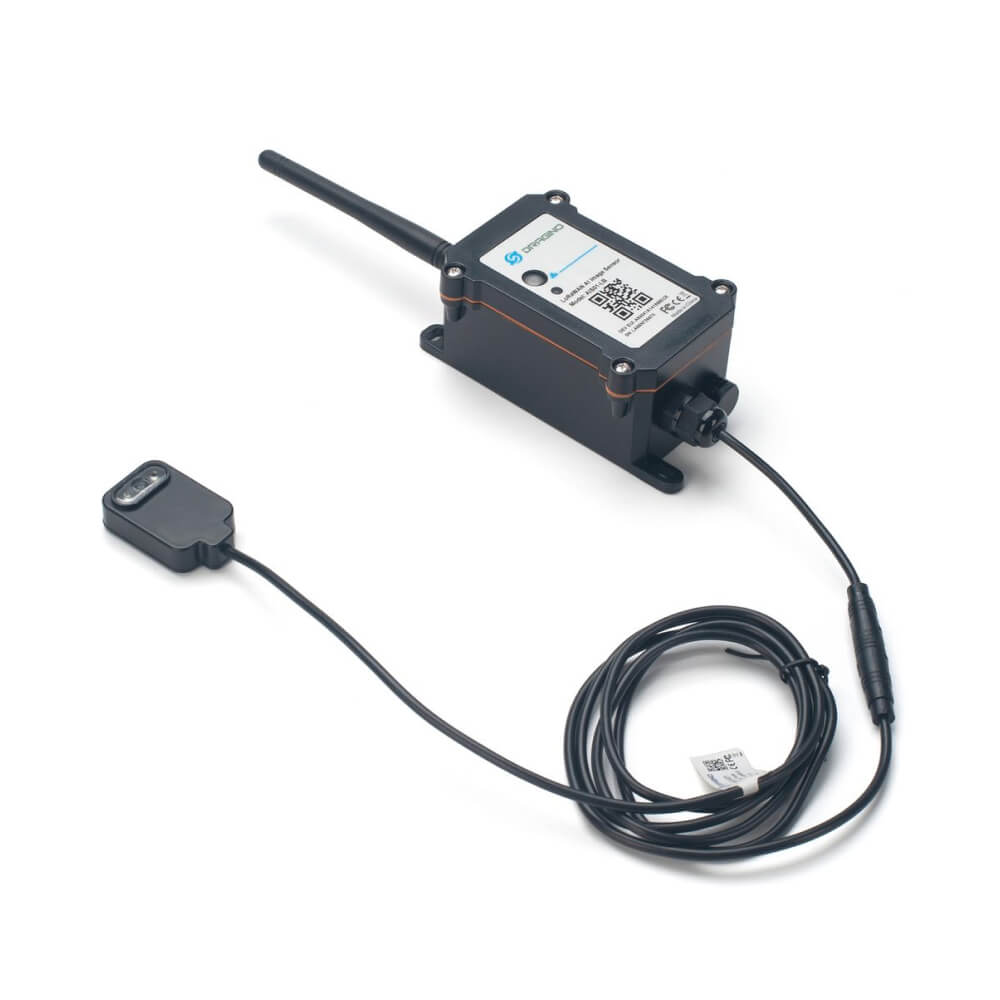

Dragino AIS01 | LoRaWAN AI Image Recognition End Node

€68,00 €72,00
Shipping calculated at checkout.

An intelligent vision-based LoRaWAN node that captures, analyzes, and converts meter images into digital data via edge AI processing.

  • • Edge AI: On-device recognition for water, gas, and power meters.
  • • Dual Reporting: Sends both digital readings and original photos.
  • • Scalable Vision: Pre-trained models with custom training support.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Dragino AIS01 is a revolutionary AI-powered image recognition node designed to modernize legacy utility infrastructure. Equipped with an integrated camera and a high-performance AI processor at the edge, the AIS01 captures high-resolution photos of mechanical meters, processes the visual information locally, and transmits the digital reading over LoRaWAN®. This eliminates the need for manual meter reading or expensive meter replacements, providing a cost-effective path to automated utility management.

Intelligent Optical Recognition

Pre-Trained Meter Support Ready to use with water, gas, and electricity meters. The AI engine can also be trained for custom visual recognition tasks.
Hybrid Data Uplink Offers the flexibility to send just the recognized numeric data to save bandwidth, or the original photo for visual audit trails.

Smart Metering Solutions

• Utility Modernization: Retrofit existing mechanical meters with wireless digital reporting without plumbing or electrical work.
• Industrial Monitoring: Automate the reading of analog pressure gauges or displays in factory environments.
• Visual Quality Control: Capture and analyze periodic images of equipment status for remote inspection.

Dragino Power Options

• Model LB: Powered by a non-rechargeable 8500mAh Li-SOCI2 battery for long-term field stability.

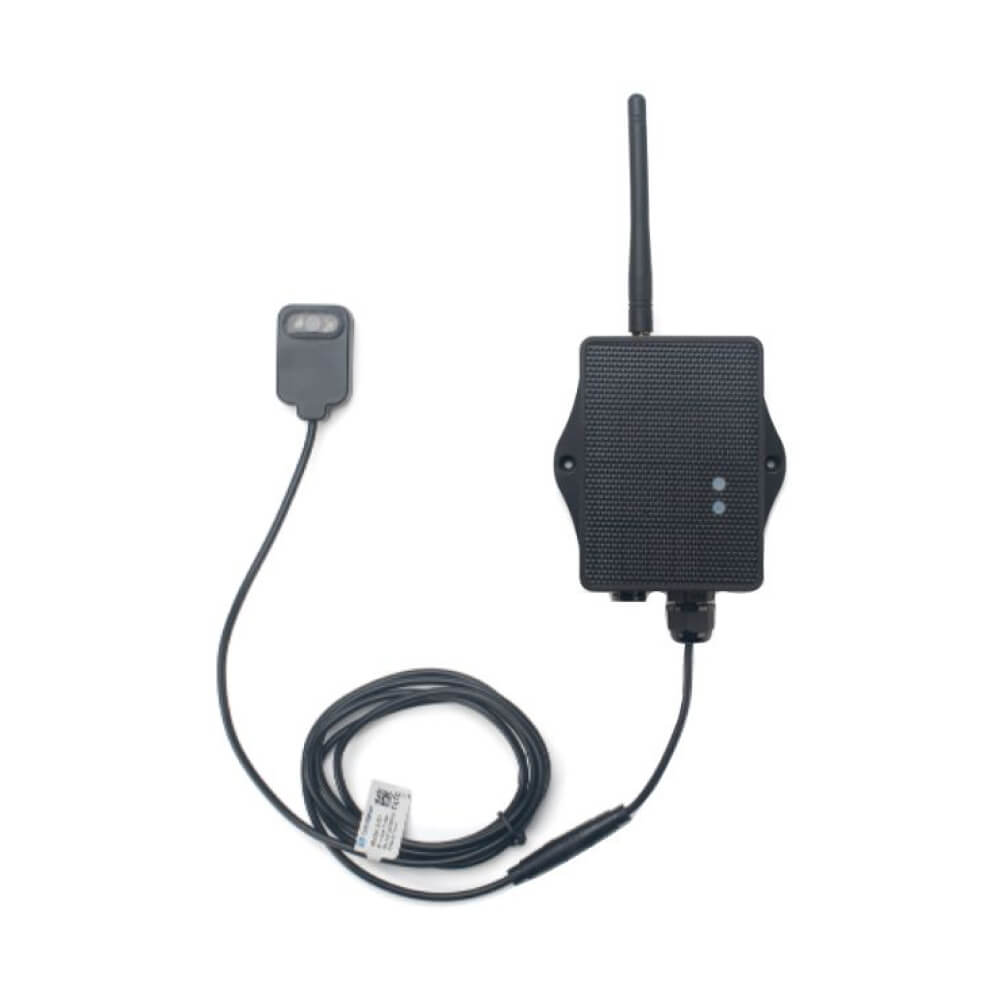

• Model LB2: High-capacity version with a non-rechargeable 19000mAh battery for maximum maintenance cycles.
• Model LS: Sustainable solar-powered version with a 3000mAh rechargeable battery for continuous operation.

What is in the Box?

• 1 x Dragino AIS01 LoRaWAN Main Unit

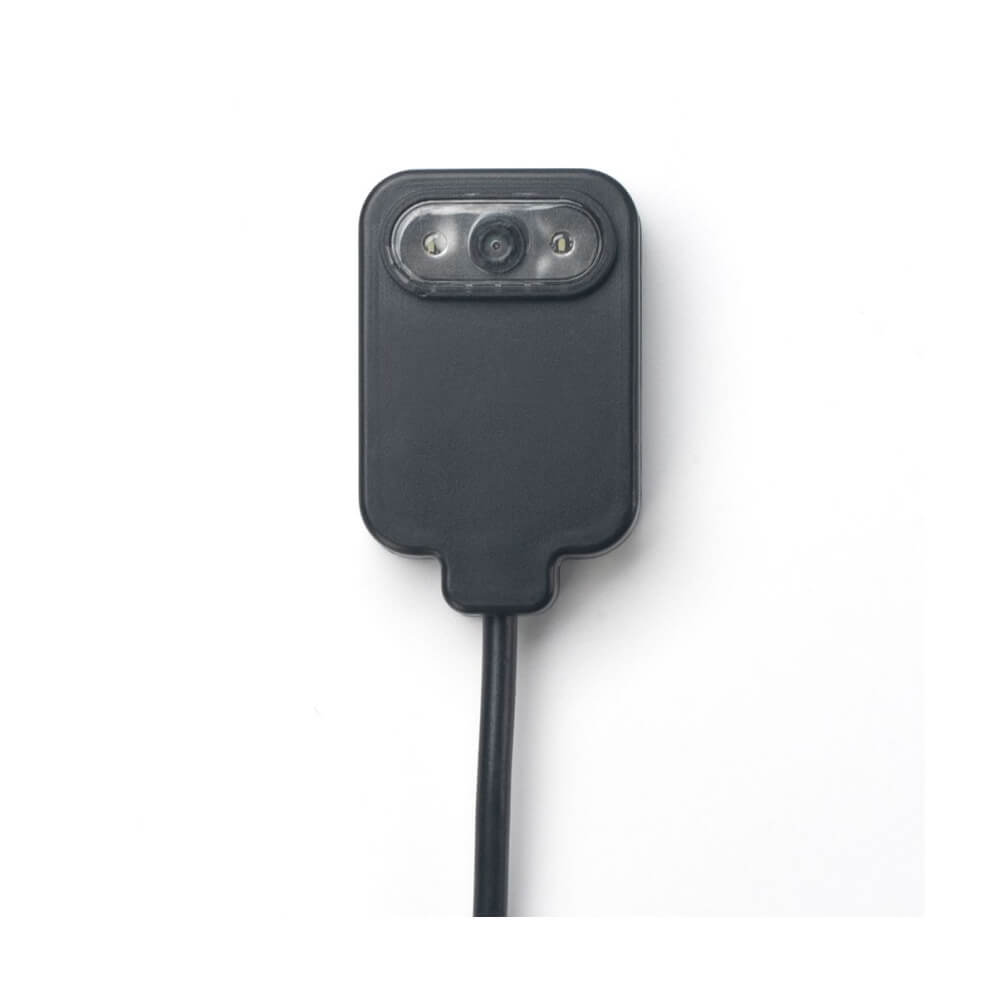

• 1 x AI Image Recognition Camera Probe
• 1 x Mounting Bracket & Hardware Kit
• 1 x Quick Start Guide

Product Certifications

CE FCC RoHS

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    External
  • Configuration Method
    Bluetooth, USB, Downlink
  • Activation Method
    OTAA, ABP
  • Environment Rating
    Outdoor, Industrial
  • IP Rating
    IP66
  • Operating Temperature
    -40°C to 85°C
  • Enclosure Material
    PC (Polycarbonate)
  • Battery Type
    Li-SOCl2, Li-ion
  • Battery Capacity
    3000mAh, 8500mAh, 19000mAh
  • Power Consumption
    Sleep: 14uA, Active: 200mA
  • Measurement Technology
    • AI Processing: Local Edge-AI recognition (OCR) via integrated processor
    • Imaging: High-resolution camera probe with built-in LED for dark environments
  • Measurement Range
    • Meter Compatibility: Mechanical dial meters for Water, Gas, and Electricity
    • Data Types: Digital string output and compressed original photo transmission
  • Measurement Accuracy

    Reliability: Edge recognition minimizes transmission errors and reduces LoRaWAN bandwidth usage

  • Measurement Resolution

    Recognition Output: Full digital sequence from the meter register

  • Monitoring Parameters
    Digitized Meter Reading, Original Image, Battery Voltage

Document Library

AIS01 Datasheet
