PowerUC | SKU: SCT036TS-150A-5A-1%

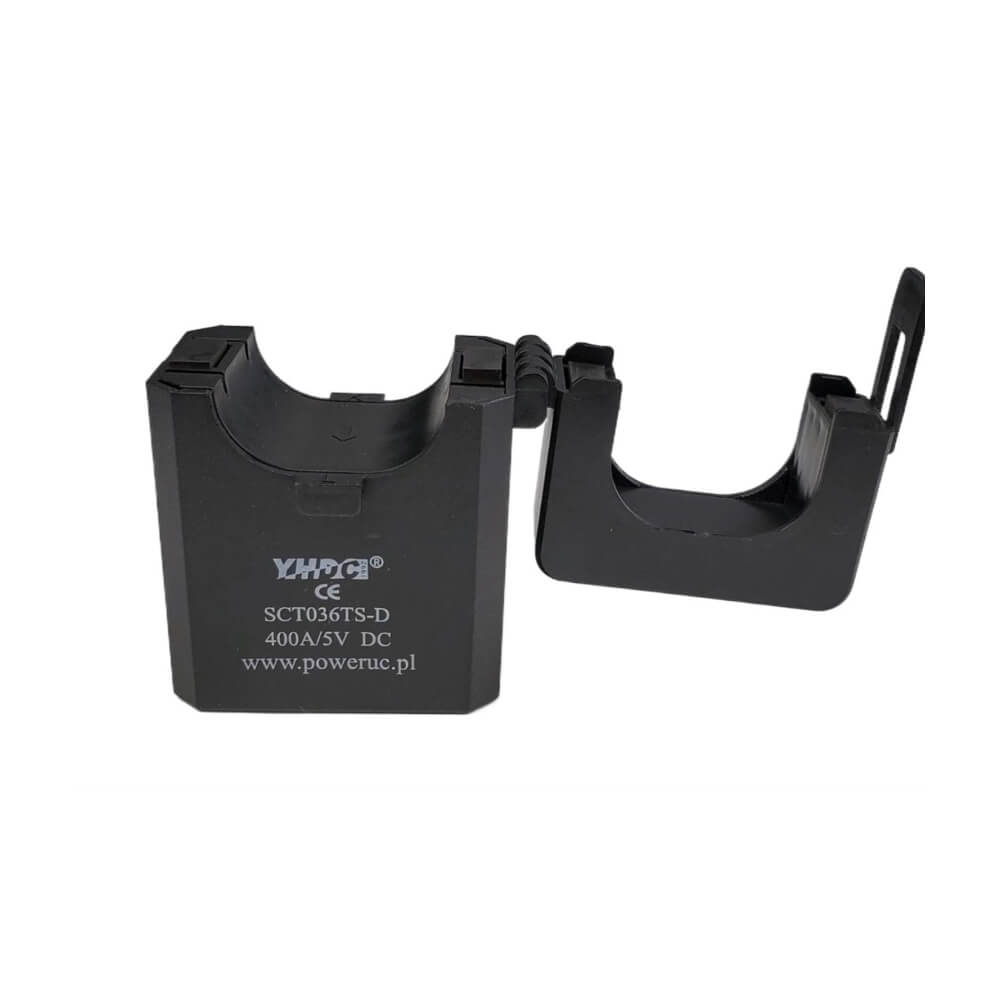

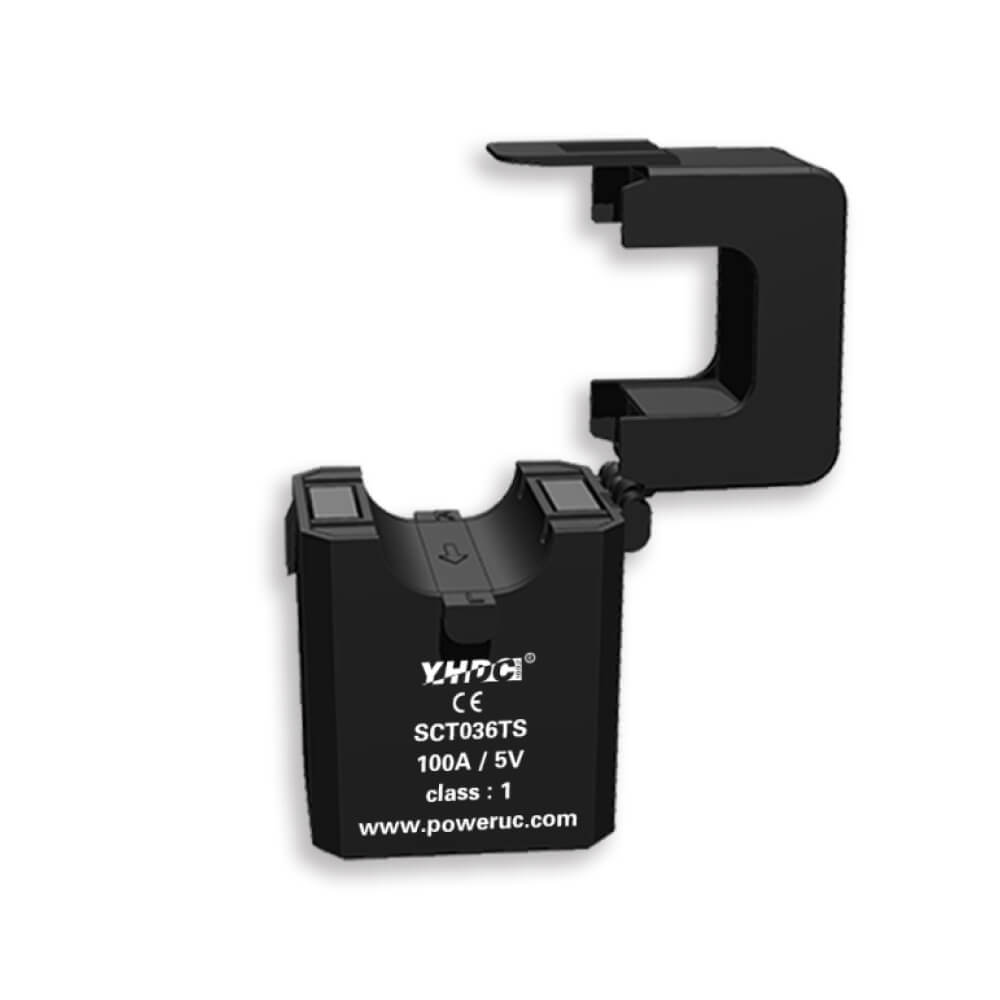

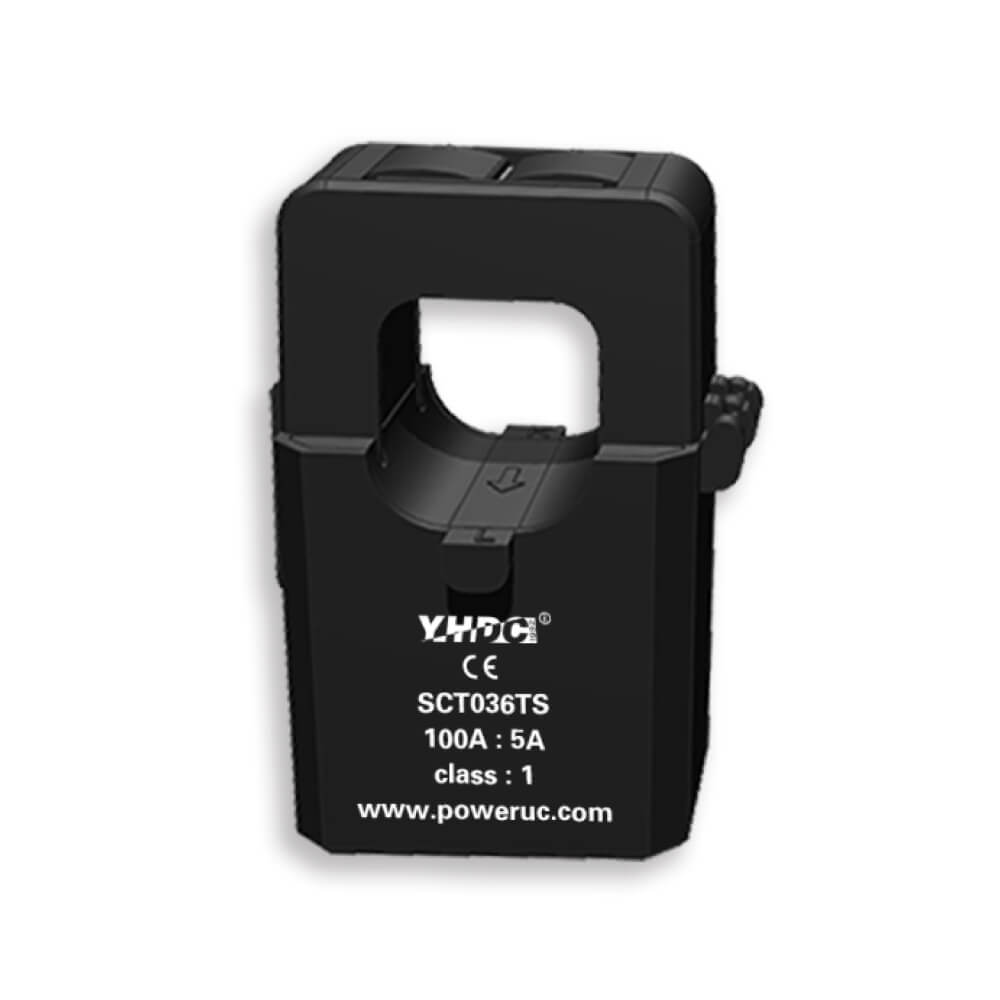

PowerUC SCT036TS | 36mm Aperture Split-Core Current Transformer

€17,00

Shipping calculated at checkout.

A professional split-core transformer featuring a 36mm aperture and safety lock for secure, non-invasive industrial energy measurement.

• Secure Fastening: Safety lock buckle prevents accidental opening.
• High Output: 5A secondary output for standard meter integration.
• Wide Range: Primary current capacities from 100A up to 600A.

Rated Input

Rated Output

Accuracy

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The PowerUC SCT036TS is a high-performance Split-Core Current Transformer designed for rapid deployment in existing electrical installations. With a 36mm internal aperture, it is perfectly sized for medium-to-large industrial cables, allowing for accurate current monitoring without disconnecting the primary conductor. The SCT036TS stands out with its safety lock buckle design, ensuring the core remains tightly closed for maximum magnetic efficiency and measurement stability. Built with laminated silicon steel and featuring a 5A secondary output, it serves as a reliable interface for power meters, energy analyzers, and building automation controllers.

Industrial Precision & Safety

Enhanced Locking Mechanism The integrated safety lock provides superior mechanical stability compared to standard snap-on CTs, preventing errors caused by core misalignment.

High-Fidelity Output Delivers a standard 5A AC secondary current with accuracy classes reaching up to 0.5%, suitable for professional energy sub-metering.

Professional Metering Scenarios

• Building Energy Management: Monitor main distribution lines and sub-panels in commercial properties.

• Industrial Automation: Track the energy consumption of large motors, pumps, and specialized factory equipment.

• Retrofit Projects: Easily add monitoring capabilities to legacy systems without site power de-energization.

Available Options

The SCT036TS is available in multiple primary current ratings to match your specific application requirements:

• Primary Current Ratios: 100A/5A, 200A/5A, 300A/5A, 400A/5A, 500A/5A, 600A/5A.

• Accuracy Grades: Options for Class 0.5 and Class 1.0 precision.

• Terminal Connection: Secure screw terminal output for reliable wiring.

What is in the Box?

• 1 x PowerUC SCT036TS Split-Core Current Transformer

• 1 x Technical Specification Sheet

Product Certifications

CE RoHS GB20840-2014

Specifications

Primary Communication Protocol

Analog
Activation Method

Plug & Play
Environment Rating

Indoor
Operating Temperature

-25°C to 55°C
Measurement Technology
- Sensing Method: Laminated silicon steel core utilizing electromagnetic induction.
- Design: Split-core architecture with a safety lock buckle for fast, non-invasive installation.
- Output Type: Secure screw terminal output for reliable wired connections.
Measurement Range
- Primary Input Current: Models available for 100A, 200A, 300A, 400A, 500A, and 600A AC.
- Secondary Output: Standard 5A AC output across all models.
- Aperture Size: 36mm diameter, suitable for standard industrial power cables.
Measurement Accuracy
- Accuracy Class: Available in Class 0.5 and Class 1.0 (model dependent).
- Dielectric Strength: 3.5KV 50Hz 1min.
- Linearity: Optimized for high-fidelity current measurement across the rated frequency range (50Hz - 1KHz).
Measurement Resolution
- Turns Ratio: Ranging from 1:20 (100A model) to 1:120 (600A model).
- Phase Precision: Designed to maintain phase angle stability for power quality calculations.
Monitoring Parameters

Current (A)

Document Library

SCT036TS Datasheet
