Milesight  |  SKU : WT303-868M

Milesight WT303 | LoRaWAN Smart Fan Coil Thermostat (On/Off Valve)

€106,00
Frais de livraison calculés lors du paiement.

The Milesight WT303 is a LoRaWAN fan coil thermostat for 2- and 4-pipe FCUs with a clear e-ink display.

  • FCU control: 2- or 4-pipe units with 3-speed or EC (0-10V) fans.
  • On/Off valves: 2-wire or 3-wire motorized valve control.
  • Smart & connected: LoRaWAN, Milesight D2D, BACnet, schedules and e-ink display.

Option de transaction hors TVA

Notre boutique affiche les prix hors TVA par défaut. Pour les entreprises basées dans l'UE et disposant d'un numéro de TVA valide, les exonérations de TVA intracommunautaire s'appliquent. Vous pouvez valider votre numéro de TVA pendant le processus de commande pour assurer une facturation correcte.

Paiement sécurisé et garantie
  • Paiement crypté : Achetez en toute confiance via Shopify Payments ou PayPal Express pour des transactions entièrement sécurisées et conformes à la norme PCI.
  • Facturation flexible B2B : Pour les commandes d'infrastructures à grande échelle, nous proposons des options de virement bancaire direct (SEPA/SWIFT). Veuillez contacter notre équipe pour une facture pro forma.
  • Qualité garantie : Tout le matériel IoT professionnel est couvert par une garantie fabricant de 2 ans et un support technique de nos experts en ingénierie chez shopioT.

Livraison

Expédition mondiale fiable, suivie et rapide via FedEx Express. Votre matériel IoT professionnel est expédié depuis notre entrepôt basé dans l'UE sous 2 jours ouvrables.

Saisissez le nom de votre entreprise et un numéro de TVA intracommunautaire valide sur la page de paiement pour une transaction exonérée de TVA.

Description

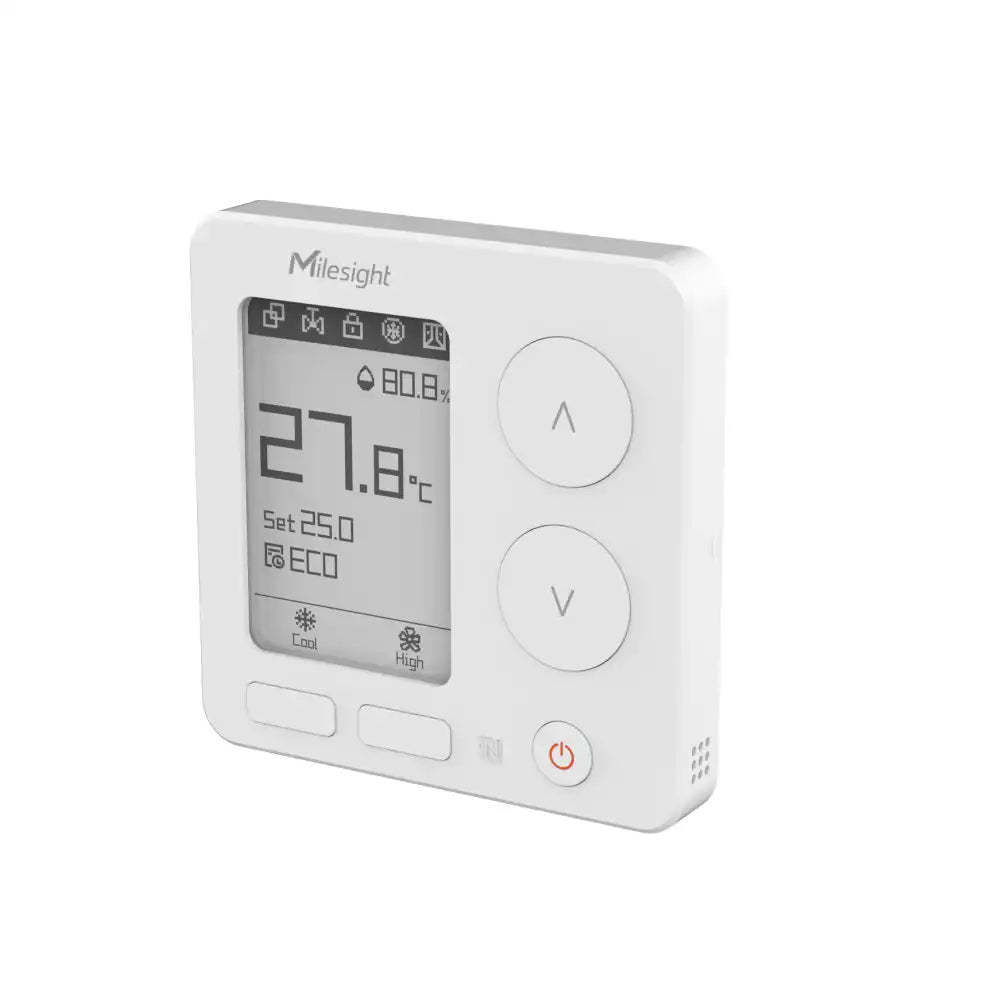

The Milesight WT303 is an advanced LoRaWAN fan coil thermostat for air-conditioning systems using 2-pipe or 4-pipe fan coil units (FCUs) with 3-speed or EC (0-10V) fans. It drives 2-wire or 3-wire On/Off motorized valves. It supports manual button control and automatic control via predefined logic, schedules or remote management for optimal comfort and energy efficiency.

A 2.7-inch e-ink display and a built-in temperature/humidity sensor continuously show room status, and it integrates with standard LoRaWAN gateways, BACnet (via Milesight gateways), Milesight D2D and the Development Platform for real-time monitoring and remote management.

Key Features

2-/4-Pipe FCU ControlDrives 2-pipe and 4-pipe fan coil units with 3-speed fans or EC (0-10V) fans for flexible HVAC control.
Valve ControlControls 2-wire or 3-wire On/Off motorized valves for reliable open/close heating and cooling.
2.7-Inch E-Ink DisplayA crisp, low-power e-ink screen shows room temperature, humidity and system status clearly.
Connected & FlexibleLoRaWAN and Milesight D2D, BACnet via Milesight gateways, multicast, FUOTA; 8 plans with up to 16 schedules each.

Typical Applications

•Hotels & offices: per-room FCU control with key-card input and central management.
•Commercial buildings: scheduled heating/cooling and ventilation for comfort and energy savings.
•BMS integration: bring FCU zones into BACnet building-management systems via Milesight gateways.

Technical Integration

•FCU compatibility: 2-pipe and 4-pipe FCUs with 3-speed fans or EC (0-10V) fans
•Valve control: 2-wire or 3-wire On/Off motorized valves
•Relays: Valve & fan relays: 4 A resistive, 3 A inductive (capacitive loads not supported)
•Control: Heat, Cool, Ventilation; fan Low/Medium/High/Auto; temperature range 5-35 °C; 8 plans, up to 16 schedules each
•Inputs & sensing: Built-in temp (±0.5 °C) & humidity (±2% RH) sensor; 1 x 10k NTC input; 1 x DI (dry contact); external sensor mode
•Connectivity: LoRaWAN (EU868, OTAA/ABP Class C) & Milesight D2D; internal antenna; BACnet via Milesight gateways; multicast; FUOTA
•Display & build: 2.7-inch e-ink; 5 buttons; PC+ABS (UL94 V0); IP20; operating -20 to 60 °C

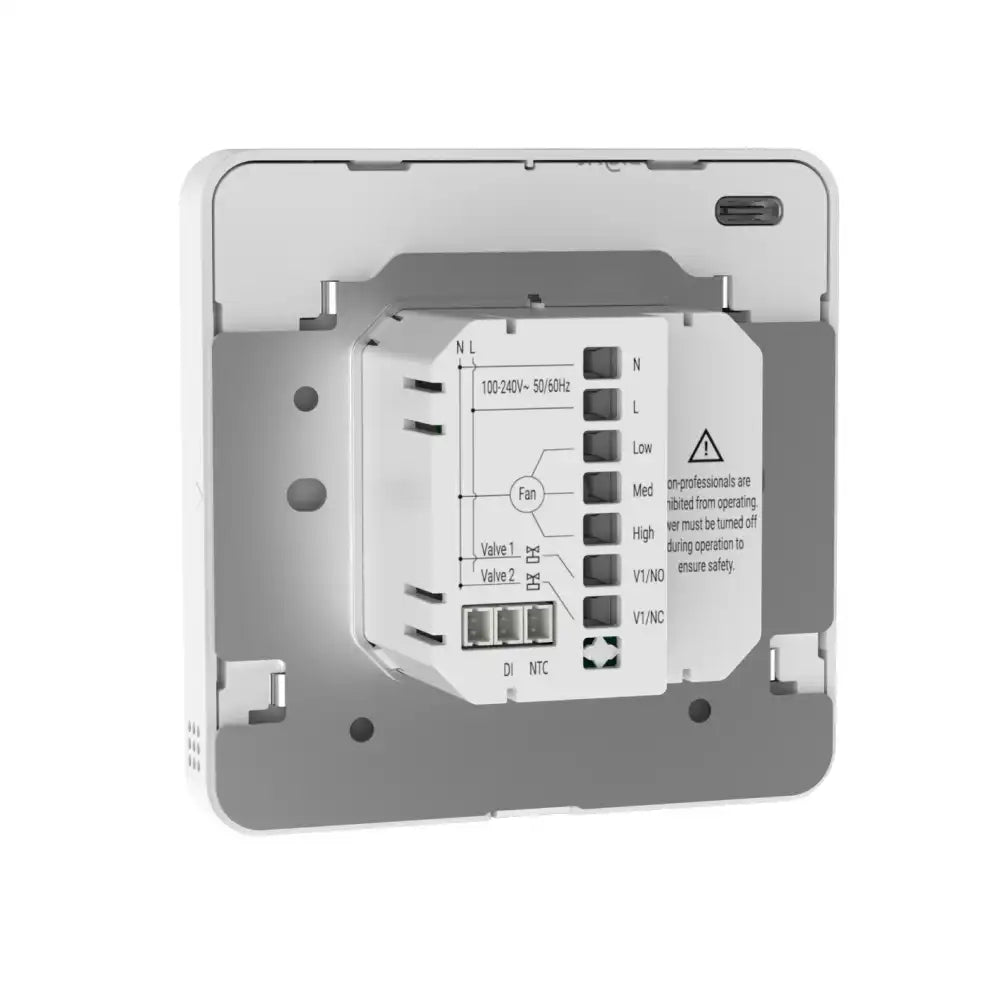

•Power & mounting: 100-240 VAC, 50/60 Hz; < 2 W (no loads); fits 86/60/118/120 mm boxes; AWG 14-26 wiring
•Setup help: For FCU wiring or BACnet integration, contact the shopioT technical team

What's in the Box

1×Smart Fan Coil Thermostat
2×Wall Mounting Screws (M4x25)
1×2-Pin Signal Cable
1×Anti-Theft Fixing Screw (M2x4)
1×Quick Guide
1×Warranty Card

Optional accessories: external NTC temperature sensor and wall plate kit (sold separately).

Frequently Asked Questions

Which FCUs does it support?

2-pipe and 4-pipe fan coil units with 3-speed fans or EC (0-10V) fans.

What valves can it drive?

2-wire or 3-wire On/Off motorized valves.

Can it integrate with a BMS?

Yes - via BACnet through Milesight LoRaWAN gateways, plus Milesight D2D, multicast and the Development Platform.

How is it powered and mounted?

100-240 VAC mains, in an 86/60/118/120 mm wall box (wall plate optional).

Controlling Fan Coil Units?

Spécifications
  • Protocole de communication principal
    LoRaWAN, Milesight D2D
  • Fréquence/Région
    EU868
  • Type d'antenne
    Internal
  • Méthode de configuration
    NFC, Downlink
  • Méthode d'activation
    OTAA, ABP
  • Classement environnemental
    Indoor
  • Indice de protection (IP)
    IP20
  • Température de fonctionnement
    -20°C to 60°C
  • Matériau du boîtier
    ABS+PC
  • Consommation électrique
    < 2 W (without loads)
  • Technologie de mesure

    A built-in digital MEMS temperature and humidity sensor monitors room conditions, while the thermostat controls the fan coil unit's fan speed and on/off valve for precise heating, cooling and ventilation.

  • Plage de mesure
    • Temperature: -20 to 60 degrees C
    • Humidity: 0 to 100% RH
    • Temperature control range: 5 to 35 degrees C
  • Précision de mesure
    • Temperature: +/-0.5 C (0-60 C), +/-1 C (-20-0 C)
    • Humidity: typ. +/-2% RH (max +/-5%)
  • Résolution de mesure
    • Temperature: 0.1 C
    • Humidity: 0.1% RH
  • Interfaces (E/S)
    Digital Input (Dry Contact), Dry Contact Relay (SPST NO), Analog Output (0-10V), USB Type-C, Button
  • Paramètres de surveillance
    Temperature, Humidity

Bibliothèque de documents

WT303 Datasheet

WT303 User Manual

Payload Decoder

Firmware & SDK Download
