Eastron  |  SKU: SDM630MCT-MODBUS-MID
7% off

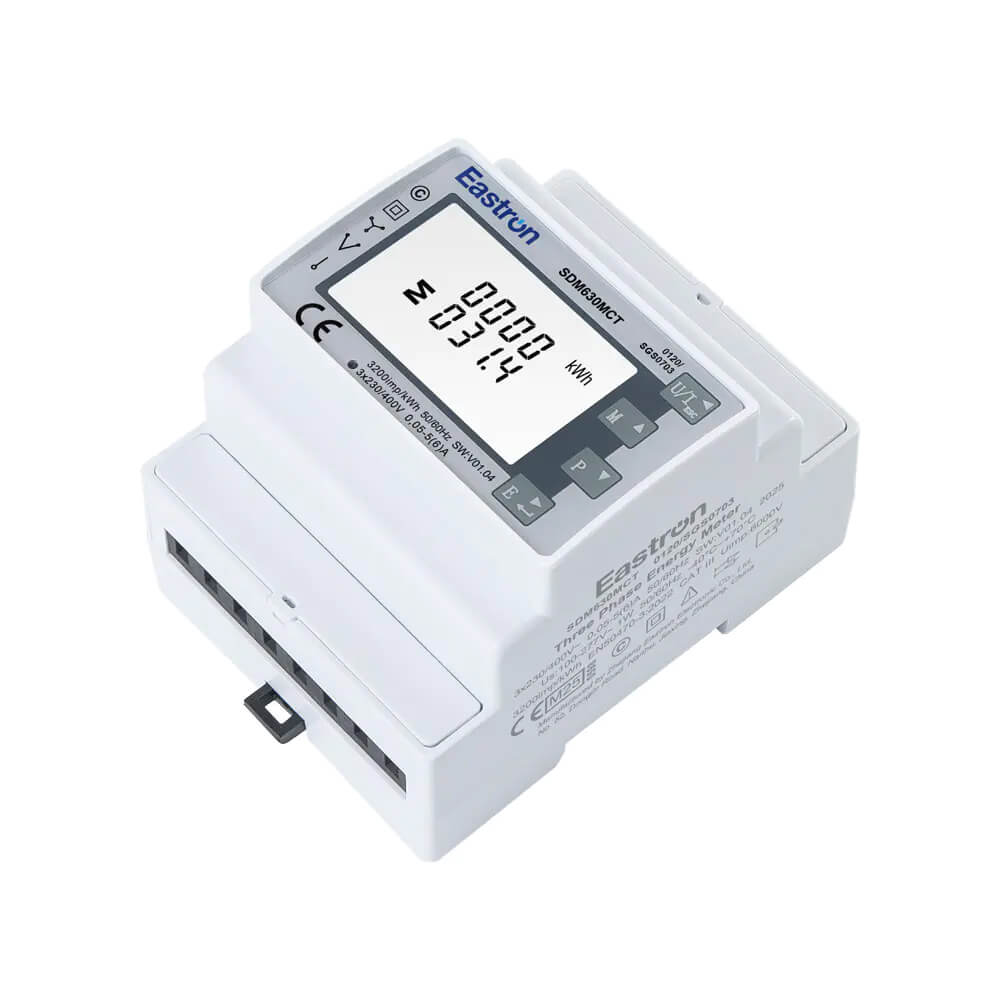

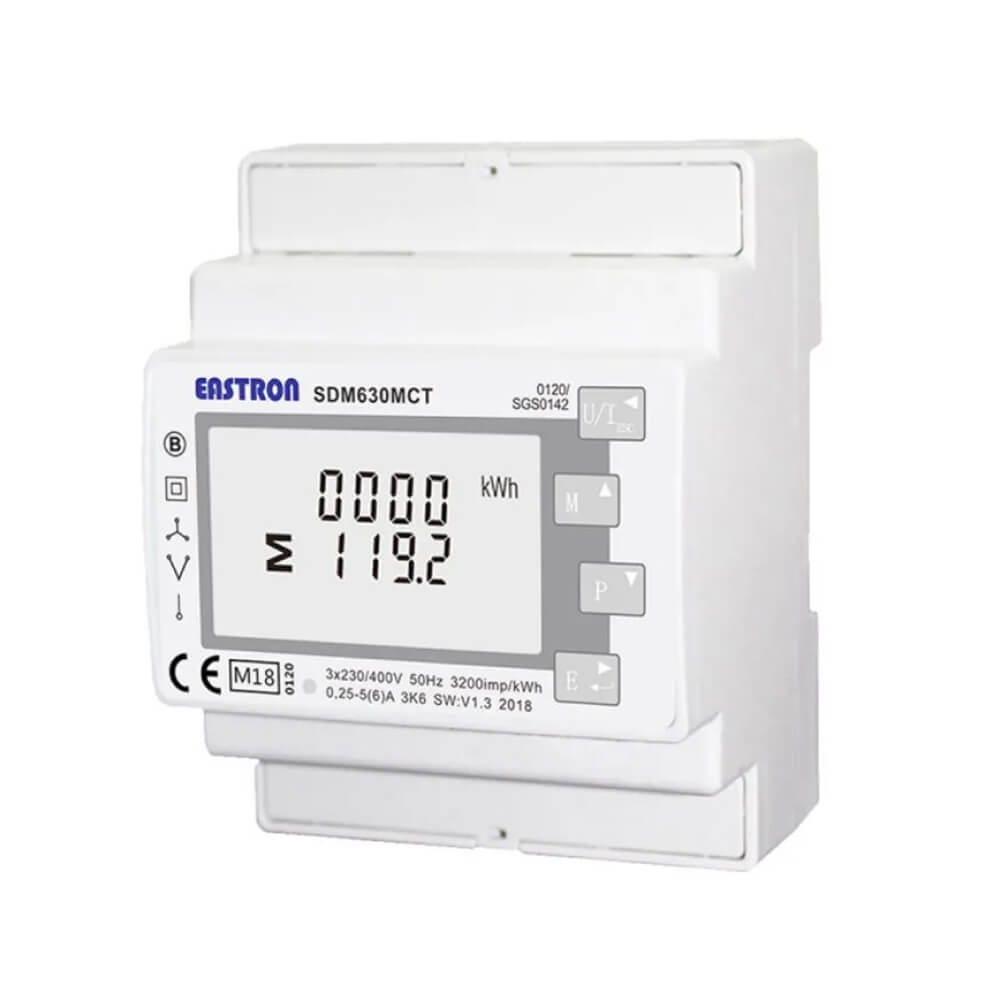

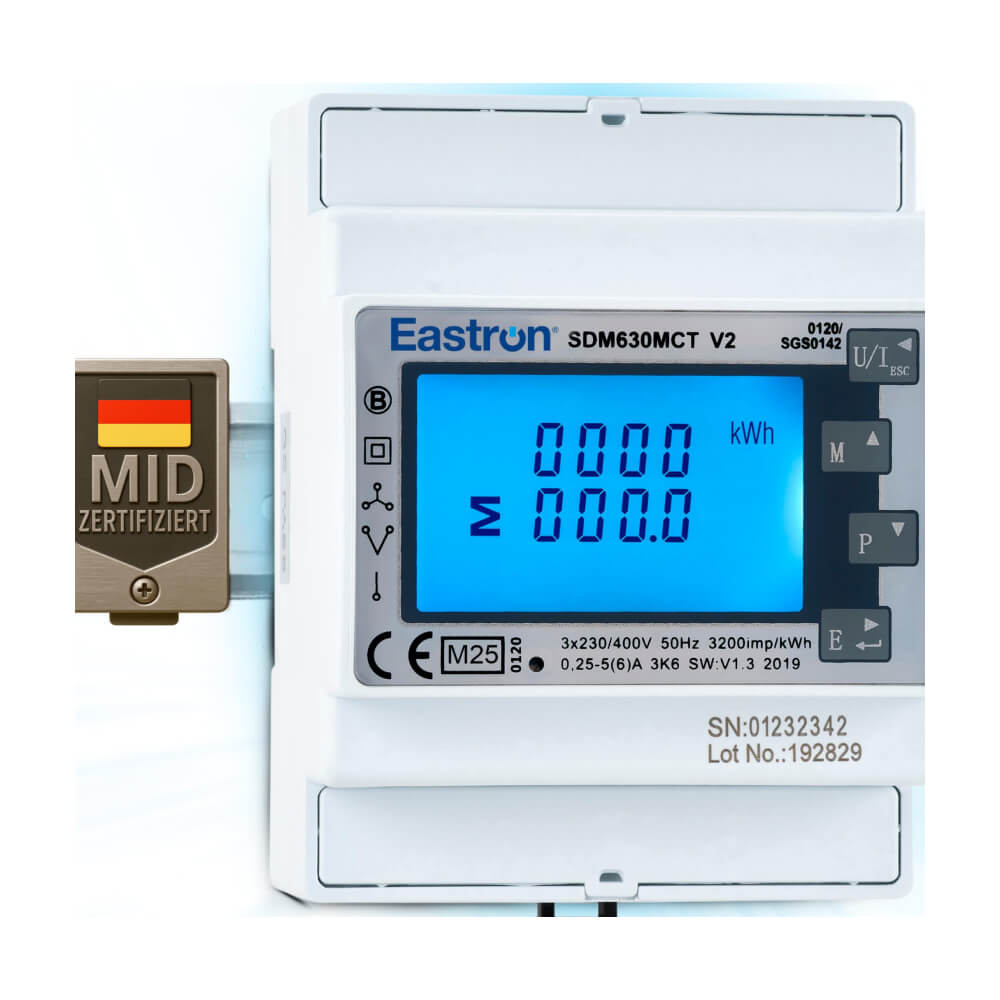

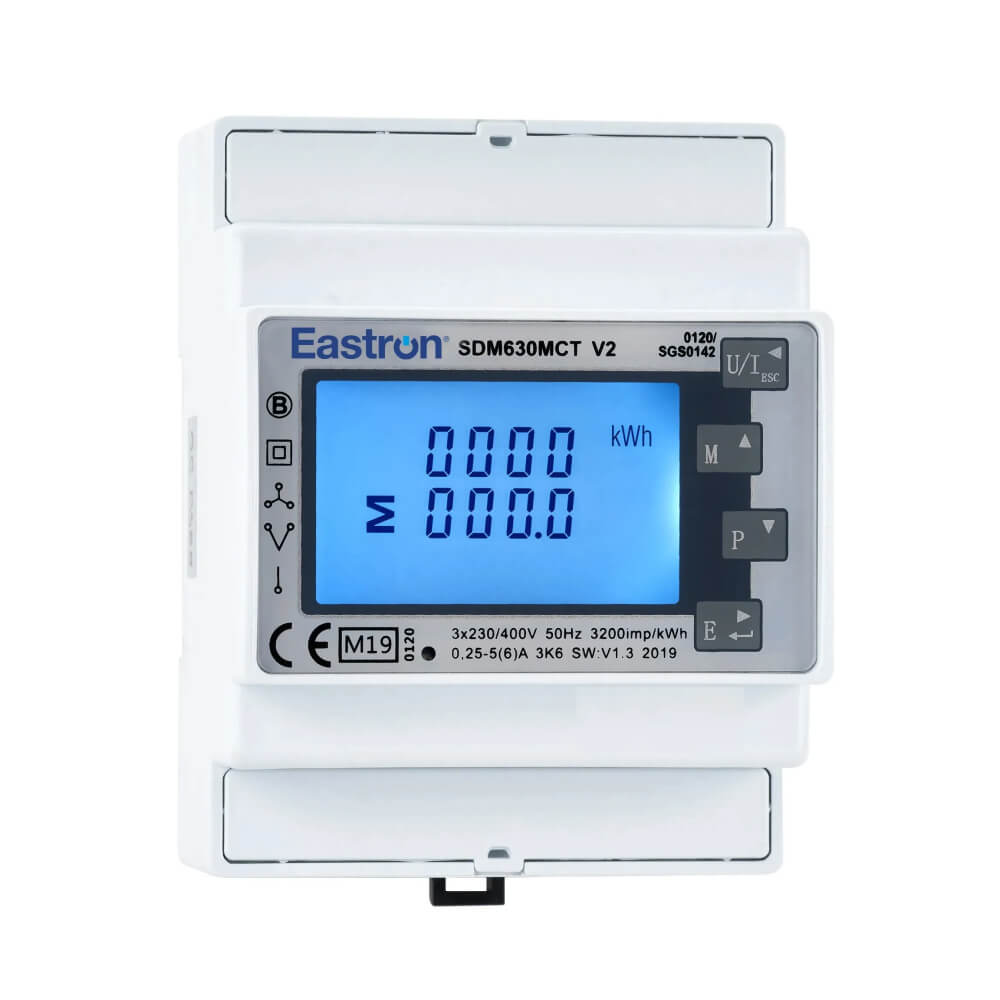

Eastron SDM630MCT | MID Three-Phase CT-Operated Multifunction Energy Meter

€99,00 €106,00
Shipping calculated at checkout.

A professional transformer-operated power monitoring solution designed for high-current industrial loads, providing billing-grade accuracy and comprehensive electrical analysis.

  • CT Operated: Supports 1A or 5A secondary current transformer inputs.
  • Fiscal Accuracy: MID B+D Certified | Class 0.5s Active Energy Precision.
  • Smart Connectivity: RS485 Modbus RTU & Dual Pulsed Outputs included.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

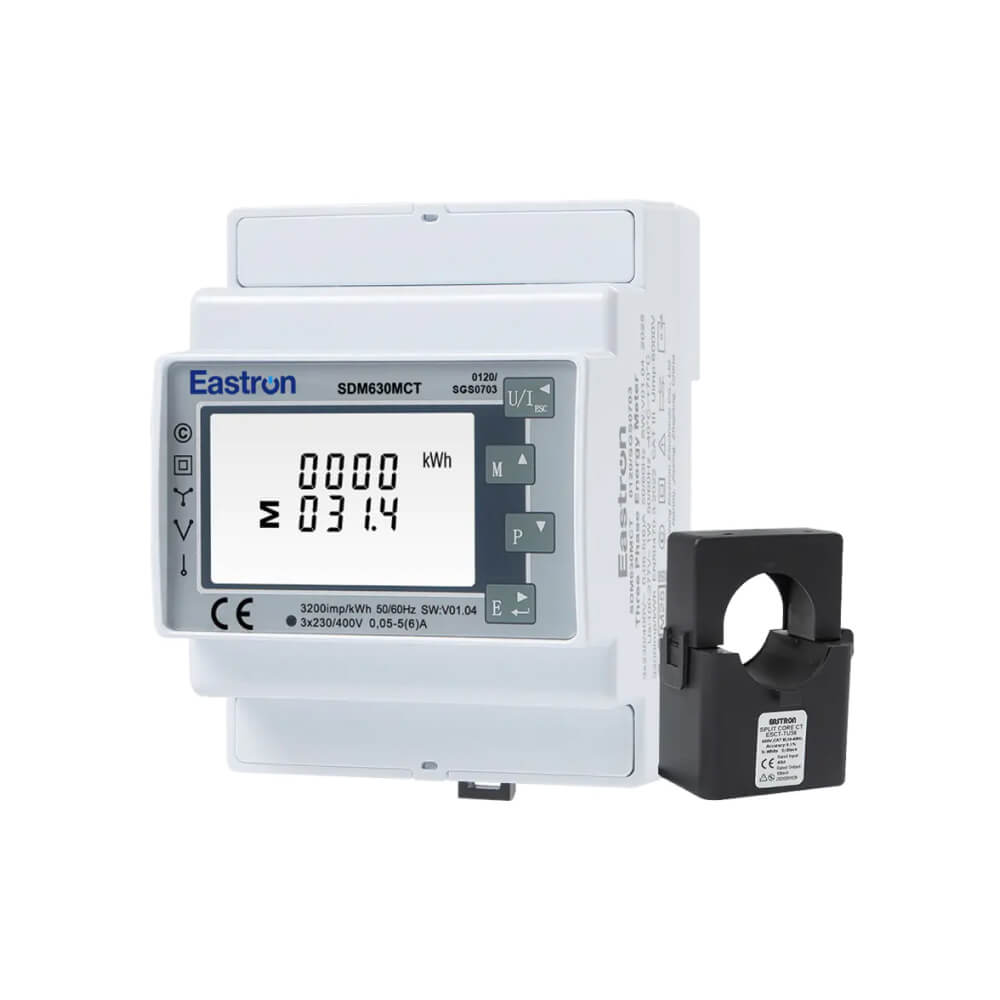

The Eastron SDM630MCT is a high-specification multifunction energy meter designed for DIN-rail mounting in transformer-operated three-phase systems. By utilizing external 1A or 5A current transformers (CTs), the SDM630MCT can monitor electrical loads far beyond the capacity of direct-fed meters, making it the preferred choice for industrial mains and large-scale facility management. With MID B+D certification, it ensures billing-grade precision (Class 0.5s) for fiscal sub-metering applications while offering real-time data on over 40 electrical parameters.

Core Capabilities

Scaleable Current Range Programmable CT primary ratios allow for monitoring of virtually any high-current industrial load.
THD & Harmonic Analysis Monitors Total Harmonic Distortion for both voltage and current to safeguard industrial equipment.
Import/Export Tracking Measures active and reactive energy in both directions, critical for renewable energy integration.
Industrial Comms Equipped with Modbus RTU (RS485) and pulsed outputs for seamless integration with BMS and DTUs.

Primary Applications

• Industrial Sub-metering: Efficient energy allocation for heavy machinery, HVAC systems, and manufacturing floors.
• Commercial Energy Billing: Accurate, MID-certified energy measurement for shopping malls and multi-tenant offices.
• Smart Buildings: Remote energy monitoring via LoRaWAN gateways or local building automation systems.

Technical Integration

The SDM630MCT supports standard 35mm DIN rail mounting and is compatible with 1P2W, 3P3W, and 3P4W electrical systems. It features a high-visibility backlit LCD and intuitive buttons for easy field configuration of CT ratios and Modbus parameters. For expert advice on current transformer selection or energy monitoring architecture, contact the ShopIoT engineering team.

Specifications
  • Primary Communication Protocol
    Modbus RTU (RS485)
  • Configuration Method
    Buttons, Software (via RS485)
  • Environment Rating
    Indoor, Industrial
  • IP Rating
    IP51
  • Operating Temperature
    -25°C to 55°C
  • Enclosure Material
    PC (Polycarbonate)
  • Power Consumption
    < 2W / 10VA per phase
  • Measurement Technology
    • Voltage/Current: True RMS Microprocessor Sampling
    • Energy: Digital Integration (Class 0.5S)
    • Harmonics: Total Harmonic Distortion (THD) Analysis up to 31st
    • Processing: High-performance 32-bit Microprocessor
  • Measurement Range
    • Voltage (Phase-Neutral): 100V to 276V AC
    • Voltage (Phase-Phase): 173V to 480V AC
    • Current (Secondary): 1A or 5A AC RMS (via External CT)
    • Primary CT Current: Configurable 1A to 9999A
    • Frequency: 45Hz to 66Hz
    • Energy (kWh): 0 to 9,999,999.9 kWh
  • Measurement Accuracy
    • Active Energy (kWh): Class 0.5S (IEC 62053-22) / Class B (EN50470-3)
    • Reactive Energy (kVArh): Class 2 (IEC 62053-23)
    • Active Power (W): ±1.0% of Range Maximum
    • Voltage/Current: ±0.5% of Nominal
    • Power Factor: ±1% of Unity (0.01)
    • Frequency: ±0.2% of Mid-frequency
  • Measurement Resolution
    • Voltage: 0.1V
    • Current: 0.001A
    • Power (W/VA/VAr): 0.1W/VA/VAr
    • Energy (kWh): 0.01 kWh
    • Power Factor: 0.001
  • Interfaces (I/O)
    RS485 (Modbus RTU), Pulse Counter
  • Monitoring Parameters
    Voltage (V), Current (A), Active Power (W), Reactive Power (var), Apparent Power (VA), Energy (kWh), Power Factor, Frequency, Total Harmonic Distortion (THD), Demand (A/W)
