Dragino WSC2-L | Industrial LoRaWAN Weather Station Main Process Unit
The WSC2-L is a LoRaWAN data collector that aggregates multiple RS485 sensors.
- Aggregates your sensors: connects up to 3 RS485 sensors, expandable
- Hybrid power: wide 7–60 V input with 1000 mAh Li-ion backup
- Easy modern setup: Bluetooth 5.1 config and OTA updates
Dragino WSC2-L | Industrial LoRaWAN Weather Station Main Process Unit - EU868 is backordered and will ship as soon as it is back in stock.
VAT Free Transaction Option
VAT Free Transaction Option
Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.
Secure Payment & Warranty
Secure Payment & Warranty
- Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
- B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
- Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.
Delivery and Shipping
Delivery and Shipping
Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.
Dragino WSC2-L | Industrial LoRaWAN Weather Station Main Process Unit
Description
Description

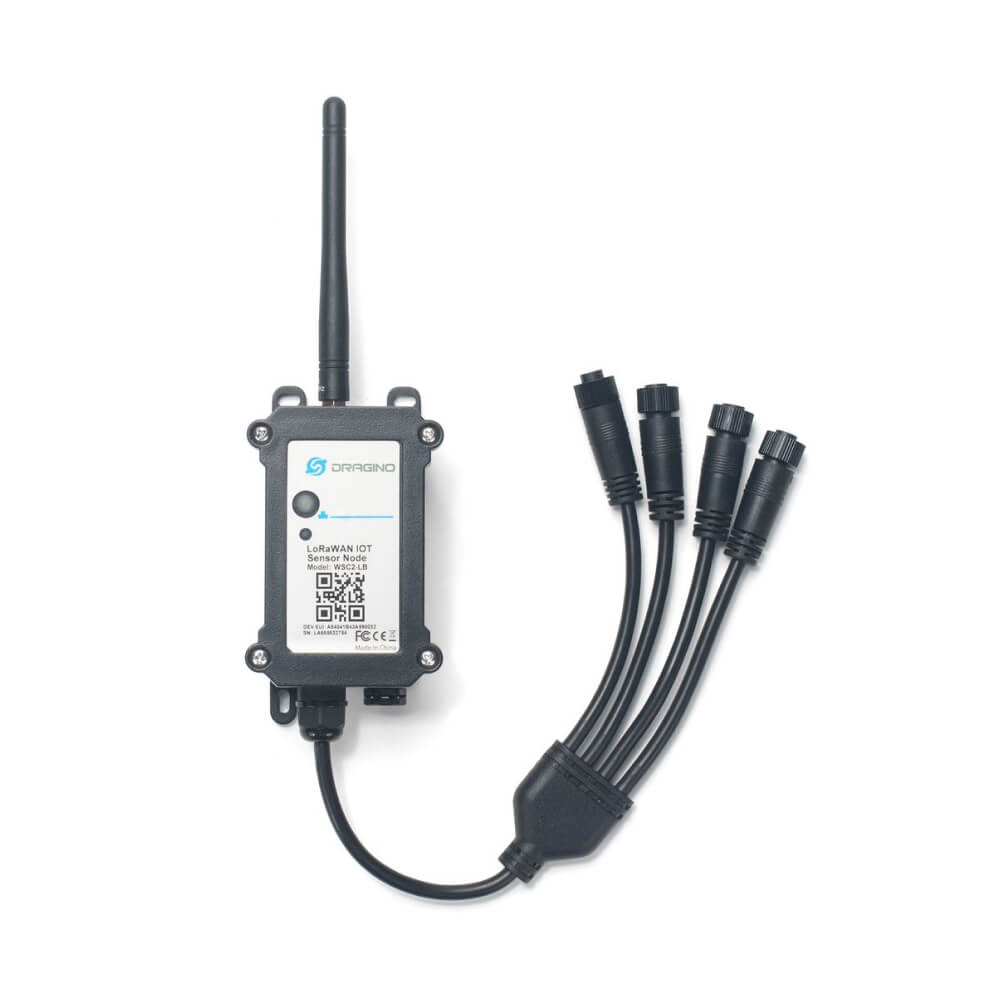

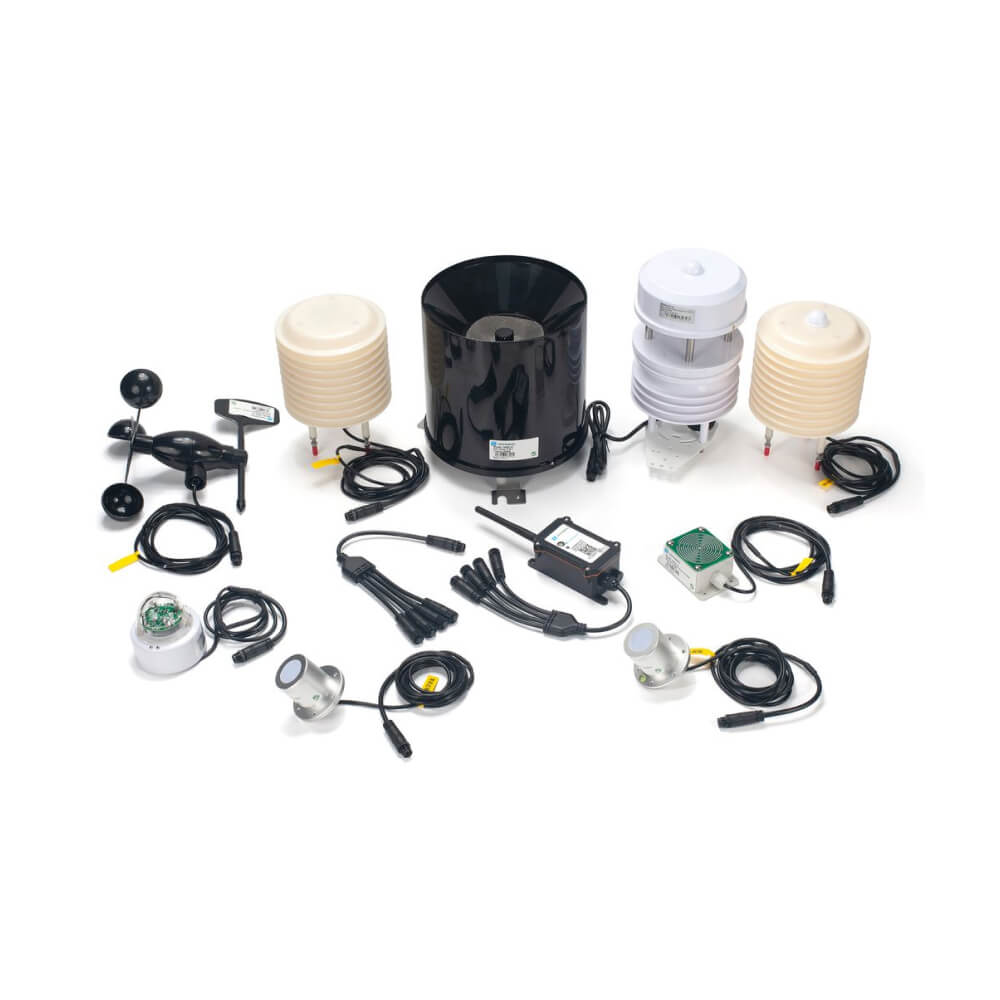

The Dragino WSC2-L is the central processing engine for comprehensive agricultural and meteorological monitoring solutions. This high-performance LoRaWAN® transmitter is engineered to interface with multiple weather sensors—including wind speed/direction, rainfall, PAR radiation, and CO2—via a noise-resistant RS485 interface. Housed in a rugged IP66 enclosure, the WSC2-L provides a scalable, long-range bridge between complex outdoor sensors and your IoT platform, ensuring reliable data delivery in the most demanding field research environments.
Core Capabilities
Agricultural Applications
Technical Integration

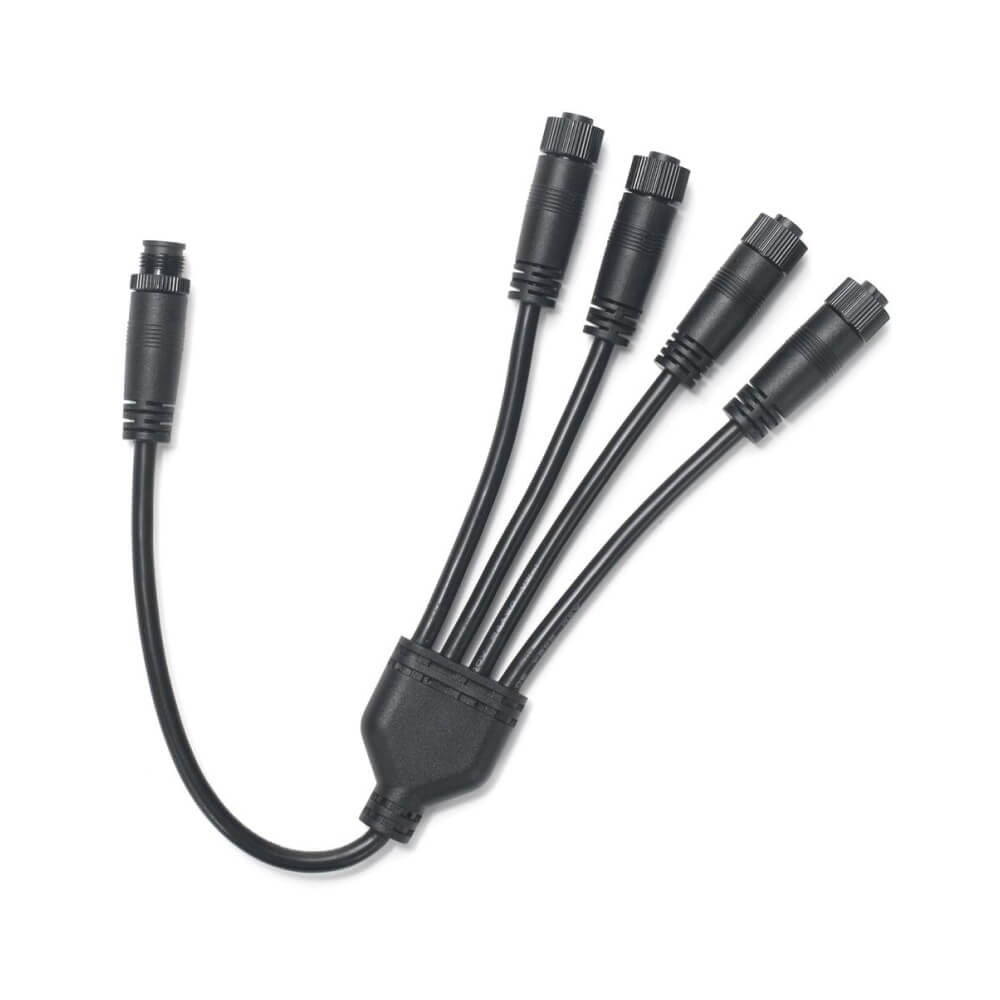

The WSC2-L is LoRaWAN v1.0.3 Class A compliant and pre-configured for global frequency bands. It features a unique LoRaWAN key for zero-touch registration on servers such as The Things Stack, ChirpStack, and AWS IoT Core. For advanced station layouts requiring more than three sensors, the 1-to-4 adapter cable (DR-F6C-4M) is available. For full system architecture support, reach out to the ShopIoT technical team.
Specifications
Specifications
-
Primary Communication ProtocolLoRaWAN
-
Frequency/RegionEU868
-
Antenna TypeExternal (SMA)
-
Configuration MethodBluetooth, USB-TTL / Serial, Downlink
-
Activation MethodOTAA, ABP
-
Environment RatingOutdoor, Industrial
-
IP RatingIP66
-
Operating Temperature-40°C to 85°C
-
Enclosure MaterialPC (Polycarbonate)
-
Battery TypeLi-SOCl2
-
Battery Capacity8500mAh
-
Power ConsumptionSleep: 30µA, Tx: 150mA
-
Measurement Technology
-
Interfaces (I/O)RS485 (Modbus RTU)
