Milesight | SKU: UG63-868M (PoE Splitter)

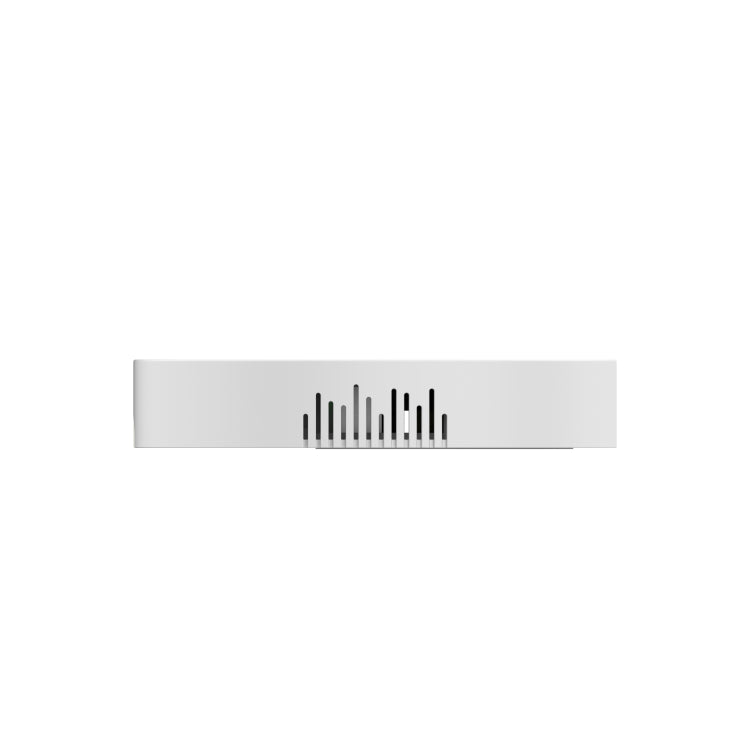

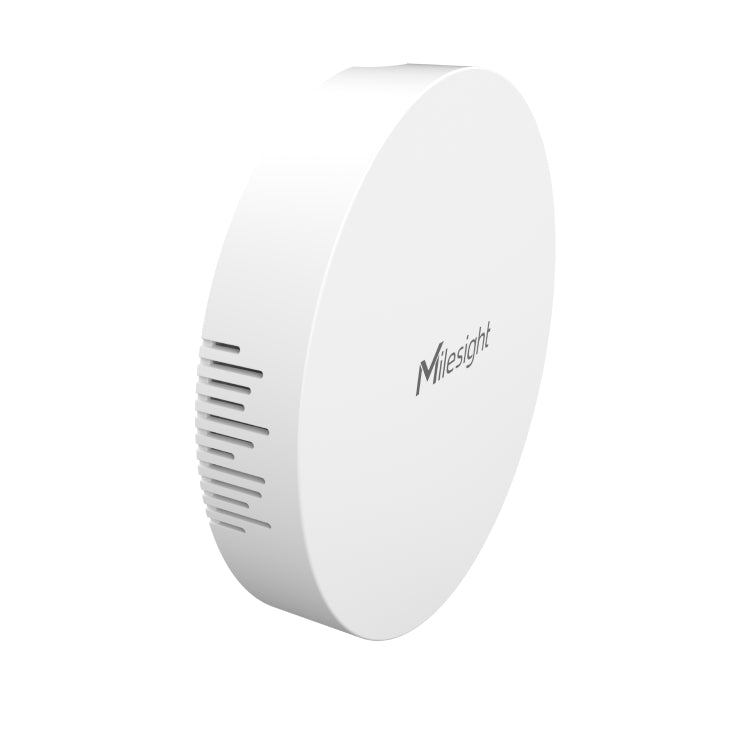

Milesight UG63 | 8-Channel Mini Indoor LoRaWAN Gateway (EU868)

€115,00

Shipping calculated at checkout.

A lightweight and compact 8-channel indoor gateway designed for single-space coverage or as an intelligent signal-filling supplement.

Connectivity: 8-Channels | Supports 2,000+ End-Nodes
Form Factor: Ultra-Compact Design | Discreet Deployment
Management: Built-in Network Server | Mainstream LNS Compatible

Frequency/Region

Backhaul Communication

PoE

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Add a stand out message for your customers

Description

The Milesight UG63 is a lightweight 8-channel indoor LoRaWAN® gateway designed for high-efficiency signal coverage in localized environments. Utilizing the high-performance SX1302 chip, it supports more than 2,000 end-nodes while maintaining ultra-low power consumption. Its compact, aesthetic design makes it an ideal choice for smart offices, retail spaces, and homes where discreet installation is required.

Core Capabilities

Mini Design Compact footprint for easy ceiling, wall, or desktop mounting.

Blind-Spot Filler Functions as a cost-effective "Agent" to eliminate signal gaps in larger networks.

Dual Backhaul Reliable connectivity via Ethernet and optional 4G LTE backups.

Wide Compatibility Certified for The Things Stack, ChirpStack, and AWS IoT Core.

Industrial Applications

• Small-Scale Scenarios: Ideal for independent network deployment in smart offices and retail stores.

• Coverage Enhancement: Use as an agent to ensure full signal penetration in expansive warehouses or parking lots.

• Smart Metering: Facilitate localized data collection for utilities and sub-metering in residential buildings.

Technical Integration

The UG63 includes an embedded network server and MQTT API for seamless platform integration. It supports centralized remote management via the Milesight DeviceHub. For advanced network design or customized blind-spot filling architecture, reach out to the ShopIoT technical team.

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

Internal, External (SMA)
LoRaWAN Channels

8 Channels
Configuration Method

Web GUI (HTTP/HTTPS), Cloud Management (SaaS)
Activation Method

OTAA, ABP
Environment Rating

Indoor
IP Rating

IP30
Operating Temperature

-20°C to 50°C
Enclosure Material

PC (Polycarbonate), ABS Plastic
Power Consumption

Typical: 2.2W, Max: 3.1W
Interfaces (I/O)

Ethernet (RJ45), USB Type-C, SIM Slot
Monitoring Parameters

Power Status, Backhaul Status, LoRa Traffic

Document Library

UG63 Datasheet
