Decentlab  |  SKU: DL-BLG-001
Sold out

Decentlab DL-BLG | LoRaWAN Black Globe Temperature & Heat Stress Sensor

€2.019,00
Shipping calculated at checkout.

The Decentlab DL-BLG is a LoRaWAN black globe sensor for radiant heat and WBGT index calculation.

  • Range: radiant temperature from -5°C to +95°C
  • Battery: estimated up to 11.7 years on C-type cells
  • Housing: IP67 polycarbonate, UV and impact resistant

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

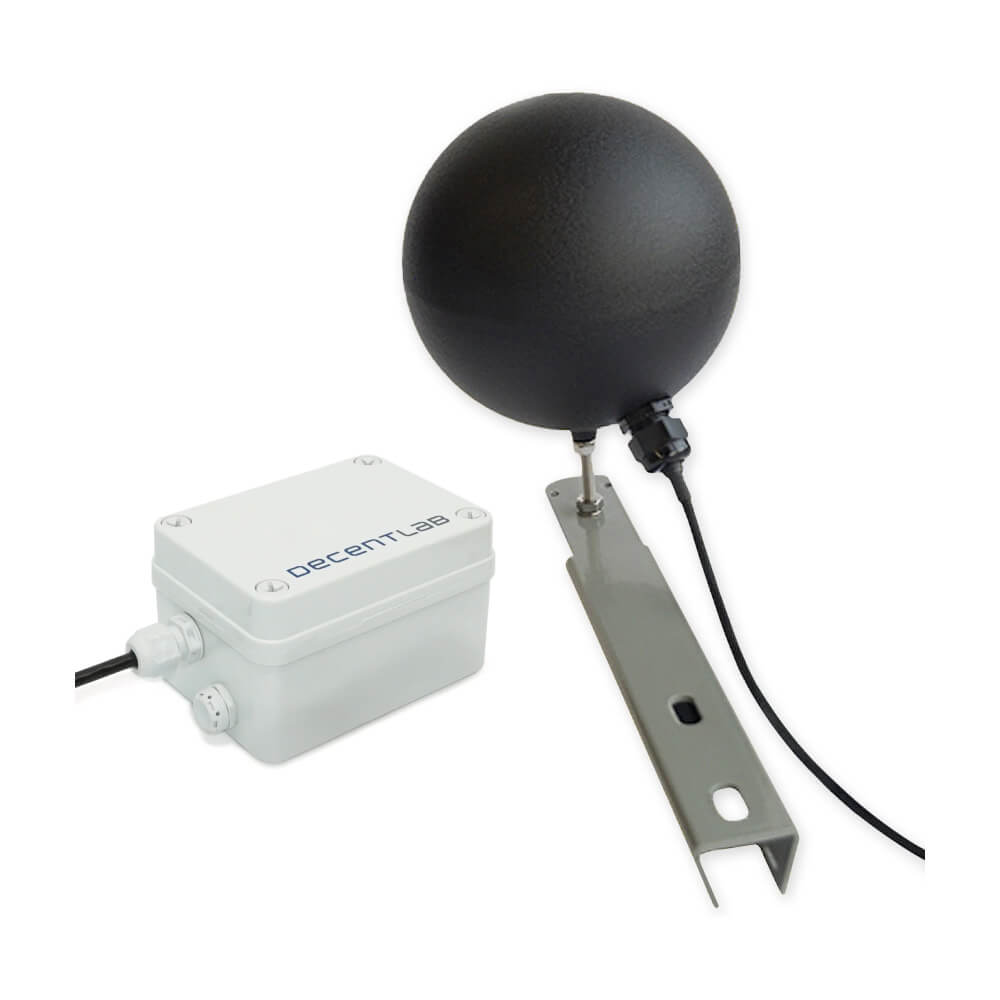

The Decentlab DL-BLG is a specialized LoRaWAN®-enabled sensor designed for precise radiant temperature monitoring and heat stress evaluation. Built around a 152 mm hollow copper sphere painted black, it accurately measures radiant heat, providing critical data for calculating the Wet-Bulb Globe Temperature (WBGT) index. This solution is engineered for long-term, unattended operation in challenging outdoor and industrial climates.

Core Capabilities

Accurate Radiant Heat Measures radiant temperature from -5°C to +95°C with ±0.3°C precision.
Rugged Engineering Weatherproof IP67 enclosure with impact and UV resistance for extreme environments.
Extended Field Life Operates for up to 11.7 years on 2x standard alkaline C-type batteries.
Plug & Play Ready-to-use with simple mounting and configuration via CLI or downlink.

Industrial Applications

• Occupational Health & Safety: Monitor workplace heat stress to ensure compliance and worker safety in industrial sites.
• Meteorological Research: Professional-grade radiant heat data collection for climate and environmental studies.
• Outdoor Event Safety: Real-time heat index monitoring for large public gatherings and sporting complexes.

Technical Integration

The DL-BLG utilizes LoRaWAN® Class A technology for encrypted, long-range transmissions over 10km. It is compatible with all major network servers, including The Things Stack, ChirpStack, and Actility. For data visualization or custom WBGT calculation dashboards, contact the shopioT technical team for support.

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • LoRaWAN Class
    Class A
  • Radio & Range

    Frequency: 868 MHz (EU version)

    TX power: 14 dBm (25 mW); ERP 11.9 dBm max

    Sensitivity: -146 dBm

    Range: > 10 km line of sight / approx. 2 km suburban (manufacturer figure)

  • Configuration Method
    USB, Serial / USB-TTL, Downlink
  • Activation Method
    OTAA, ABP
  • Monitoring Parameters
    Temperature, Battery Voltage
  • Measurement Technology

    Globe temperature: thermistor inside 125 mm black hollow sphere

  • Measurement Range

    Globe temperature: -5–95 °C

  • Measurement Accuracy

    Globe temperature: ±0.3 °C (-3–90 °C); ±0.7 °C (-5–95 °C)

  • Power Source
    Battery (Non-rechargeable)
  • Power Input
    2 × alkaline C batteries (LR14), 20000 mWh, replaceable
  • Power Consumption
    Average: ≤ 0.5 mW (10 min interval)
  • Battery Type
    Alkaline
  • Battery Life
    11.7 years @ 10 min interval SF7; 4.3 years @ 10 min SF12; 16.8 years @ 60 min SF7; 11.9 years @ 60 min SF12 (incl. 3.6%/year self-discharge)
  • Dimensions
    135 × 81 × 70 mm (transmitter, excl. sensor/cable); 3 m cable
  • Weight
    720 g (with batteries and sensor); 590 g without batteries
  • Enclosure Material
    PC (Polycarbonate)
  • Mounting Options
    Wall Mount, Pole Mount
  • IP Rating
    IP67
  • Environment Rating
    Outdoor, Industrial
  • Operating Temperature
    -20°C to +50°C
  • Certifications
    CE
  • Warranty
    2 Years

Document Library

DL-BLG Datasheet
