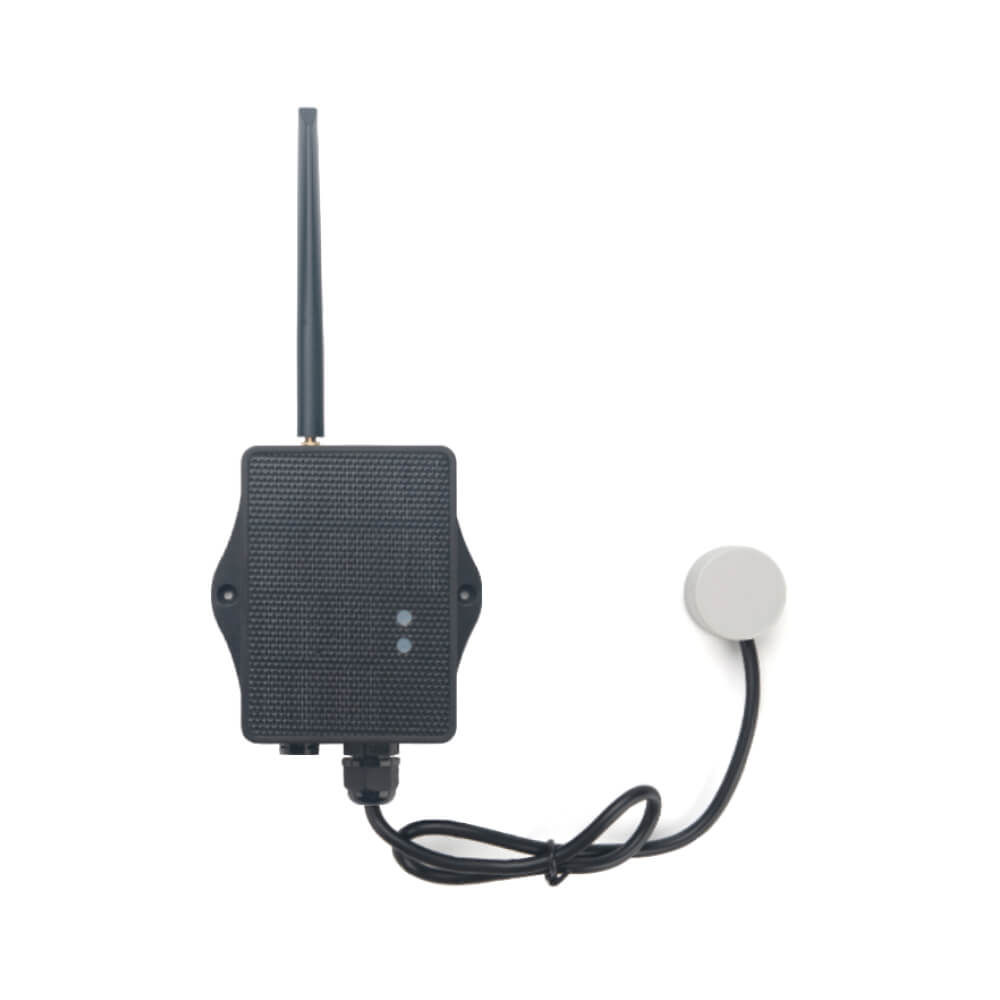

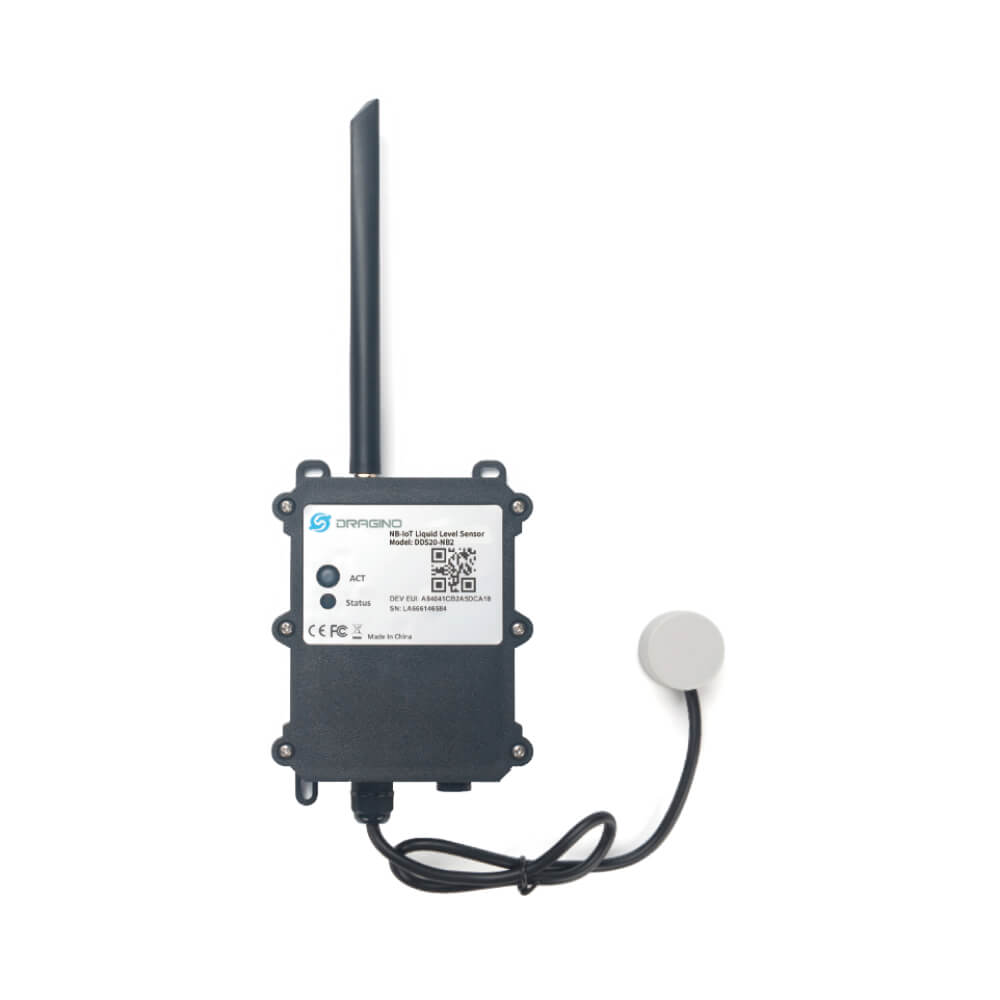

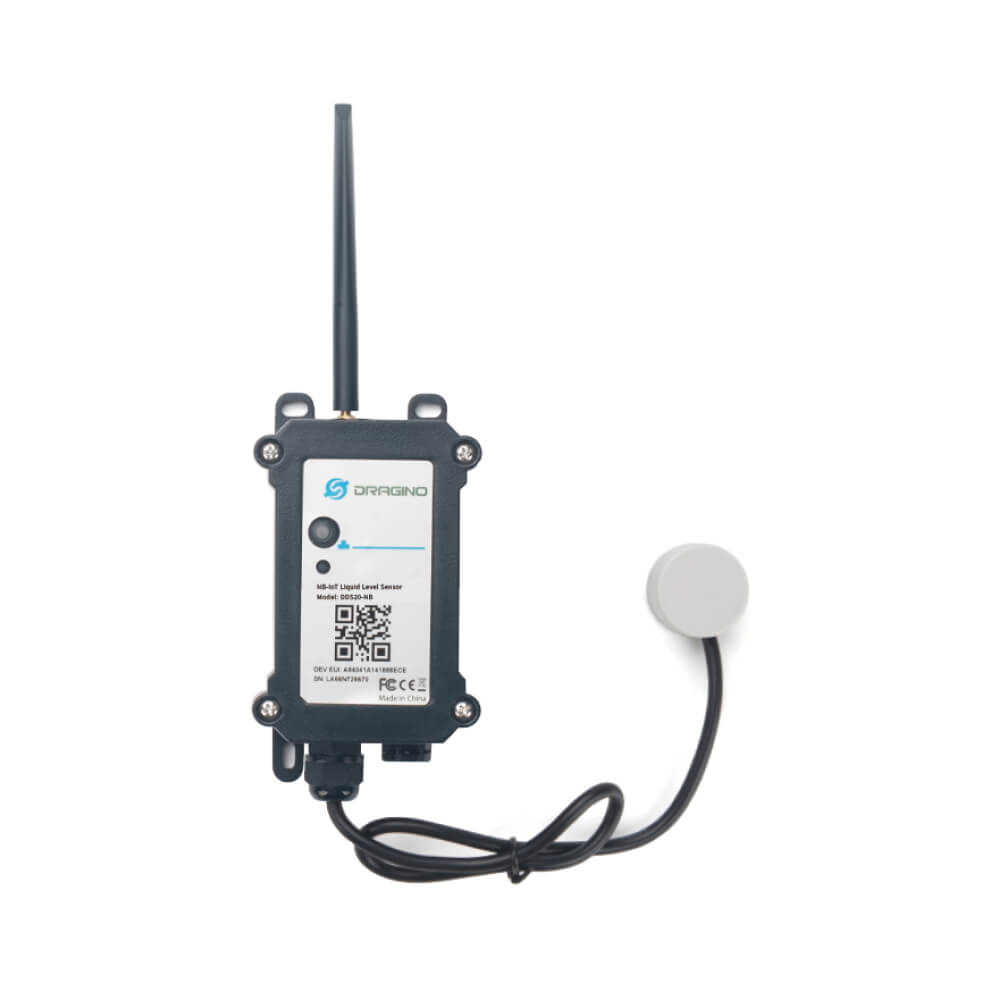

Dragino DDS20 | Non-Contact Cellular Liquid Level Sensor (NB-IoT)
A professional non-invasive ultrasonic sensor for measuring liquid levels through container walls via global NB-IoT networks.
- • Non-Contact Design: Measures levels without opening or drilling tanks.
- • Extreme Safety: Ideal for toxic, corrosive, or high-pressure liquids.
- • Power Autonomy: Options for 8500mAh, 19000mAh, or Solar-powered builds.
Dragino DDS20 | Non-Contact Cellular Liquid Level Sensor (NB-IoT) - Non-Rechargeable Battery (19000mAh) is backordered and will ship as soon as it is back in stock.
VAT Free Transaction Option
VAT Free Transaction Option
Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.
Secure Payment & Warranty
Secure Payment & Warranty
- Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
- B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
- Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.
Delivery and Shipping
Delivery and Shipping
Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.
Dragino DDS20 | Non-Contact Cellular Liquid Level Sensor (NB-IoT)
Description
Description
The Dragino DDS20 is a carrier-grade Non-Contact Ultrasonic Liquid Level Sensor engineered for high-precision monitoring in industrial and utility sectors. Unlike traditional sensors, the DDS20 installs externally at the bottom of a container, quantifying liquid height through the tank wall. This non-invasive method is critical for handling toxic substances, strong acids, or alkalis in airtight, high-pressure containers. Utilizing NB-IoT cellular connectivity, it provides a direct-to-cloud data path, ensuring reliable telemetry for remote tanks across Europe and the Middle East without requiring a gateway.
Advanced Sensing & Field Efficiency
Power Configuration Options
Available in three distinct power variants to meet your specific maintenance and longevity goals:
- Model NB: 8500mAh Non-Rechargeable battery for standard cellular use.
- Model NB2: 19000mAh Non-Rechargeable battery for maximum field life.
- Model NS: 3000mAh Rechargeable Solar-powered battery for perpetual autonomy.
Professional Usage Scenarios
Product Certifications
Specifications
Specifications
-
Primary Communication ProtocolNB-IoT
-
Frequency/RegionGlobal
-
Antenna TypeExternal (SMA)
-
Configuration MethodBluetooth, USB
-
Activation MethodManual
-
Environment RatingOutdoor, Industrial
-
IP RatingIP66
-
Operating Temperature-40°C to 85°C
-
Enclosure MaterialPC (Polycarbonate)
-
Battery TypeLi-SOCl2, Li-ion
-
Battery Capacity3000mAh, 8500mAh, 19000mAh
-
Power ConsumptionUltra-Low (10uA STOP mode)
-
Measurement Technology
-
Measurement Range
-
Measurement Accuracy
-
Measurement Resolution
-
Interfaces (I/O)Nano SIM Slot
-
Monitoring ParametersLiquid Level (Ultrasonic), Battery Voltage
