Dragino | SKU: LCC01-LB-868

Sold out

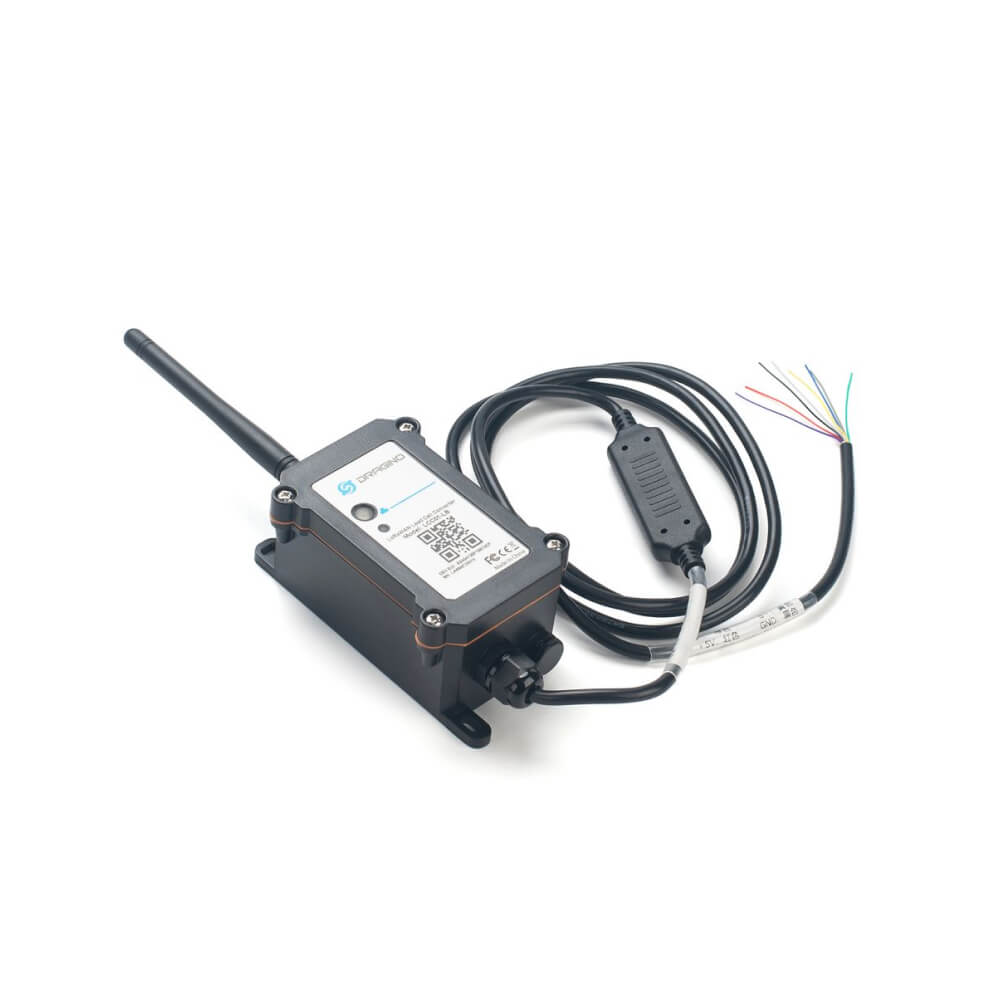

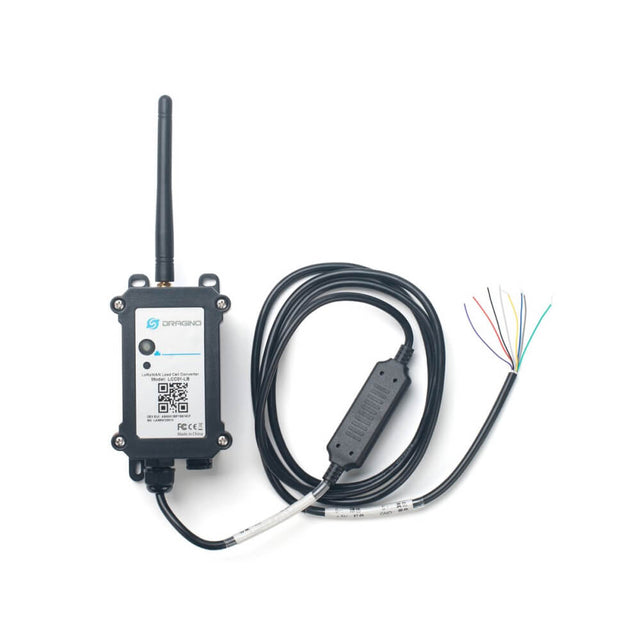

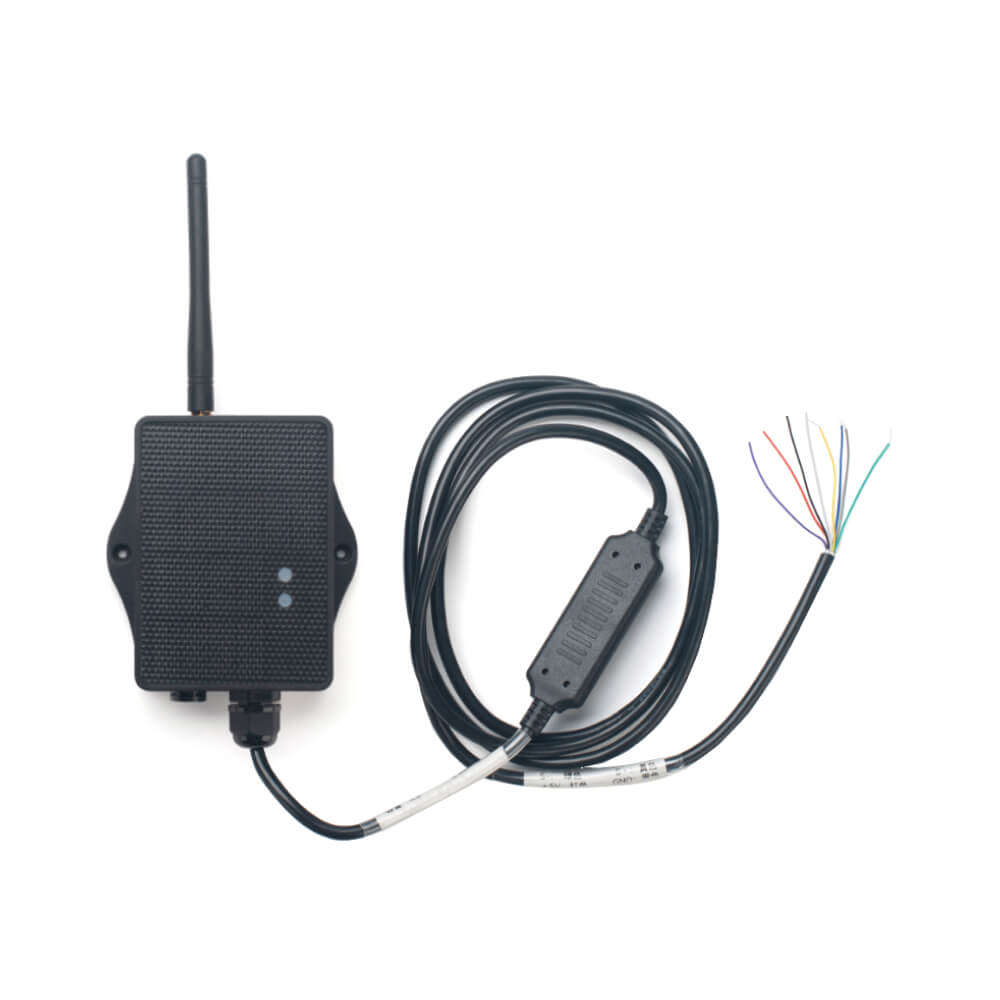

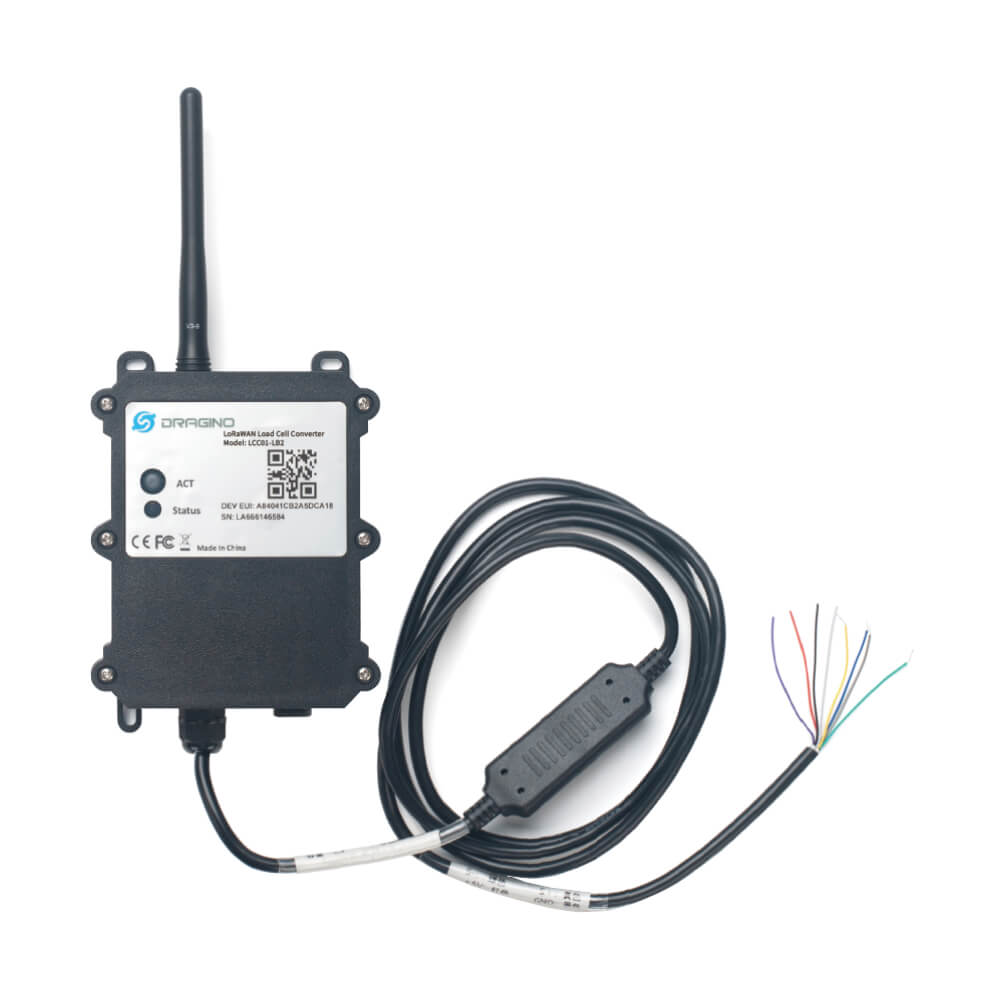

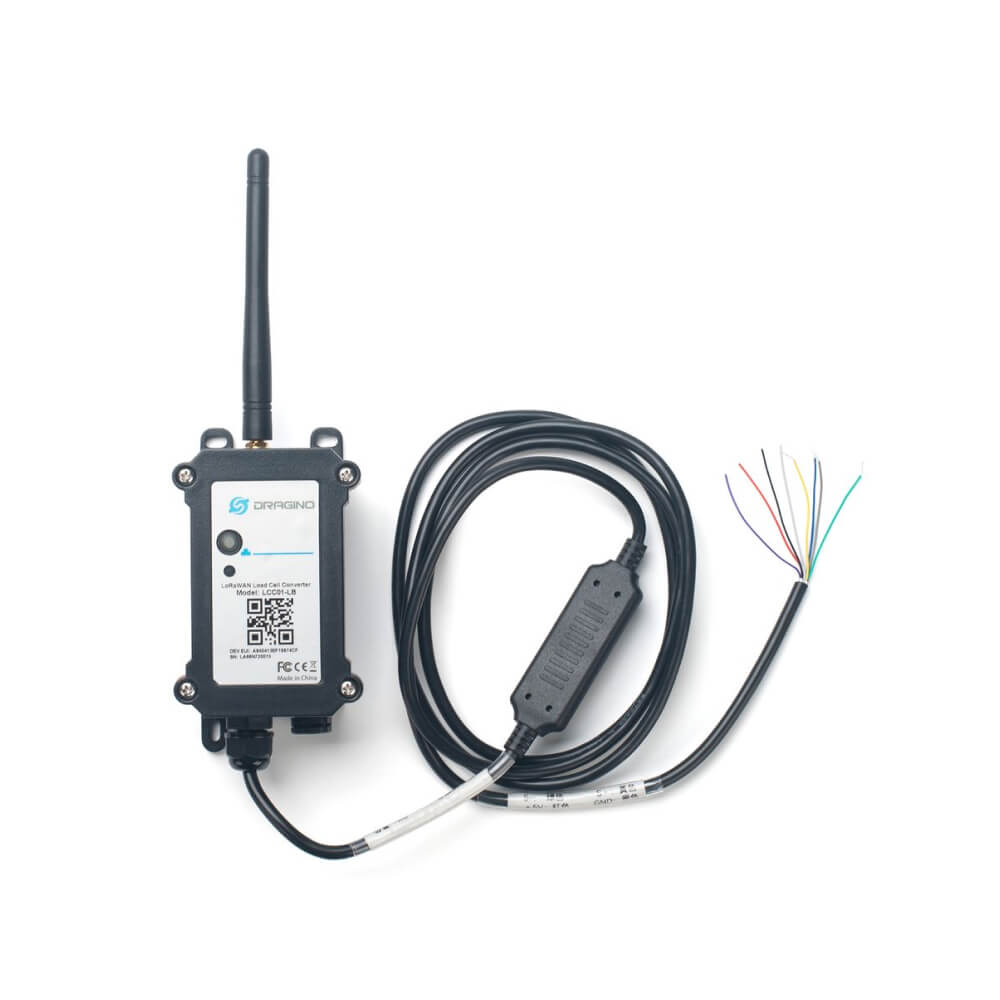

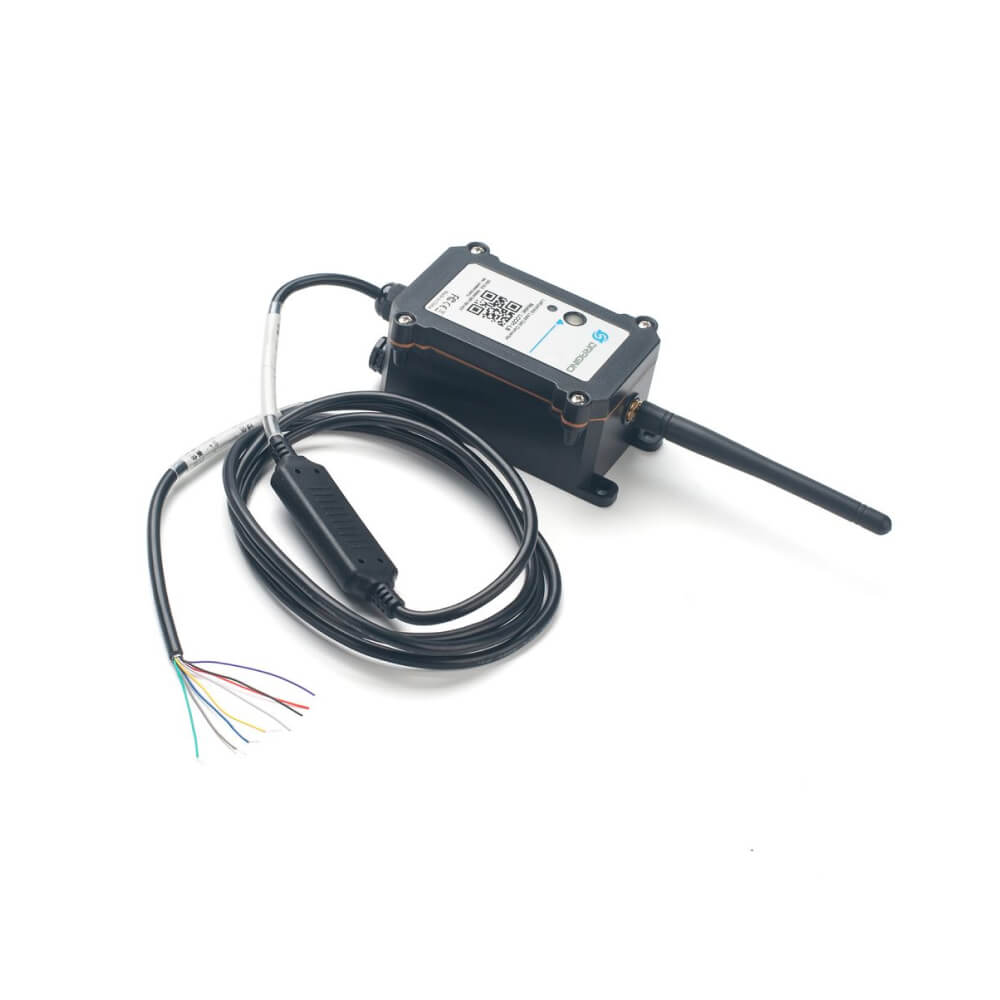

Dragino LCC01 | LoRaWAN Load Cell Converter

€83,00

Shipping calculated at checkout.

An industrial bridge sensor node that converts load cell and strain gauge signals into wireless LoRaWAN data for remote weighing.

• High Precision: 24-bit ADC for accurate weight measurement.
• Universal Bridge: Supports standard 4-wire & 6-wire load cells.
• Rugged Design: IP66 waterproof enclosure for outdoor deployment.

Frequency/Region

Power Source

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Precision IoT Hardware Backed by Real Technical Expertise.

Description

The Dragino LCC01 is a specialized LoRaWAN® controller designed to transform traditional analog scales and structural monitors into smart IoT devices. Equipped with a high-resolution 24-bit ADC, the LCC01 accurately captures tiny voltage changes from load cells and strain gauges, converting them into digital weight or tension data. This eliminates the need for manual inspections or wired indicators, providing a long-range wireless solution for monitoring silos, tanks, and structural integrity in remote or industrial environments.

Precision Weighing & Analytics

Standard Bridge Interface Compatible with any wheatstone bridge sensor, providing the necessary excitation voltage and high-gain amplification for load cells.

Efficient Data Logging Includes a built-in datalogger to record weight changes offline and sync with the server once LoRaWAN connectivity is restored.

Smart Monitoring Scenarios

• Inventory Management: Remotely track the weight of feed silos, water tanks, or gas cylinders for automated replenishment.

• Structural Health: Monitor strain and tension on bridges, buildings, or dams to detect early signs of material fatigue.

• Industrial Weighing: Retrofit existing platform scales with wireless reporting capabilities for logistics and manufacturing.

Dragino Power Options

• Model LB: 8500mAh Non-rechargeable battery for long-term remote operation.

• Model LB2: High-capacity 19000mAh battery for maximum deployment lifespan.

• Model LS: 3000mAh Solar-powered rechargeable battery for sustainable use.

What is in the Box?

• 1 x Dragino LCC01 Controller

• 1 x Wall/Pole Mounting Bracket Kit

• 1 x Quick Start Guide

Product Certifications

CE FCC RoHS IP66

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

External
Configuration Method

Bluetooth, USB, Downlink
Activation Method

OTAA, ABP
Environment Rating

Outdoor, Industrial
IP Rating

IP66
Operating Temperature

-40°C to 85°C
Enclosure Material

PC (Polycarbonate)
Battery Type

Li-SOCl2, Li-ion
Battery Capacity

3000mAh, 8500mAh, 19000mAh
Power Consumption

Sleep: 14uA, LoRa Transmit: 125mA
Measurement Technology
- Interface Type: Standard 4-wire bridge load cell interface
- Excitation Voltage: Supports various load cell power requirements
Measurement Range
- Scalability: Supports different scaling from gram to ton (Sensor dependent)
- Input Range: ±20mV (Differential signal)
Measurement Accuracy
- Accuracy: 24-bit high-precision ADC (new value)
- Data Integrity: Datalog feature stores up to 3,000 records with timestamps
Measurement Resolution
- Resolution: Up to 1 gram (depending on load cell capacity and calibration)
- Calibration: Supports 2-point calibration via BLE or LoRaWAN commands
Monitoring Parameters

Weight/Load (Load Cell)

Document Library

LCC01 Datasheet
