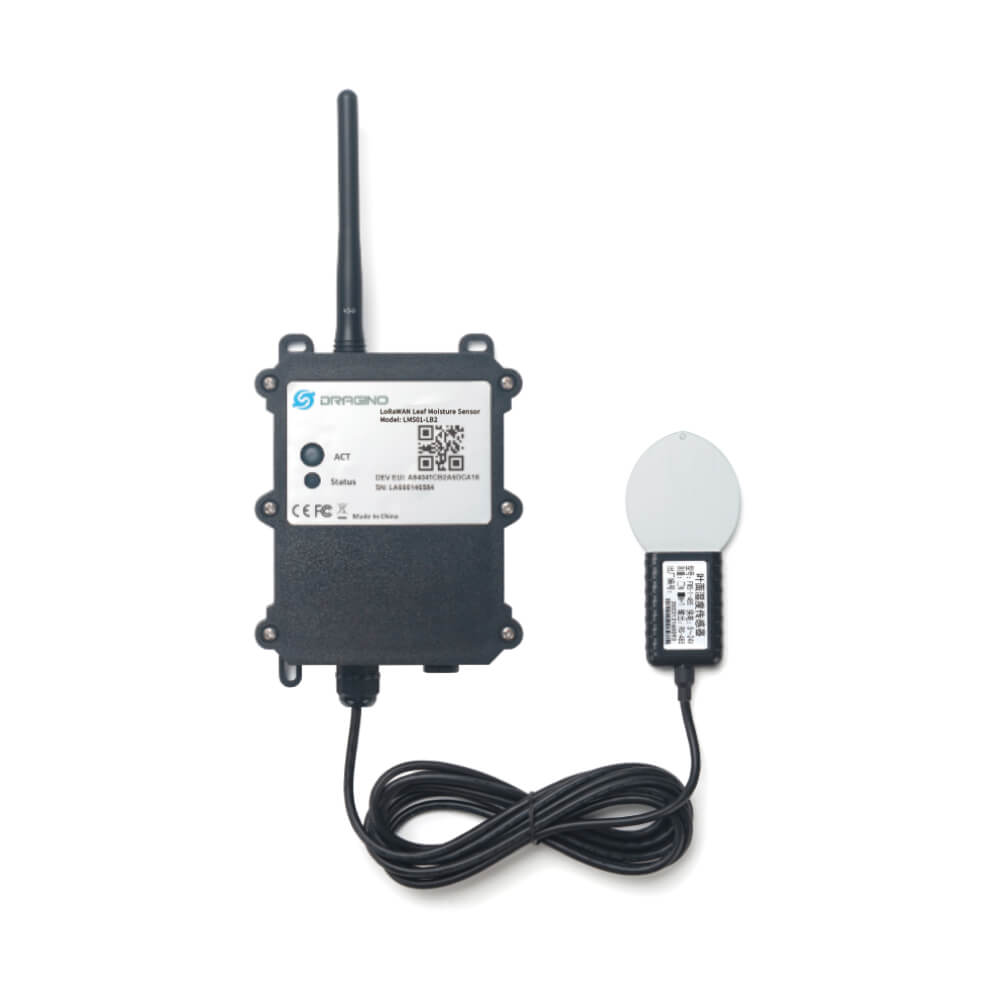

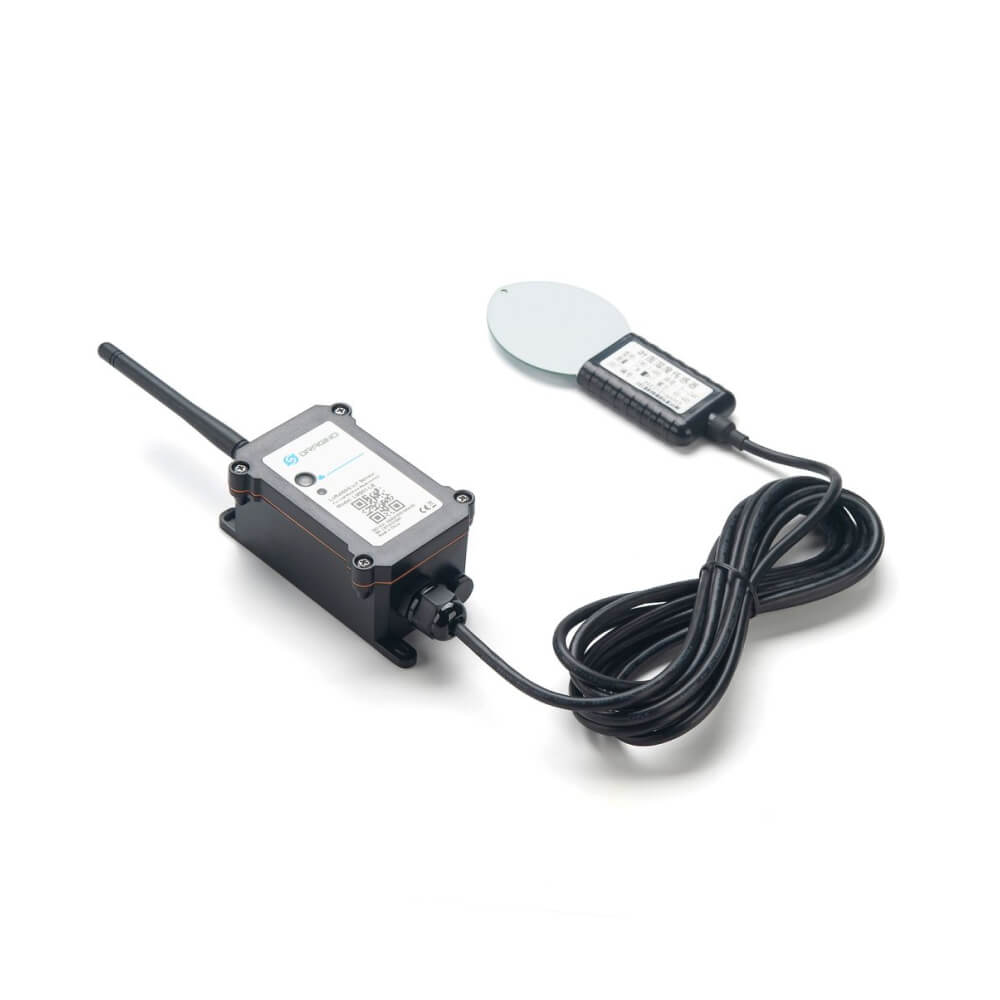

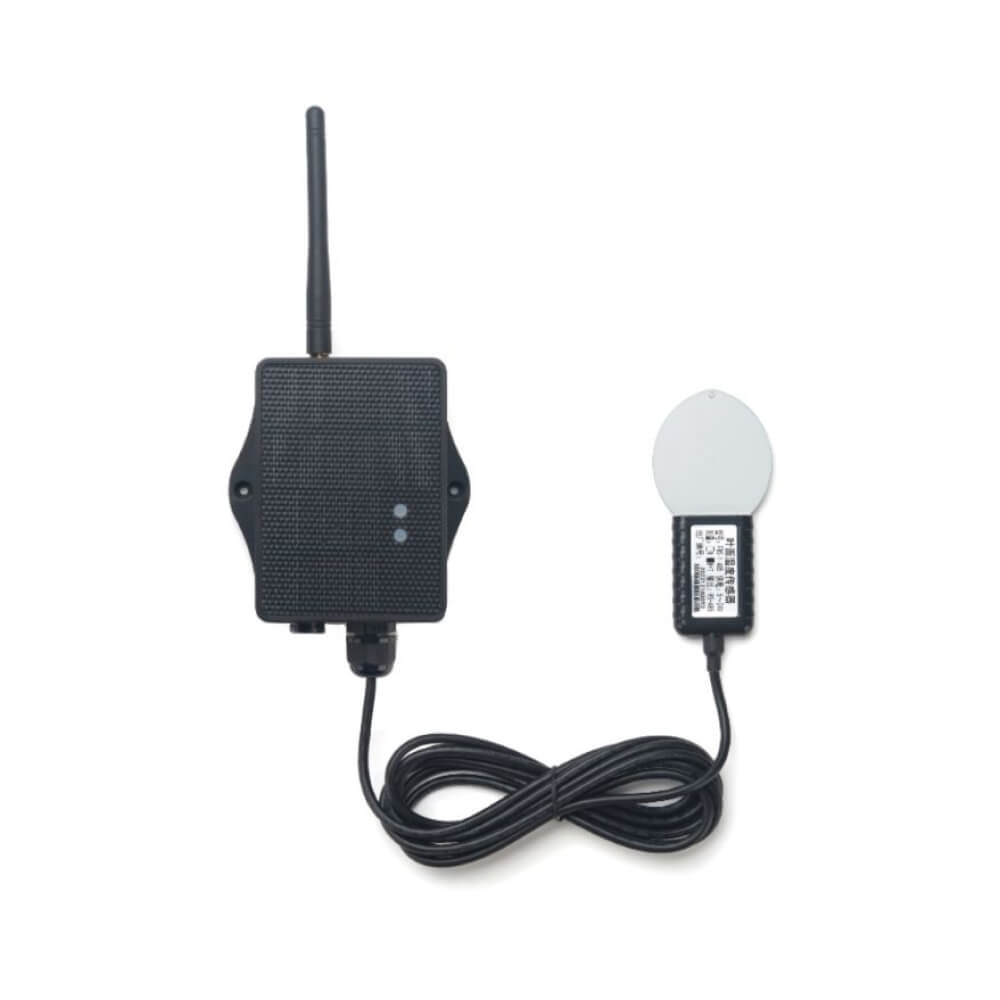

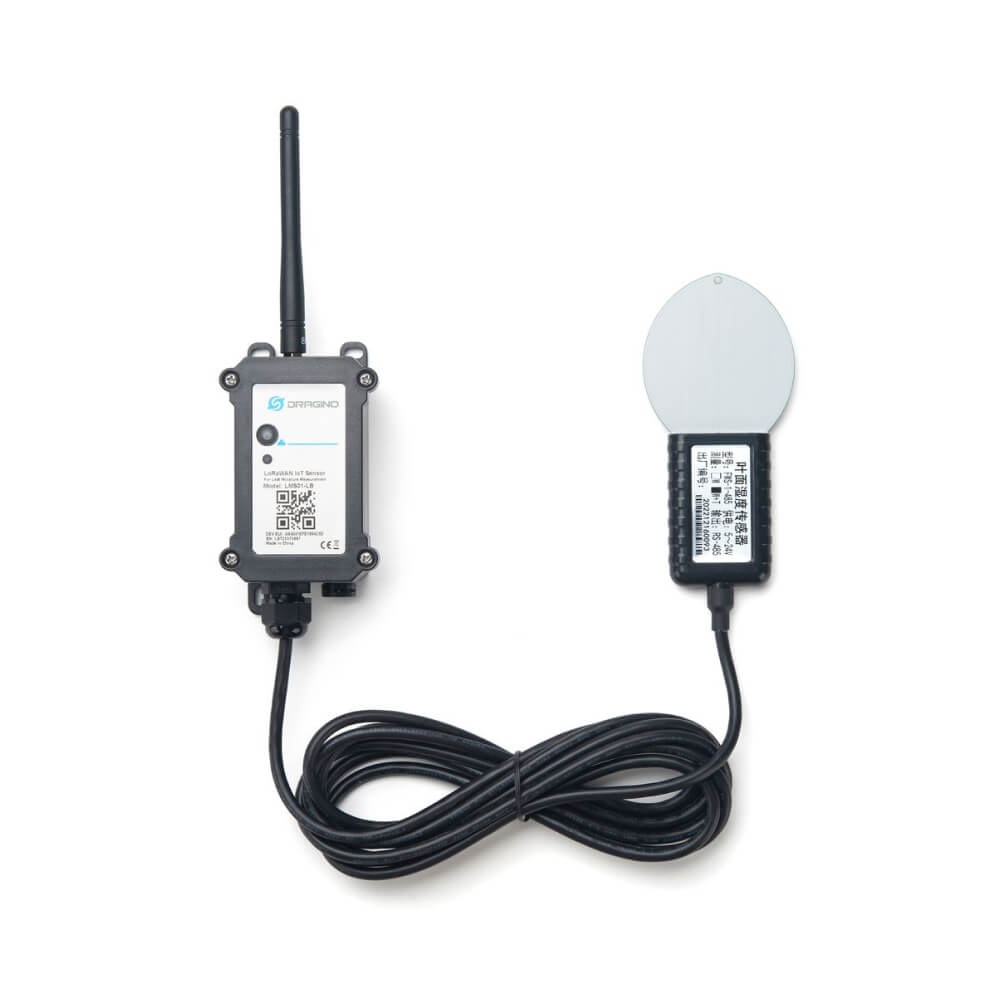

The Dragino LMS01-LB/LS is a rugged LoRaWAN® Class A sensor designed for precision monitoring of leaf moisture and temperature in agricultural settings. It measures leaf water content using Frequency Domain Reflectometry (FDR) with a realistic leaf-shaped probe (~15 veins/cm) to simulate natural anatomy. Data is wirelessly transmitted over long ranges via LoRaWAN®, powered by an 8500 mAh Li‑SOCl₂ battery (LB) or solar panel + 3000 mAh Li‑ion battery (LS), providing up to 5 years of maintenance-free operation. The device supports Bluetooth v5.1 configuration, AT commands, wireless OTA firmware updates, and operates reliably in IP66 housing with IP67-rated probe. Preloaded LoRaWAN® keys enable instant network activation.
Product Downloads
Specification | Details |
---|---|
Model | LMS01‑LB (battery) / LMS01‑LS (solar) |
Protocol | LoRaWAN® 1.0.3 Class A |
Measurement | Leaf moisture via FDR; Leaf temperature via DS18B20 |
Leaf Moisture Range | 0 %–100 %, resolution 0.1 %, accuracy ±3 % (0–50 %), ±6 % (> 50 %) |
Leaf Temperature Range | –50 °C to +80 °C, resolution 0.1 °C, ±0.5 °C (–10 °C to +70 °C) |
Power | 8500 mAh Li-SOCl₂ battery (LB) Solar + 3000 mAh Li‑ion battery (LS) |
Battery Life | Up to 5 years |
Enclosure | IP66 housing; probe IP67 |
Config & Update | Bluetooth v5.1, AT commands, LoRaWAN remote config, OTA updates |
Frequency Bands | CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865 |
Operating Temperature | –40 °C to +85 °C |
Dimensions | 195 × 125 × 55 mm |
Weight | Approx. 420 g |
