Milesight | SKU: EG71-L08GL-868M

10% off

Milesight EG71 | 8-Channel LoRaWAN Building IoT Gateway with BACnet, KNX & Modbus

€1.075,00 €1.189,00

Shipping calculated at checkout.

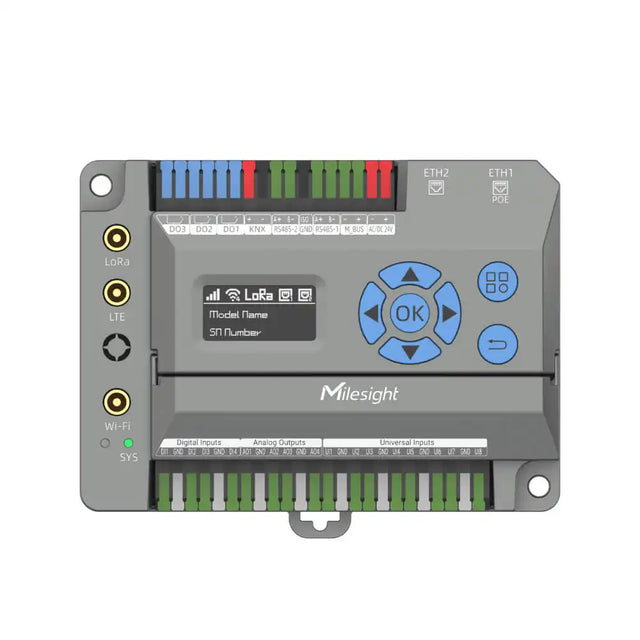

The Milesight EG71 is an intelligent edge IoT gateway that unifies LoRaWAN, BACnet, KNX, Modbus and multi-I/O in one compact device — the convergence hub for smart-building automation, energy management, and BMS integration.

Protocols: LoRaWAN (2,000+ Nodes) | BACnet, Modbus, KNX & I/O
Backhaul: Triple Failover — Ethernet (PoE), 4G LTE & Wi-Fi
Edge Intelligence: Quad-Core CPU | Node-RED, Python & Docker

Frequency/Region

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight EG71 is an intelligent, high-performance edge IoT gateway engineered for smart building automation, energy management, and HVAC control. Powered by a quad-core 1.5 GHz ARM Cortex-A53 processor with 2 GB DDR4 RAM and 32 GB eMMC storage, it unifies wired and wireless field-device connectivity in one compact unit — supporting LoRaWAN, RS485, KNX, and configurable universal I/O alongside mainstream BMS protocols including BACnet, Modbus, MQTT, and HTTP.

With multi-backhaul redundancy across Ethernet, 4G LTE, and Wi-Fi, the EG71 keeps data flowing between field-level sensors, actuators, and cloud or BMS platforms — making it an ideal integration hub for new-build and retrofit projects across commercial buildings, campuses, hotels, and industrial facilities.

Milesight EG71 smart building gateway architecture diagram

Core Capabilities

8-Channel LoRaWAN — 2,000+ Devices 8-channel LoRaWAN with −140 dBm sensitivity and 27 dBm Tx power supports around 2,000 end devices and 20,000 data points. Supports Class A/B/C, FUOTA, Multicast, and a built-in Noise Analyser.

Comprehensive Wired Protocol Support Native RS485 (Modbus RTU / BACnet MS/TP) and KNX/TP1, plus 8 universal inputs, 4 dry-contact digital inputs, 3 relay outputs, and 4 analog outputs (0–10 V or 4–20 mA). M-Bus support is under development.

Triple Backhaul Redundancy Auto-failover across Ethernet (with 802.3af PoE PD on ETH1), 4G LTE Cat.1, and 2.4 GHz Wi-Fi (802.11 b/g/n) keeps the gateway online even when a primary link drops.

Edge Intelligence & Security Python SDK, Node-RED, and Docker for custom BMS logic at the edge. Enterprise-grade security via OpenVPN, IPsec, WireGuard, PPTP, and L2TP, plus a full firewall with access control, DMZ, MAC binding, and IP filtering.

Industrial Applications

Smart Building Automation: Aggregate data from LoRaWAN sensors, KNX actuators, Modbus meters, and legacy BMS systems into one platform — enabling HVAC, lighting, and occupancy-based automation across floors or campuses.

Energy Management & Metering: Connect RS485 energy meters and power monitors via Modbus RTU or BACnet MS/TP to collect granular consumption data for sub-metering, demand response, and ISO 50001 reporting.

BMS Retrofit & Protocol Bridging: Bridge legacy protocols (Modbus, KNX) to modern IP-based systems (BACnet/IP, MQTT, HTTP) for seamless integration into existing infrastructure without a full system replacement.

Hotels, Campuses & Industrial Facilities: Deploy as a single convergence point for environmental sensors, HVAC, and utilities monitoring across large multi-zone facilities, managed centrally via the Milesight Development Platform.

Technical Integration

The EG71 is configured via Web GUI, CLI (SSH/Telnet), and SNMP, with remote management through the Milesight Development Platform. An NFC interface (13.56 MHz) enables rapid on-site addition of Milesight LoRaWAN end devices, and a built-in 1.3-inch OLED screen with control buttons gives on-device status and diagnostics without a laptop. Power is flexible via 24 V DC/AC terminal block, 802.3af PoE (ETH1), or USB Type-C (5V/3A) — note that when powered over USB, M-Bus and universal inputs may not operate fully. The unit is IP30-rated, operates from −40 °C to +60 °C, and measures 123 × 90 × 36 mm. For solution architecture, multi-site deployment, or BMS integration support, contact the ShopIoT technical team.

What's in the Box

1×EG71 Building IoT Gateway

1×LoRaWAN® Magnetic Antenna

1×Cellular Magnetic Antenna

1×Wi-Fi Magnetic Antenna

2×Wall Mounting Kits

1×Label Sticker

Note: a power supply, SIM card, and Ethernet cabling are not included and are sized to your installation.

Frequently Asked Questions

Which protocols does the EG71 support?

LoRaWAN, RS485 (Modbus RTU / BACnet MS/TP), and KNX/TP1 for acquisition; BACnet/IP, Modbus TCP, Modbus RTU over TCP, MQTT(s), and HTTP(s) for forwarding. M-Bus support is under development.

How many LoRaWAN devices can it handle?

Around 2,000 end devices and up to 20,000 data points (based on a 10-minute uplink interval), with Class A/B/C, FUOTA, and Multicast support.

What I/O does it provide?

8 universal inputs (software-switchable digital/analog/resistance), 4 dry-contact digital inputs, 3 relay outputs, and 4 analog outputs (0–10 V or 4–20 mA).

How is it powered?

Via a 24 V DC/AC terminal block, 802.3af PoE (ETH1), or USB Type-C (5V/3A). When powered over USB, M-Bus and universal inputs may not function fully.

Can I run custom logic on it?

Yes. The EG71 supports Python SDK, Node-RED, and Docker for custom building logic, data processing, and protocol conversion at the edge.

Is it suitable for retrofits?

Yes — it bridges legacy Modbus and KNX devices to modern BACnet/IP, MQTT, and HTTP platforms, so you can modernise a building without replacing existing field devices.

Certifications

FCC

RoHS

Designing a Smart-Building System?

Talk to our IoT specialists, or explore the sensors and gateways to pair with it.

Talk To Our IoT Team Browse Smart Building Sensors Shop LoRaWAN Gateways

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

External (SMB)
LoRaWAN Channels

8 Channels
Configuration Method

Web GUI (HTTP/HTTPS), Wi-Fi Access Point (AP) Mode
Activation Method

OTAA, ABP
Environment Rating

Indoor
IP Rating

IP30
Operating Temperature

-40°C to +60°C
Enclosure Material

PC (Polycarbonate), Aluminum Alloy
Power Consumption

Typical: 411mA @ 20V (8.2W), Maximum: 562mA @ 20V (11.24W)
Measurement Technology

Multi-protocol data acquisition — Modbus RTU/TCP, BACnet MS/TP, BACnet/IP, KNX/TP, M-BUS, plus direct digital/analog I/O
Measurement Range

• Digital inputs (wet contact): 0–24V DC
• Analog inputs: 0–10V or 4–20mA (software switchable)
• Analog outputs: 4–20mA or 0–10V (software switchable)
• RTD inputs: PT1000 or Ni1000 (2-wire)
• NTC inputs: NTC 10K Type 2/3 or NTC 20K
• Resistance inputs: 1000Ω or 2000Ω
Measurement Accuracy

• Analog inputs: ±1% FS
• Analog outputs: ±1% FS
• RTD inputs (PT1000/Ni1000): ±0.5°C
• NTC inputs: ±0.5°C at 25°C
• Resistance inputs: ±1Ω
Measurement Resolution

• Analog inputs (0-10V / 4-20mA): 12-bit
• Analog outputs (0-10V / 4-20mA): 12-bit
• RTD inputs (PT1000 / Ni1000): ±0.5°C accuracy
Interfaces (I/O)

RJ45 PoE Ports, RS485 (Modbus RTU), KNX/TP1, Digital Input (Dry Contact), Digital Output (Relay), Analog Output (4-20mA), Analog Output (0-10V), USB Type-C, Nano SIM Slot, MicroSD Card Slot
Monitoring Parameters

Backhaul Status, LoRa Traffic, Power Status

Document Library

EG71 Datasheet

EG71 User Manual
