Product Description

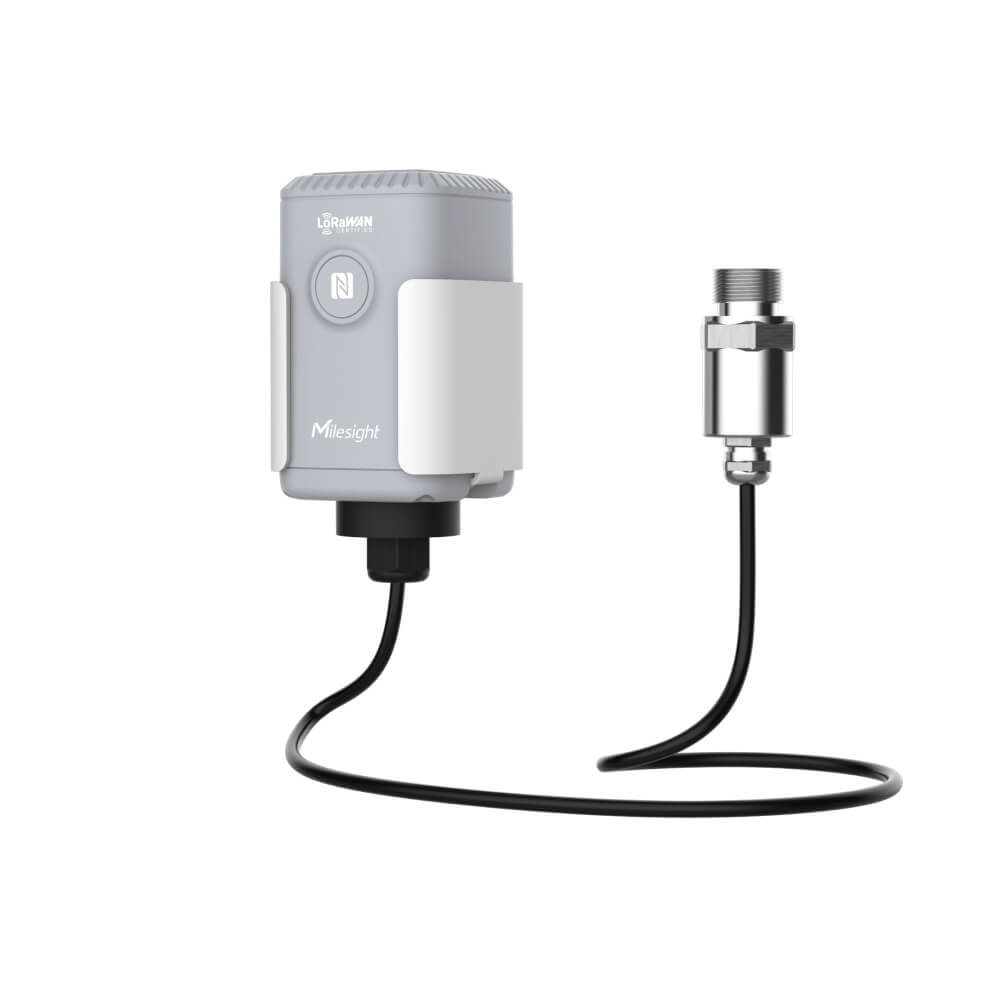

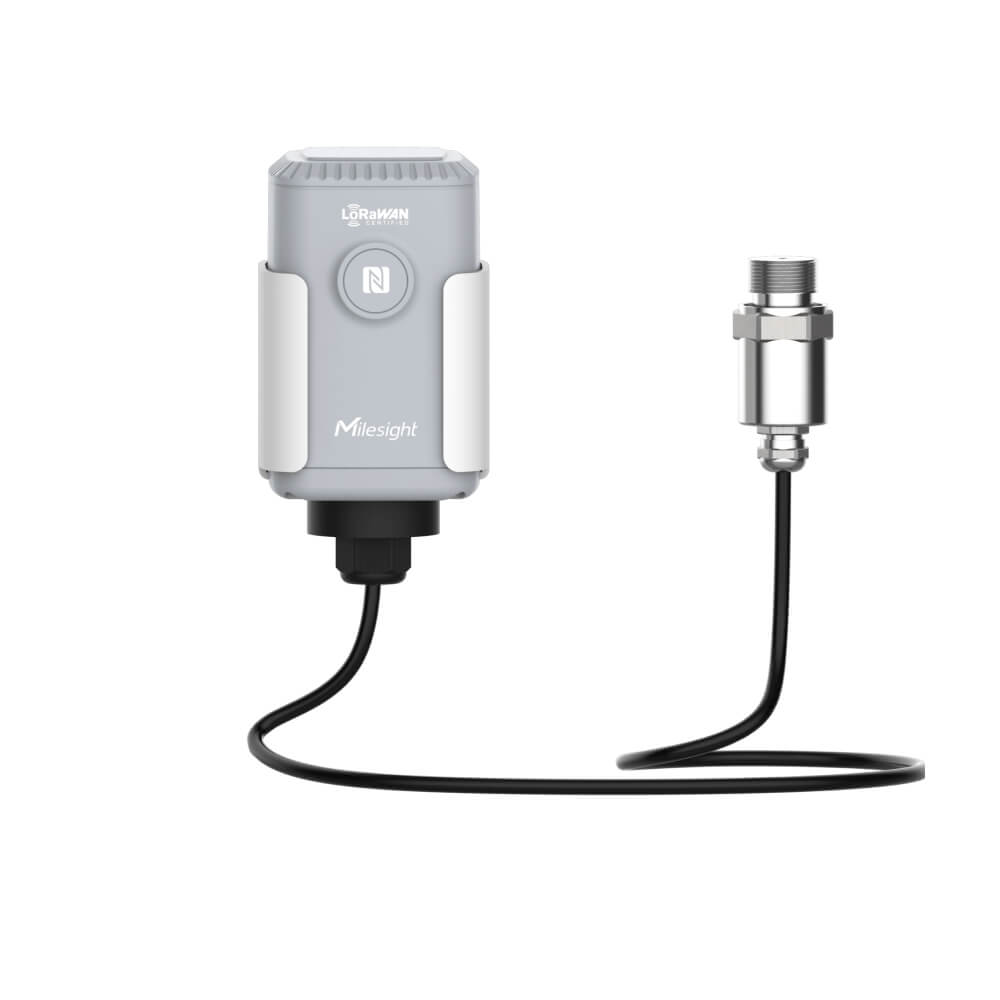

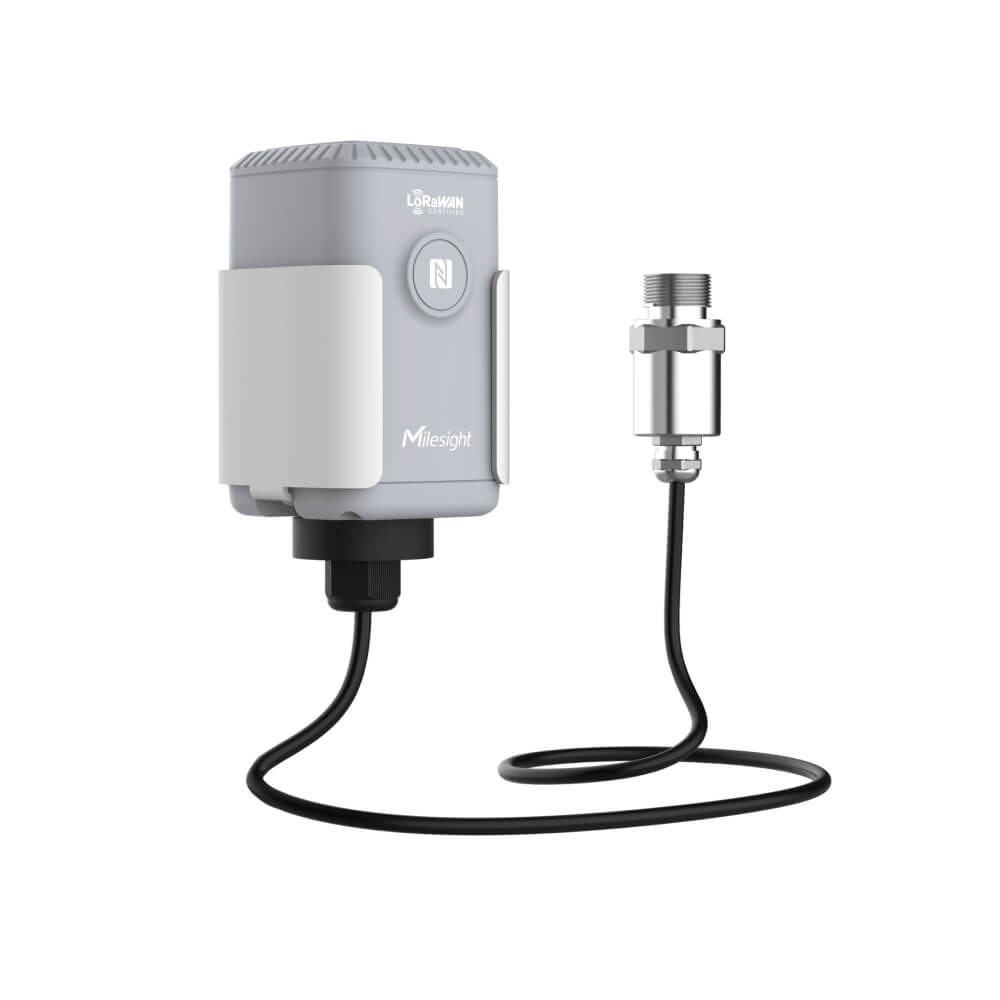

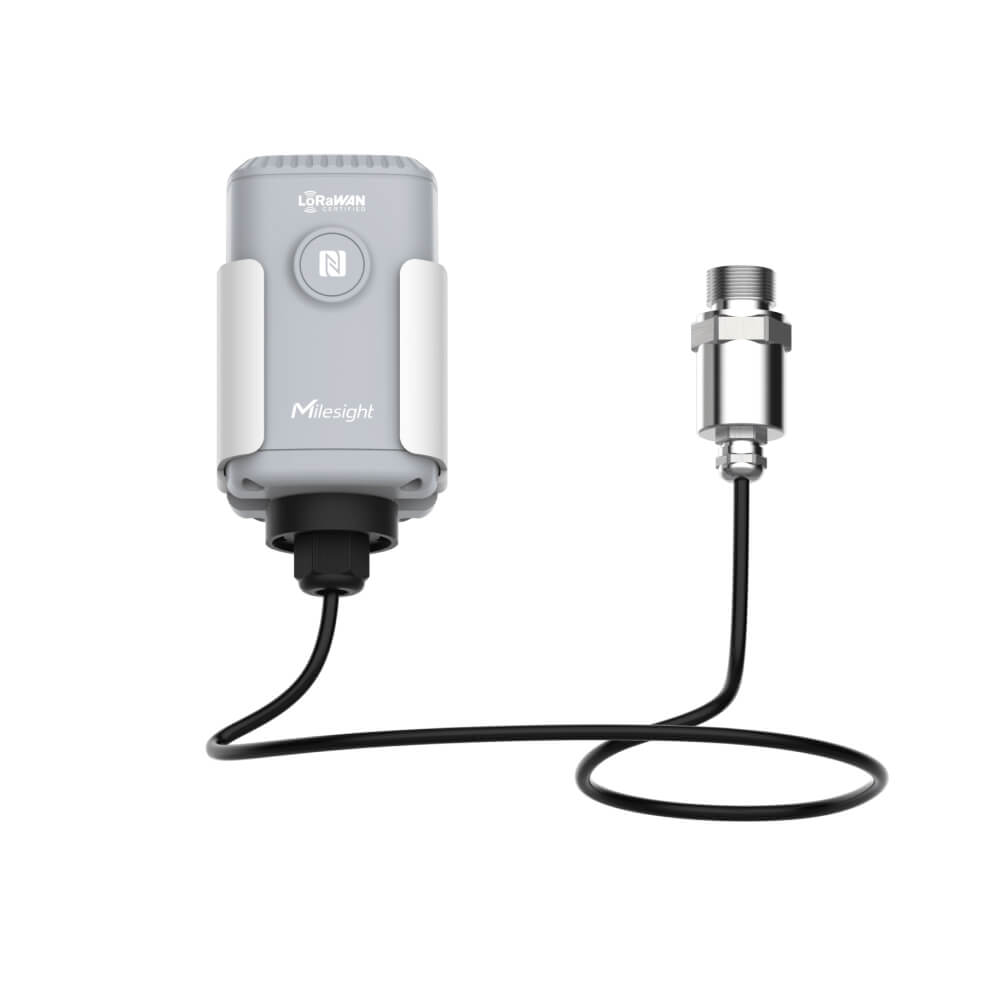

The Milesight EM500-PP is a high-precision pipe pressure measuring device, engineered for use in harsh environments and utilizing LoRaWAN® technology for data transmission. This sensor is specifically designed to monitor pipe and tank system pressures, making it highly suitable for applications in smart buildings, oil and gas monitoring, water leak detection, and pump monitoring systems.
Featuring a robust design with an IP67 waterproof enclosure, the EM500-PP is built to withstand challenging conditions. It is equipped with a high-capacity 19000mAh battery, enabling it to operate for up to 10 years without the need for a replacement. The sensor's compatibility with Milesight LoRaWAN® gateway and IoT Cloud solution allows users to manage all sensor data remotely and visually.
Product Features
- High Precision and Corrosion Resistance: Ensures accurate pressure measurement and durability.
- Ultra-Wide-Distance Transmission: Capable of transmitting data up to a line of sight of 10km.
- IP67 Waterproof Enclosure: Suitable for harsh environmental conditions.
- Long Battery Life: 19000mAh battery powers the sensor for 10 years without needing replacement.
- NFC for Easy Configuration: Simplifies the setup and configuration process.
- LoRaWAN® Compliance: Works with standard LoRaWAN® gateways and network servers.
- Easy Management with Milesight IoT Cloud: Enables quick and efficient data monitoring and management.
- Pressure Measurement: Gauge pressure type with a range of 0-1600kPa (16Bar) and an accuracy of ±0.5% FS.
- High Resolution and Overload Capacity: 1kPa (0.01Bar) resolution and 150% FS overload.
- Long-term Stability: Maintains accuracy within ±0.3% FS/year.
- Process Connection: G1/2” male connection for easy integration.
- Operating Conditions: Suitable for temperatures from -30°C to +70°C (transceiver) and -10°C to +70°C (pipe pressure sensor).
- Humidity Tolerance: Operates in 0% to 100% non-condensing relative humidity.
- Physical Characteristics: Cable length of 1.5m, and dimensions of 105.4×71×69.5mm (transceiver) and 67.5×ф27mm (pipe sensor).
- Multiple Installation Options: Can be mounted on poles, walls, or DIN rails.
- Approvals and Compliance: Includes CE, FCC, RoHS certifications.
The EM500-PP is an ideal solution for various industrial applications where precise and long-term pressure monitoring is essential. Its robust construction and advanced features make it a reliable choice for critical pressure monitoring tasks.
Product Video
Product Downloads
Wireless Transmission | |
---|---|
Technology | LoRaWAN® |
Frequency | EU868 |
Tx Power | 16dBm (868 MHz) |
Sensitivity | -137dBm @300bps |
Work Mode | OTAA/ABP Class A |
Measurement | |
Pressure Type | Gauge Pressure |
Range | 0 - 1600 kPa (16 Bar) |
Accuracy | ± 0.5% FS |
Resolution | 1 kPa (0.01 Bar) |
Overload | 150% FS |
Long-term Stability | ± 0.3% FS/year |
Process Connection | G 1/2” Male |
Operation | |
Power On & Off | NFC, Power Button (Internal) |
Configuration | Mobile App (via NFC) or PC software(via USB Type-C) |
Display | 2.13-inch Black & White E-Ink Screen |
Physical Characteristics | |
Power Supply | 19000 mAh Li-SOCL2 battery (ER34615) |
Cable Length | 1.5 m |
Battery Life | 10 years (10 min interval) |
Ingress Protection | IP67(Transceiver)/IP65(Pipe Pressure Sensor) |
Operating Temperature | -30°C to +70°C (Transceiver)/-10°C to +70°C (Pipe Pressure Sensor) |
Relative Humidity | 0% to 100% (non-condensing) |
Dimensions | Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) Pipe Sensor: 67.5 × ф27 mm (2.7 × ф1.1 in) |
Installation | Pole, wall or DIN Rail Mounting |
Approvals | |
Regulatory | CE, FCC, RoHS |
