Milesight | SKU: WS202-868M

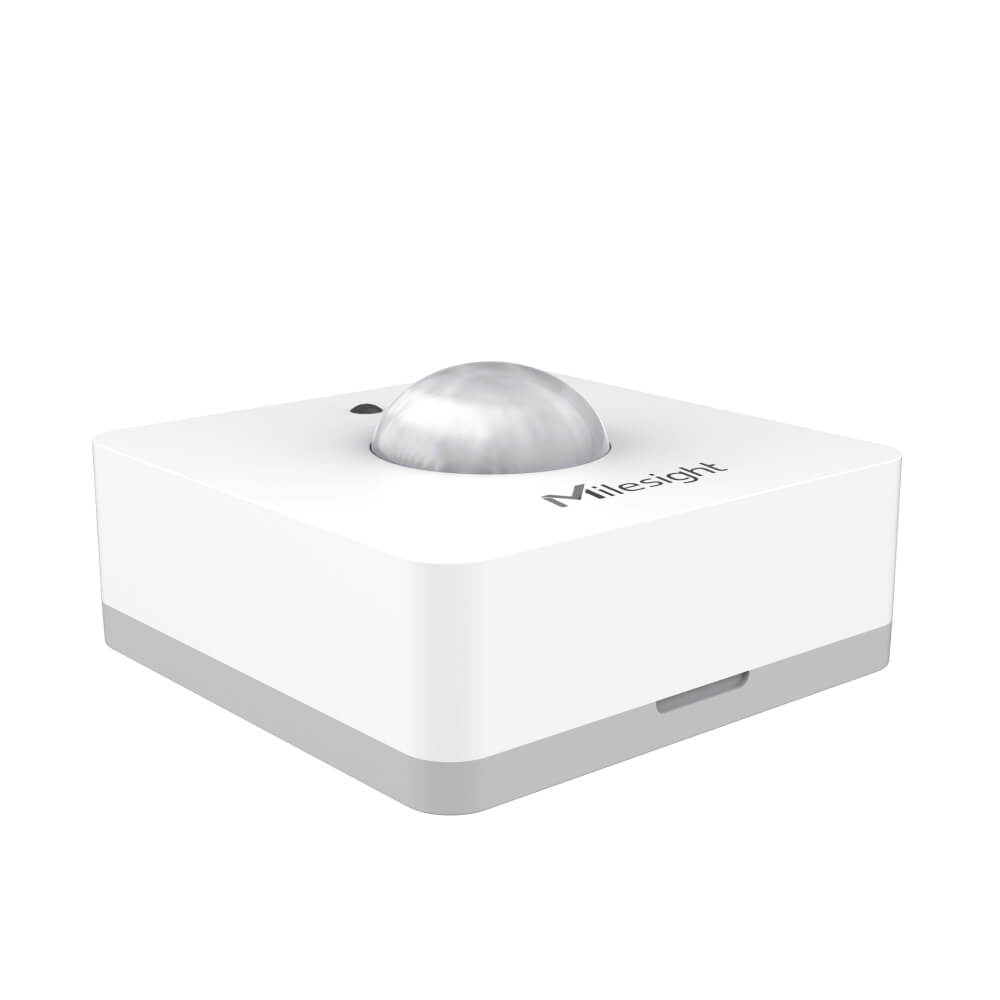

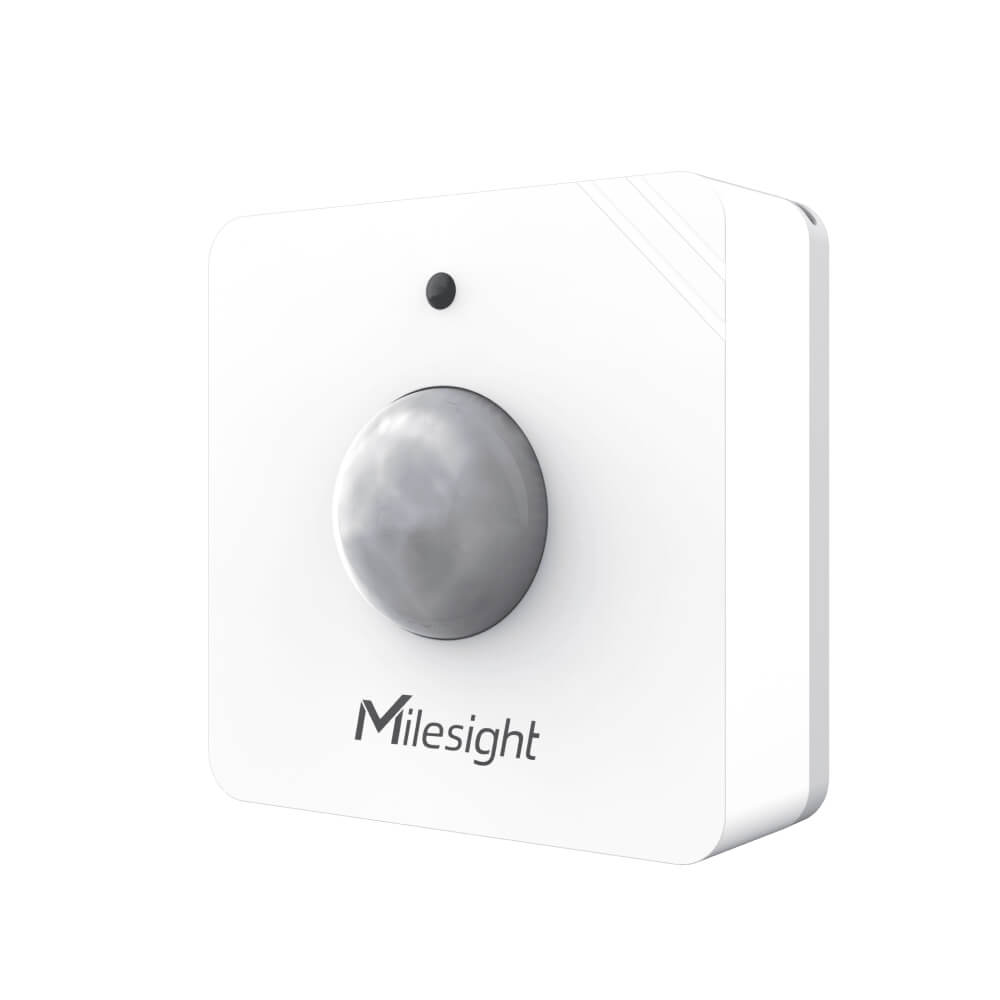

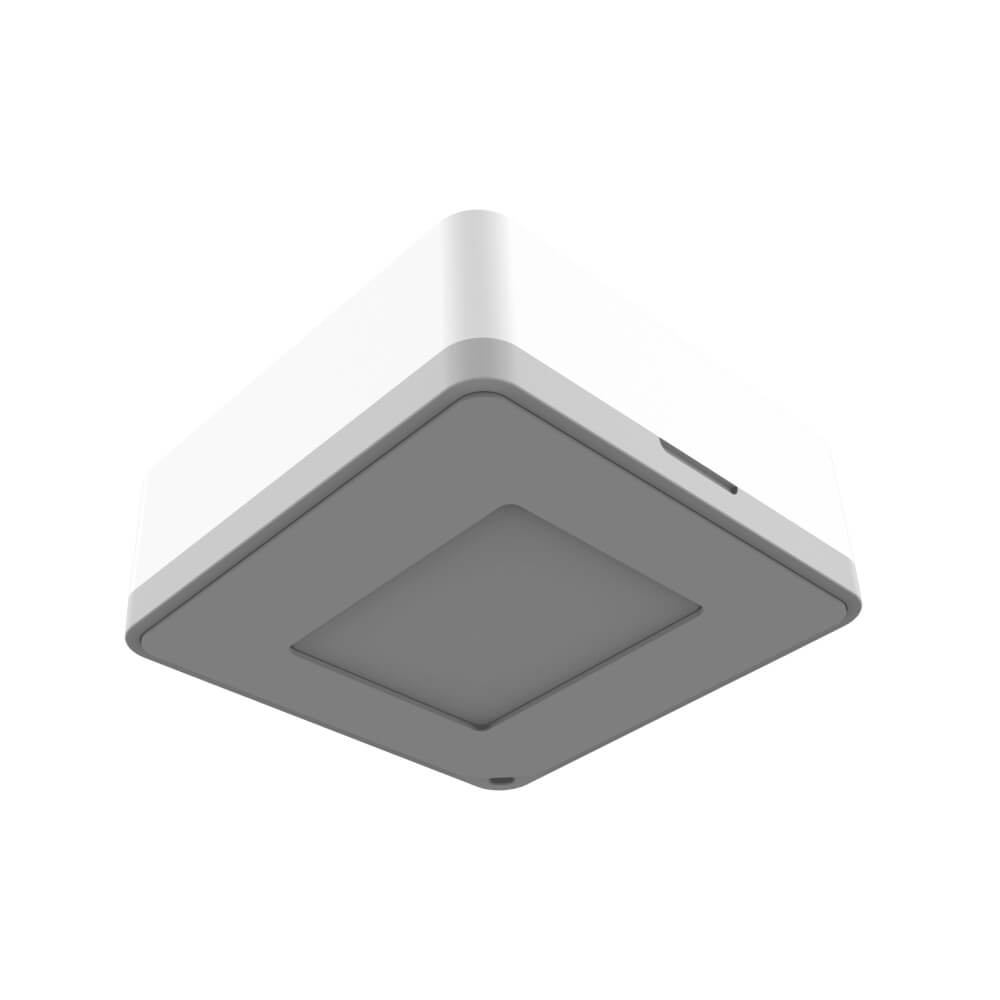

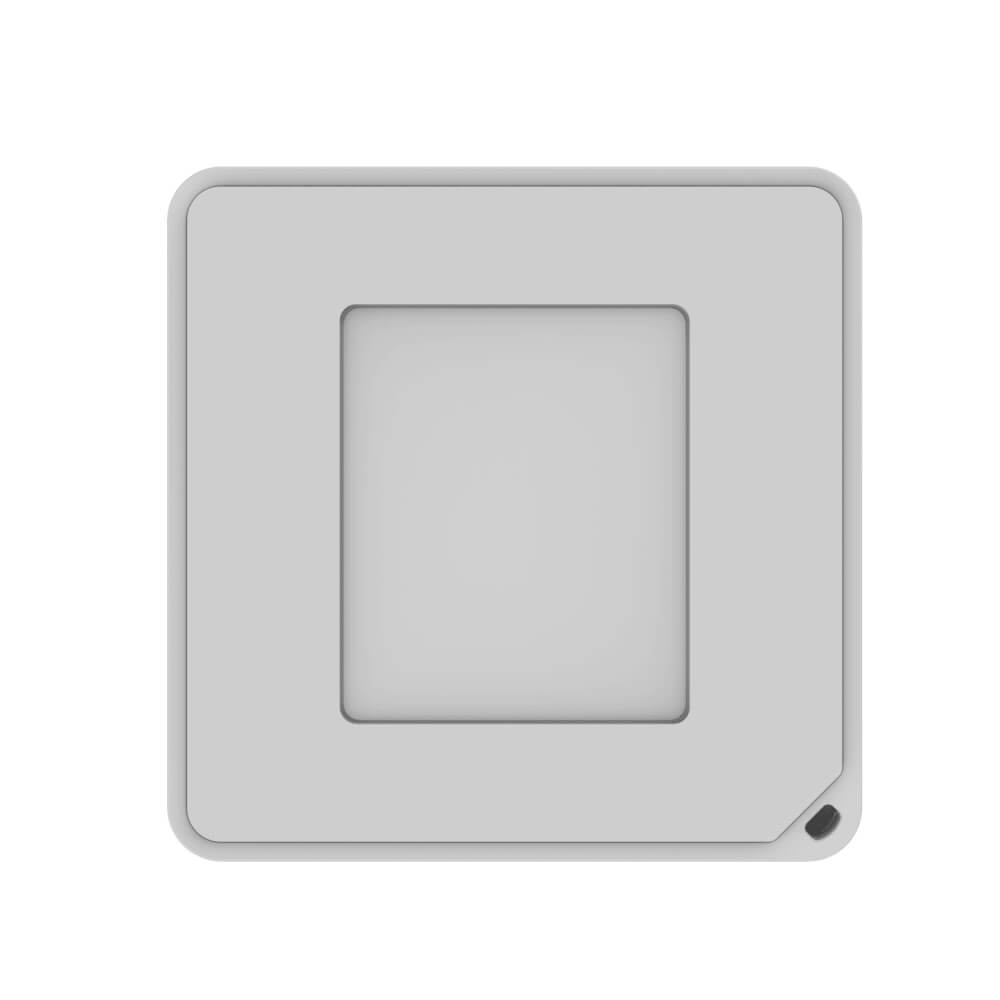

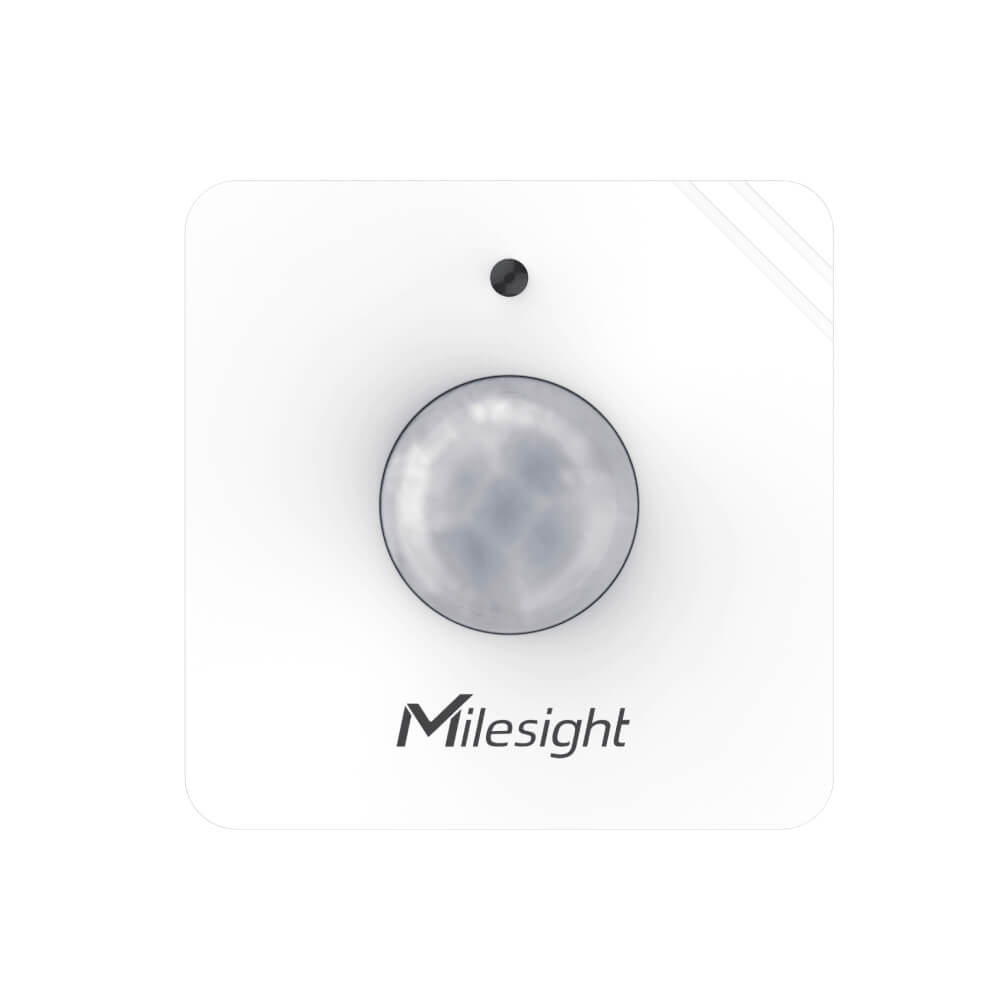

Milesight WS202 | LoRaWAN PIR & Light Sensor

€38,00

Shipping calculated at checkout.

A professional, ultra-compact occupancy sensor that combines passive infrared (PIR) motion detection with ambient light level monitoring.

• Precision Detection: 120° horizontal coverage with a range of up to 8 meters.
• Smart Logic: Integrated light sensor to trigger automation based on brightness.
• Discreet Form-Factor: Miniature 50mm square design for minimalist installations.

Frequency/Region

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight WS202 is a carrier-grade LoRaWAN PIR & Light Sensor engineered for smart offices, schools, and building automation. Utilizing high-sensitivity passive infrared technology and a professional Fresnel lens, the WS202 provides reliable occupancy detection to optimize space utilization and energy efficiency. The addition of an integrated light sensor allows facility managers to link motion detection with ambient light levels, enabling sophisticated automation such as smart lighting control that only activates when a room is both occupied and insufficiently lit.

Intelligent Occupancy & Automation

Milesight D2D Controller Equipped with Milesight D2D protocol, the sensor can directly trigger actions in other D2D-enabled devices with ultra-low latency, bypassing the need for a central gateway.

Adaptive Lighting Control The integrated light sensor reports levels in Lux, allowing for precise "Daylight Harvesting" strategies to reduce energy costs in commercial buildings.

Smart Building Scenarios

• Workplace Management: Monitor meeting room and desk occupancy in real-time to optimize office layouts and cleaning schedules.

• Energy Conservation: Automatically trigger HVAC and lighting adjustments based on presence, significantly reducing waste in unoccupied zones.

• Smart Washrooms: Track frequency of use to enable "demand-driven" maintenance, ensuring high hygiene standards with fewer unnecessary visits.

What is in the Box?

• 1 x Milesight WS202 PIR & Light Sensor

• 1 x 1650 mAh ER14335 Li-SOCl2 Battery (Replaceable)

• 1 x 3M Tape Mounting Kit

• 1 x Quick Start Guide

Product Certifications

CE FCC LoRaWAN Certified RoHS

Specifications

Primary Communication Protocol

LoRaWAN, Milesight D2D
Frequency/Region

EU868
Antenna Type

Internal
Configuration Method

NFC
Activation Method

OTAA, ABP
Environment Rating

Indoor
IP Rating

IP30
Operating Temperature

-20°C to 60°C
Enclosure Material

PC (Polycarbonate)
Battery Type

Li-SOCl2
Battery Capacity

1650mAh
Power Consumption

~2 to 4.2 years (based on SF and triggers)
Measurement Technology
- PIR Sensing: Uses passive infrared technology and a Fresnel Lens for high-sensitivity human motion detection.
- Dual-Logic Triggers: Combines occupancy data with light levels to automate lighting and HVAC systems efficiently.
- Milesight D2D: Direct device-to-device control (< 1s latency) without requiring a LoRaWAN gateway.
- NFC Provisioning: Instant, wire-free configuration and setup via smartphone application.
- Compact Aesthetics: Minimalist indoor design suitable for modern office and smart home environments.
Measurement Range
- PIR Distance: Up to 8 meters
- Detection Angle: 120° Horizontal, 100° Vertical
- Illuminance: 1 to 60,000 lux
- Wireless Reach: Up to 15km (LoS)
Measurement Accuracy
- Precision Detection: Multi-zone Fresnel lens for minimized false triggers.
- Configurable Sensitivity: Threshold-based light sensing to distinguish between Bright/Dark states.
- Signal Stability: -137dBm sensitivity ensures reliable reporting in dense indoor settings.
Measurement Resolution
- PIR Status: Occupied / Vacant (Binary)
- Light Status: Bright / Dark (Binary)
- Temporal Logic: Configurable vacancy reporting delay and heartbeat intervals.
Monitoring Parameters

Occupancy Status, Motion (PIR), Light Intensity (Lux)

Document Library

WS202 Datasheet

WS202 User Manual
