Milesight | SKU: TS602-L0DEU

Milesight TS602 | IP67 Cellular Temperature & Humidity Sensor with OLED Display

Name: Milesight TS602 | IP67 Cellular Temperature & Humidity Sensor with OLED Display
Brand: Milesight
SKU: TS602-L0DEU
Price: 103.00 EUR
Availability: InStock

€103,00

Shipping calculated at checkout.

An IP67 cellular temperature and humidity sensor with OLED display and multi-probe support for cold chain, pharma, and industrial IoT.

Display & Probes: OLED Screen | PT100, DS18B20 & TH Probe Support
Connectivity: LTE Cat.1 | MQTT, TCP, UDP & AWS IoT Core
Protection: IP67 Food-Grade Enclosure | -35°C to +70°C Range

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

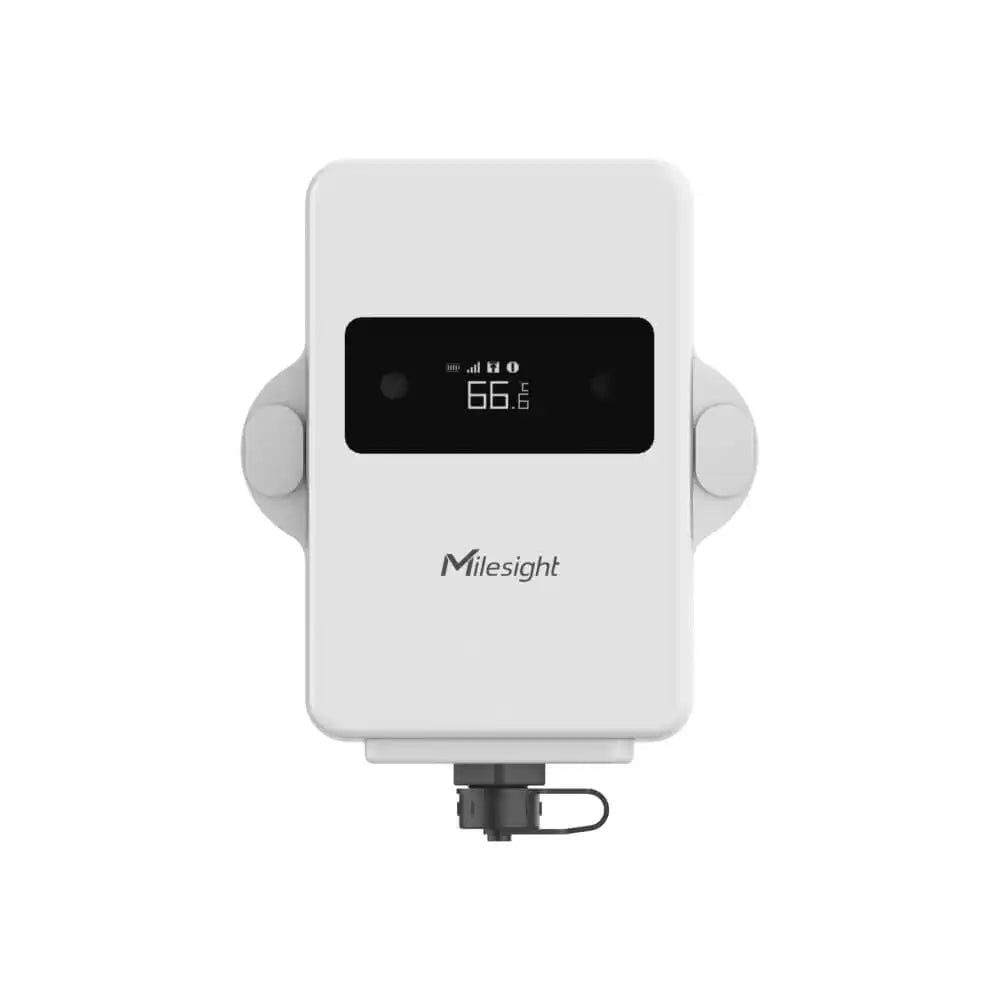

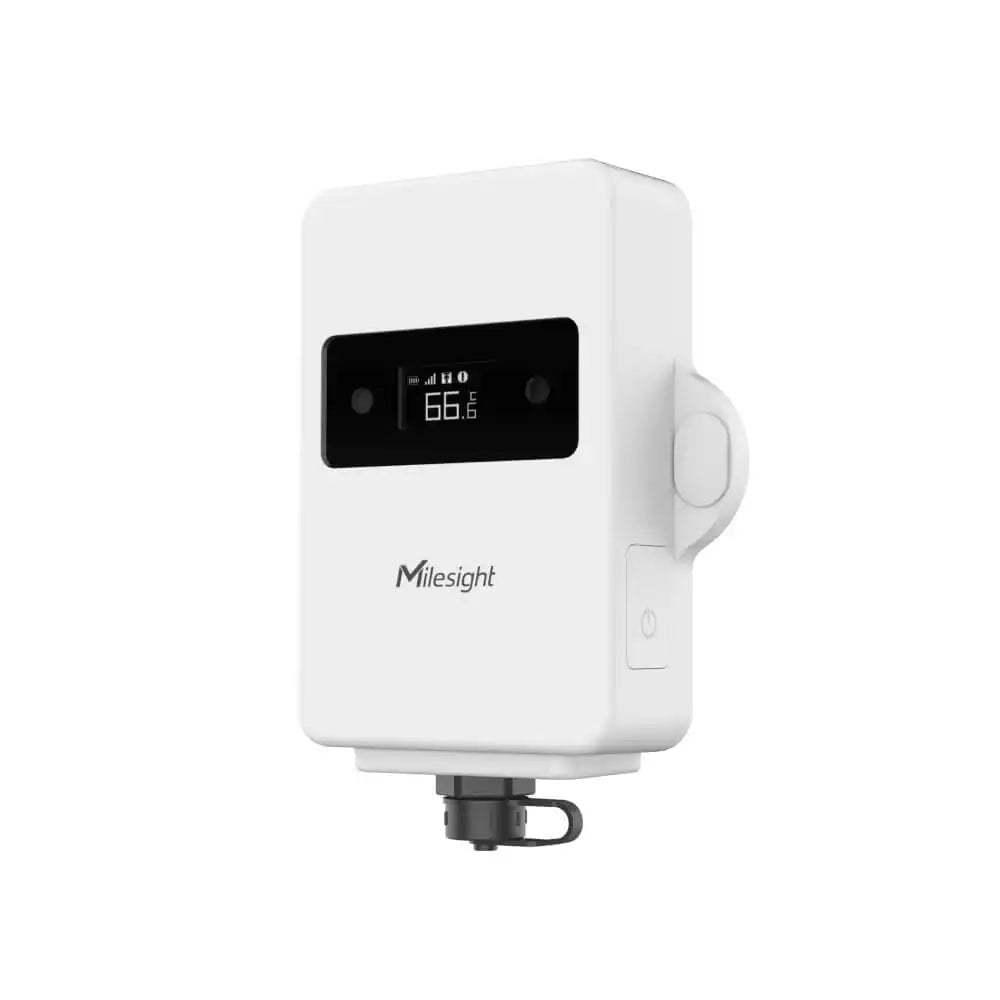

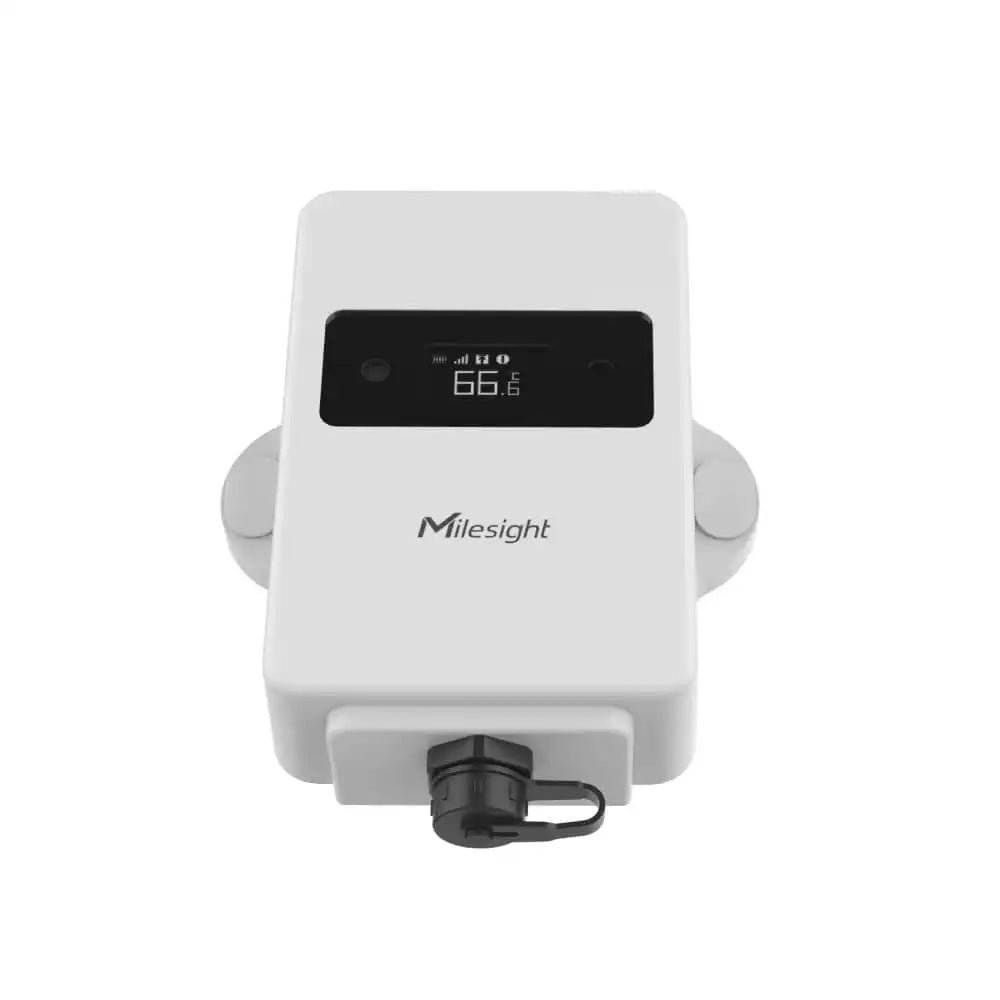

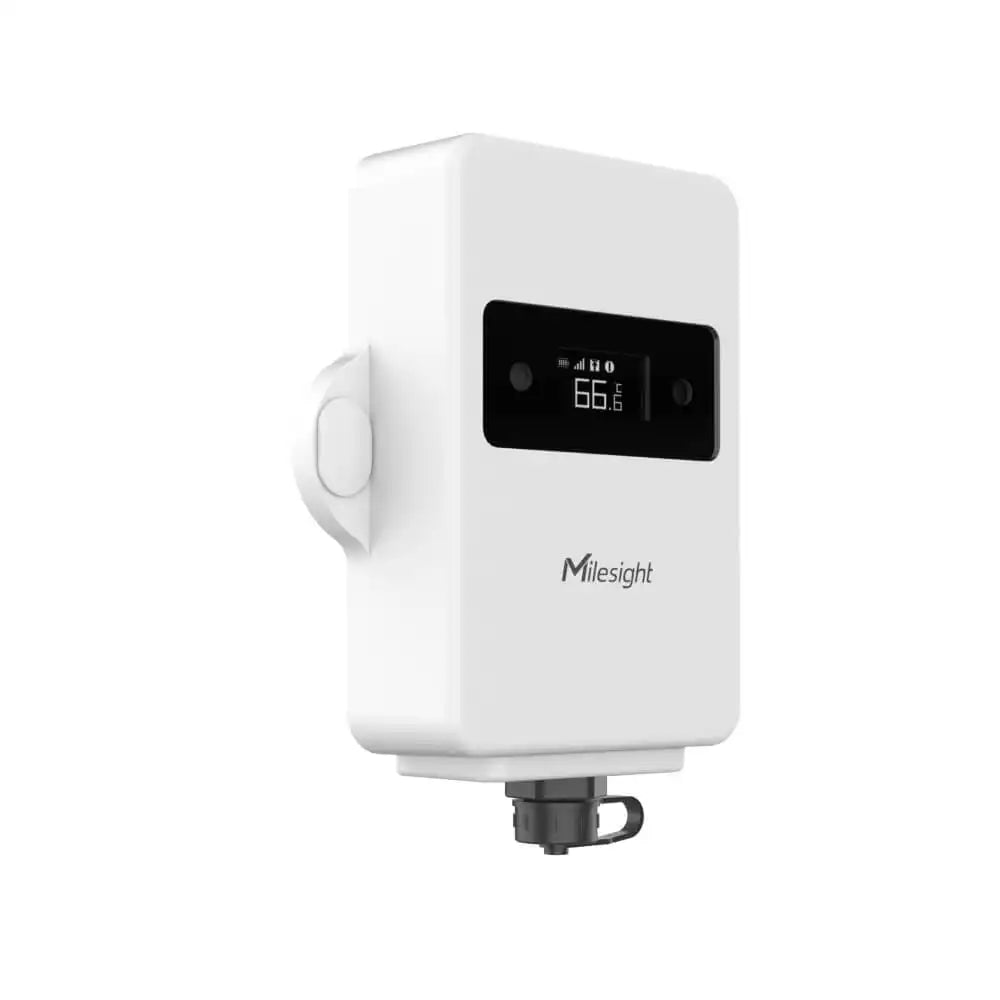

The Milesight TS602 is a compact, IP67-rated cellular temperature and humidity sensor engineered for precise environmental monitoring across cold chain logistics, food storage, pharmaceutical transport, and industrial applications. Powered by LTE Cat.1 connectivity and featuring a 0.96-inch OLED display for real-time on-device data readout, the TS602 supports a versatile range of optional external probes — including PT100, DS18B20, and TH sensors — enabling deployment across demanding temperature ranges from -200°C to +500°C. Built with a food-grade ABS+PC enclosure, it allows direct contact with food and pharmaceutical products without contamination risk, while NFC-based configuration via the Milesight ToolBox app keeps field deployment fast and toolless.

Core Capabilities

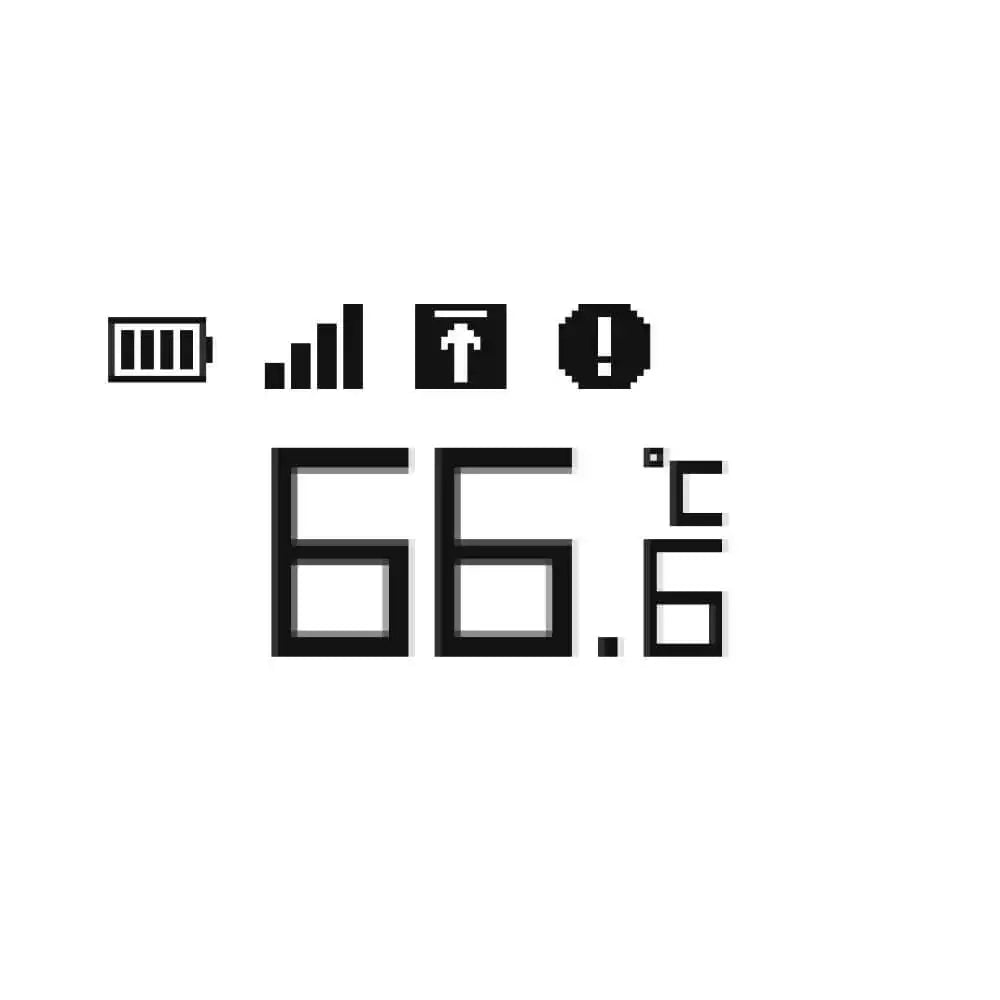

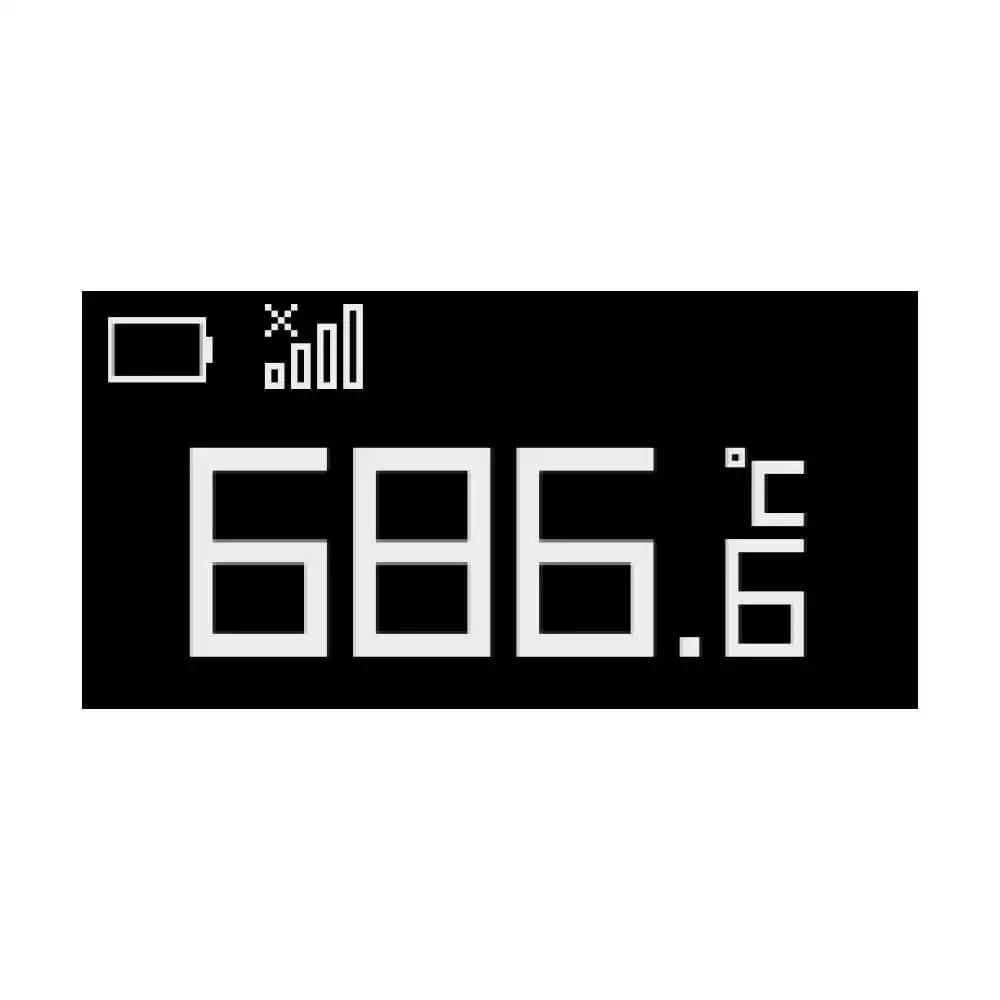

OLED Display & Probe Flexibility0.96-inch OLED for live T&H readout. Supports PT100, DS18B20, and TH external probes via 5-pin M12 connector.

Multi-Platform LTE ConnectivityLTE Cat.1 backhaul with support for TCP, UDP, MQTT, AWS IoT Core, and Milesight Development Platform.

Advanced Alarm IntelligenceConfigurable temperature/humidity threshold alarms, shift alarms, light alarm for case opening detection, tilt, and drop alarms.

Data Integrity & ResilienceLocal storage of up to 5,000 entries with automatic data retransmission after network recovery to prevent data loss.

Industrial Applications

•Cold Chain Logistics: Monitor temperature and humidity in real time during road and air transport of pharmaceuticals, vaccines, perishables, and food products, with full data traceability.

•Pharmaceutical & Food Storage: Ensure regulatory compliance for temperature-controlled storage environments using food-grade certified enclosure materials.

•Industrial Process Monitoring: Deploy with PT100 probes for high-accuracy measurement in industrial applications ranging from cryogenic conditions to high-temperature processes up to +500°C.

•Asset & Shipment Tracking: Leverage built-in base station positioning, 3-axis accelerometer, and light sensor for cargo monitoring, tamper detection, and door opening alerts.

Technical Integration

The TS602 is configured wirelessly via NFC using the Milesight ToolBox mobile application, requiring no tools or physical connections in the field. It supports OTA firmware upgrades and remote management through both the Milesight Development Platform and AWS IoT Core. Flight mode compliance ensures safe operation on air freight shipments. The optional Glass Bead Thermal Buffer Bottle kit improves measurement stability in freezers and refrigerators. For probe selection, deployment planning, or integration guidance, contact the ShopIoT technical team.

Certifications

RoHS

Certification details confirmed on official Milesight product page (www.milesight.com).

What's in the Box

1 × TS602 Device

1 × Temperature (Humidity) Probe

2 × Wall Screw Mounting Kits

2 × Screw Caps

1 × Cable Tie (3.6×500mm)

1 × 3M Tape

1 × Quick Guide

1 × Warranty Card

Glass Bead Thermal Buffer Bottle Kit (Optional)

Specifications

Primary Communication Protocol

4G LTE
Frequency/Region

LTE-FDD: B1/B3/B5/B7/B8/B20/B28 (EMEA + Australia/New Zealand)
Antenna Type

Internal
Configuration Method

NFC
Activation Method

Pre-Provisioned
Environment Rating

Outdoor, Industrial
IP Rating

IP67
Operating Temperature

-35°C to +70°C
Enclosure Material

ABS Plastic, PC (Polycarbonate)
Battery Type

Li-MnO2
Battery Capacity

5000mAh
Power Consumption

Battery-powered LTE Cat.1 — approx. 4.8 year battery life (6 reports/day, 8 packages/report, 30-min interval, -20°C, positioning disabled)
Measurement Technology

• Temperature & Humidity (built-in): Digital CMOSens® technology (MEMS)
• Temperature (PT100 probes): PT100 (RTD)
• Temperature (DS18B20 probe): Digital Temperature Sensor
• Light: Photoelectric
• Position/Tilt: 3-axis accelerometer
Measurement Range

Built-in sensor:
• Temperature: -35°C to +70°C
• Humidity: 0% to 100% RH
• Light: 0 to 600 Lux
• Tilt: -90° to +90° (X, Y, Z axes)

Optional probes (TS602):
• PT100 Regular / Food Grade: -40°C to +125°C
• PT100 Low Temperature: -200°C to +50°C
• PT100 Industrial: -50°C to +500°C
• DS18B20: -40°C to +125°C
• TH Probe — Temp: -40°C to +125°C / Humidity: 0% to 100% RH
Measurement Accuracy
Built-in sensor:
• Temperature: ±0.3°C (-35°C to 0°C), ±0.2°C (0°C to 65°C), ±0.5°C (65°C to 70°C)
• Humidity: ±2% RH (at 25°C)
External Probes:
- PT100 Regular (SP11-B05): ±0.5°C (-40°C to 40°C), ±1°C (40°C to 125°C)
- PT100 Food Grade (SP11-AF10): ±0.4°C
- PT100 Low Temp (SP11-A03): ±0.5°C (-175°C to 50°C), ±0.55°C (-200°C to -175°C)
- PT100 Industrial (SP11-A05): ±0.4°C (-50°C to 125°C), ±1.15°C (125°C to 500°C)
- DS18B20 (SP12): ±0.5°C (-10°C to 85°C), ±2°C (-40°C to -10°C and 85°C to 125°C)
- TH Probe (SP13) — Temp: ±0.3°C (-40°C to 0°C), ±0.2°C (0°C to 65°C), ±0.5°C (65°C to 125°C) / Humidity: ±2% RH
Measurement Resolution

• Temperature (built-in): ±0.1°C
• Humidity (built-in): ±0.1% RH
• Temperature (all optional probes): ±0.1°C
• Humidity (TH probe): ±0.1% RH
Interfaces (I/O)

USB Type-C, Nano SIM Slot, M12/F 5-pin Connector
Monitoring Parameters

Temperature, Humidity, Power Status, Battery Voltage

Document Library

TS602 Datasheet

TS602 User Manual
