Milesight  |  SKU: WT101-868M
Sold out

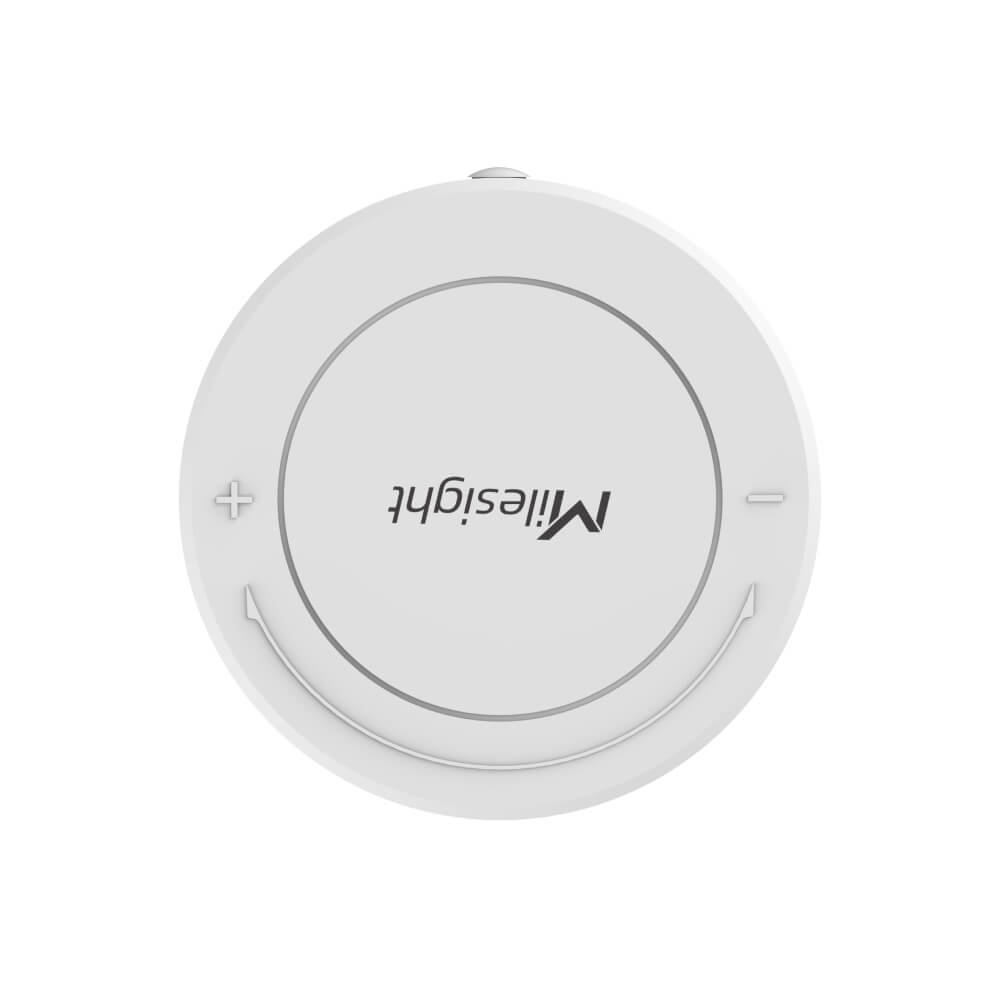

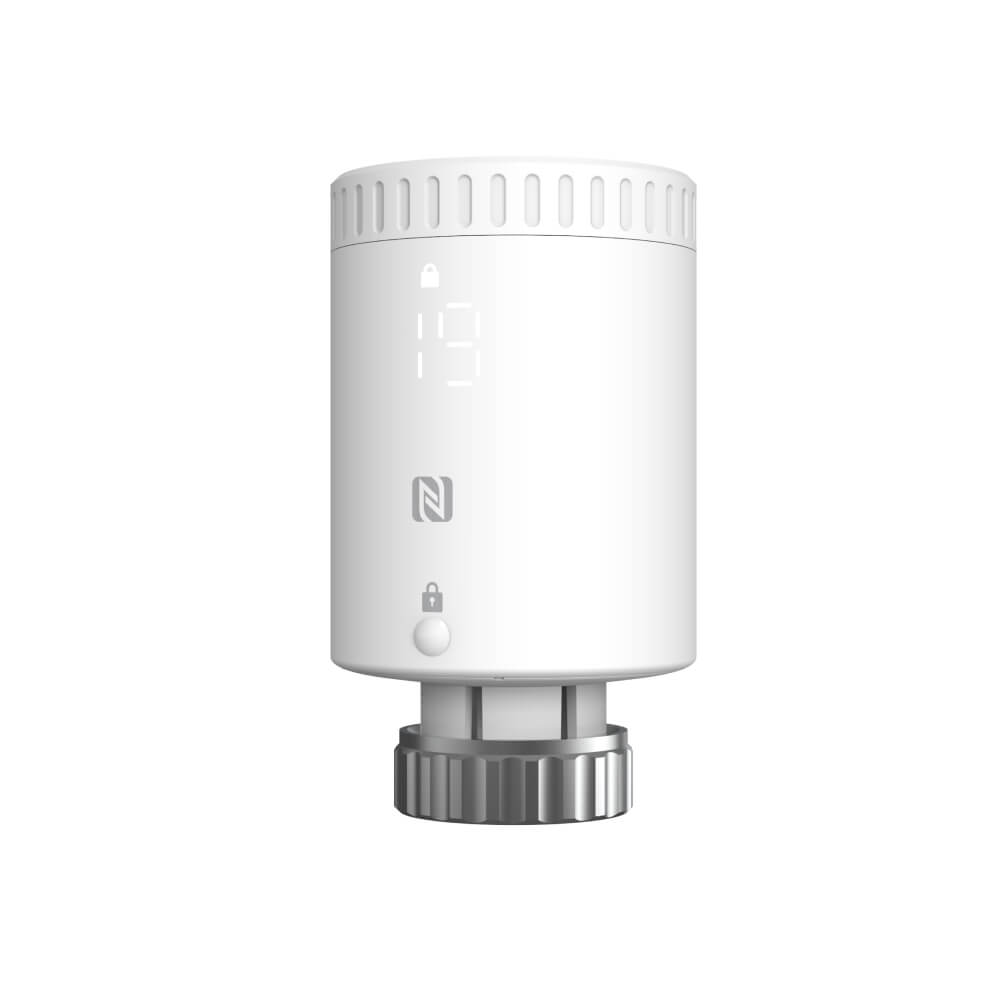

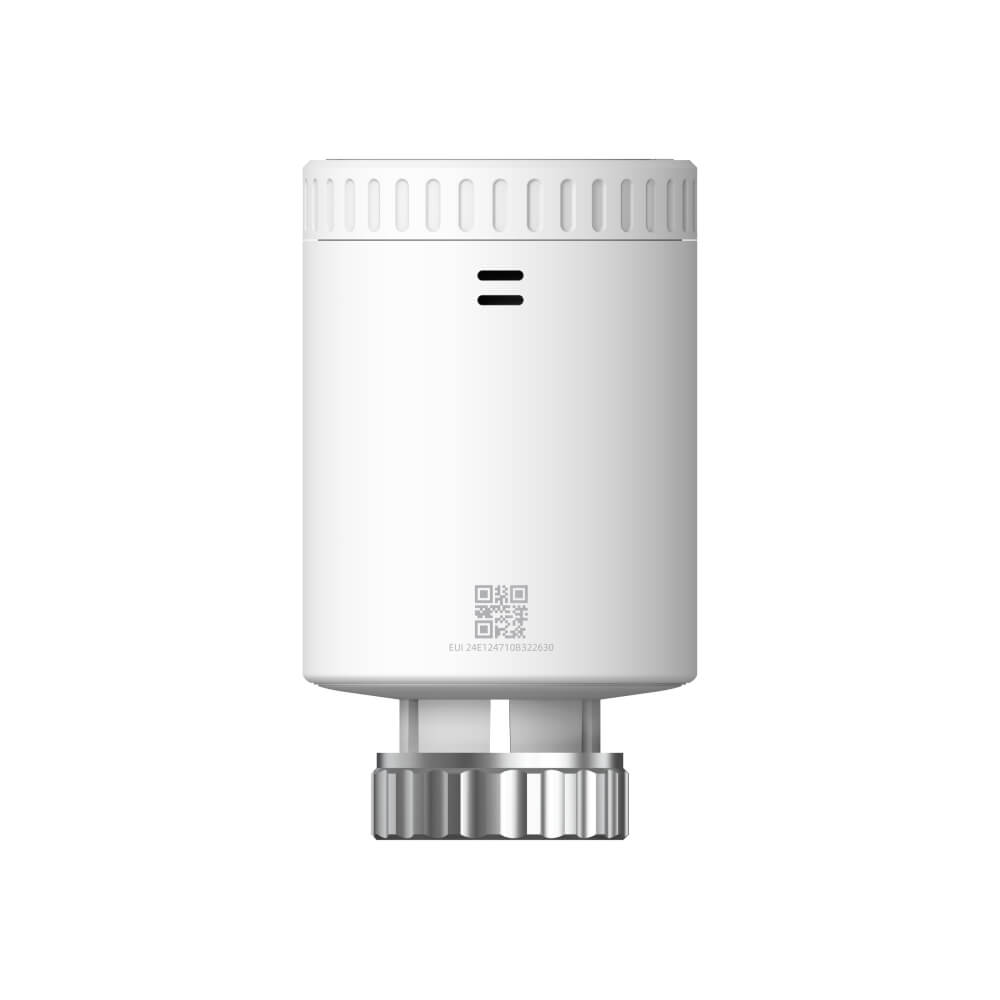

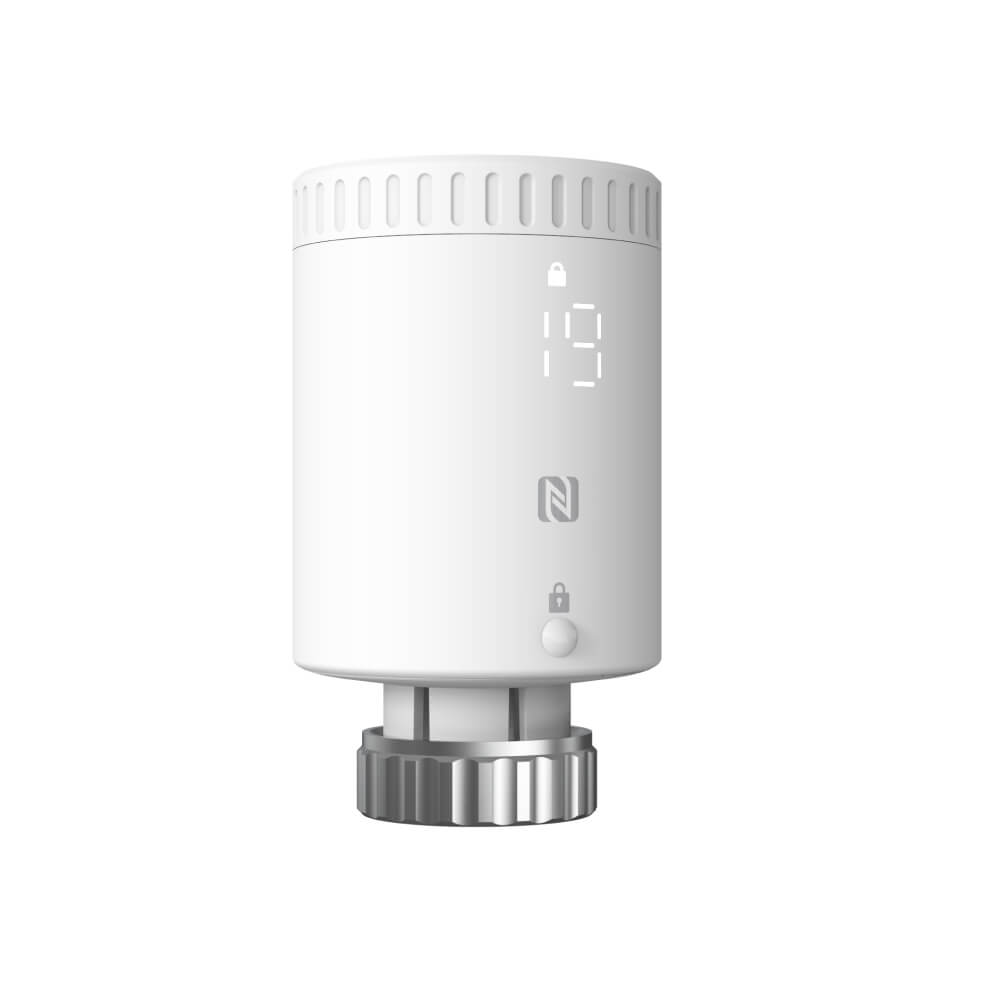

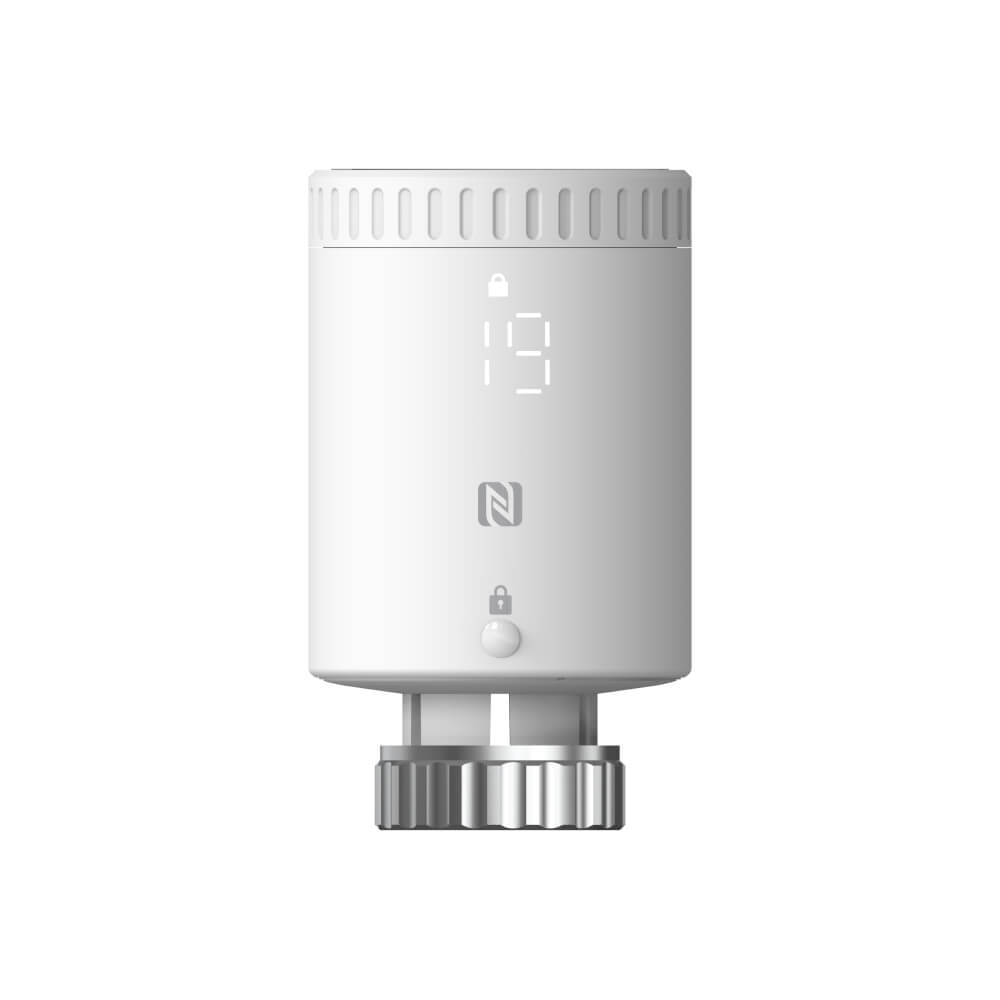

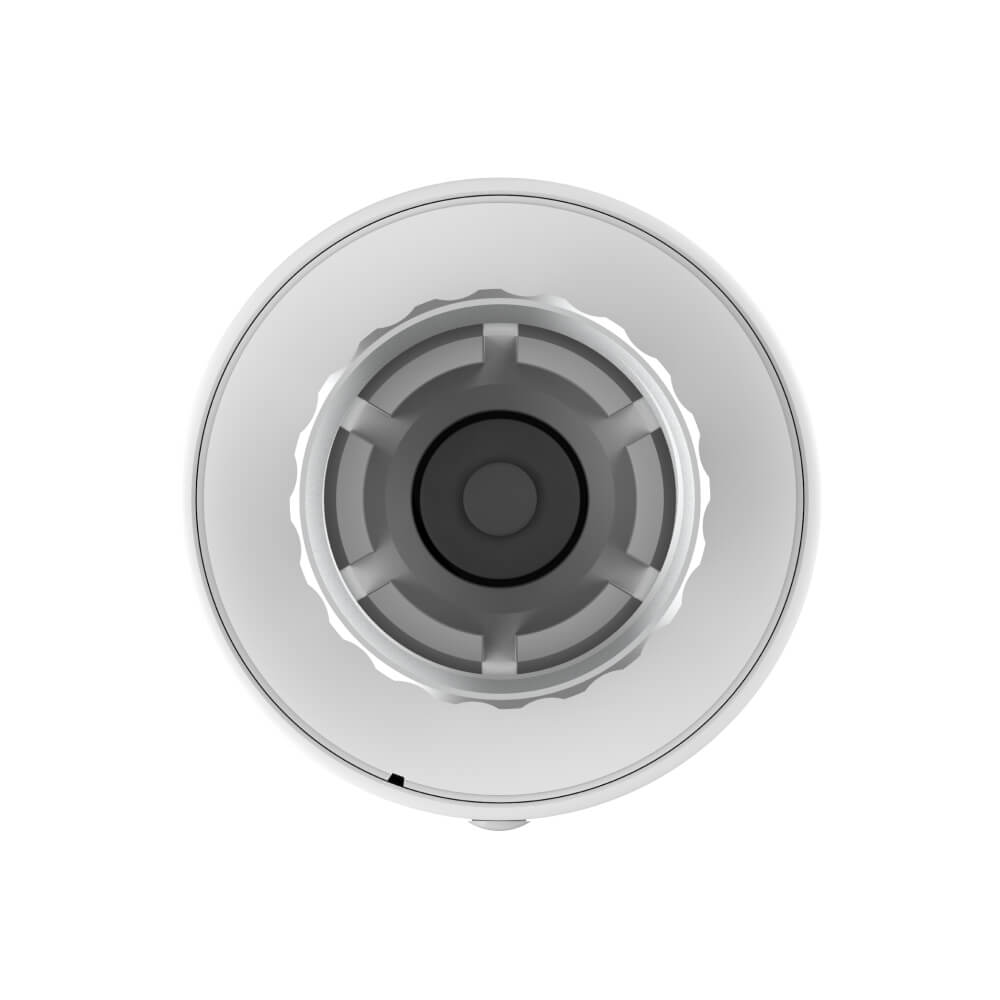

Milesight WT101 | Smart LoRaWAN Radiator Thermostat (TRV)

€83,00
Shipping calculated at checkout.

A professional LoRaWAN radiator valve actuator designed for precise room-level climate control and automated energy saving.

  • • Smart Logic: Up to 16 heating plans per date period.
  • • D2D Protocol: Direct controller/agent link for fast response.
  • • High Efficiency: Up to 5-year battery life in heating use.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight WT101 is a high-performance Smart Radiator Thermostat (TRV) engineered to bring granular efficiency to building heating systems. By replacing traditional manual valves, the WT101 allows for millimetric adjustment of water flow based on real-time environmental data and pre-set schedules. It features a built-in temperature sensor for accurate local monitoring and an intuitive LED display that can be rotated to suit vertical or horizontal installations. Supporting the Milesight D2D protocol, it can act as both a controller and an agent, enabling rapid local automation with window sensors or external thermostats without gateway latency.

Advanced Thermal Intelligence

Milesight D2D Communication Integrate directly with Milesight window sensors via D2D to instantly close the radiator valve when a window is opened, preventing heat waste.
Tamper & Theft Protection Equipped with a child-lock and an optional theft-deterring collar, making it suitable for public buildings, schools, and offices.

Professional Heating Scenarios

• Commercial Offices: Centralize heating schedules to ensure energy is only used during business operating hours.
• Educational Facilities: Prevent unauthorized temperature adjustments in classrooms with centralized software lockouts.
• Smart Homes: Create comfortable, personalized thermal zones in every room while reducing overall utility costs.

What is in the Box?

• 1 x Milesight WT101 Smart Radiator Thermostat
• 2 x 1.5V Li-FeS2 AA Replaceable Batteries
• 1 x Valve Adapter Kit (M30 x 1.5 and others)
• 1 x Quick Start Guide

Product Certifications

CE RoHS IP30

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • Configuration Method
    NFC
  • Activation Method
    OTAA
  • Environment Rating
    Indoor
  • IP Rating
    IP30
  • Operating Temperature
    -20°C to 60°C
  • Enclosure Material
    ABS Plastic, Stainless Steel
  • Battery Type
    Li-FeS2 (AA)
  • Battery Capacity
    3000mAh
  • Power Consumption
    Around 5-8 Years (SF7)
  • Measurement Technology
    • Adaptive Valve Control: Motorized actuator with automatic calibration to suit most common radiator valves (M30 x 1.5mm).
    • Intelligent Scheduling: Support for up to 16 customized heating plans within a preset date period.
    • Environmental Detection: Integrated temperature sensor for localized environmental monitoring and precise valve adjustment.
    • Smart Features: Supports open-window detection (automatic shut-off) and freeze protection logic.
  • Measurement Range
    • Setting Temperature: 5°C to 35°C (41°F to 95°F).
    • Humidity Range: 0% to 95% RH (non-condensing).
    • Valve Compatibility: Standard M30 x 1.5mm (optional adapters available for Danfoss, Giacomini, Caleffi, etc.).
  • Measurement Accuracy
    • Temperature Accuracy: ±0.3°C (typical).
    • Control Precision: High-torque motor ensures accurate linear movement for granular valve opening/closing.
  • Measurement Resolution
    • Temperature Resolution: 0.1°C.
    • Display: Integrated LED segment display for target temperature and status visualization.
  • Monitoring Parameters
    Temperature

Document Library

WT101 Datasheet

WT101 User Manual
