Milesight  |  SKU: WTS506-868M

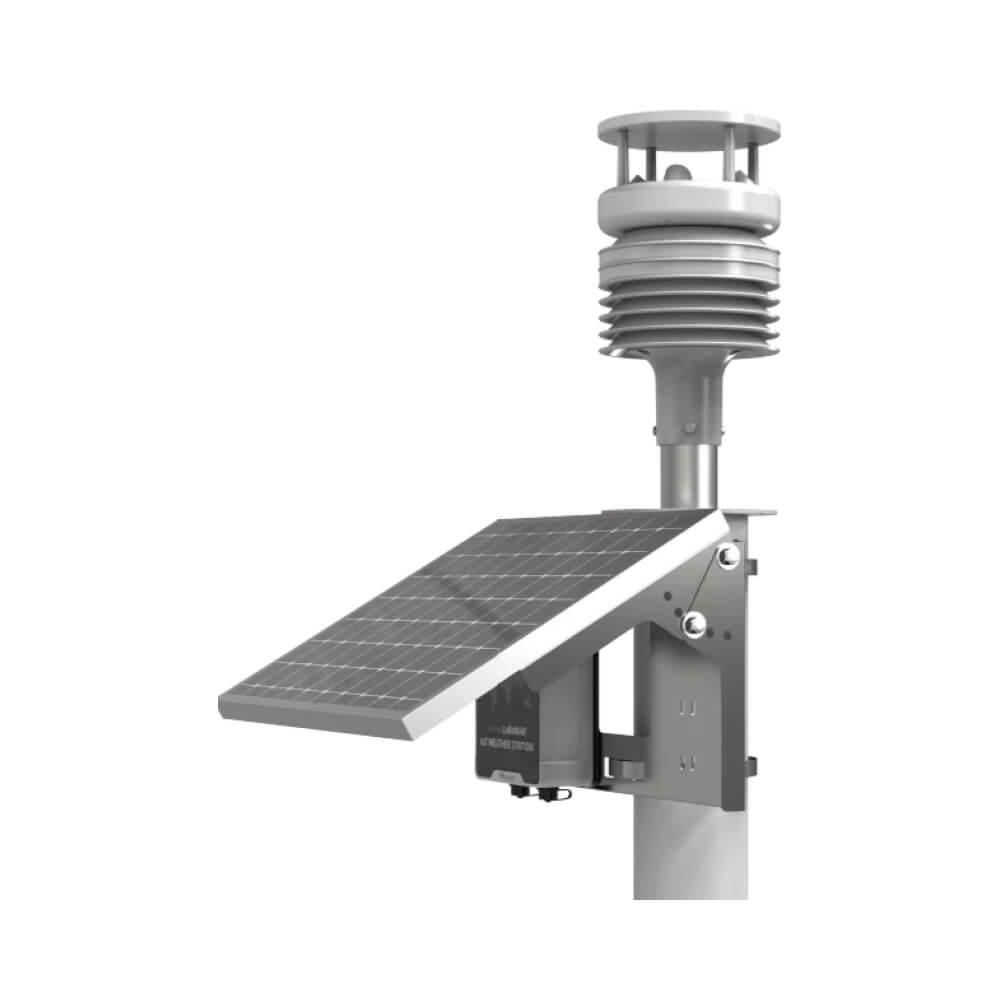

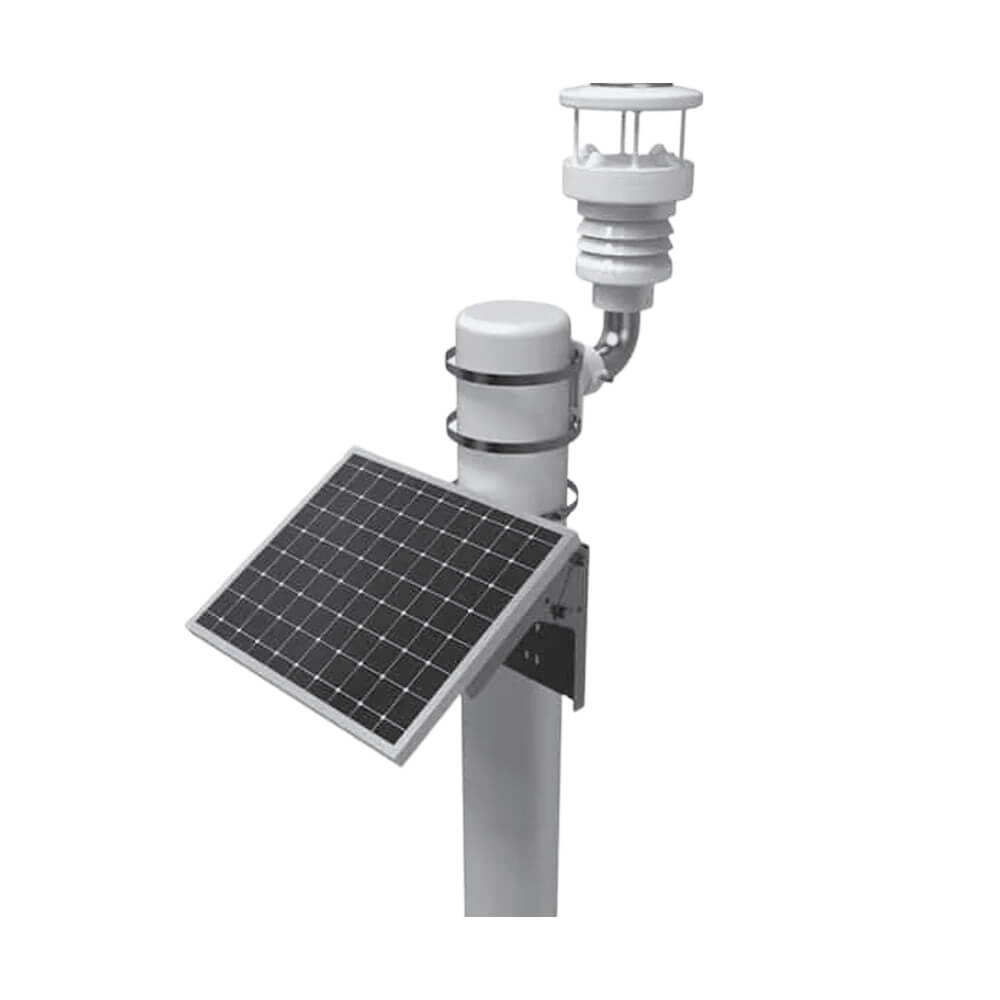

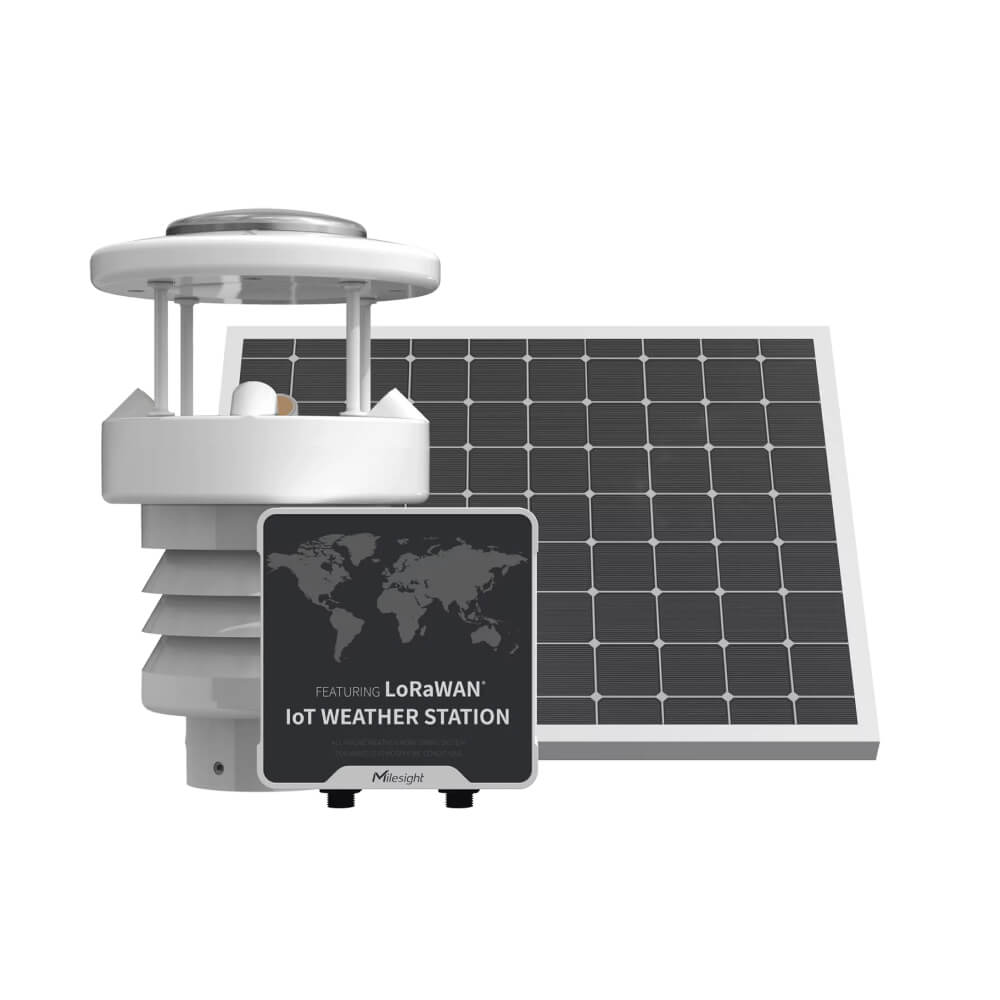

Milesight WTS506 | IoT LoRaWAN Weather Station (All-in-One Solar Powered Kit)

€2.530,00
Shipping calculated at checkout.

A professional-grade, all-in-one meteorological monitoring system that delivers real-time atmospheric data via LoRaWAN for smart agriculture and industrial environmental tracking.

  • 6-in-1 Sensor: Temp, Humidity, Wind, Pressure, and Rainfall.
  • Autonomous Power: 15W Solar Panel with high-capacity battery.
  • Reliability: 19,000+ local records and IP67 weather protection.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight WTS506 is a comprehensive IoT weather station designed to capture precise atmospheric data in the most demanding outdoor environments. This integrated system combines high-accuracy sensors for wind speed, wind direction, temperature, humidity, barometric pressure, and rainfall into a single, easy-to-deploy unit. By utilizing LoRaWAN technology, the WTS506 enables long-range wireless transmission up to 15km, providing a scalable solution for hyper-local weather monitoring without the need for complex wiring or cellular data overhead.

Engineered for Resilience

Consolidated Sensing Captures 6 critical weather parameters simultaneously with professional-grade accuracy and durability.
Solar-Centric Operation Powered by an included 15W solar panel and dual rechargeable batteries for continuous 24/7 operation.
Harsh Environment Ready IP67, UV-proof, and salt spray resistant enclosure protects internal electronics from extreme weather.
Fail-Safe Transmission Stores up to 19,000 records locally with automatic retransmission to ensure no data is lost during outages.

Operational Use Cases

• Smart Agriculture: Optimize irrigation schedules and pest management based on real-time rainfall and humidity data.
• Smart Cities: Monitor urban microclimates and storm-water drainage systems to improve public safety and resource allocation.
• Meteorology: Deploy remote, autonomous weather stations for scientific research and localized forecasting in rural areas.

Network & Management

The system includes the WTS Hub, which manages sensor data and LoRaWAN connectivity. It is fully compatible with standard LoRaWAN gateways and network servers, including Milesight IoT Cloud. Configuration is simplified through NFC or USB for rapid field setup. For technical consultation on solar placement or network integration, please contact the ShopIoT engineering team.

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • Configuration Method
    NFC, USB
  • Activation Method
    OTAA, ABP
  • Environment Rating
    Outdoor
  • IP Rating
    IP67
  • Operating Temperature
    -20°C to 60°C
  • Enclosure Material
    PC (Polycarbonate), ASA Plastic (UV Stabilized)
  • Battery Type
    Li-ion
  • Battery Capacity
    5100mAh
  • Power Consumption
    Typical 0.5W, Max 1W
  • Measurement Technology
    • Temperature: Digital CMOSens® technology (MEMS)
    • Humidity: Digital CMOSens® technology (MEMS)
    • Wind Speed: Ultrasonic
    • Wind Direction: Ultrasonic
    • Barometric Pressure: Piezoresistive absolute pressure sensor (MEMS)
    • Rain Fall: Piezoelectric
  • Measurement Range
    • Temperature: -40°C to +85°C
    • Humidity: 0% to 100% RH
    • Wind Speed: 0 to 60 m/s
    • Wind Direction: 0° to 360°
    • Barometric Pressure: 300 to 1100 hPa
    • Rain Fall: 0 to 450 mm/h
  • Measurement Accuracy
    • Temperature: ±0.3°C
    • Humidity: ±3% RH
    • Wind Speed: ±0.3 m/s or ±3% (whichever is greater)
    • Wind Direction: ±3°
    • Barometric Pressure: ±0.3 hPa
    • Rain Fall: ±7%
  • Measurement Resolution
    • Temperature: 0.1°C
    • Humidity: 0.1% RH
    • Wind Speed: 0.1 m/s
    • Wind Direction: 0.1°
    • Barometric Pressure: 0.1 hPa
    • Rain Fall: 0.01 mm
  • Interfaces (I/O)
    USB Type-C, M12 Connector (Power)
  • Monitoring Parameters
    Temperature, Humidity, Wind Speed, Wind Direction, Barometric Pressure, Rainfall (Total/Intensity)

Document Library

WTS506 Datasheet

WTS506 User Manual
