RAK Wireless | SKU: 715117

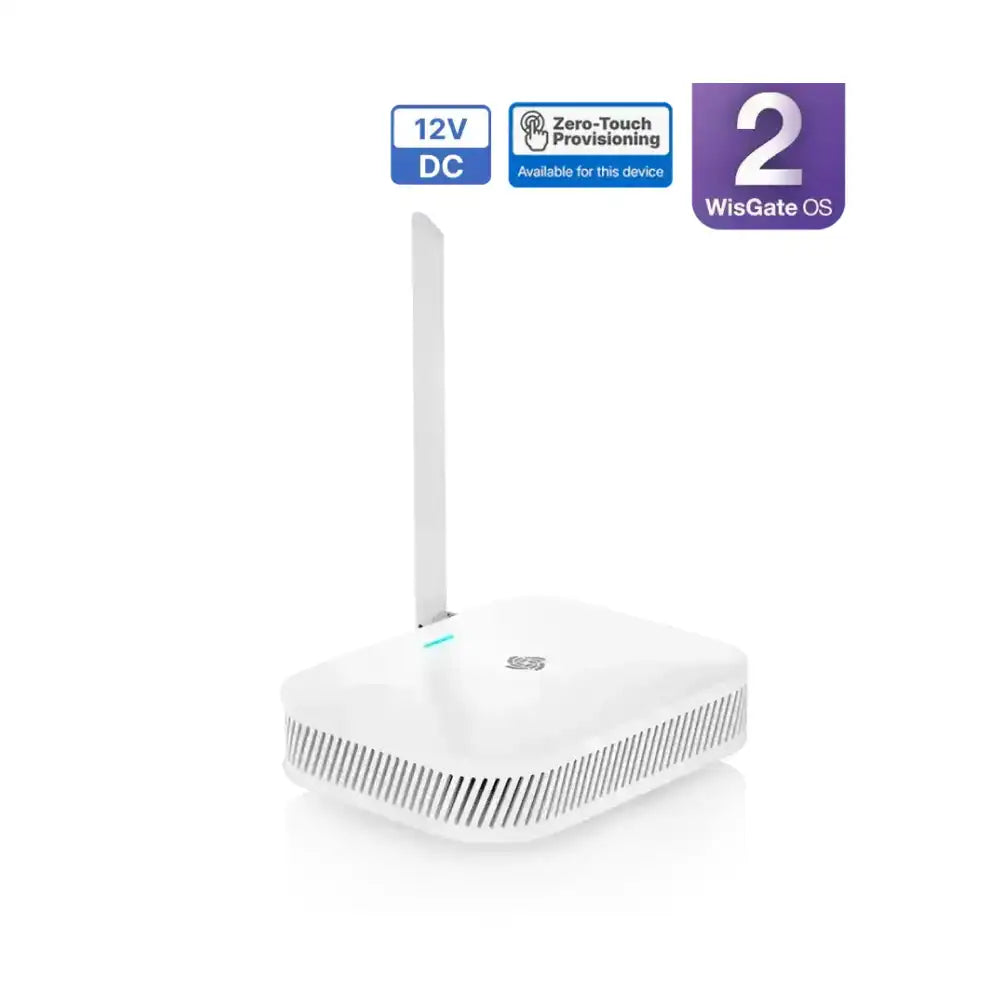

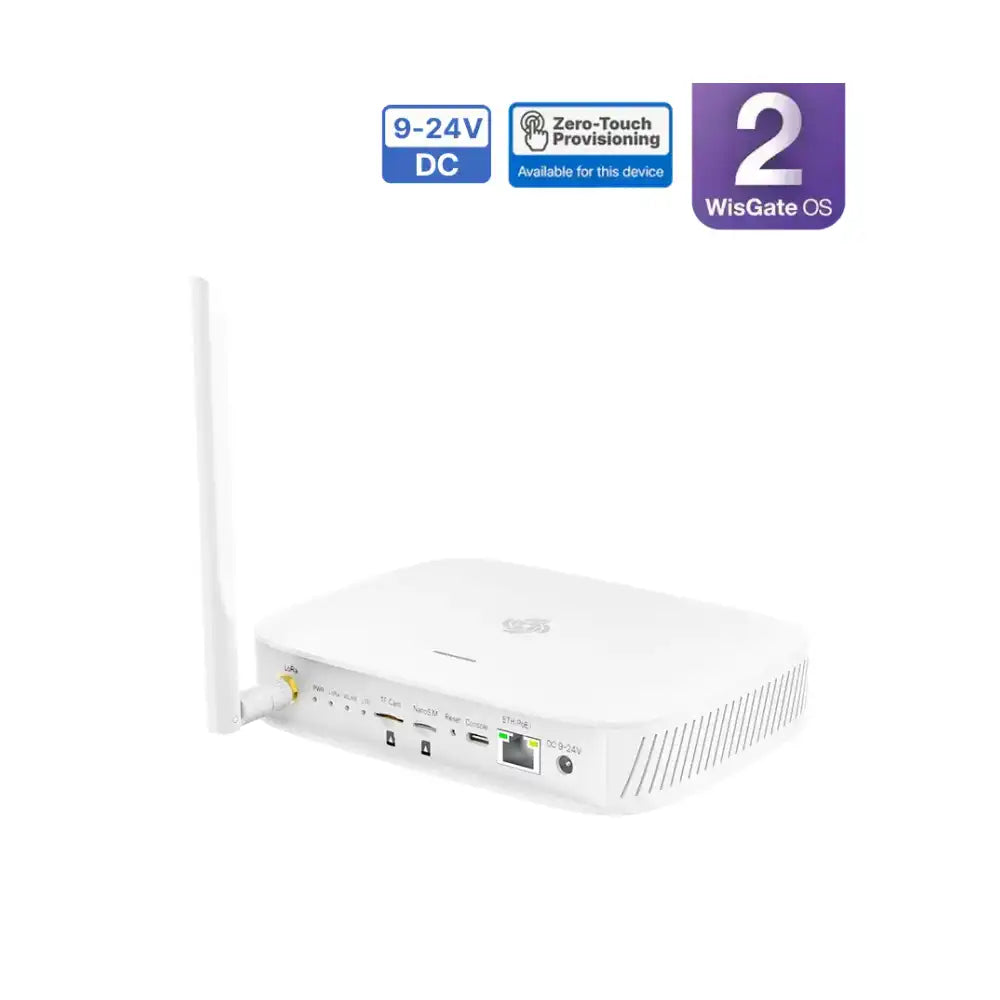

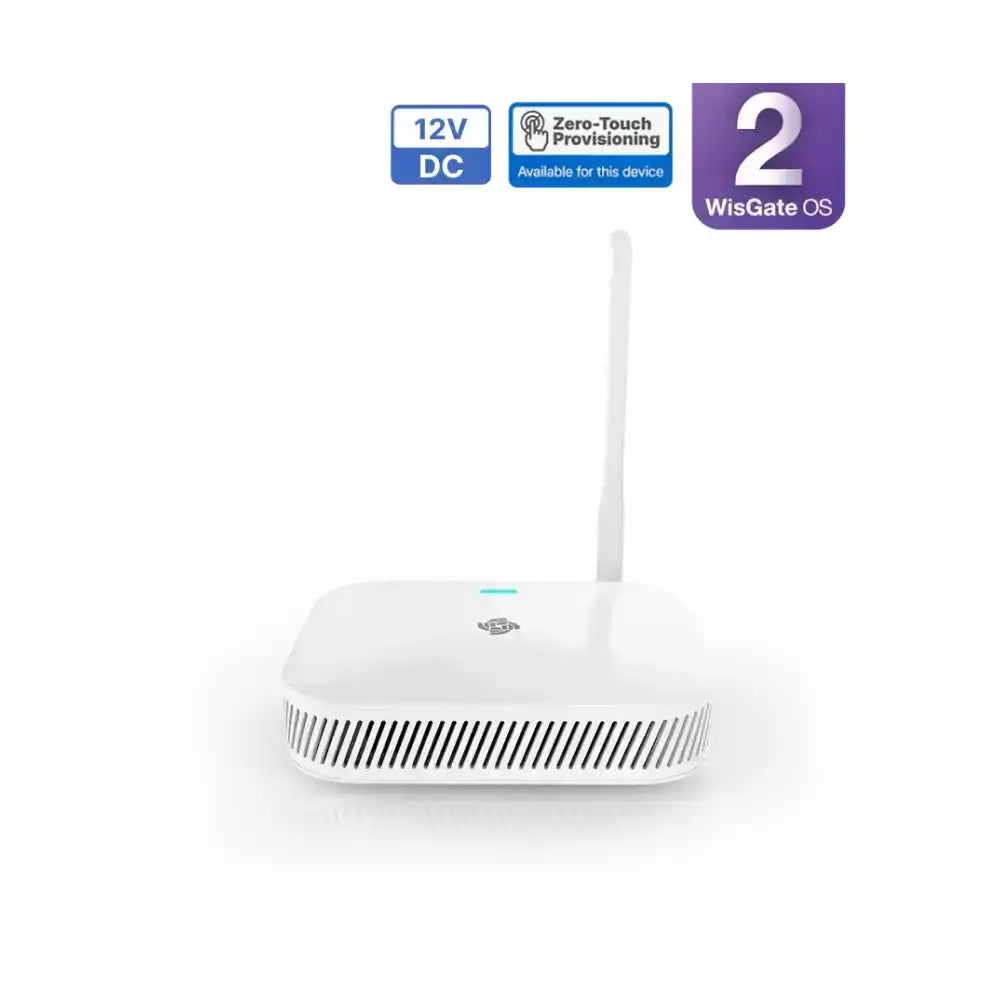

RAKwireless RAK7268V2 WisGate Edge Lite 2 | 8-Channel Indoor LoRaWAN Gateway with PoE

€187,00

Shipping calculated at checkout.

A compact 8-channel indoor LoRaWAN® gateway with multi-backhaul failover, built-in network server, and WisDM fleet management for smart building and industrial IoT deployments.

LoRa: 8-Ch SX1302 | EU868 | 27dBm TX | Class A & C
Backhaul: Ethernet (PoE) | Wi-Fi | 4G LTE (CV2 only)
Software: WisGateOS 2 | Built-in NS | WisDM Ready
Build: IP30 | PC+ABS | 3W Typical | CE, FCC, RoHS

Frequency/Region

Backhaul Communication

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The RAKwireless RAK7268V2 / RAK7268CV2 WisGate Edge Lite 2 is a compact, professional-grade 8-channel indoor LoRaWAN® gateway designed for versatile deployments across commercial buildings, campuses, and industrial facilities. Built on the SX1302 Mini PCIe LoRa concentrator and powered by an MT7628 processor with 128 MB DDR2 RAM, it runs on WisGateOS 2 — a robust, security-enhanced platform supporting extensions, remote OTA updates, and fleet management via WisDM. The gateway supports multiple backhaul options including Ethernet (PoE), 2.4 GHz Wi-Fi, and optional 4G LTE (RAK7268CV2 only), with flexible power input via PoE, 12 VDC, or 9–24 VDC depending on variant. A pre-installed 16 GB microSD card provides frame buffering and log storage, ensuring no data loss during network outages. Configuration is accessible via Wi-Fi AP mode out of the box, with support for Web UI, SSH2, and remote management through WisDM.

Core Capabilities

Multi-Backhaul with Failover Supports simultaneous Ethernet (PoE), 2.4 GHz Wi-Fi, and optional 4G LTE (RAK7268CV2) backhaul connections with automatic uplink failover, ensuring continuous network availability across all deployment environments.

WisGateOS 2 & WisDM Fleet Management Runs WisGateOS 2 with extension add-on support for customised functionality, built-in network server, Basics Station and Packet Forwarder modes, and MQTT v3.1 bridging with TLS encryption. Integrates with WisDM for centralised remote management, OTA firmware updates, and monitoring of large gateway fleets.

Frame Buffering & Data Resilience Pre-installed 16 GB microSD card provides LoRa frame buffering in Packet Forwarder mode during network server outages, ensuring no uplink packets are lost. Supports LoRa frame filtering (node whitelisting) for clean, controlled deployments.

Global Frequency & Flexible Power Supports EU868, US915, AU915, AS923, IN865, KR920, RU864, EU433, and CN470 frequency plans. Accepts PoE (IEEE 802.3af, 36–57 VDC), 12 VDC, or 9–24 VDC power input depending on variant, with 3 W typical power consumption for energy-efficient indoor operation.

Typical Applications

• Smart Building & Campus Deployments: Connect indoor LoRaWAN® sensors for temperature, humidity, occupancy, and energy monitoring across office buildings, hospitals, hotels, and educational campuses using a single compact gateway per floor or zone.

• Industrial Facility Monitoring: Deploy in manufacturing plants, warehouses, and logistics centres to aggregate data from asset trackers, condition monitoring sensors, and utility meters over LoRaWAN®, with Ethernet or optional LTE backhaul to upstream systems.

• Network Server Integration: Compatible with major LoRaWAN® network servers including ChirpStack (via MQTT bridge), The Things Network (TTN), AWS IoT Core for LoRaWAN, and the onboard built-in network server for private, self-contained deployments.

• Remote or Cellular Backhaul Sites (RAK7268CV2): The LTE-enabled variant is suited for sites where Ethernet infrastructure is unavailable, using the built-in LTE Cat 4 module (Quectel EG95-E for EMEA) as primary or failover backhaul with a nano SIM card.

Product Variants

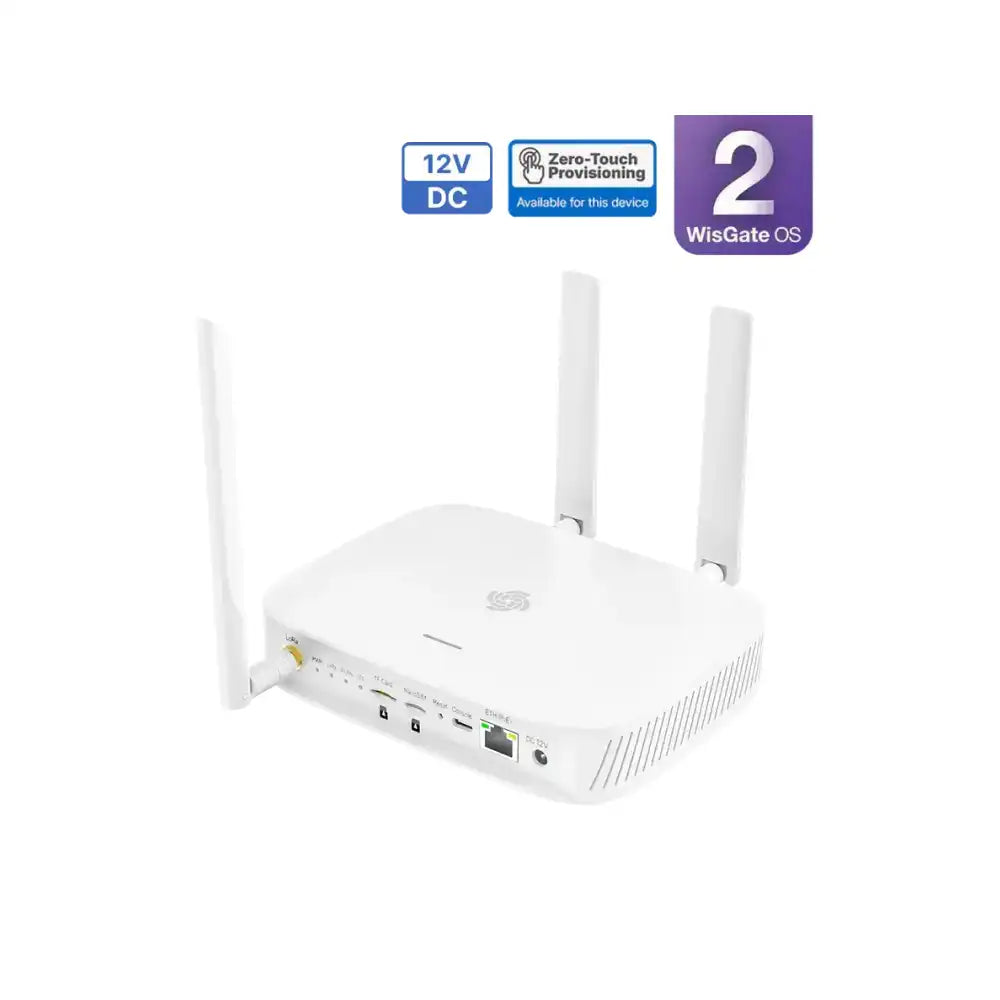

The WisGate Edge Lite 2 is available in multiple configurations: RAK7268V2 (non-LTE, 12 VDC or 9–24 VDC) and RAK7268CV2 (with LTE Cat 4, internal or external antennas, 12 VDC). All variants include 8 LoRa channels, the SX1302 concentrator, PoE support, Wi-Fi, and the pre-installed 16 GB microSD card. For variant selection guidance or volume pricing, contact the ShopIoT technical team.

Certifications

CE / RED

FCC

RoHS

REACH

UKCA

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

External (RP-SMA)
LoRaWAN Channels

8 Channels
Configuration Method

Wi-Fi Access Point (AP) Mode, Serial, Downlink
Environment Rating

Indoor
IP Rating

IP30
Operating Temperature

-10°C to 50°C
Enclosure Material

PC (Polycarbonate), ABS Plastic
Power Consumption

Typical 3W-7W, Max 20W

Document Library

RAK7268V2 Datasheet
