Milesight CT103 | LoRaWAN Smart Current Transformer (300A)

€84,00

Shipping calculated at checkout.

A professional 300A LoRaWAN current transformer featuring a detachable split-core design and energy-harvesting technology for maintenance-free power monitoring.

• High Capacity: Measures RMS and accumulated current up to 300A.
• Self-Powered: Harvests energy from the conductor (battery-free).
• Non-Invasive: Split-core clamp for installation without de-energizing.

Frequency/Region

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

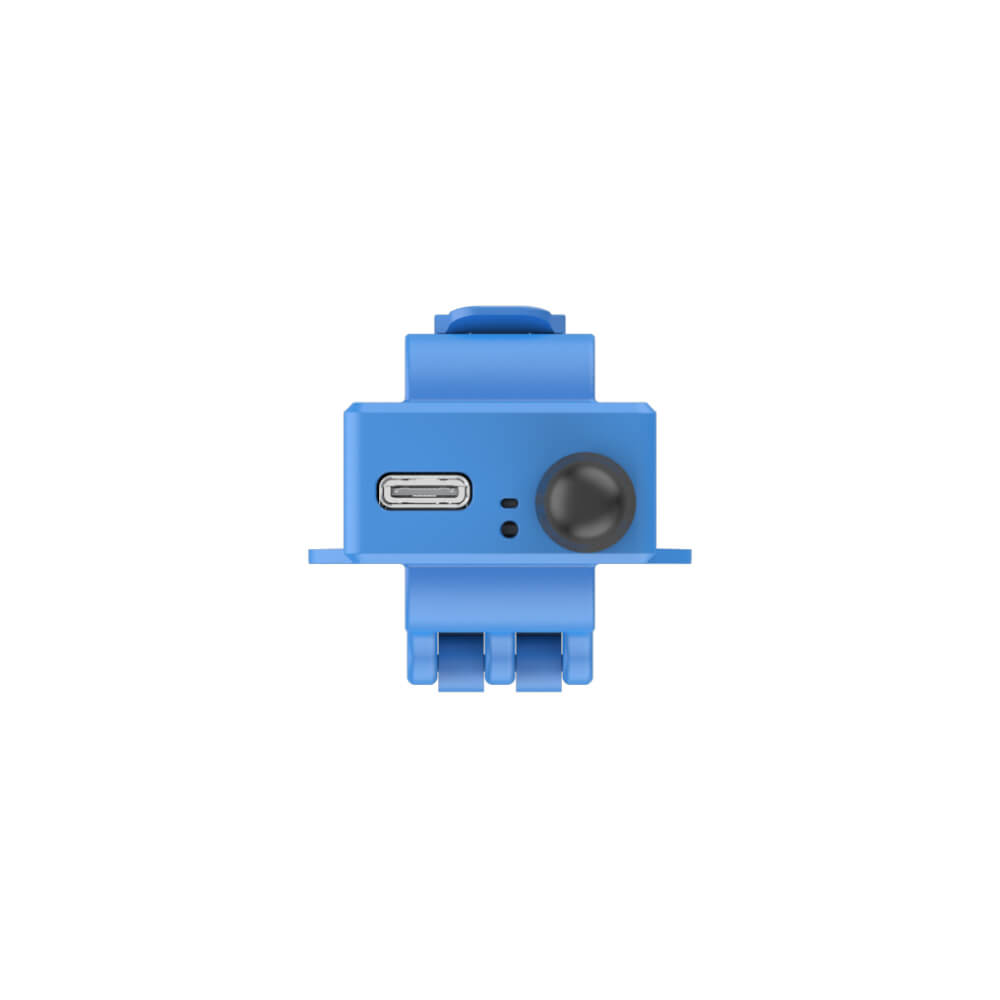

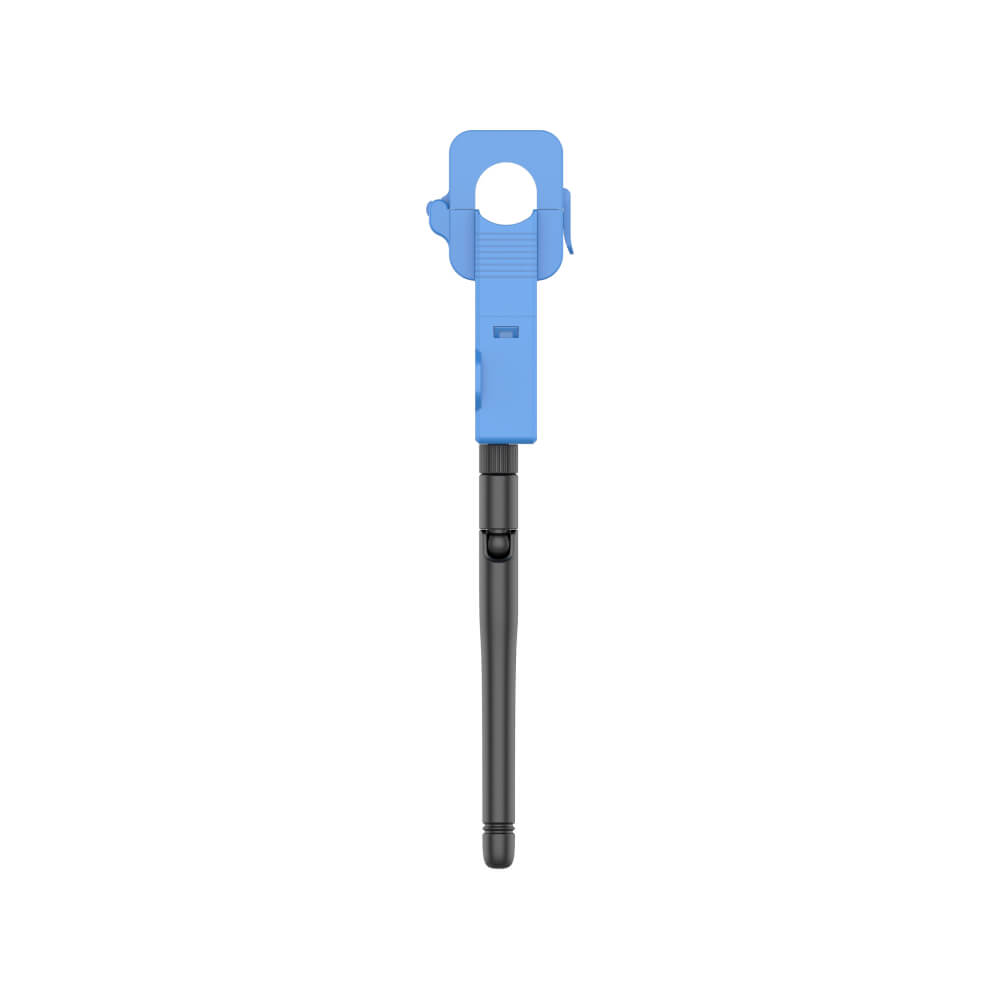

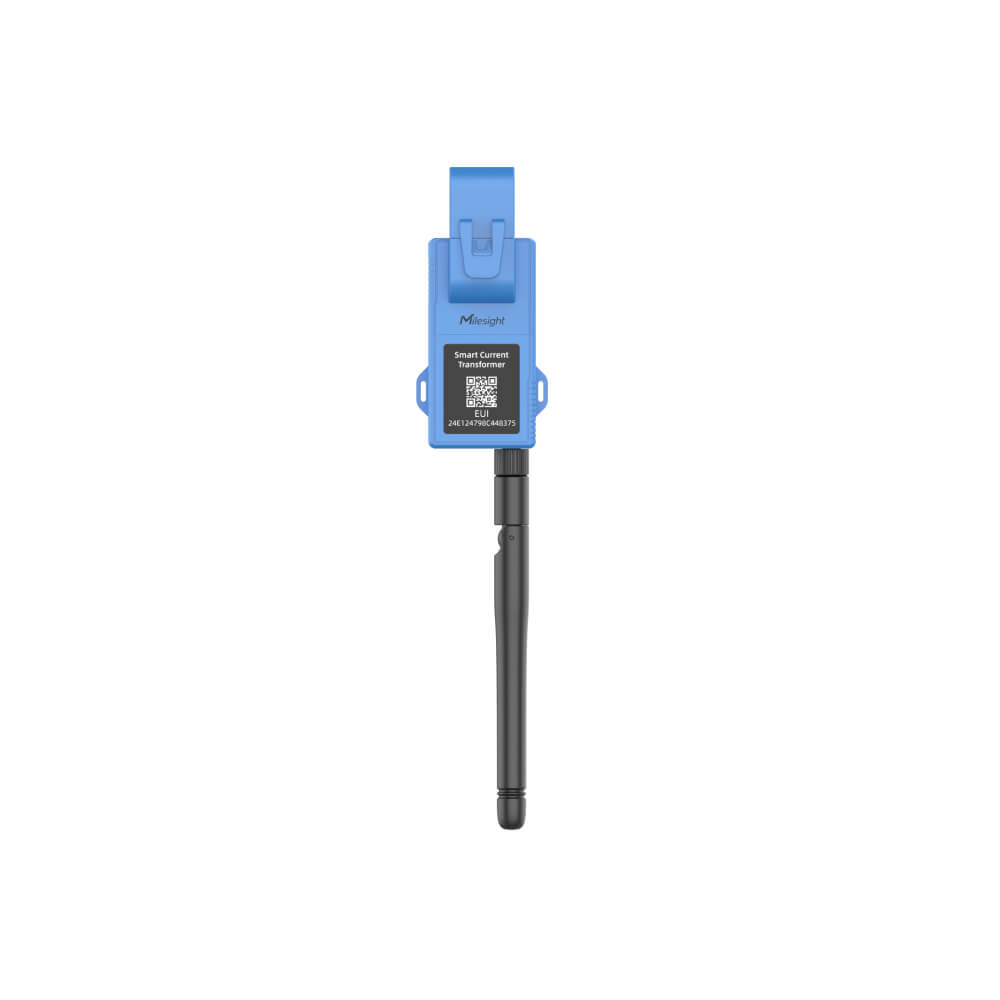

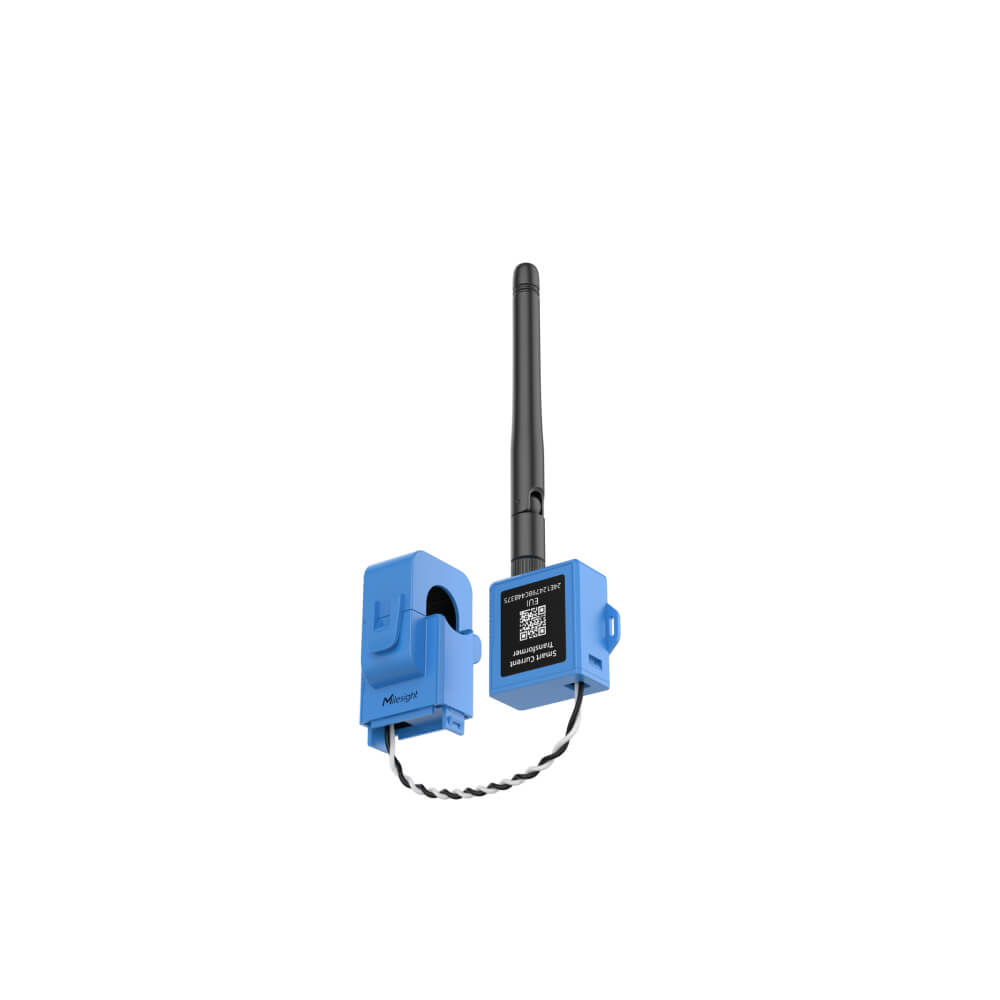

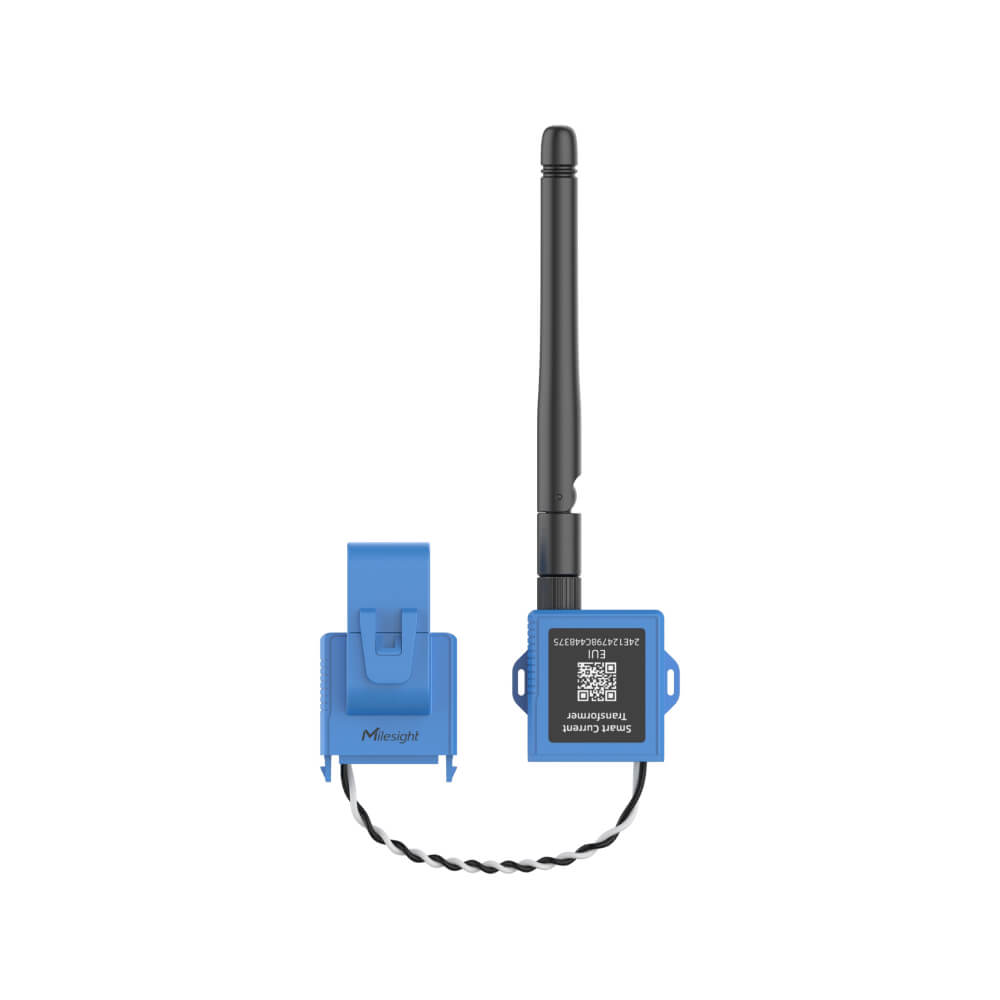

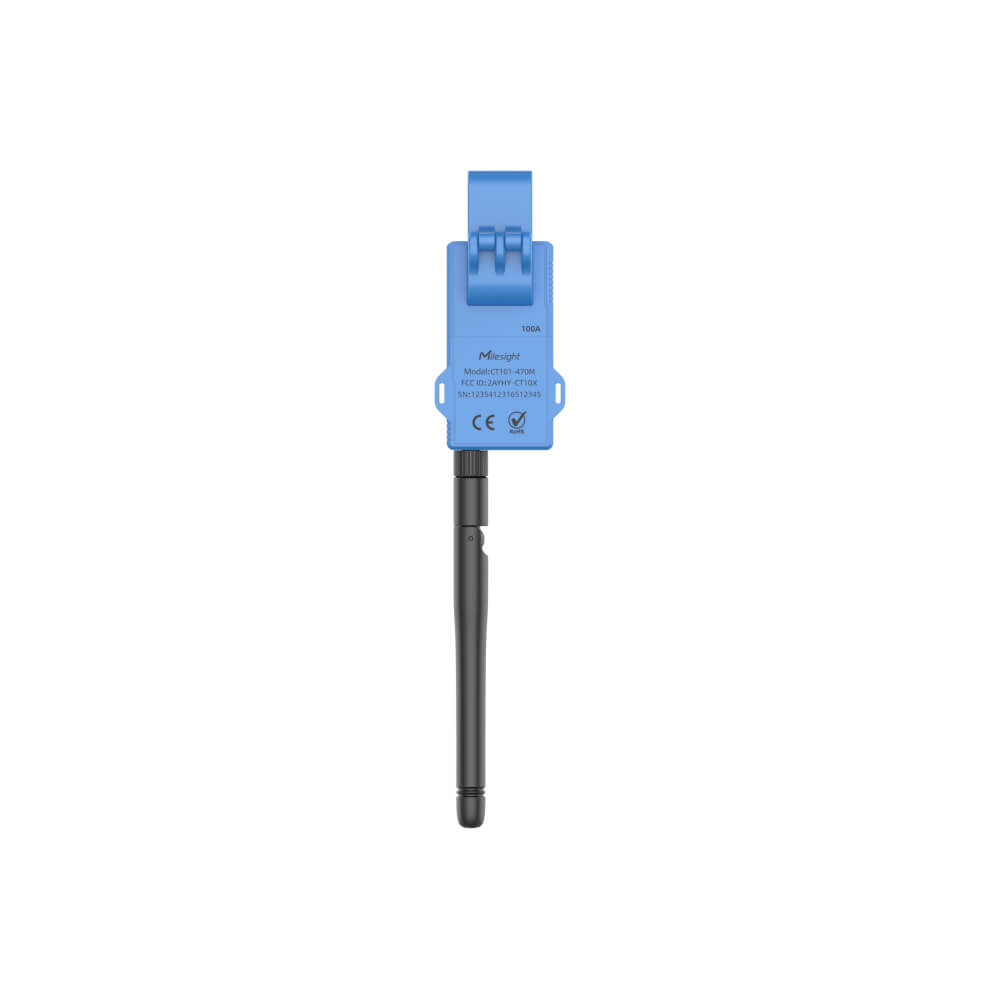

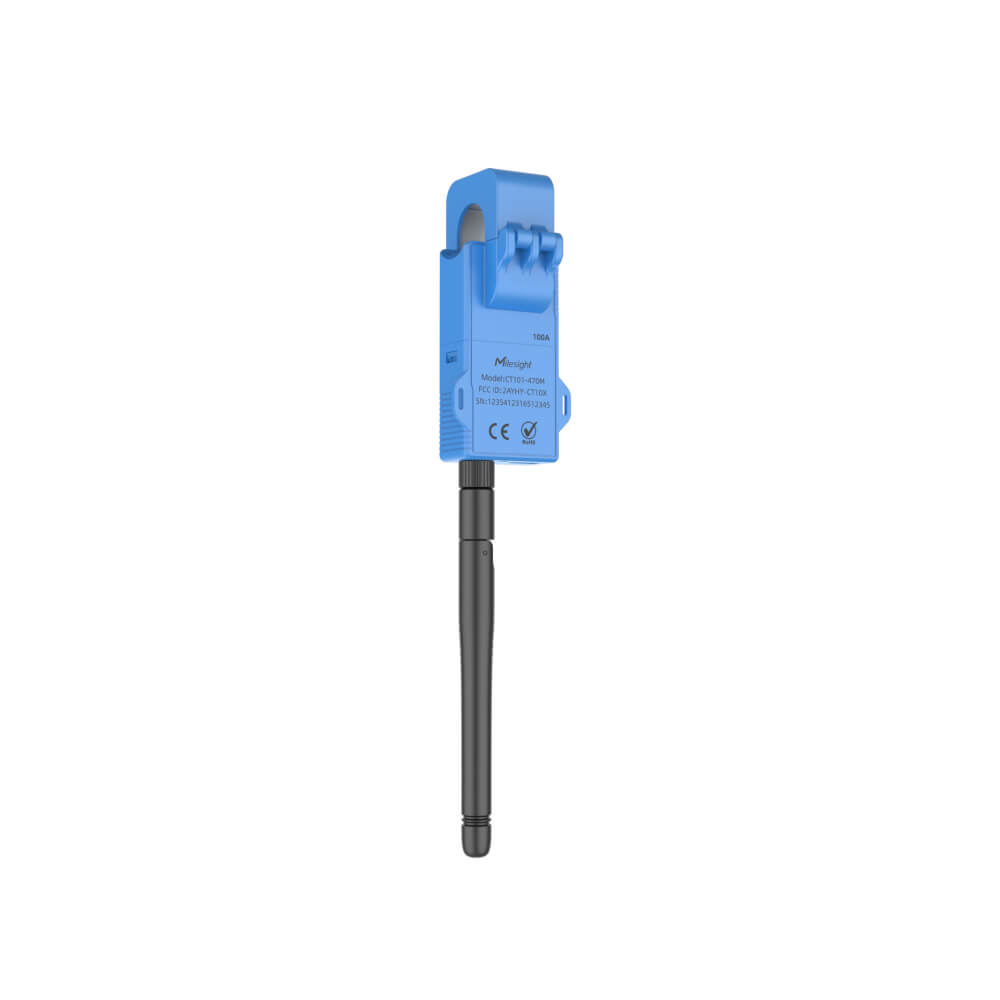

The Milesight CT103 is an industrial-grade LoRaWAN Smart Current Transformer engineered for high-capacity 300A energy monitoring. Designed with a flexible, detachable split-core clamp, the CT103 enables safe and rapid installation on live industrial conductors without requiring facility de-energization. With a superior 3.3 kHz sampling frequency, it provides precise RMS current data and accumulated energy usage insights. Truly sustainable, the CT103 is self-powered by the magnetic field of the cable it monitors, eliminating the need for external power sources or battery maintenance in smart factories and large-scale commercial buildings.

Advanced Power Analytics

Energy Harvesting The device is fully autonomous, drawing its operational power directly from the electromagnetic field of the measured conductor.

Rapid Alarm Response Features a 1s sampling rate for threshold monitoring, triggering an immediate LoRaWAN alert if current levels deviate from safe parameters.

Professional Deployment Scenarios

• Industrial Motor Monitoring: Track the load and performance of large 300A industrial pumps and motors.

• Commercial Energy Auditing: Sub-meter main distribution lines in office complexes to identify energy waste.

• Machine Failure Prevention: Detect abnormal current draw in heavy machinery to schedule maintenance before downtime occurs.

What is in the Box?

• 1 x Milesight CT103 LoRaWAN Transceiver

• 1 x 300A Detachable Current Transformer Clamp

• 1 x Cable-tie Mounting Kit

• 1 x Quick Start Guide

Product Certifications

CE FCC UL 508 RoHS

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

External (SMA)
Configuration Method

NFC, USB, Downlink
Activation Method

OTAA, ABP
Environment Rating

Indoor
IP Rating

IP30
Operating Temperature

-20°C to 70°C
Enclosure Material

PC (Polycarbonate)
Power Consumption

Self-powered from measured conductor
Measurement Technology
- Sensing Method: Non-invasive Split-Core Current Transformer
- Sampling Frequency: 3.3 kHz for high-precision waveform analysis
Measurement Range
- Rated Primary Current: 250 Arms
- Rated Secondary Current: 125 mArms
- Wire Hole Diameter: 16 mm
- Temperature (Optional): -20°C to +100°C (via external NTC probe)
Measurement Accuracy
- Current Accuracy: ±1% (>5Arms), ±3% (≤5Arms)
- Temperature Accuracy: ±1%
Measurement Resolution
- Resolution: 1 mA
- Min. Reporting Current: 6A (10min interval) or 12A (1min interval) when self-powered
Monitoring Parameters

Current (A), Accumulated Current

Document Library

CT103 Datasheet

CT103 User Manual
