Milesight | SKU: EM500-CO2-868M

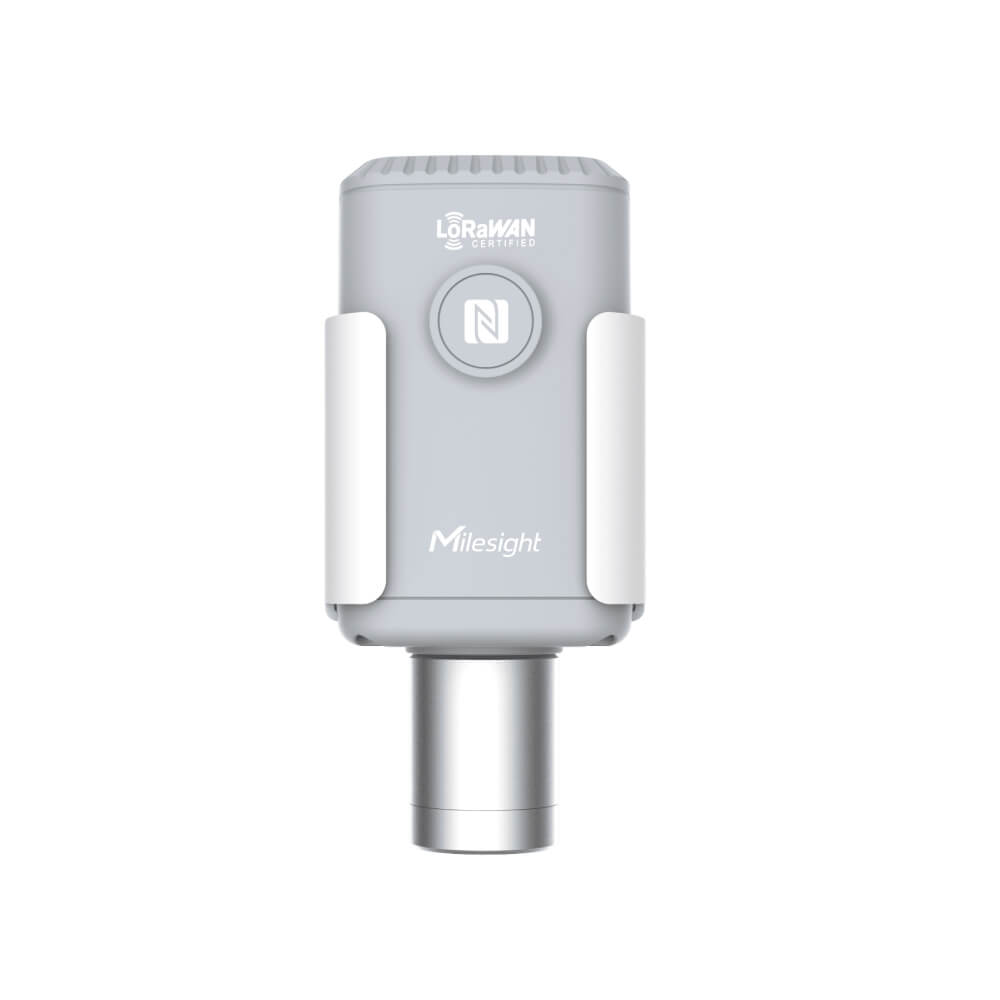

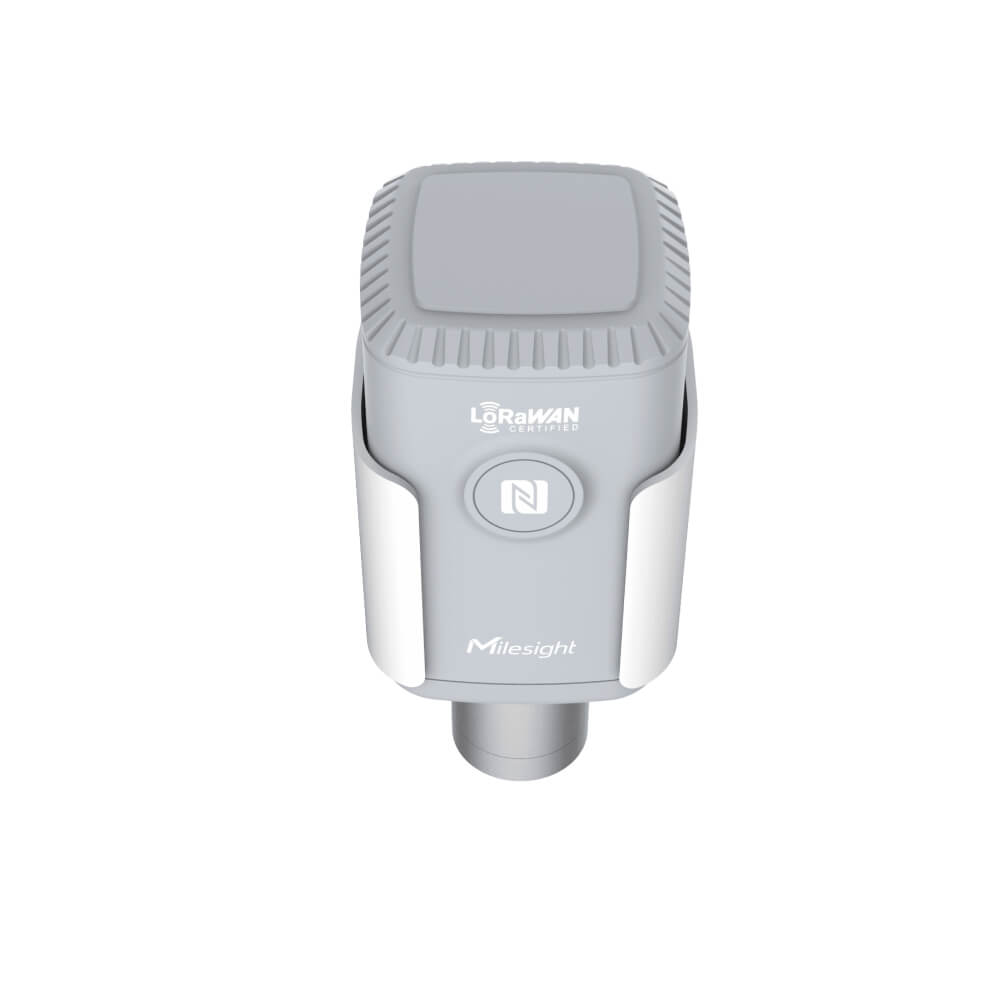

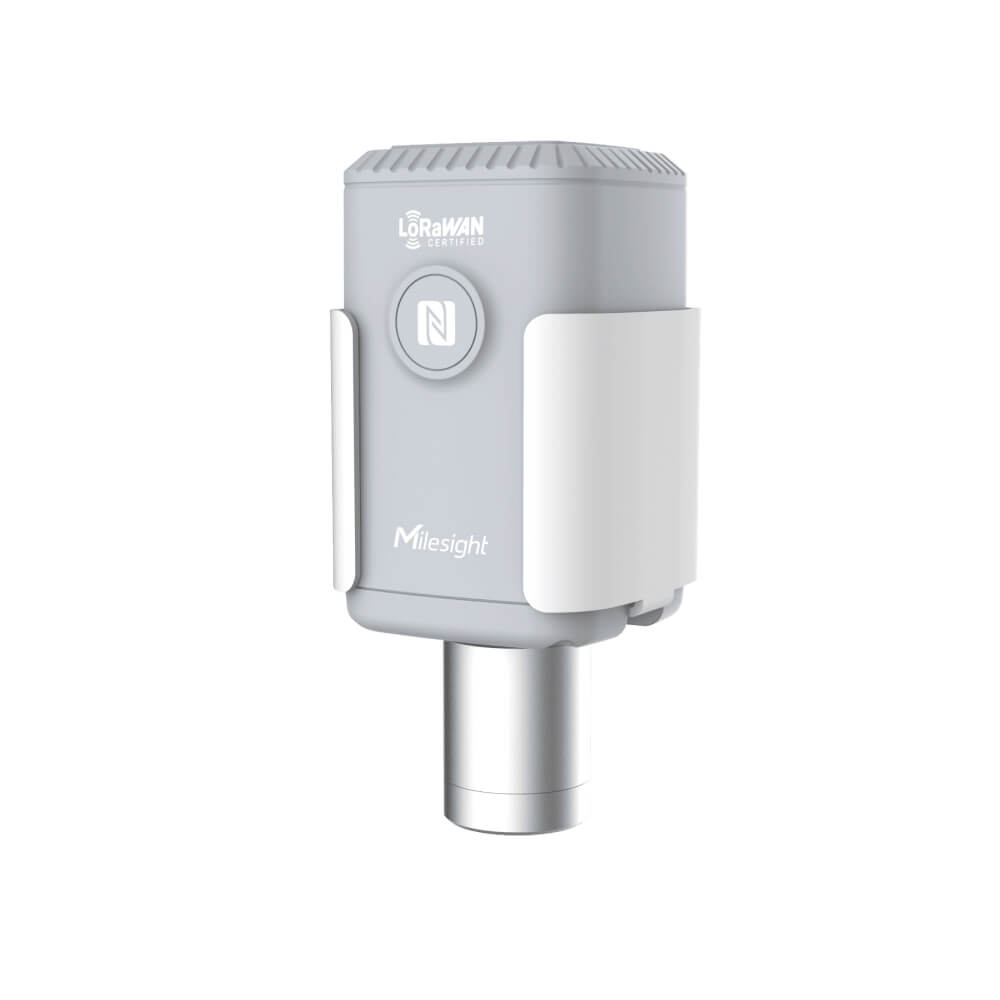

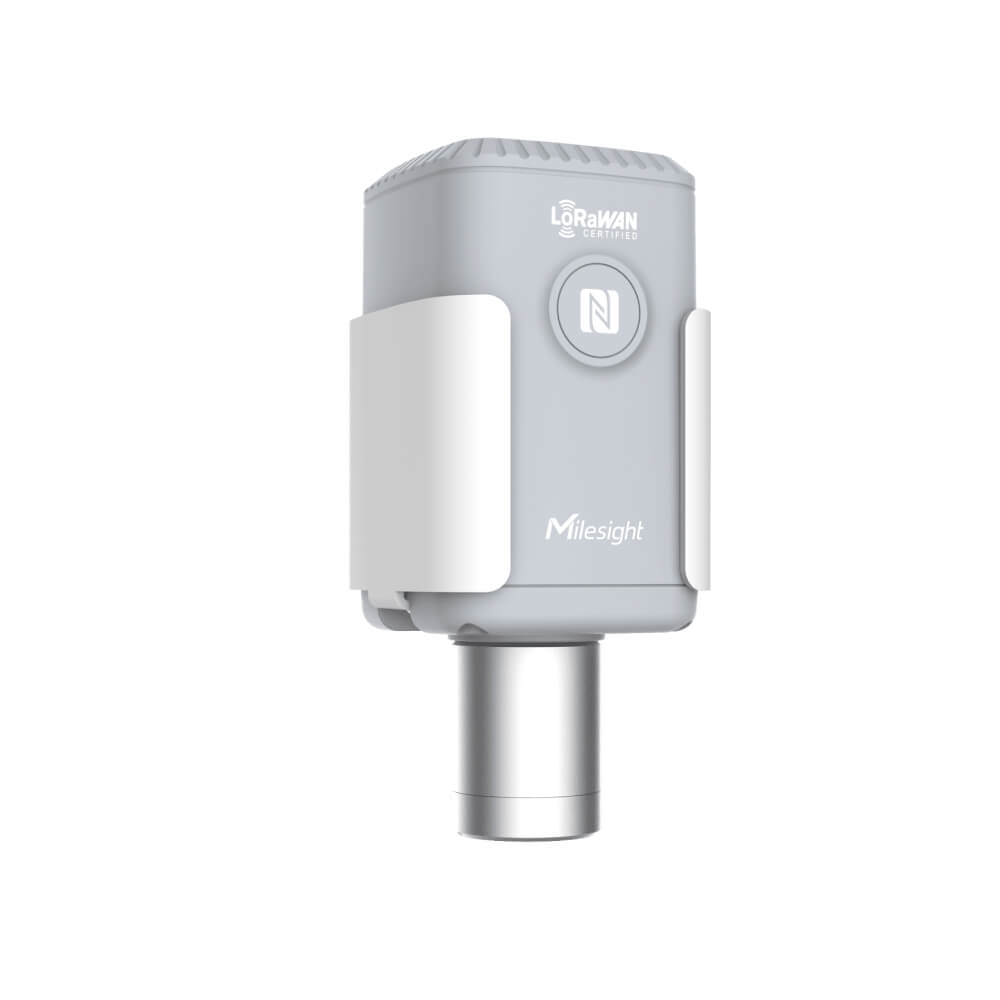

Milesight EM500-CO2 | 4-in-1 Industrial LoRaWAN Carbon Dioxide Sensor

€205,00

Shipping calculated at checkout.

The Milesight EM500-CO2 is an industrial LoRaWAN sensor for long-range CO2 and micro-climate monitoring.

Long-range monitoring: LoRaWAN Class A (EU868) reaching up to 15 km
Years between battery swaps: 19,000 mAh replaceable cell, up to 10 years
Built for the field: IP65 weatherproof with quick NFC setup

Frequency/Region

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight EM500-CO2 is a carrier-grade LoRaWAN Carbon Dioxide Sensor engineered to perform in the most demanding conditions. Unlike standard indoor monitors, this device is built to quantify air quality in harsh industrial sites, greenhouses, and urban environments. It integrates high-precision sensors to measure four critical metrics: CO2 concentration, ambient temperature, relative humidity, and barometric pressure. Its long-range wireless capability allows for seamless data transmission across several kilometers, making it a cornerstone for smart agriculture and industrial safety systems.

Robust Performance & Multi-Sensor Intelligence

10-Year Field Life Equipped with a high-capacity 19,000 mAh replaceable Li-SOCl2 battery, the sensor provides maintenance-free operation for up to a decade in remote field locations.

Barometric Compensation Integrated MEMS barometric pressure sensor ensures CO2 readings remain accurate regardless of altitude or weather-induced pressure changes.

Professional Usage Scenarios

• Smart Agriculture: Monitor greenhouse gas levels and humidity to optimize plant growth and maximize crop yield.

• Safety Monitoring: Detect CO2 accumulation in basements, underground parking, and warehouses to ensure occupant health and safety.

• Forest Fire Detection: Track sudden changes in CO2 and temperature as part of an early-warning system for wildfires in remote forest areas.

What is in the Box?

• 1 x Milesight EM500-CO2 Sensor

• 1 x 19,000 mAh ER34615 Li-SOCl2 Battery (Pre-installed)

• 1 x Mounting Kit (Pole, Wall, or DIN Rail compatible)

• 1 x Quick Start Guide

Product Certifications

CE FCC IP65 RoHS

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

Internal
Configuration Method

NFC, USB
Activation Method

OTAA, ABP
Environment Rating

Outdoor
IP Rating

IP65
Operating Temperature

-30°C to 70°C
Enclosure Material

ABS Plastic, PC (Polycarbonate)
Battery Type

Li-SOCl2
Battery Capacity

19000mAh
Power Consumption

10 Years (10 min interval)
Measurement Technology
- NDIR (CO2)
- MEMS (Pressure)
Measurement Range
- CO2: 400 to 5,000 ppm
- Temperature: -30°C to +70°C
- Humidity: 0% to 100% RH
- Barometric Pressure: 300 to 1,100 hPa
Measurement Accuracy
- CO2: ±30 ppm or ±3% of reading
- Temperature: ±0.3°C (0°C to +70°C) / ±0.6°C (-30°C to 0°C)
- Humidity: ±3% RH (10% to 90% RH)
- Pressure: ±1 hPa
Measurement Resolution
- CO2: 1 ppm
- Temperature: 0.1°C
- Humidity: 0.5% RH
- Barometric Pressure: 0.1 hPa
Monitoring Parameters

Temperature, Humidity, Barometric Pressure, CO2 (Carbon Dioxide)

Document Library

EM500-CO2 Datasheet

EM500-CO2 User Manual
