Milesight UPS01 | 12000mAh IP67 Uninterruptible Power Supply (UPS) for IoT

€118,00

Shipping calculated at checkout.

The Milesight UPS01 is a rugged industrial battery backup that keeps IoT devices online during outages.

Hours of backup: 12,000 mAh (4×3000 mAh) for up to 32 hours
Plug-and-play power: 9–20 V DC in, 5 V/4 A out via Type-C or M12
Rugged with alerts: IP67/IK08 aluminium, −20 to 60 °C, outage alarms

Connector Type

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

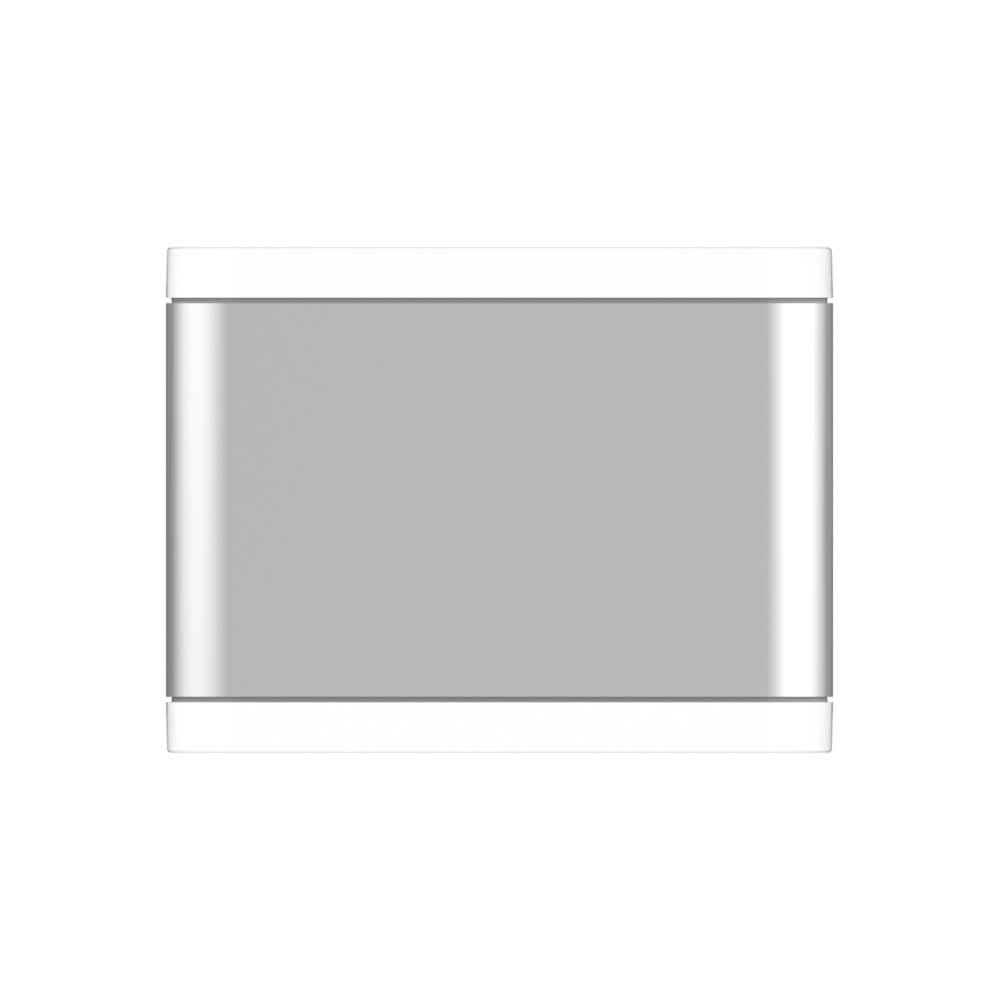

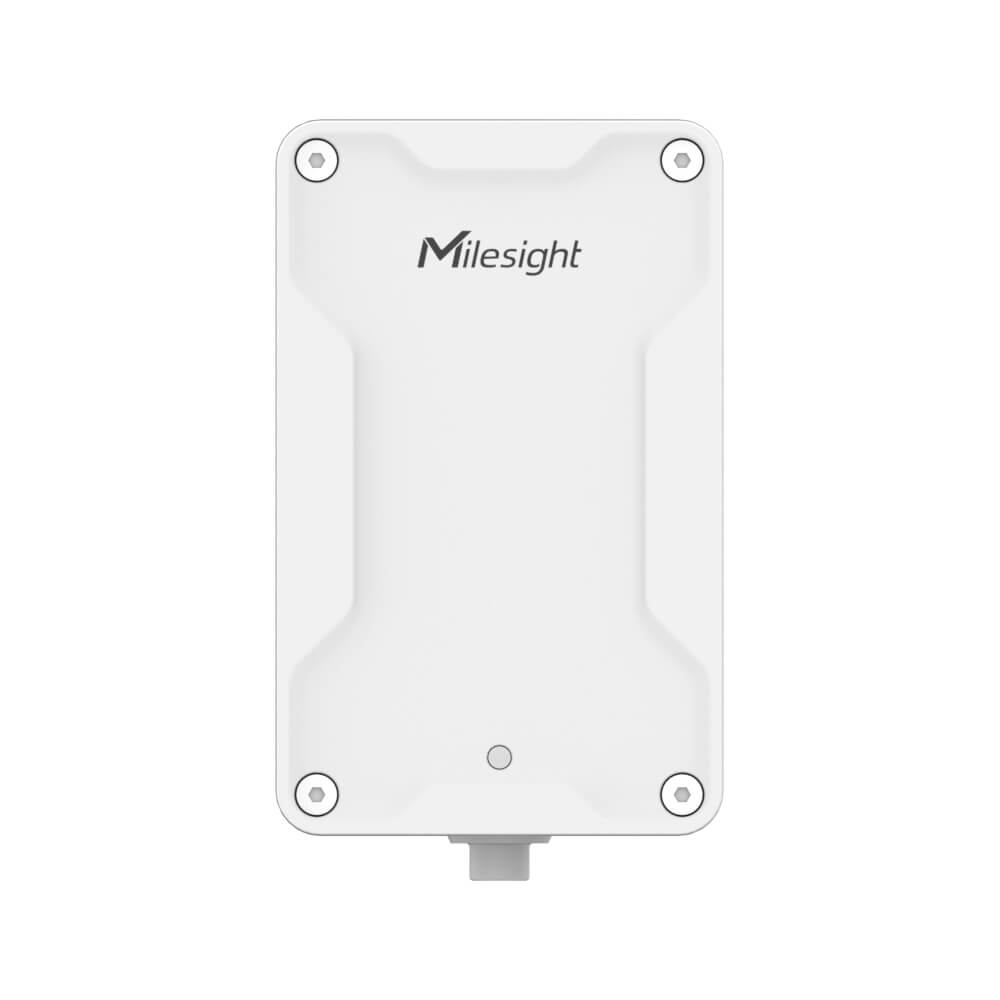

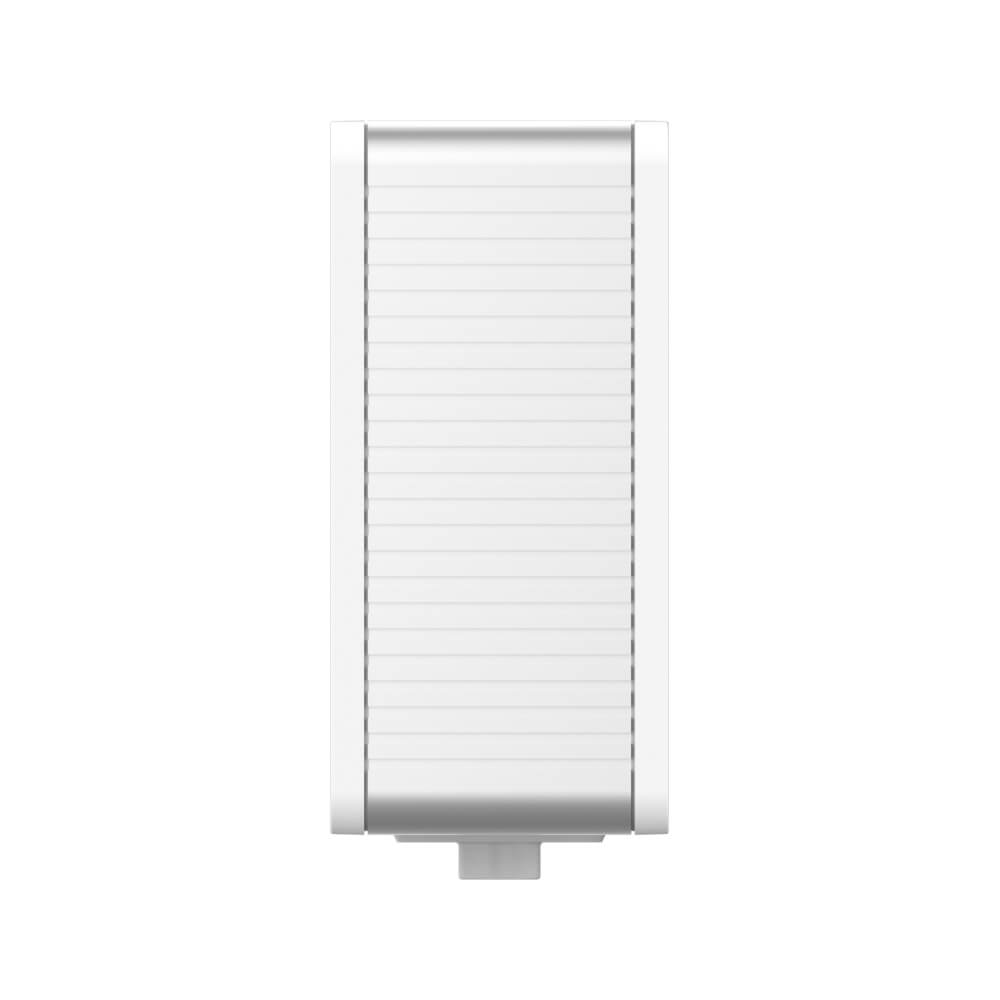

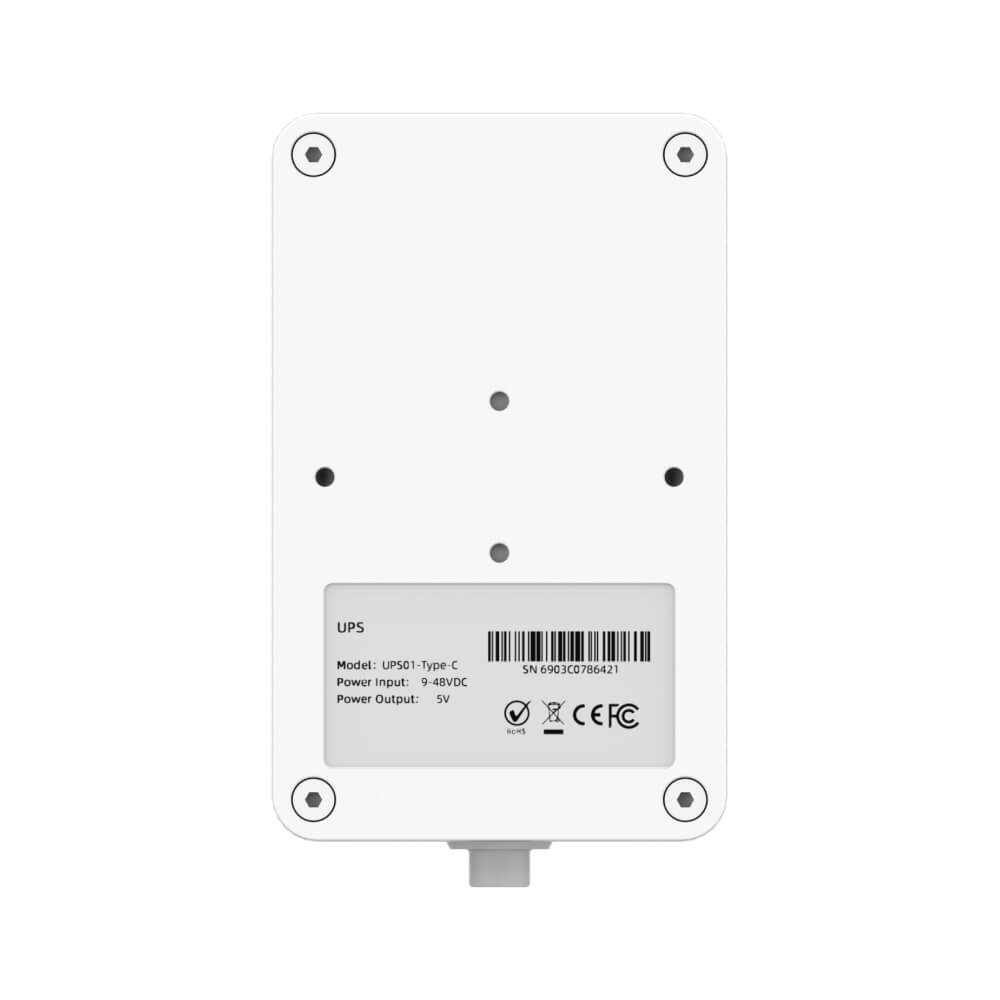

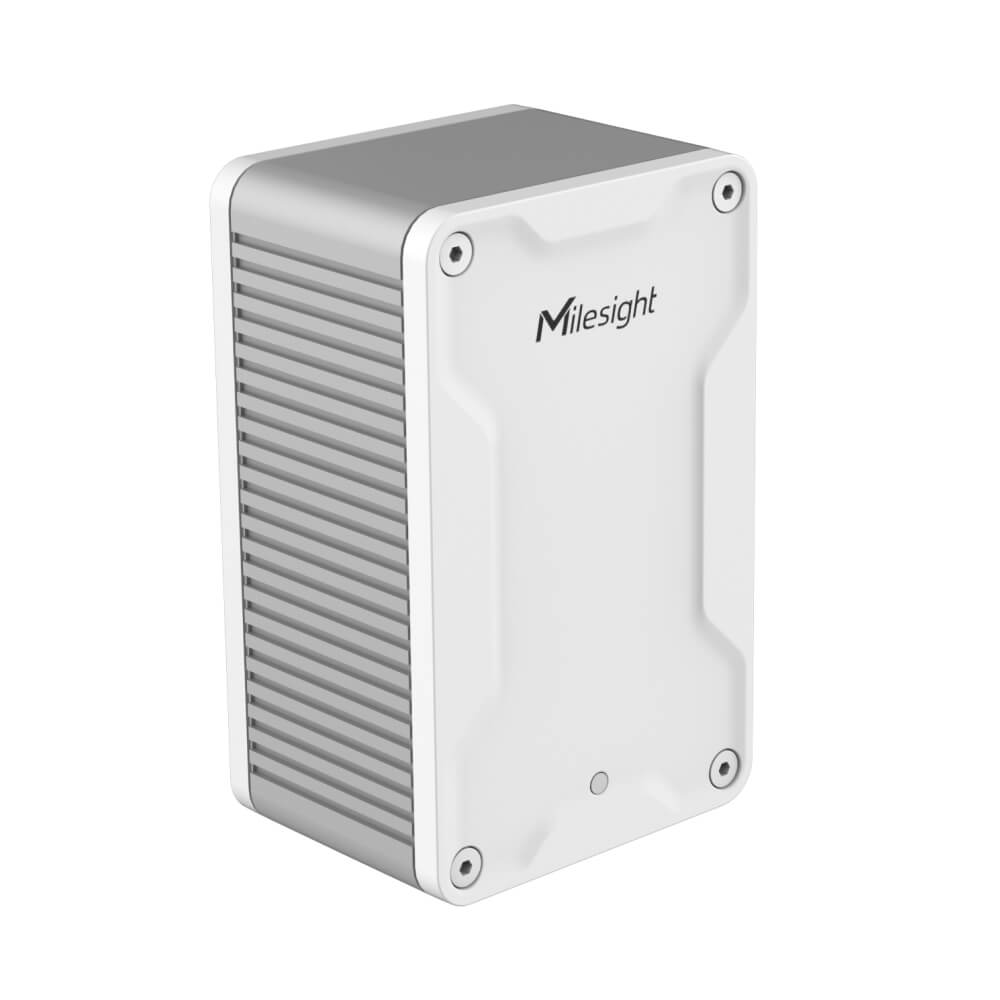

The Milesight UPS01 is an industrial-grade uninterruptible power supply engineered to keep mission-critical IoT devices running 24/7. With a high-capacity 12,000 mAh battery delivering up to 32 hours of backup, it bridges power outages so gateways, routers, and sensors stay online — and your data keeps flowing.

Housed in a rugged IP67 and IK08 aluminium enclosure, it's built for the most demanding indoor and outdoor environments. Plug-and-play Type-C or M12 connectivity, real-time outage alarms, and an internal heating film for cold-weather operation make it a dependable power backbone for any deployment.

Core Capabilities

12,000 mAh — Up to 32 h Four 3000 mAh lithium-ion cells provide up to 32 hours of continuous backup, keeping terminal devices connected through extended power interruptions.

Data Protection & Cold-Weather Ready Resilient power keeps data flowing between devices and the cloud during outages, while a built-in heating film enables reliable operation in low-temperature environments.

Rugged IP67 & IK08 Build A compact aluminium housing rated IP67 (dust/water) and IK08 (impact) stands up to harsh, demanding environments — indoors or out.

Real-Time Alarms & Tricolor LED Instant power-outage alarms and a tricolor traffic-light indicator show battery level and status at a glance — avoiding unnecessary maintenance trips and downtime.

Typical Uses

Gateway & Router Backup: Keep LoRaWAN gateways and cellular routers transmitting through mains outages for uninterrupted connectivity.

Remote & Outdoor Sites: IP67/IK08 rugged power for cabinets, poles, and exposed installations in harsh conditions.

Critical Data Continuity: Protect in-flight data and avoid gaps in metering, monitoring, and alarm reporting.

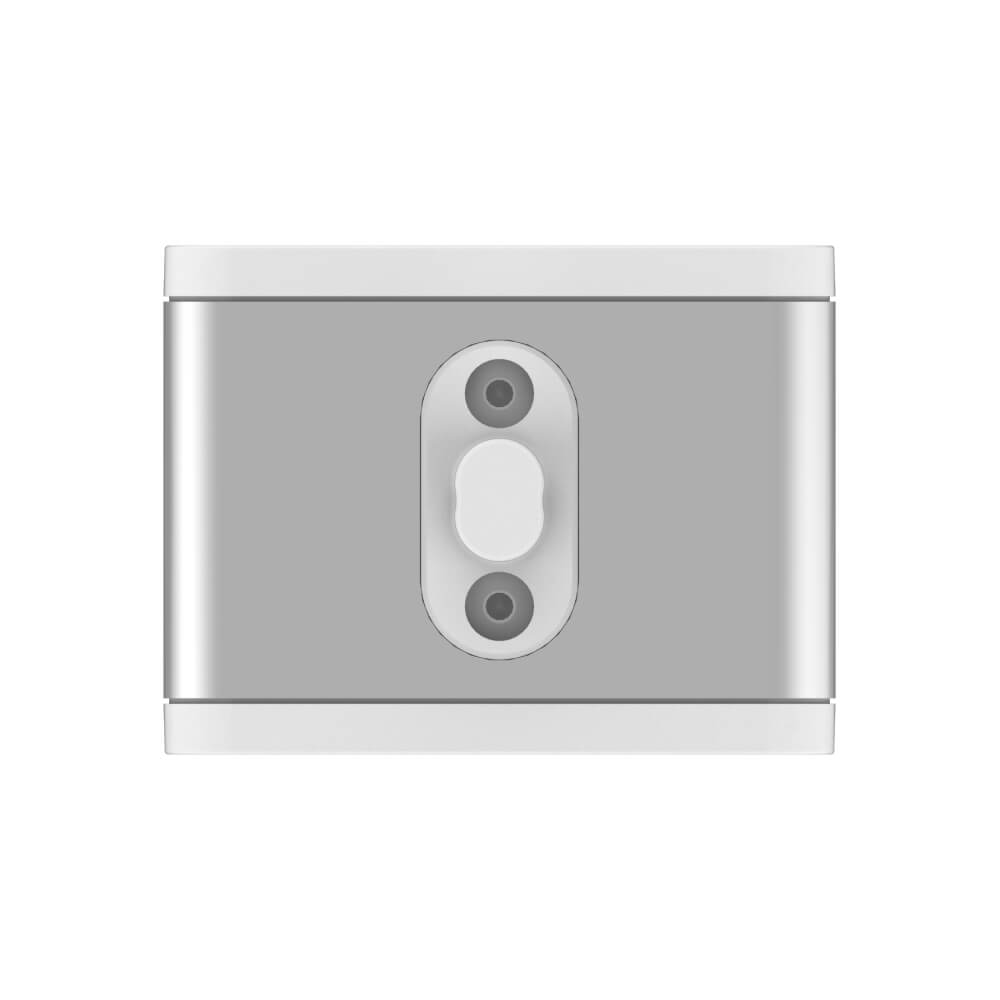

Flexible Mounting: Wall, DIN-rail, pole, or desktop installation to fit any site layout.

Technical Integration

The UPS01 slots between your power source and device in minutes:

Input / output: 9–20 V DC input (DC jack) → regulated 5 V / 4 A output, with a Type-C or M12 connector to match your device.

Battery: 12,000 mAh (4× 3000 mAh Li-ion) for 6–32 hours of runtime depending on load.

Smart features: With Milesight devices, adds power monitoring, outage alarms, and firmware upgrade over the connection.

Build: IP67/IK08, 96 × 60 × 45 mm; charge −20 to +45 °C / discharge −20 to +60 °C; wall, DIN-rail, pole, or desktop mounting.

Setup help: Talk to the shopioT technical team to size runtime or choose the Type-C vs M12 version.

What's in the Box

1×UPS01 Uninterruptible Power Supply

1×DC Input Cable (30 cm)

1×Output Cable — Type-C or M12 (100 cm)

Note: choose the Type-C or M12 output version to match your device. Power monitoring, alarms, and upgrades are available when paired with Milesight devices.

Frequently Asked Questions

How long does it keep a device running?

Up to 32 hours from its 12,000 mAh battery, depending on the connected device's power draw (typical range 6–32 h).

What's the difference between the Type-C and M12 versions?

Only the output connector — choose Type-C or M12 to match your device's power input. Both deliver 5 V / 4 A and are otherwise identical.

Can it work outdoors and in the cold?

Yes — it's IP67/IK08 rated for harsh environments, and a built-in heating film supports low-temperature operation down to −20 °C.

Does it alert me to power problems?

Yes — it sends real-time power-outage alarms and shows status via a tricolor LED indicator; with Milesight devices it also supports power monitoring and upgrades.

Keeping Your IoT Online?

Talk to our IoT specialists, or explore the gateways and accessories to power with it.

Talk To Our IoT Team Shop LoRaWAN Gateways Browse Antennas & Accessories

Specifications

Activation Method

Plug & Play
Environment Rating

Outdoor, Industrial
IP Rating

IP67
Operating Temperature

-20°C to 60°C
Enclosure Material

Aluminum Alloy
Battery Type

Li-ion
Battery Capacity

12000mAh
Power Consumption

Charging: Max 20W
Measurement Technology
- Type-C Version: Features a 100cm Type-C output cable for seamless connection to modern IoT gateways and dongles.
- M12 Version: Features a 150cm M12 A-Coded Female connector for industrial-grade, waterproof power delivery.
- Smart Heating Film: Automatically protects battery integrity and charging capability in low-temperature environments.
- Intelligent Logic: Built-in traffic light indicator for real-time battery capacity and diagnostic display.
Measurement Range
- Input Voltage: 12VDC, 1.67A.
- Output Voltage: 12VDC (M12 Version) or 5VDC (Type-C Version).
- Battery Supply Time: 6 to 32 hours (depending on connected device load).
Measurement Accuracy
- Industrial Durability: IK08-rated mechanical impact resistance and IP67 waterproof protection for harsh outdoor use.
- Remote Management: Supports power monitoring and remote alarm notifications when connected to Milesight network devices.
Measurement Resolution
- Status Resolution: 3-color traffic light LED (Green/Yellow/Red) indicating 0-100% battery capacity and charging status.
- Diagnostic Feedback: Visual blinking patterns for abnormal charging or low-power (20%) alerts.
Monitoring Parameters

Power Status
