Milesight | SKU: WT304-868M

Milesight WT304 | LoRaWAN Fan Coil Thermostat (0-10V & On/Off Valve)

€106,00

Shipping calculated at checkout.

The Milesight WT304 is a LoRaWAN fan coil thermostat for 2- and 4-pipe FCUs with a clear e-ink display.

FCU control: 2- or 4-pipe units with 3-speed or EC (0-10V) fans.
0-10V proportional + On/Off valves for precise modulation.
Smart & connected: LoRaWAN, Milesight D2D, BACnet, schedules and e-ink display.

Frequency/Region

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

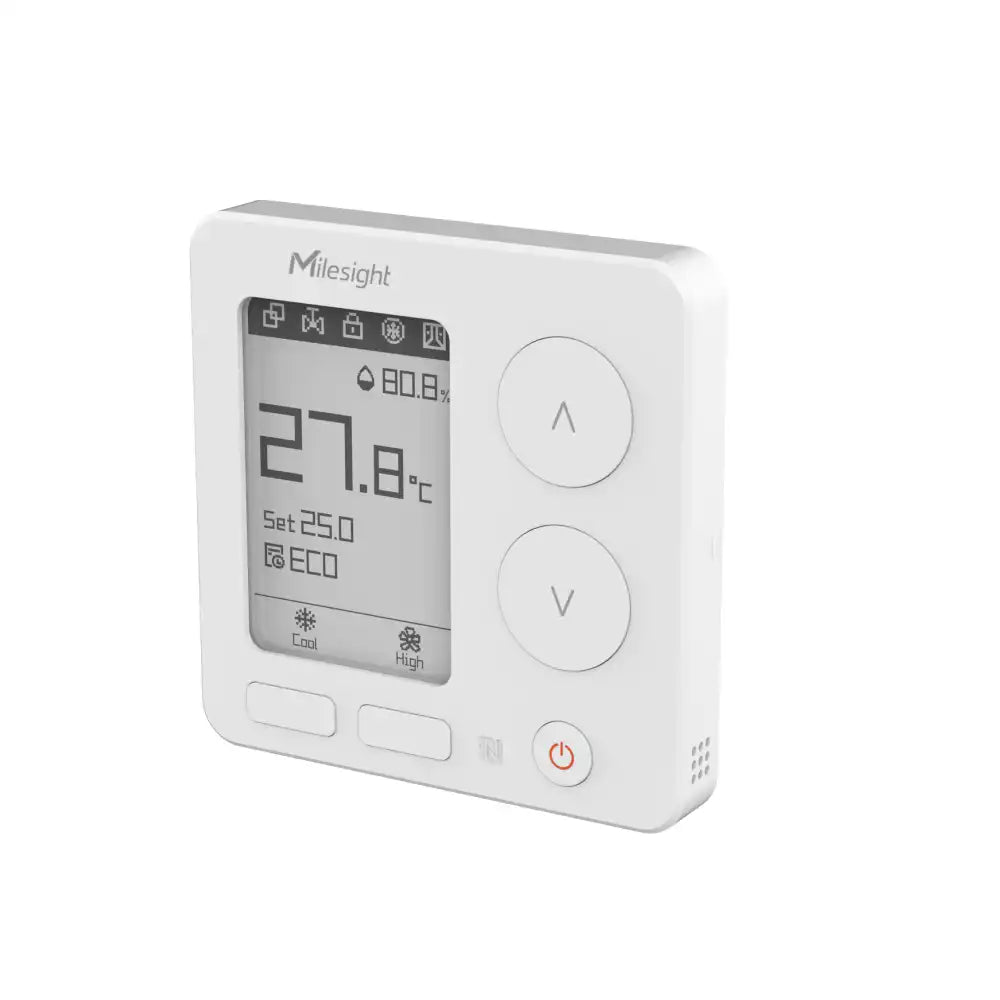

The Milesight WT304 is an advanced LoRaWAN fan coil thermostat for air-conditioning systems using 2-pipe or 4-pipe fan coil units (FCUs) with 3-speed or EC (0-10V) fans. It drives 0-10V proportional-integral valves as well as 2-wire or 3-wire On/Off motorized valves. It supports manual button control and automatic control via predefined logic, schedules or remote management for optimal comfort and energy efficiency.

A 2.7-inch e-ink display and a built-in temperature/humidity sensor continuously show room status, and it integrates with standard LoRaWAN gateways, BACnet (via Milesight gateways), Milesight D2D and the Development Platform for real-time monitoring and remote management.

Key Features

2-/4-Pipe FCU ControlDrives 2-pipe and 4-pipe fan coil units with 3-speed fans or EC (0-10V) fans for flexible HVAC control.

Valve ControlDrives 0-10V proportional-integral valves for modulating control, plus 2-wire/3-wire On/Off valves.

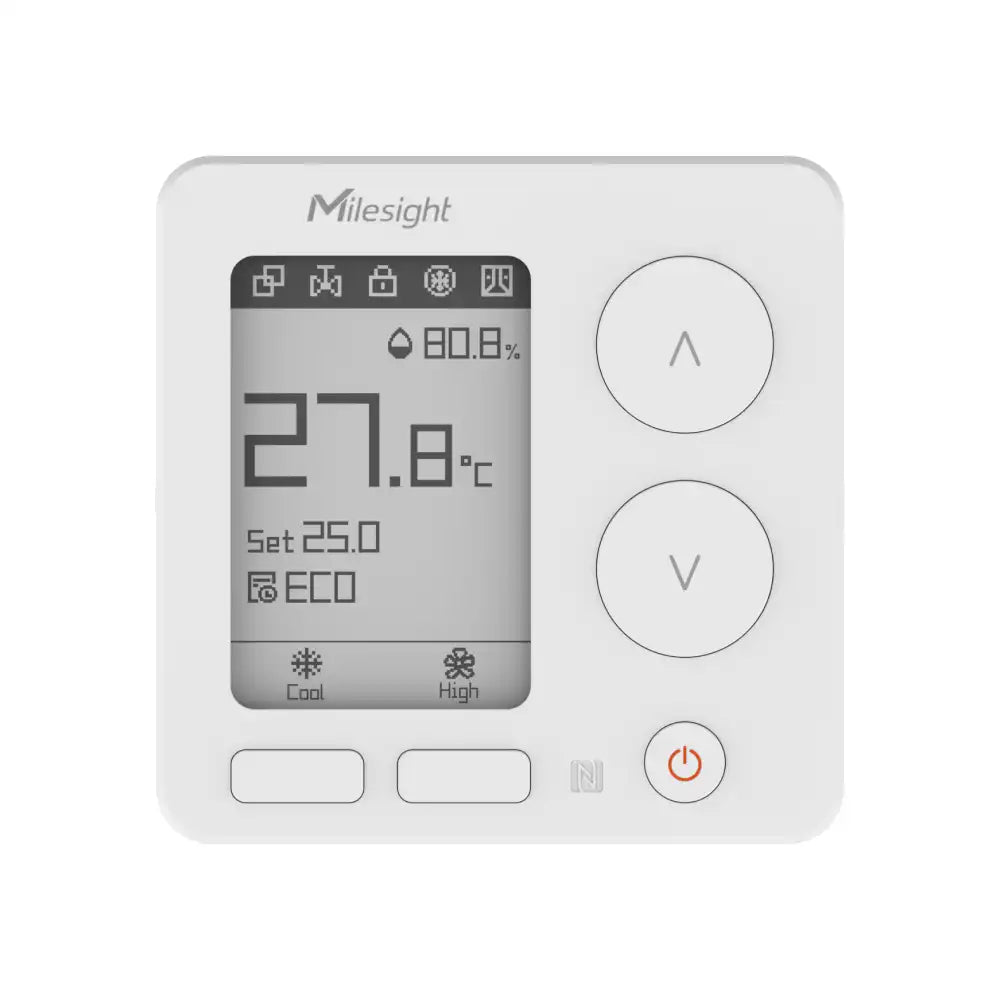

2.7-Inch E-Ink DisplayA crisp, low-power e-ink screen shows room temperature, humidity and system status clearly.

Connected & FlexibleLoRaWAN and Milesight D2D, BACnet via Milesight gateways, multicast, FUOTA; 8 plans with up to 16 schedules each.

Typical Applications

•Hotels & offices: per-room FCU control with key-card input and central management.

•Commercial buildings: scheduled heating/cooling and ventilation for comfort and energy savings.

•BMS integration: bring FCU zones into BACnet building-management systems via Milesight gateways.

Technical Integration

•FCU compatibility: 2-pipe and 4-pipe FCUs with 3-speed fans or EC (0-10V) fans

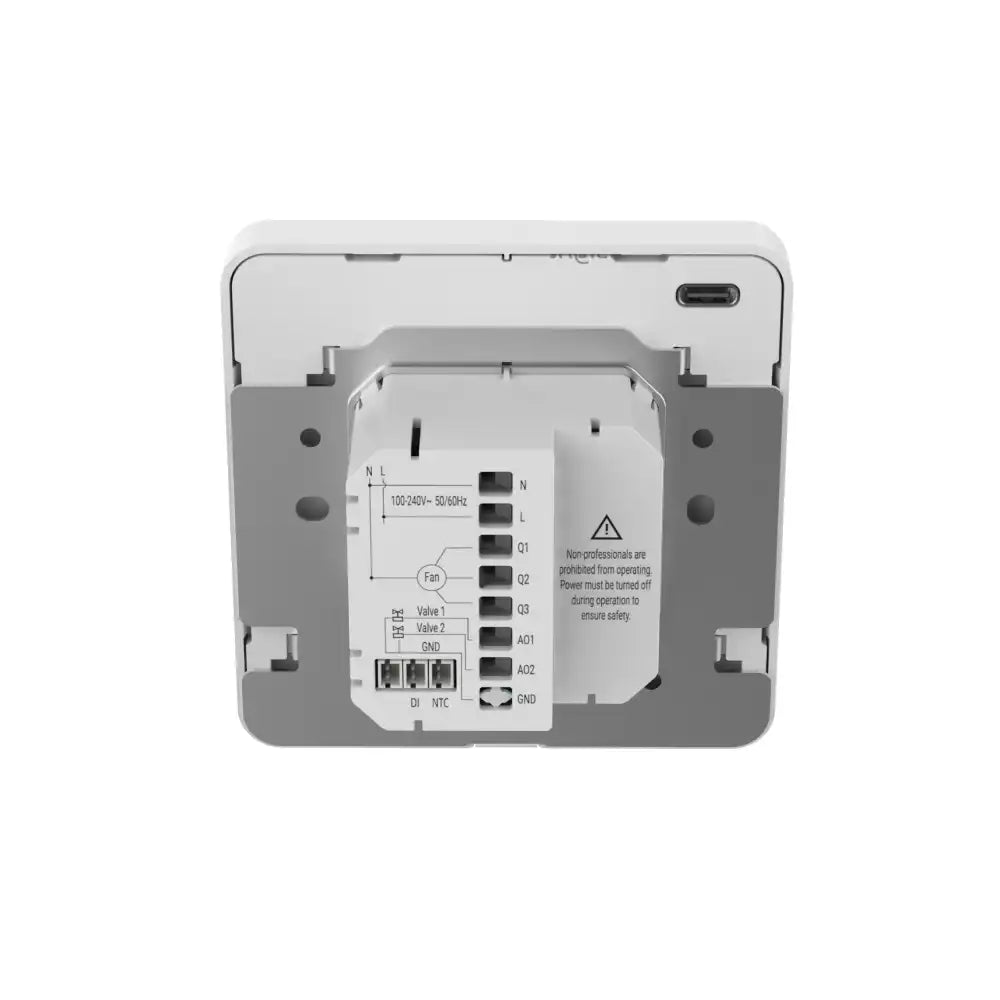

•Valve control: 0-10V proportional-integral valves, plus 2-wire or 3-wire On/Off motorized valves

•Relays: Valve & fan relays: 4 A resistive, 3 A inductive (capacitive loads not supported)

•Control: Heat, Cool, Ventilation; fan Low/Medium/High/Auto; temperature range 5-35 °C; 8 plans, up to 16 schedules each

•Inputs & sensing: Built-in temp (±0.5 °C) & humidity (±2% RH) sensor; 1 x 10k NTC input; 1 x DI (dry contact); external sensor mode

•Connectivity: LoRaWAN (EU868, OTAA/ABP Class C) & Milesight D2D; internal antenna; BACnet via Milesight gateways; multicast; FUOTA

•Display & build: 2.7-inch e-ink; 5 buttons; PC+ABS (UL94 V0); IP20; operating -20 to 60 °C

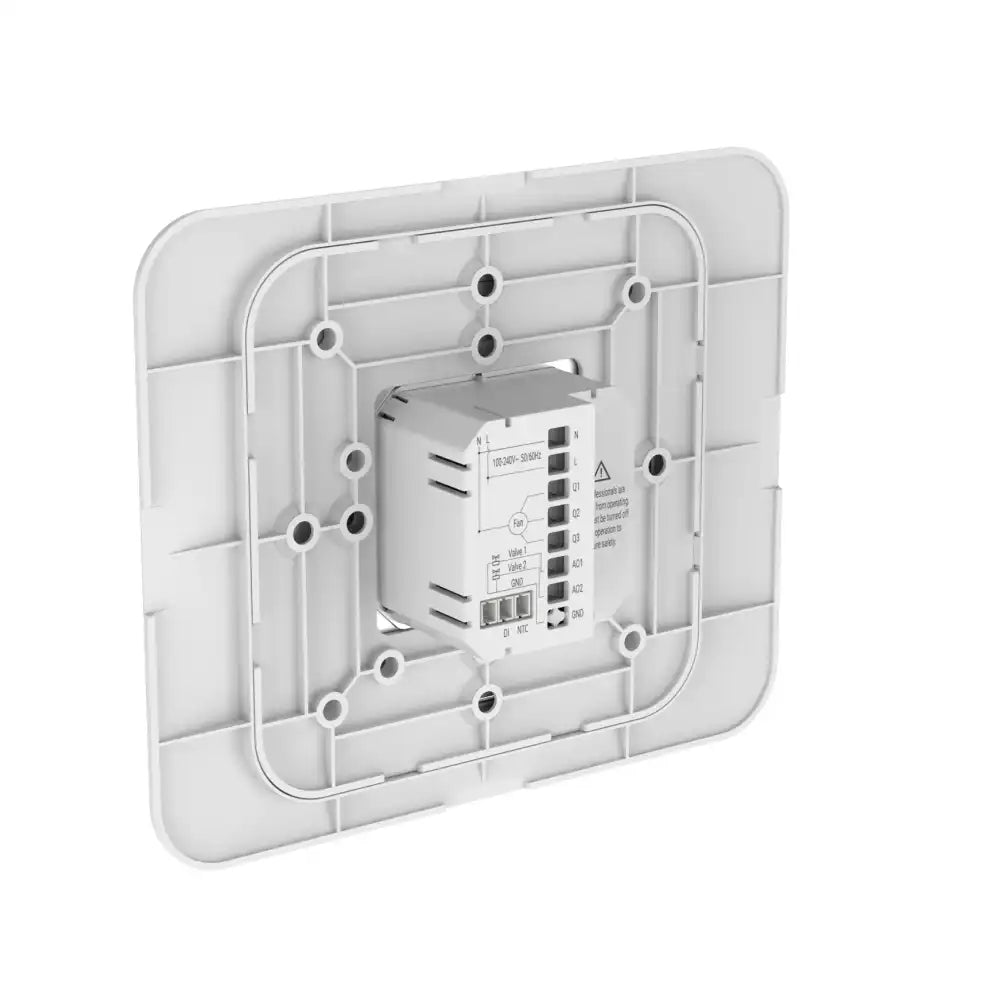

•Power & mounting: 100-240 VAC, 50/60 Hz; < 2 W (no loads); fits 86/60/118/120 mm boxes; AWG 14-26 wiring

•Setup help: For FCU wiring or BACnet integration, contact the shopioT technical team

What's in the Box

1×Smart Fan Coil Thermostat

2×Wall Mounting Screws (M4x25)

1×2-Pin Signal Cable

1×Anti-Theft Fixing Screw (M2x4)

1×Quick Guide

1×Warranty Card

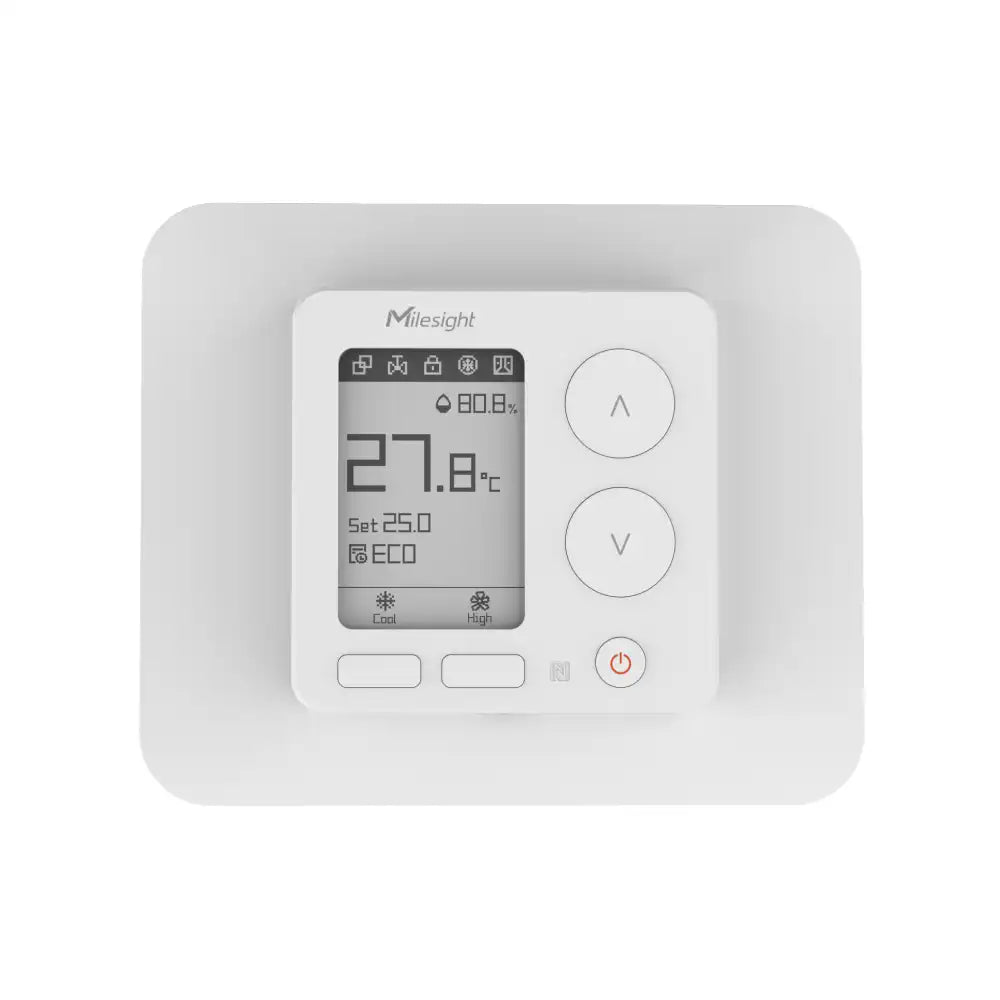

Optional accessories: external NTC temperature sensor and wall plate kit (sold separately).

Frequently Asked Questions

Which FCUs does it support?

2-pipe and 4-pipe fan coil units with 3-speed fans or EC (0-10V) fans.

What valves can it drive?

0-10V proportional-integral valves, plus 2-wire or 3-wire On/Off motorized valves.

Can it integrate with a BMS?

Yes - via BACnet through Milesight LoRaWAN gateways, plus Milesight D2D, multicast and the Development Platform.

How is it powered and mounted?

100-240 VAC mains, in an 86/60/118/120 mm wall box (wall plate optional).

Controlling Fan Coil Units?

Talk To Our IoT Team Browse HVAC Control Shop Milesight

Specifications

Primary Communication Protocol

LoRaWAN, Milesight D2D
Frequency/Region

EU868
Antenna Type

Internal
Configuration Method

NFC, Downlink
Activation Method

OTAA, ABP
Environment Rating

Indoor
IP Rating

IP20
Operating Temperature

-20°C to 60°C
Enclosure Material

ABS+PC
Power Consumption

< 2 W (without loads)
Measurement Technology

A built-in digital MEMS temperature and humidity sensor monitors room conditions, while the thermostat controls the fan coil unit's fan speed and modulating (0-10V) or on/off valve for precise heating, cooling and ventilation.
Measurement Range
- Temperature: -20 to 60 degrees C
- Humidity: 0 to 100% RH
- Temperature control range: 5 to 35 degrees C
Measurement Accuracy
- Temperature: +/-0.5 C (0-60 C), +/-1 C (-20-0 C)
- Humidity: typ. +/-2% RH (max +/-5%)
Measurement Resolution
- Temperature: 0.1 C
- Humidity: 0.1% RH
Interfaces (I/O)

Digital Input (Dry Contact), Dry Contact Relay (SPST NO), Analog Output (0-10V), USB Type-C, Button
Monitoring Parameters

Temperature, Humidity
