Dragino  |  SKU: LDS03A-868
22% off

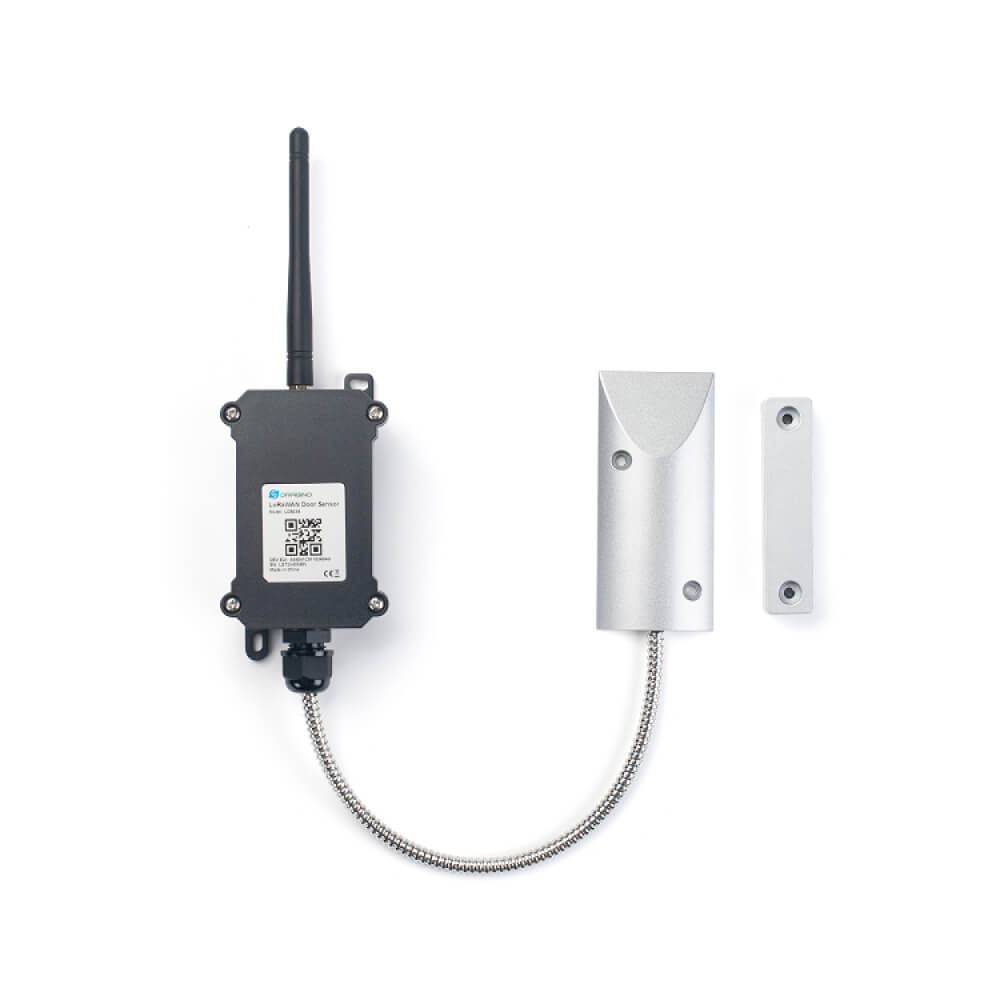

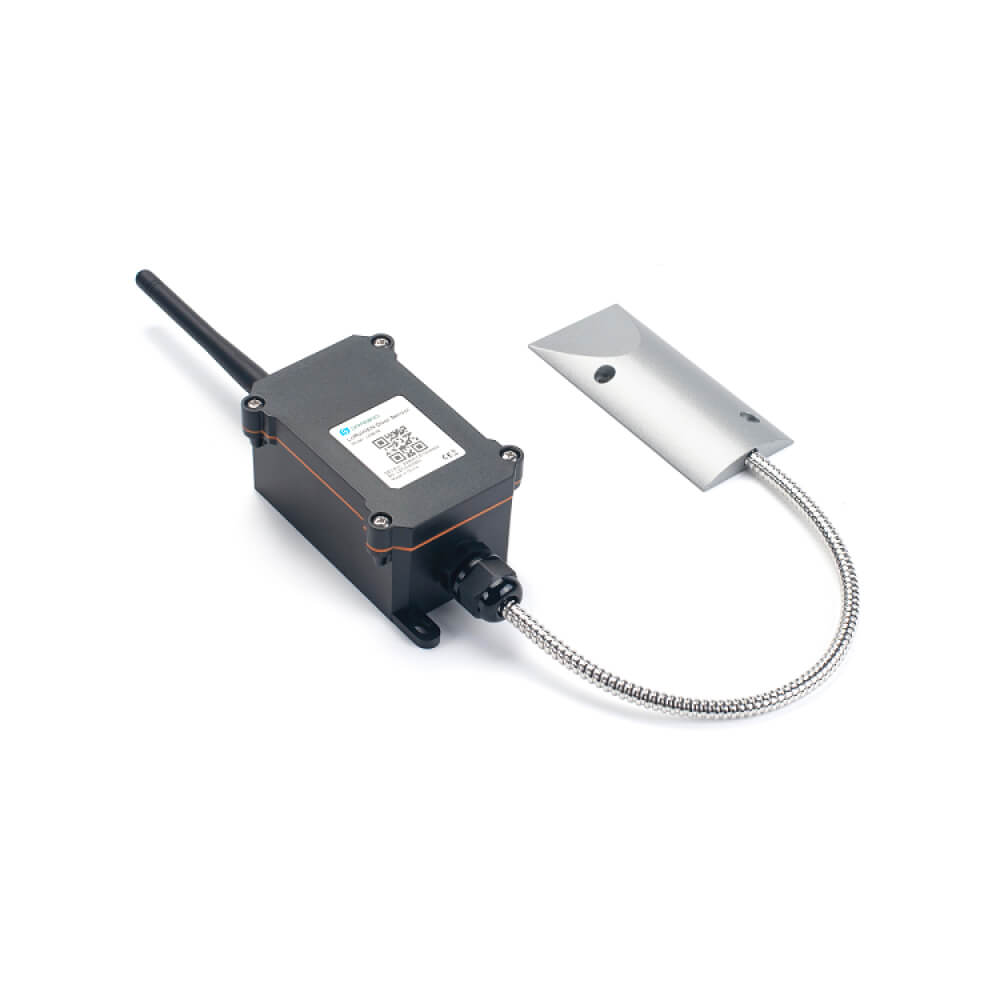

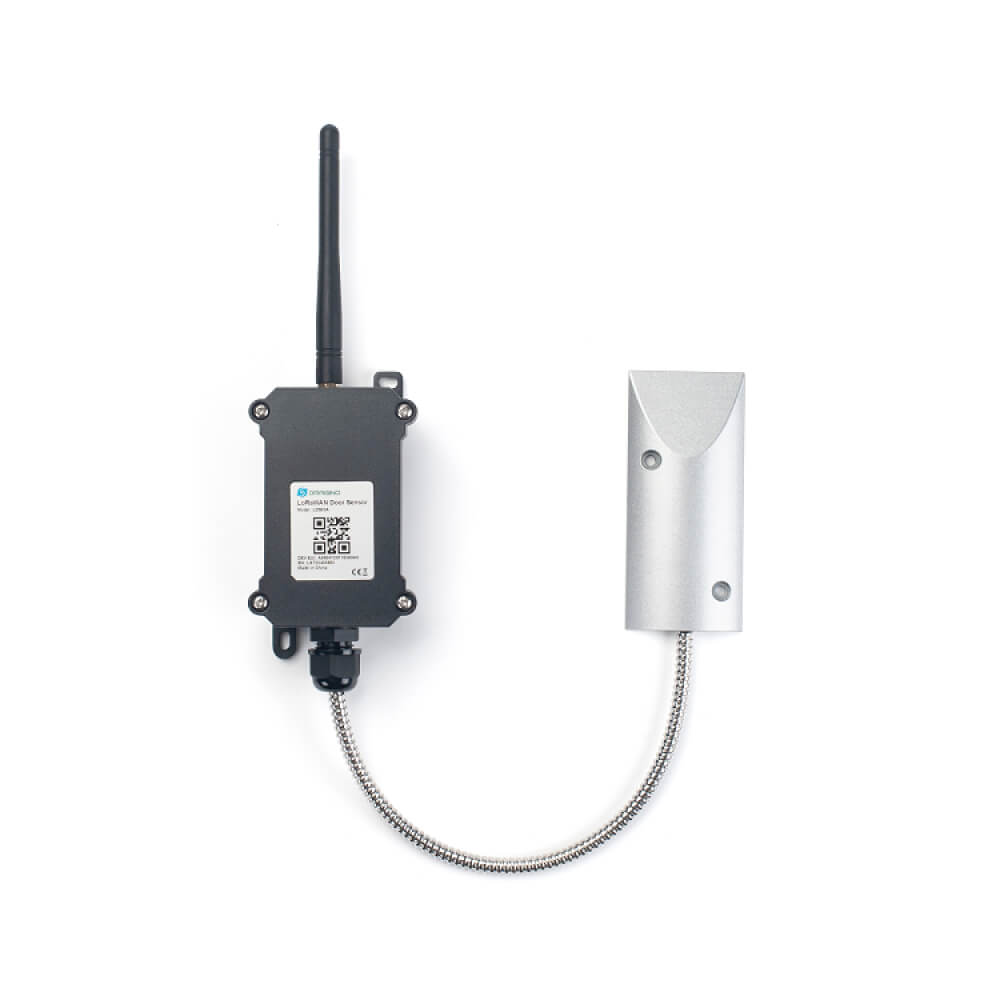

Dragino LDS03A | Outdoor LoRaWAN Door Open/Close Sensor

€49,00 €63,00
Shipping calculated at checkout.

A ruggedized outdoor door sensor designed for reliable long-term monitoring of entry points, featuring advanced statistics and alarm logic for industrial security.

  • Event Intelligence: Tracks open/close status, counts, and duration of last activity.
  • Extreme Longevity: 8500mAh Li-SOCI2 battery providing up to 10 years of life.
  • Active Alerts: Integrated "Open Alarm" triggers if doors remain open beyond a set time.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Dragino LDS03A is a high-performance LoRaWAN® door sensor specifically engineered for outdoor and demanding industrial environments. Unlike standard indoor sensors, the LDS03A provides comprehensive entry-point analytics, including real-time open/close status, total event counts, and exact durations. Powered by a high-capacity 8500mAh battery, it ensures long-term, maintenance-free security for warehouse gates, villas, and remote facility enclosures.

Core Capabilities

Detailed Statistics Calculates total door open times and tracks the duration of the most recent open event.
Decade-Scale Power Equipped with an 8500mAh Li-SOCI2 battery designed to last up to 10 years.
Timeout Protection Automated "Open Alarm" triggers if a door is left ajar for a user-defined threshold.
Offline Datalogging Internal datalog records up to 3000 events to ensure data continuity during network outages.

Industrial Applications

• Logistics & Warehousing: Track heavy-duty gate cycles and receive alerts if shipping docks are left unsecured.
• Facility Management: Monitor restricted access areas in smart buildings and large campuses remotely.
• Retail Security: Enhance supermarket and store security by tracking entry counts and unauthorized after-hours access.

Technical Integration

The LDS03A is LoRaWAN v1.0.3 Class A compliant and comes pre-loaded with unique registration keys for zero-touch provisioning. It supports remote configuration via LoRaWAN downlinks or local AT commands. Fully compatible with mainstream network servers including The Things Stack, ChirpStack, and AWS IoT Core. For large-scale deployment architecture or system integration support, contact the ShopIoT technical team.

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • Configuration Method
    USB-TTL / Serial, Downlink
  • Activation Method
    OTAA, ABP
  • Environment Rating
    Outdoor, Industrial
  • IP Rating
    IP66
  • Operating Temperature
    -40°C to 85°C
  • Enclosure Material
    PC (Polycarbonate)
  • Battery Type
    Li-SOCl2
  • Battery Capacity
    8500mAh
  • Power Consumption
    Sleep: 30µA, Tx: 150mA
  • Measurement Technology

    Magnetic Contact Switch (Hall Effect)

  • Monitoring Parameters
    Door/Window Status, Pulse Count, Battery Voltage, Tamper Status

Document Library

LDS03A Datasheet
