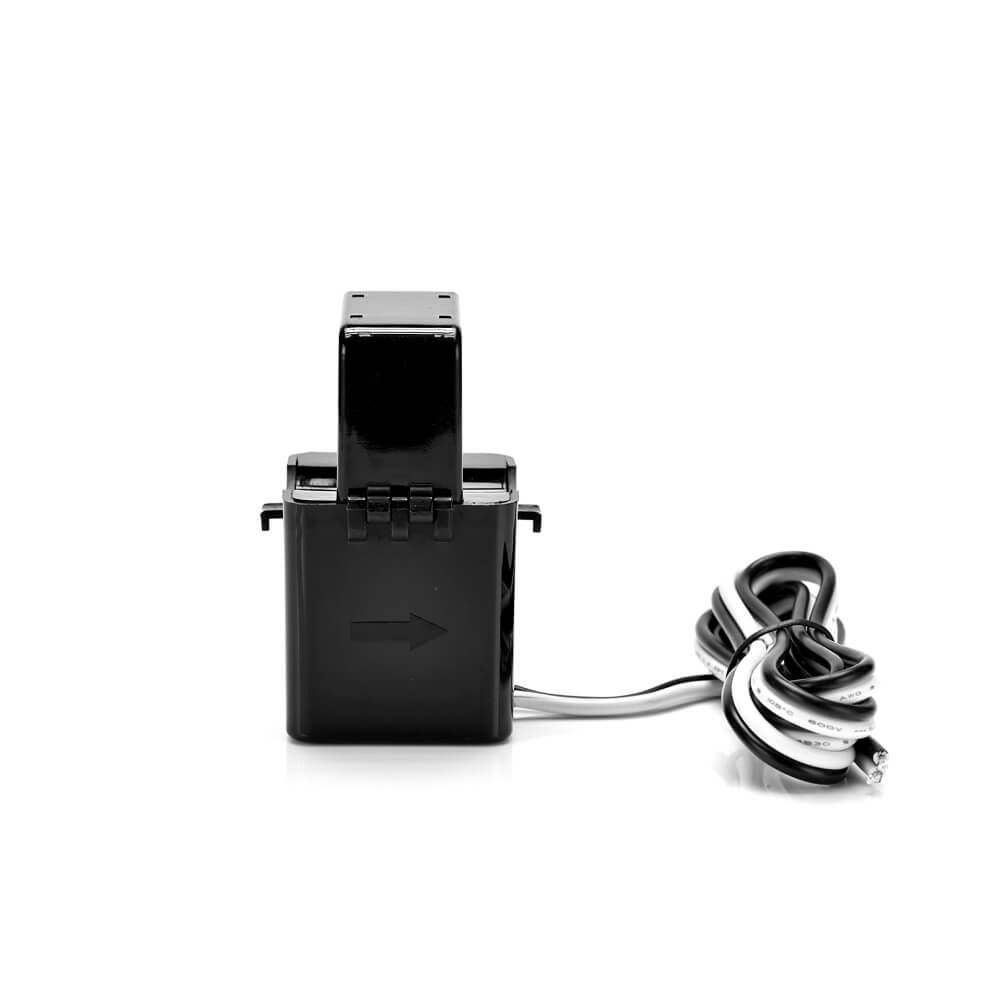

The Eastron ESCT-T36 is a single-phase split core current transformer designed for efficient and safe current measurement in electrical systems. With a measurement range from 100A to 600A and a 36mm aperture, it accommodates various conductor sizes. The split core design allows for non-contact current measurements through magnetic field induction, eliminating the need to disconnect primary wires during installation. This feature ensures a safer and more convenient setup, especially in existing systems. An internal precision burden resistor across the secondary winding provides a safe, low-voltage output and permits safe opening of the secondary circuit. The ESCT-T36 comes complete with a 1-meter flying lead for easy integration into your monitoring setup.
Key Features:
-

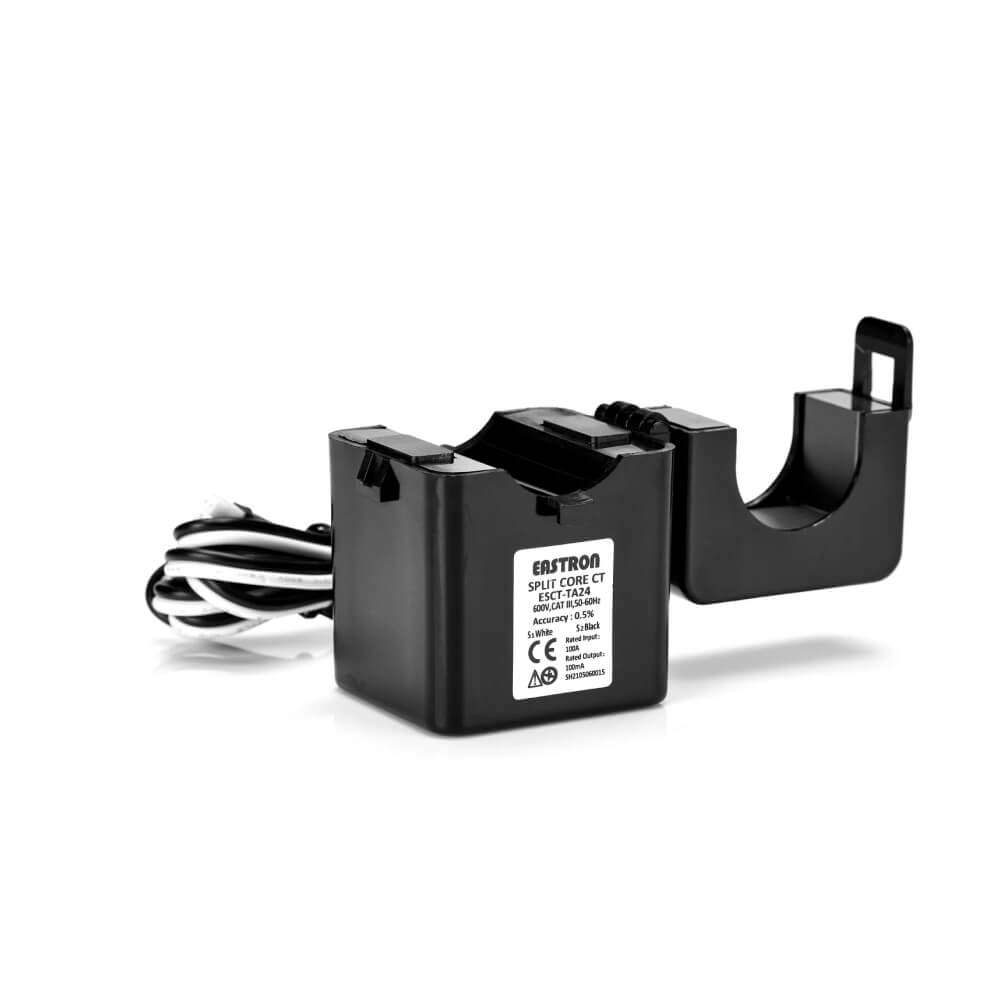

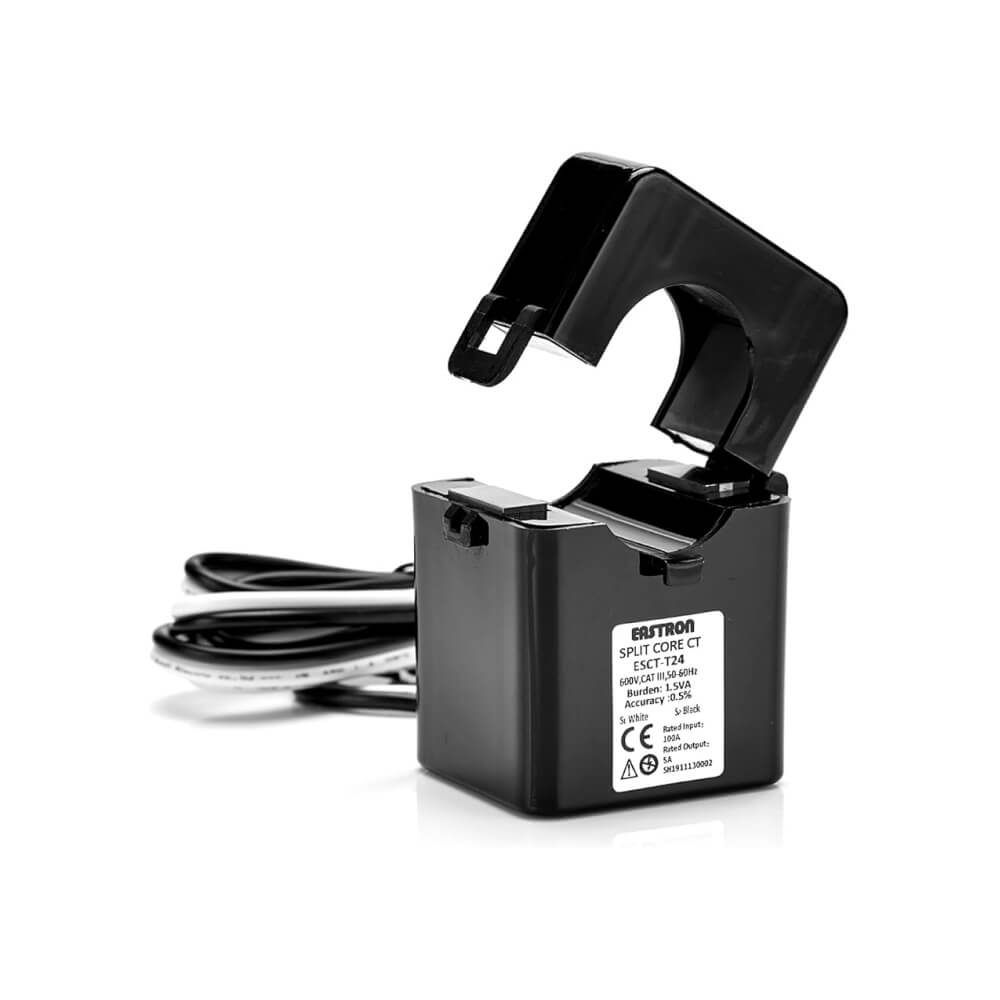

Single-phase split core design: Enables easy installation without disconnecting primary conductors.
-
Wide measurement range: Available in variants from 100A to 600A to suit different applications.
-
36mm aperture: Accommodates various conductor sizes for versatile use.
-
1-meter flying lead: Provides flexibility in connecting to monitoring equipment.
-
Internal precision burden resistor: Ensures safe, low-voltage output and allows safe opening of the secondary circuit.
Applications:
-
Energy monitoring systems
-
Power quality analysis
-
Load management
-
Retrofitting existing installations
| Specification | Details |
|---|---|
| Model | ESCT-T36 |
| Type | Single-phase split core current transformer |
| Primary Current Range | 100A to 600A |
| Aperture Size | 36 mm |
| Secondary Output | 1A or 5A (depending on model) |
| Lead Length | 1 meter flying lead |
| Accuracy Class | Class 1 |
| Frequency Range | 50 Hz / 60 Hz |
| Operating Temperature | -25°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Housing Material | Flame retardant plastic |
| Standards | IEC 61869-2 |
