Milesight UC3414 | Cellular Remote I/O Controller (4G LTE)

Name: Milesight UC3414 | Cellular Remote I/O Controller (4G LTE)
Brand: Milesight
SKU: UC3414-L05EU
Price: 135.00 EUR
Availability: InStock

€135,00 €185,00

Shipping calculated at checkout.

A professional industrial cellular RTU designed for remote data acquisition and autonomous I/O control via 4G LTE networks.

• Rich I/O Interface: 2 x DI, 2 x Relay Outputs, and RS485/RS232.
• Edge Intelligence: Supports local IF-THEN triggers and timers.
• Global Connectivity: 4G LTE backhaul with multiple network protocols.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

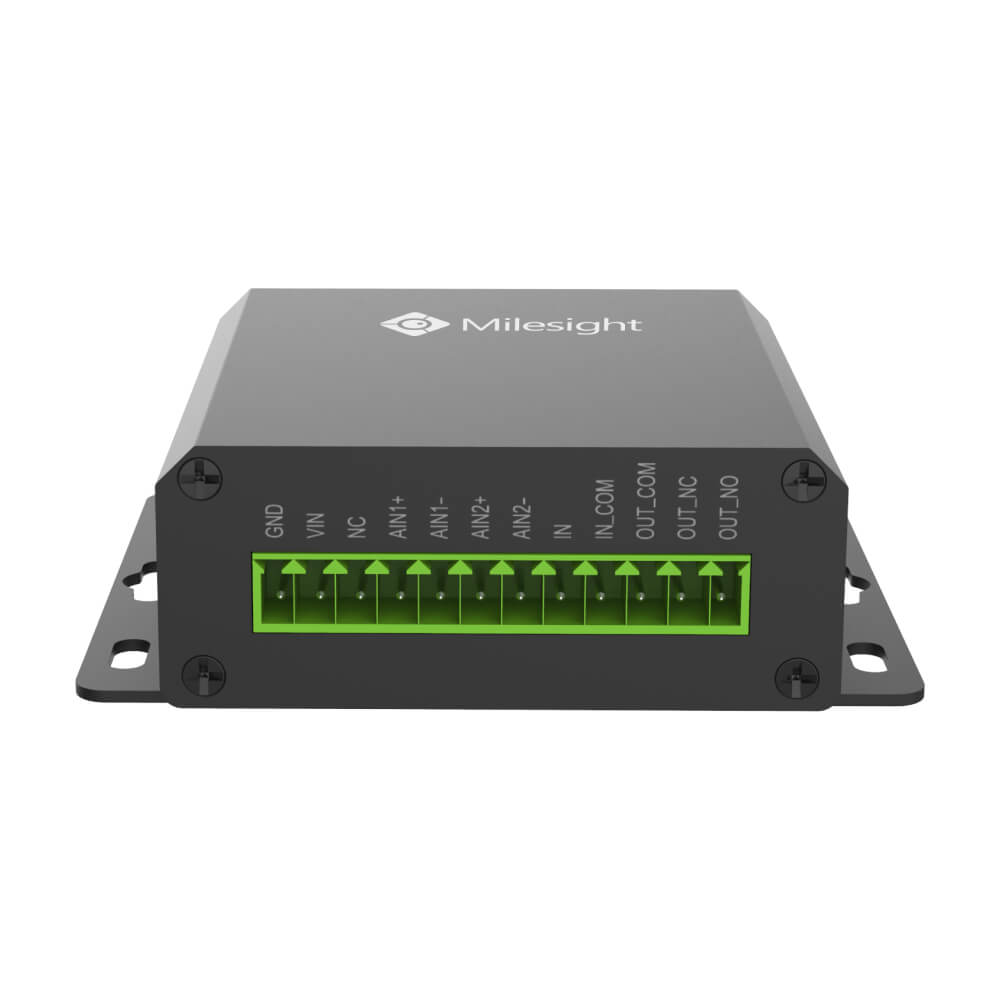

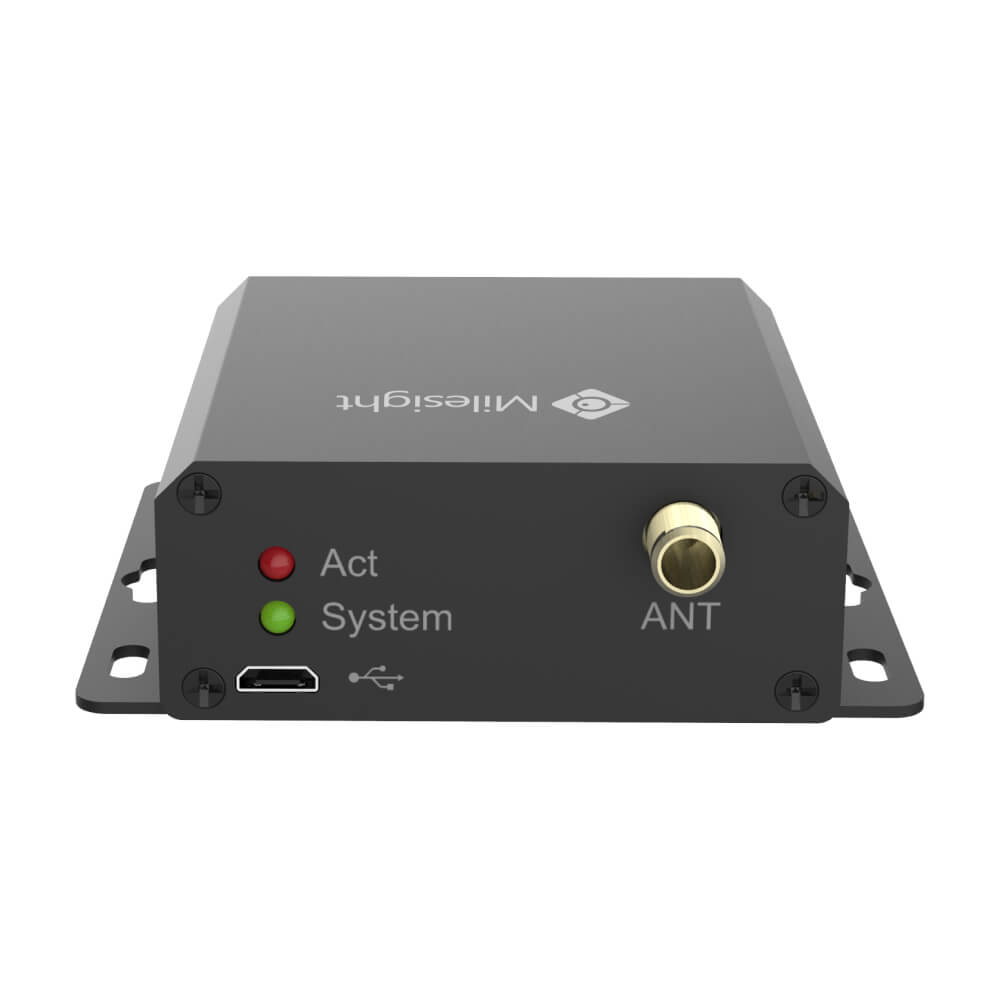

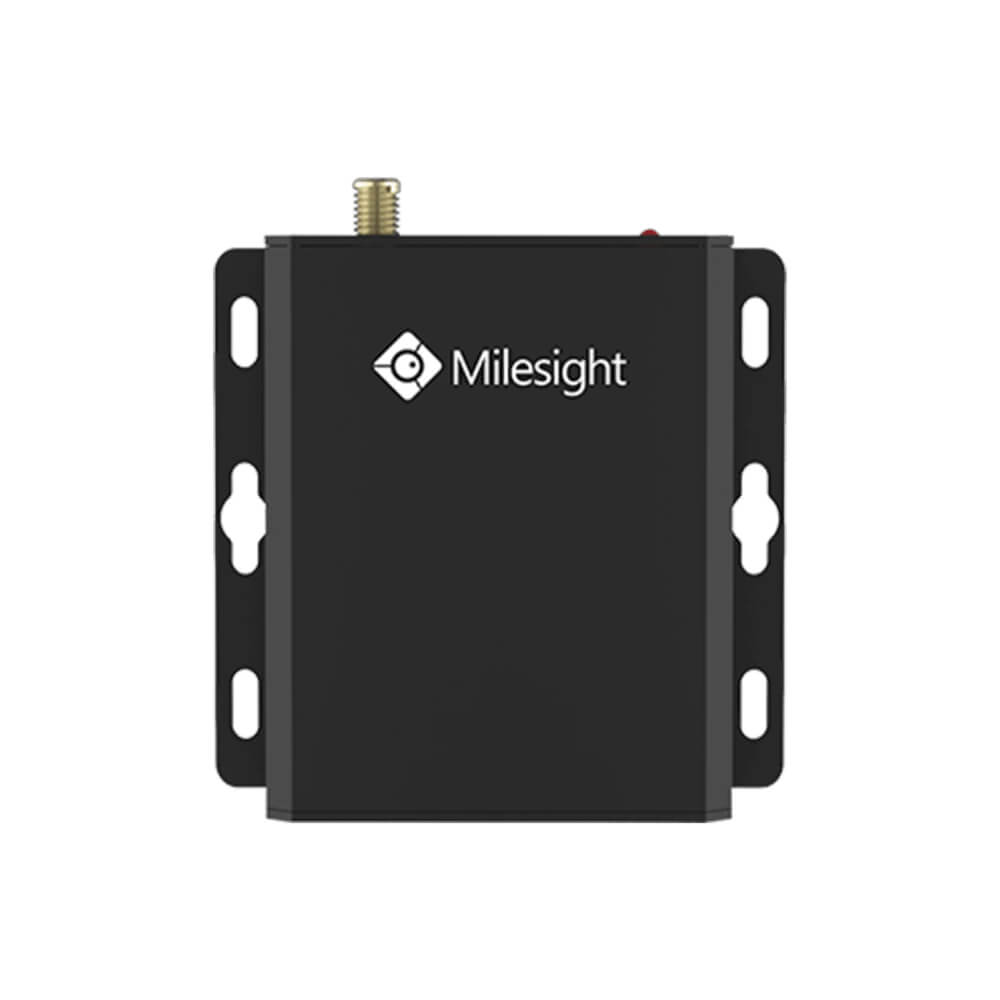

The Milesight UC3414 is a rugged industrial Cellular Remote I/O Controller engineered to bridge the gap between field sensors and cloud-based management systems. Designed for environments where wired connectivity is unavailable, the UC3414 utilizes 4G LTE to provide a stable transparent link for RS485/RS232 devices while managing local digital inputs and relay outputs. Housed in a durable IP30 metal casing, it serves as a reliable RTU for data acquisition and remote equipment control in smart industries and building automation.

Industrial Control & Edge Intelligence

Autonomous Operational Logic Supports sophisticated local triggering conditions and actions, allowing the device to execute tasks and manage relay outputs independently even when the cellular network is disconnected.

Standardized Cloud Integration Fully compatible with Milesight IoT Cloud, AWS IoT, and multiple industrial protocols (MQTT, Modbus), ensuring seamless data visualization and remote device management.

Professional Industrial Scenarios

• Smart Industry: Monitor legacy PLCs and machines via Modbus RTU and trigger emergency relay shutdowns via cellular downlink.

• Building Automation: Connect HVAC sensors and lighting controllers to a centralized cloud platform for energy optimization.

• Remote Site Alarms: Use digital inputs to detect motion or door openings at remote substations and receive instant SMS or email alerts.

What is in the Box?

• 1 x Milesight UC3414 Cellular Controller

• 1 x Cellular Antenna (SMA)

• 1 x Power Adapter & Terminal Block Kit

• 1 x Quick Start Guide

Product Certifications

CE FCC IP30 RoHS

Specifications

Primary Communication Protocol

4G LTE
Frequency/Region

Global
Antenna Type

External (SMA)
Configuration Method

USB, Cloud Management (SaaS)
Environment Rating

Indoor
IP Rating

IP30
Operating Temperature

-40°C to 70°C
Enclosure Material

Metal
Power Consumption

≤1.68W
Measurement Technology
- Dual Digital Inputs: Opto-isolated inputs (3-24VDC) supporting pulse counter mode for metering applications.
- High-Reliability Relays: Two SPDT relay outputs rated for 3A @ 30VDC or 250VAC, enabling direct control of machinery and electrical loads.
- Embedded 4G Modem: Provides reliable global cellular connectivity with support for TCP/UDP/MQTT and AWS IoT protocols.
- Autonomous Edge Logic: Supports multiple trigger conditions and actions that function even when the cellular network is unavailable.
- Industrial Stability: Equipped with an internal hardware watchdog and metal IP30 housing for 24/7 mission-critical operations.
Measurement Range
- Digital Input Range: 3V to 24V DC (High) / 0V to 1V DC (Low).
- Relay Contact Rating: 3 Amp (Max 30V DC / 250V AC).
- Cellular Coverage: Global 4G/3G/2G bands for worldwide deployment.
- Operational Range: High-performance signal acquisition in remote or shielded industrial environments.
Measurement Accuracy
- Precision Triggering: Configurable lockout times and duration settings for digital inputs to prevent false alarms.
- Industrial Endurance: Wide operating temperature range (-40°C to +70°C) ensures accuracy in unconditioned equipment rooms.
- Data Continuity: Integrated timers and status reporting ensure real-time visibility of all I/O changes via the cloud.
Measurement Resolution
- Pulse Counter Support: High-resolution pulse counting for monitoring meters or flow sensors.
- Reporting Latency: Immediate status updates triggered by input changes or scheduled periodic heartbeats.
- Configuration Detail: Precise local and remote management of 100+ combinations of trigger conditions.
Interfaces (I/O)

Digital Input (Dry Contact), Digital Output (Relay)
Monitoring Parameters

Pulse Count

Document Library

UC3414 Datasheet

UC3414 User Manual
