RAK Wireless | SKU: 915001

RAKwireless | 8dBi Fiberglass LoRaWAN Antenna N-Type to RP-SMA (858-878MHz)

Name: RAKwireless | 8dBi Fiberglass LoRaWAN Antenna N-Type to RP-SMA (858-878MHz)
Brand: RAK Wireless
SKU: 915001
Price: 69.00 EUR
Availability: InStock

€69,00

Shipping calculated at checkout.

The RAKwireless 8 dBi Fiberglass Antenna is a high-gain outdoor omnidirectional LoRaWAN® antenna.

Extra reach: high gain for demanding sites
Rugged outdoor build: weatherproof, cable included
EU868-ready: tuned for the 868 MHz band

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

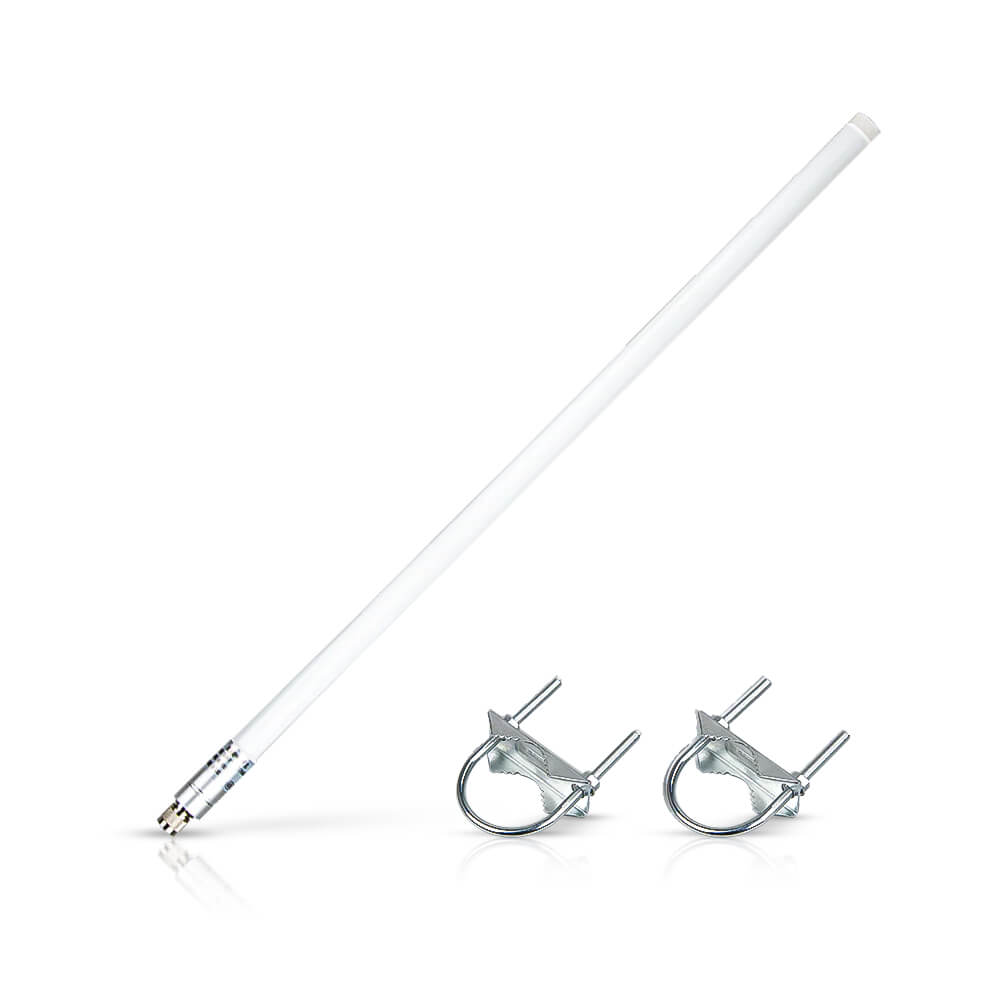

The RAKwireless 8 dBi Fiberglass Antenna (RAKARG16) is a high-efficiency, vertically-polarized dipole antenna built for carrier-grade outdoor LoRaWAN deployments. With 8 dBi of gain tuned for the 858–878 MHz band, it maximises geographic coverage from a single gateway — ideal for high, clear mounting on masts, poles, and rooftops.

A rugged fiberglass radome and a one-piece connector-to-body design give it the durability and weather resistance demanded by professional installations. The antenna body uses an N-Type male connector, and this version ships with an RP-SMA converter cable for direct use with RP-SMA gateways and Helium™-style hotspots.

Key Features

High 8 dBi Gain 8.0 dBi of omnidirectional, vertically-polarized gain pushes coverage further than lower-gain antennas — maximising range and link budget for wide-area outdoor networks.

Carrier-Grade Fiberglass Build A weatherproof fiberglass radome with a one-piece connector-to-body construction withstands wind, weather, and mechanical stress for reliable long-term outdoor service.

N-Type Body + RP-SMA Cable The N-Type male antenna body comes with an RP-SMA converter cable, so it connects directly to RP-SMA gateways and hotspots — with 50 Ω impedance for efficient power transfer.

Tuned 858–878 MHz Optimized for the 858–878 MHz range (covering EU868) with a low VSWR of ≤1.5 for efficient, low-reflection performance on European LoRaWAN networks.

What's in the Box

1×8 dBi Fiberglass LoRaWAN® Antenna

1×RP-SMA to N-Type Cable (indoor use)

1×Mounting Bracket Kit

Note: the included RP-SMA-to-N-Type cable is designed for indoor use only. For outdoor runs, use a weatherproof low-loss feeder cable (sold separately).

Frequently Asked Questions

What's the difference from the 5 dBi antenna?

The 8 dBi offers higher gain for greater range and link budget — best for tall, clear mounting positions covering wide areas. The 5 dBi suits shorter masts and more localised coverage.

Which connector does it use?

The antenna body is N-Type male; this version includes an RP-SMA converter cable, so it works directly with RP-SMA gateways and hotspots.

Can the included cable be used outdoors?

No — the bundled RP-SMA-to-N-Type cable is for indoor use only. For outdoor installations, use a proper weatherproof low-loss feeder cable to protect the connection.

Which frequency does it support?

This model is tuned for 858–878 MHz (covering the EU868 band). A 900–930 MHz version exists for US915/AU915 regions.

Extending Your LoRaWAN Coverage?

Talk to our IoT specialists, or explore gateways and connectivity accessories to pair with it.

Talk To Our IoT Team Shop LoRaWAN Gateways Browse Antennas & Accessories

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Environment Rating

Outdoor
IP Rating

IP67
Operating Temperature

-30°C to 60°C
Enclosure Material

Fiberglass
Measurement Technology
- High-Gain Performance: Provides a peak gain of 8.0 dBi (±1dBi), significantly extending the communication range of outdoor gateways compared to standard antennas.
- Omnidirectional Dipole: Features a vertically polarized dipole design that delivers 360° horizontal coverage, ensuring nodes from all directions can connect.
- Industrial Build: Encased in a robust, white fiberglass radome to withstand high winds, rain, and prolonged UV exposure in harsh outdoor environments.
- Easy Deployment: Equipped with a standard N-type male connector and includes a complete mounting kit (brackets and U-bolts) for fast installation on masts or poles.
- High Efficiency: Engineered for professional RF performance with an efficiency rating of up to 69%.
Measurement Range
- Frequency Range: 858 MHz to 878 MHz.
- Dimensions: Φ25.0 mm x 1300.0 mm (Length: 1.3 meters).
- Peak Gain: 8.0 dBi.
Measurement Accuracy
- VSWR: ≤ 1.5 across the specified frequency range (Typical: 1.32 at 858 MHz).
- Feed Impedance: 50 Ω for seamless matching with professional-grade gateways and cables.
- Polarization: Linear Vertical.
Measurement Resolution
- Radiation Pattern: 360° Horizontal (Omni) / ~15° Vertical beamwidth.
- Max Power Input: ≤ 20W.
- Weight: Optimized for low wind-loading on mounting infrastructure.

Document Library

8dBi LoRaWAN Antenna Datasheet
