SenseCAP T1000 LoRaWAN® Tracker for Indoor and Outdoor Positioning (EU868)

SenseCAP T1000 LoRaWAN® Tracker for Indoor and Outdoor Positioning (EU868)

• Compact, Portable Tracking Device
• Built-in GPS and BLE Connectivity
• LoRaWAN Long-Range Wireless Communication
• Rechargeable Battery with Long Life
• Ideal for Asset and Personnel Tracking

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

€39,00
Availability:
In stock
Product type:

The Seeed Studio SenseCAP T1000-B is a compact and versatile LoRaWAN tracker that provides precise tracking capabilities both indoors and outdoors. It's particularly noted for its small size, being as compact as a credit card, which makes it highly portable and convenient for attaching to various assets. The device is equipped with multi-system GNSS support, including GPS, GLONASS, Galileo, BeiDou, and QZSS, enhancing its tracking accuracy. Additionally, it features Wi-Fi and Bluetooth for improved indoor tracking capabilities.

Key features of the SenseCAP T1000-B include:

  • Durability: The device is IP65 water and dust resistant, making it suitable for various environments.
  • Advanced Tracking Capabilities: It supports GPS, GLONASS, Galileo, BeiDou, and QZSS for outdoor tracking, and Wi-Fi and Bluetooth for indoor tracking.
  • Innovative Features: The tracker is equipped with an LED and buzzer for status indications and alerts, and an SOS button for emergency situations.
  • Long Battery Life: It has a 700mAh rechargeable lithium battery, designed to last for months on a single charge.
  • User-Friendly Configuration: The device can be easily configured and monitored via a Bluetooth app.
  • Connectivity and Data Management: It supports various LoRaWAN® channel plans for wide coverage and can store over 1000 location data records offline.

The SenseCAP T1000-B is ideal for a wide range of tracking applications, from personal use to commercial asset management. Its affordability and long battery life make it an attractive choice for those seeking a reliable and efficient tracking solution​.

Model GNSS Temperature Light Accelerometer
T1000-A
T1000-B



Product Video



Product Downloads

General Parameters
Product Model T1000-A/T1000-B/T1000-C/T1000-D
Backhaul LoRaWAN® (v1.0.4 Class A)
Bluetooth Bluetooth v5.1, setting via App
LoRaWAN Channel Plan EU868
Temperature • Range: -20 to 60℃
• Accuracy: ± 1℃
• Resolution: 0.1℃
Light 0 to 100% (0 is dark, 100% is brightest )
3-Axis Accelerometer 3-Axis Accelerometer to detect movement
LED and Buzzer 1xLED and 1x buzzer to indicate status
Button 1xButton to operate and trigger event (SOS)
Antenna Internal (GNSS/LoRa/Wi-Fi/BLE)
Communication Distance 2 to 8km (depending on gateway antenna, installation and environment)
IP Rating IP65

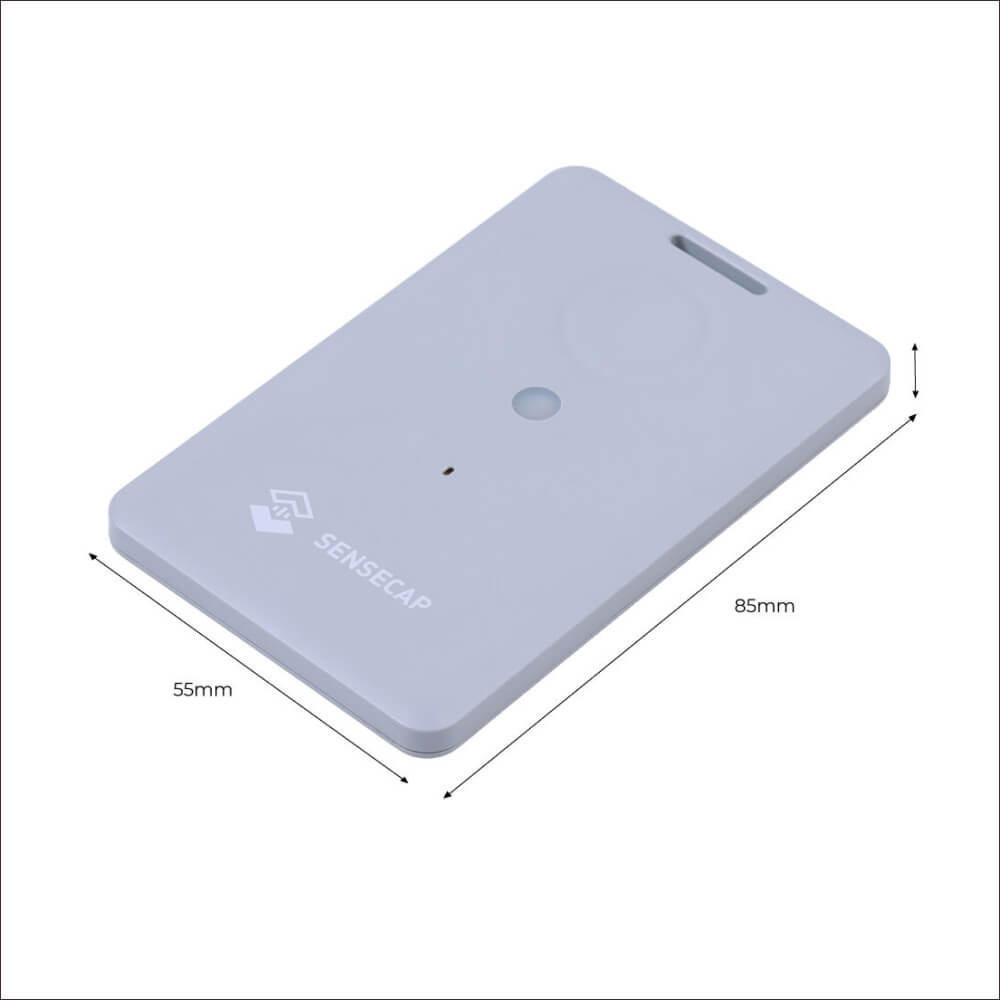

Dimensions 85 x 55 x 6.5 mm
Device Weight 32g
Operating Temperature -20℃ to +60℃
Operating Humidity 5% - 95% (No condensation)
Certification CE /FCC /TELEC /RoHS /REACH
Location
GNSS Constellation • T1000-A/B: GPS/GLONASS/Galileo/
• BeiDou/QZSS
• T1000-C/D: GPS/ BeiDou
GNSS Sensitivity -145dBm cold start / -160 dBm Tracking
GNSS Location Accuracy ~1m CEP, GPS, -130dBm
Wi-Fi Positioning Passive scanning, uploads the scanned Passive scanning, uploads the scanned 4 MAC addresses
Bluetooth Positioning uploads the scanned 3 best signal MAC uploads the scanned 3 best signal MAC addresses of Beacon
Battery
Battey Capacity Rechargeable lithium battery, 700mAh
*Battery Life Estimates 4 months on a single charge (uplink every 1 hour, only GNSS data)
Battery Life Monitoring Periodic uplink battery level
Charge Cable (Adapter not included) USB magnetic charging cable, 1 meter
Power Input Voltage 4.7 to 5.5V DC
Charging Temperature 0 to 45℃
