Milesight  |  SKU: AM308-868M
15% off

Milesight AM308 & AM308L | 8-in-1 LoRaWAN Indoor Air Quality Sensor | CO2, PM, TVOC

€338,00 €397,00
Shipping calculated at checkout.

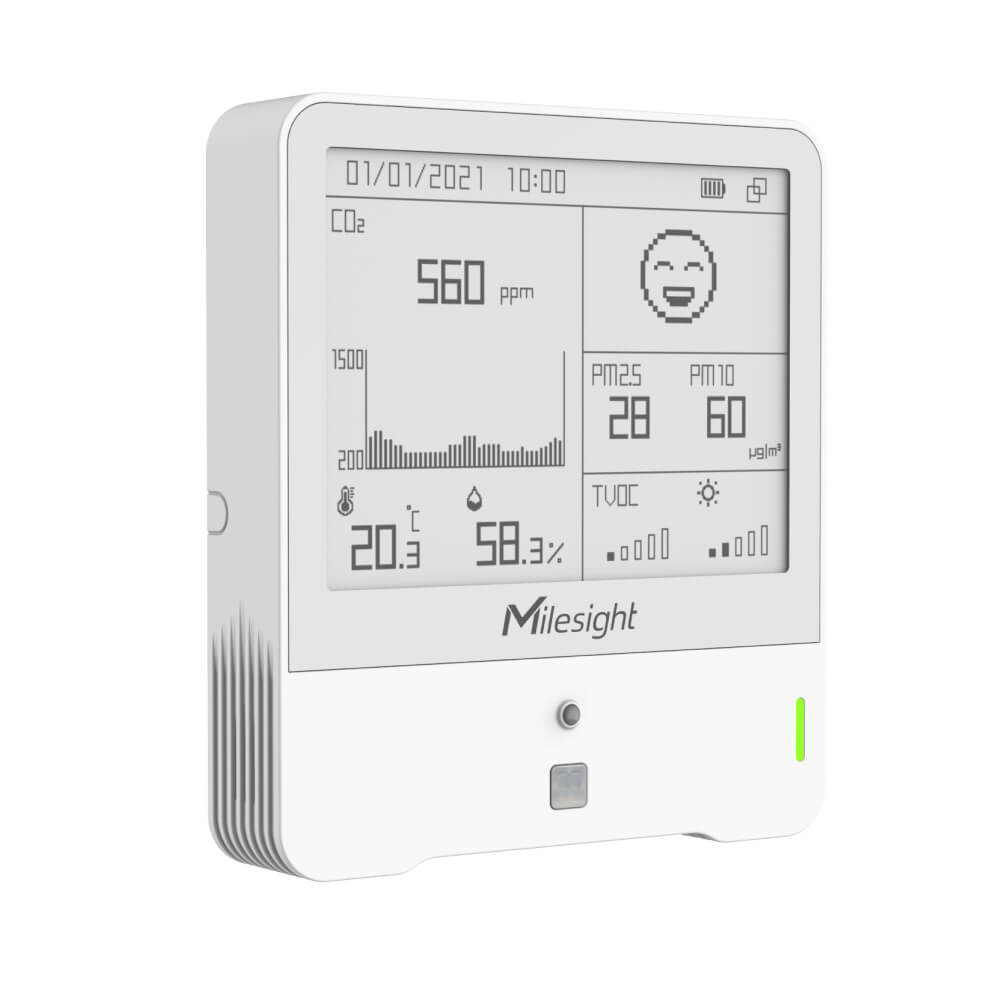

The Milesight AM308 & AM308L is an 8-in-1 LoRaWAN indoor air-quality sensor.

  • Full air-quality picture: CO2, PM2.5/PM10, TVOC, temp, humidity, light and PIR
  • Easy to deploy: LoRaWAN Class A with NFC or USB-C setup
  • Clear feedback: optional 4.2-inch E-ink with buzzer and LED

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight AM308 & AM308L are high-performance 8-in-1 LoRaWAN indoor air-quality sensors from the AM300 series, giving complete visibility into indoor environment quality. In a single unit they measure CO2, PM2.5, PM10, TVOC, temperature, humidity, light, and occupancy (PIR) — ideal for offices, classrooms, healthcare, and public buildings.

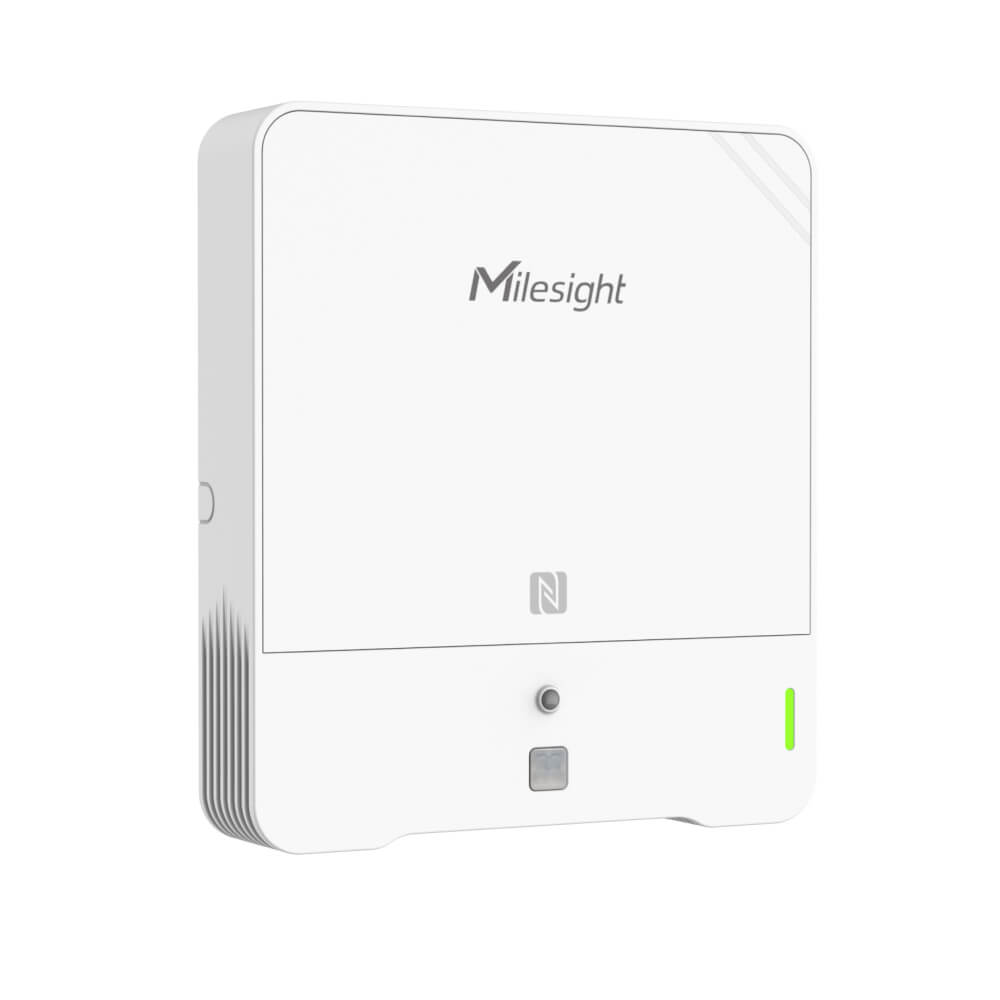

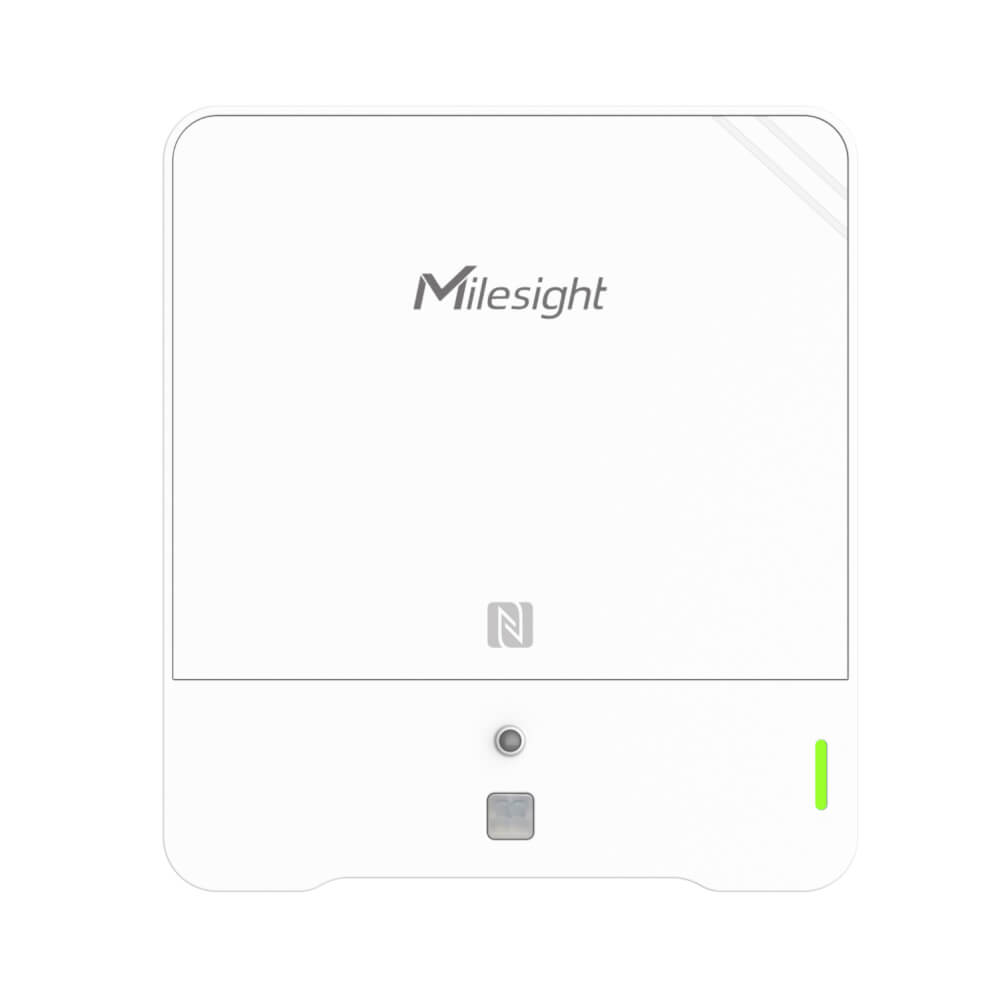

Both share the same sensor suite, a traffic-light indicator, and a buzzer for threshold alarms. The AM308 adds a 4.2-inch E-ink display with emoticon and traffic-light air-quality status at a glance, while the AM308L is a lower-cost, display-less version for back-end monitoring.

Core Capabilities

8-in-1 Air-Quality Sensing NDIR CO2 (400–5000 ppm), laser PM2.5 & PM10 (0–1000 μg/m³), TVOC, temperature (±0.2°C), humidity (±2% RH), light, and PIR occupancy — comprehensive IAQ from one device.

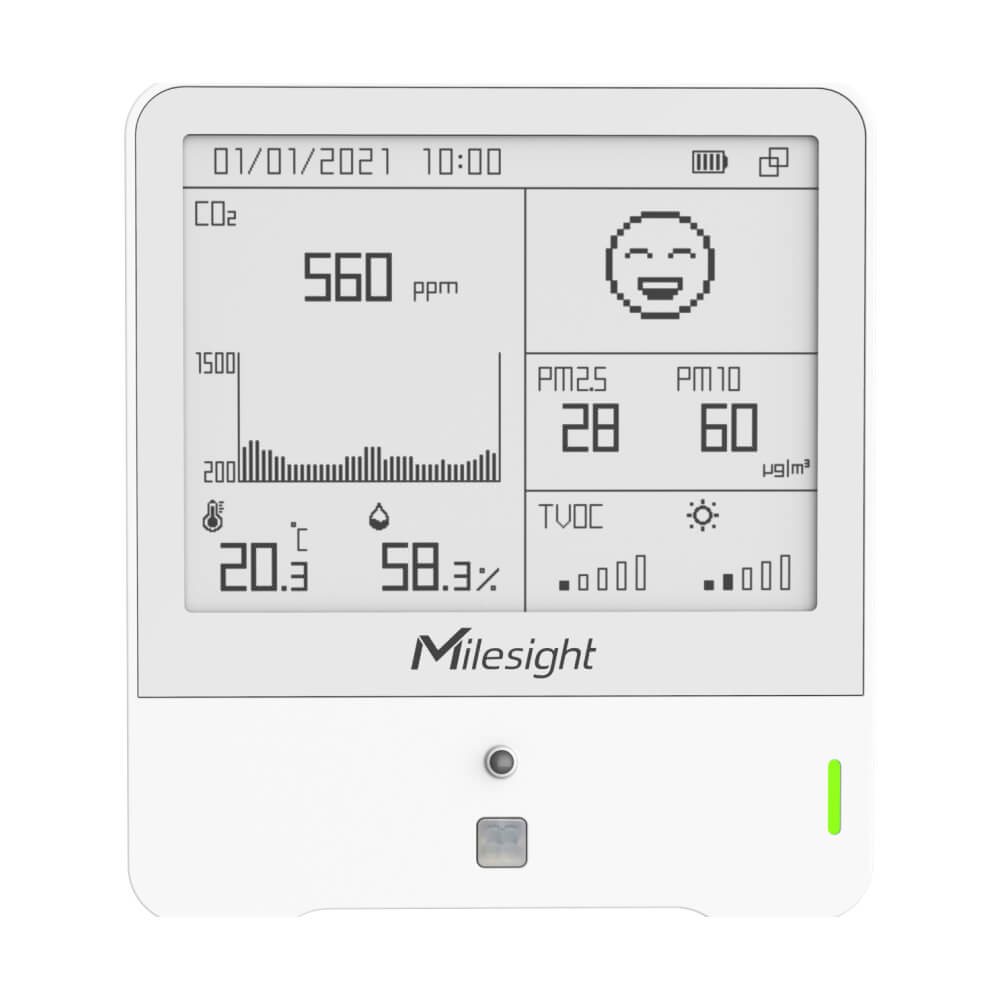

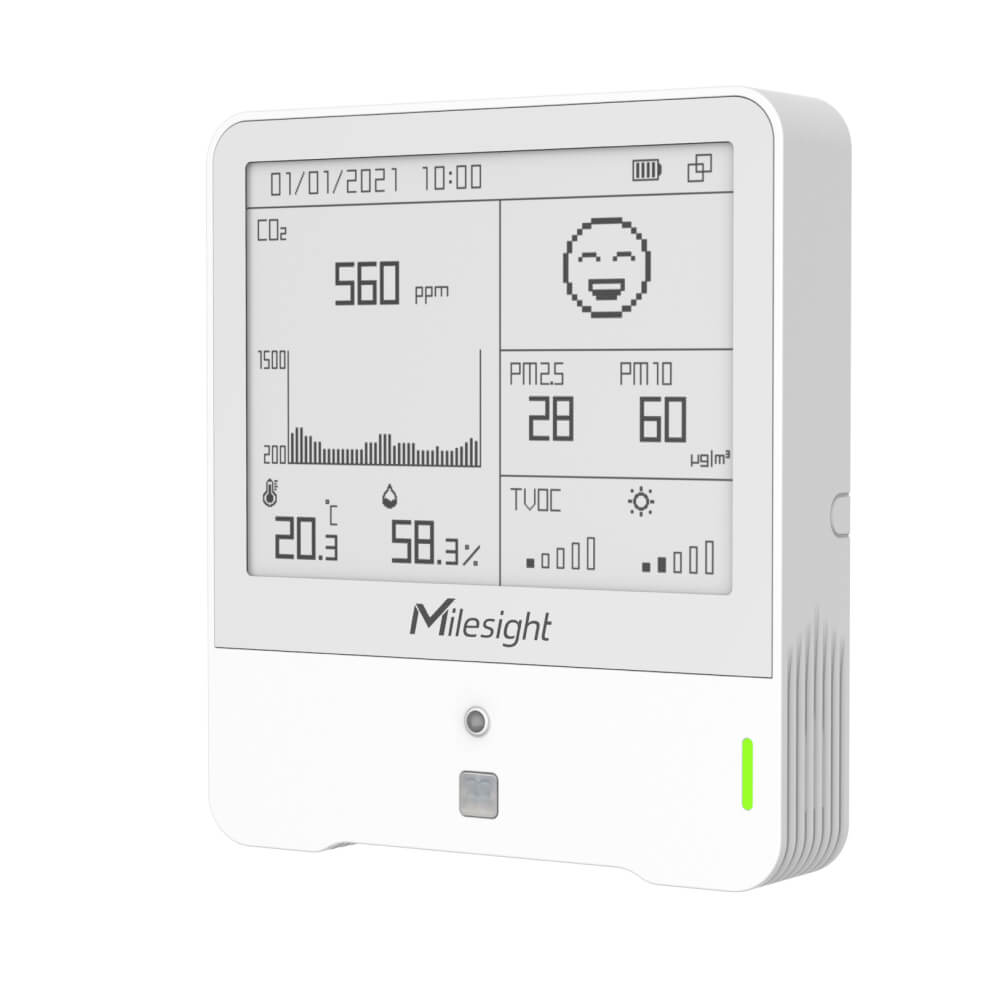

At-a-Glance Display & Alarms The AM308's 4.2-inch E-ink screen shows readings with emoticon and traffic-light air-quality levels; the AM308L omits the screen. Both include a traffic-light LED and a buzzer that sound when pollutants exceed the configurable alarm threshold.
Battery or USB-C, Smart Power-Saving Powered by 4 × 2700 mAh ER14505 batteries or USB Type-C (5V/1A). A smart screen mode pauses the display when the PIR detects vacancy for 20 minutes, extending battery life — around 1 year (AM308) and 1.5 years (AM308L).
NFC/USB-C Config & Cloud Configure tool-free via NFC (Milesight ToolBox app) or USB-C (PC software), with CO2 auto-background calibration. Integrates with Milesight IoT Cloud and the Development Platform, with on-device data storage and retransmission.

Typical Applications

Offices & Smart Workplaces: Monitor CO2, PM, and comfort to drive demand-based ventilation and improve productivity, with at-a-glance air-quality status on the AM308 screen.
Schools & Classrooms: Track CO2 and particulates to maintain healthy learning environments and inform ventilation scheduling across campuses.
Healthcare & Public Buildings: Maintain compliant air quality in waiting rooms, wards, and public spaces, with buzzer/LED alerts when thresholds are exceeded.
Building Management & HVAC: Feed multi-parameter IAQ and occupancy data into BMS/HVAC systems (via a LoRaWAN gateway) for energy-efficient, occupant-driven control.

Choosing Your Variant

  AM308 AM308L
E-ink Display 4.2-inch (with emoticon) No display
Sensors 8-in-1 (identical) 8-in-1 (identical)
Buzzer & LED Yes Yes
Battery Life ~1 year ~1.5 years

Technical Integration

Key points for adding the AM308 / AM308L to your LoRaWAN network:

Connectivity: LoRaWAN® Class A (OTAA/ABP); EU868 (also CN470, US915, AU915, AS923, KR920, IN865, RU864).
Network server & platform: Integrates with Milesight IoT Cloud and the Development Platform; works with standard servers like The Things Stack and ChirpStack, and Milesight UG56/UG65 gateways.
Power: Four 2700 mAh ER14505 batteries or USB Type-C (5V/1A); a smart screen mode pauses the display when the room is vacant to extend battery life.
Configuration: Tool-free via NFC (Milesight ToolBox app) or USB-C (PC software); CO2 supports manual and automatic background calibration.

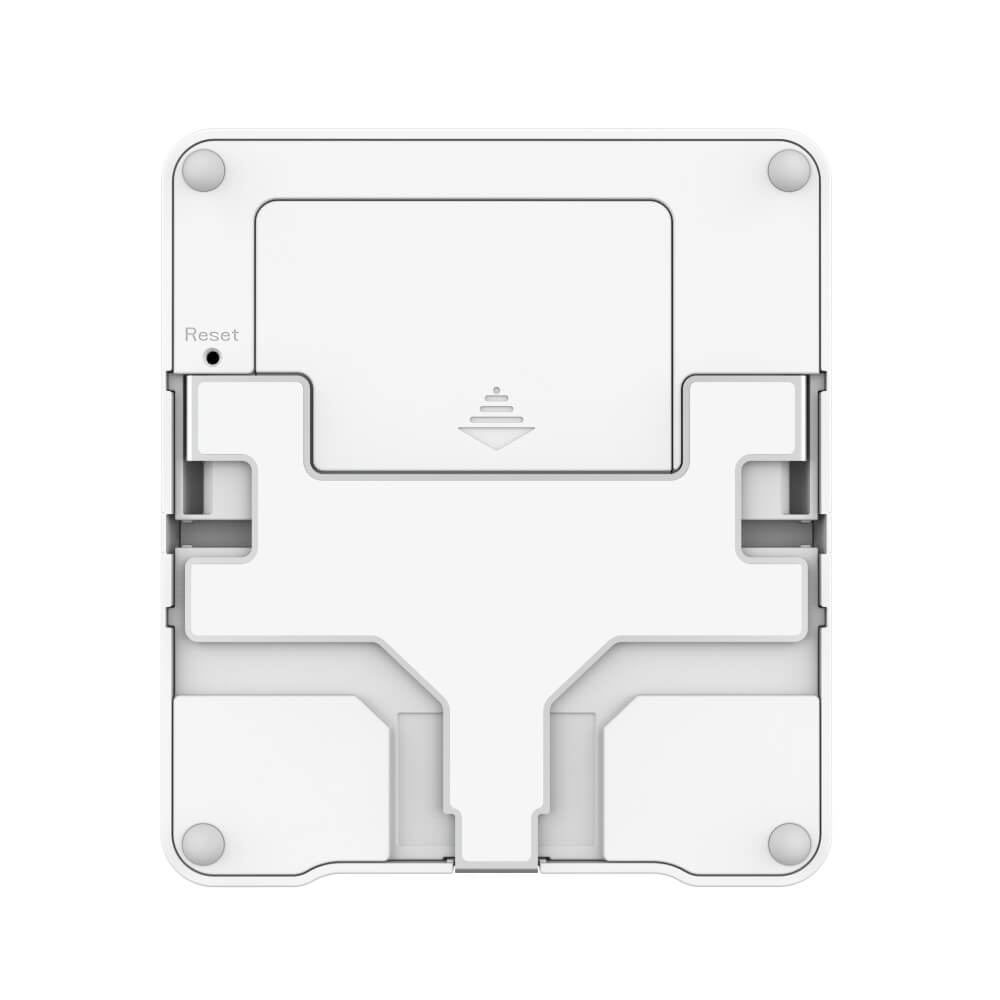

Mounting & environment: IP30 enclosure (100.8 × 114 × 22 mm) with 3M tape or wall screws; operates −20 °C to +60 °C (E-ink screen 0–40 °C).
Setup help: For deployment or gateway selection support, contact the shopioT technical team.

What's in the Box

1×AM308 / AM308L Device (batteries pre-installed)
1×Mounting Bracket
1×3M Double-Sided Tape
3×Wall Mounting Kits
1×Theft-Deterring Screw
1×Quick Guide
1×Warranty Card

Note: a USB Type-C cable & power adapter is available as an optional accessory. A LoRaWAN® gateway is required for data transmission and is sold separately.

Frequently Asked Questions

What's the difference between the AM308 and AM308L?

They share the same 8-in-1 sensors, buzzer, and traffic-light LED. The AM308 adds a 4.2-inch E-ink display (with emoticon/traffic-light status); the AM308L has no display and a longer battery life (~1.5 years vs ~1 year).

What does it measure?

CO2, PM2.5, PM10, TVOC, temperature, humidity, ambient light, and PIR occupancy — eight parameters in one device.

How is it powered?

By 4 × 2700 mAh ER14505 batteries or USB Type-C (5V/1A). A smart screen mode pauses the display when the room is vacant to extend battery life.

Does it need a LoRaWAN gateway?

Yes. It reports over LoRaWAN® (Class A) to a gateway and network server (e.g. The Things Stack, ChirpStack, or Milesight UG56/UG65). A gateway is sold separately.

How is the CO2 sensor calibrated?

It supports manual calibration and automatic background calibration (ABC) via the Milesight ToolBox app or downlink commands.

How is it configured and mounted?

Tool-free via NFC (mobile app) or USB-C (PC software); it mounts with the included 3M tape or wall screws.

Certifications

CE
FCC
ISED
RoHS

Planning an Air-Quality Monitoring Rollout?

Talk to our IoT specialists, or explore the hardware you'll need.

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • Configuration Method
    NFC, USB
  • Activation Method
    OTAA, ABP
  • Environment Rating
    Indoor
  • IP Rating
    IP30
  • Operating Temperature
    -20°C to 60°C
  • Enclosure Material
    PC (Polycarbonate), ABS Plastic
  • Battery Type
    Li-SOCl2
  • Battery Capacity
    10800mAh
  • Power Consumption
    Up to 1 Year (PM sensor active)
  • Measurement Technology
    • 8-in-1 Comprehensive Sensing: Integrated sensors for gases (CO2, TVOC), particulates (PM2.5, PM10), and environmental factors.
    • Visualized Comfort (AM308): 4.2-inch E-ink screen displays real-time data and comfort emoticons (AM308L version is screenless).
    • Particulate Monitoring: Laser scattering technology for precise PM2.5 and PM10 concentration measurement.
    • Smart Feedback: Features a traffic light status indicator and internal buzzer for immediate threshold alerts.
    • Data Security: Local storage for historical records with retransmission support to ensure data integrity during network outages.
  • Measurement Range
    • CO2: 400 - 5000 ppm.
    • PM2.5 & PM10: 0 - 1000 μg/m³.
    • TVOC: 0 - 60,000 ppb (Standard IAQ Index 1-5).
    • Barometric Pressure: 300 - 1100 hPa.
    • Light: 0 - 60,000 Lux (Level 0-5).
  • Measurement Accuracy
    • CO2 Accuracy: ±(30 ppm + 3% of reading).
    • Temperature Accuracy: ±0.2°C.
    • Humidity Accuracy: ±2% RH.
    • PM2.5/PM10 Accuracy: ±10% (0-100 μg/m³), ±10 μg/m³ (100-1000 μg/m³).
  • Measurement Resolution
    • PM2.5/PM10 Resolution: 1 μg/m³.
    • CO2 Resolution: 1 ppm.
    • Temperature Resolution: 0.1°C.
    • TVOC Resolution: 1 ppb / 1 IAQ Index unit.
  • Interfaces (I/O)
    USB Type-C
  • Monitoring Parameters
    Temperature, Humidity, Motion (PIR), Light Intensity (Lux), CO2 (Carbon Dioxide), TVOC (Total Volatile Organic Compounds), Barometric Pressure, PM2.5 (Particulate Matter), PM10 (Particulate Matter)
