Milesight EM500-SWL | LoRaWAN Submersible Liquid Level Sensor

€289,00

Shipping calculated at checkout.

A professional-grade submersible pressure sensor designed for high-accuracy liquid level monitoring in tanks, reservoirs, and harsh industrial environments.

• Precision Sensing: Stainless steel probe with ±0.5% FS accuracy.
• Extended Autonomy: 19,000 mAh battery for up to 10 years of life.
• Ruggedized Build: IP67-rated transceiver with multiple range options (3m/5m/10m).

Frequency/Region

Measuring Range

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

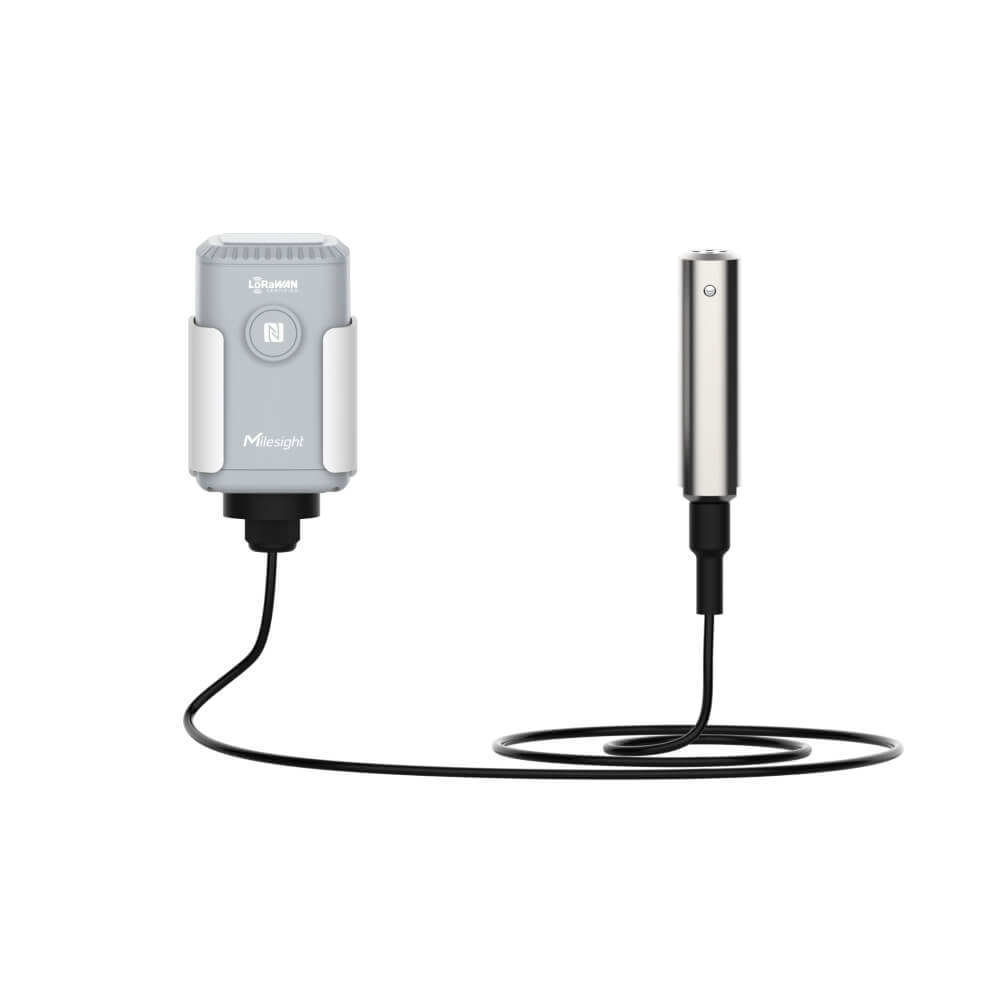

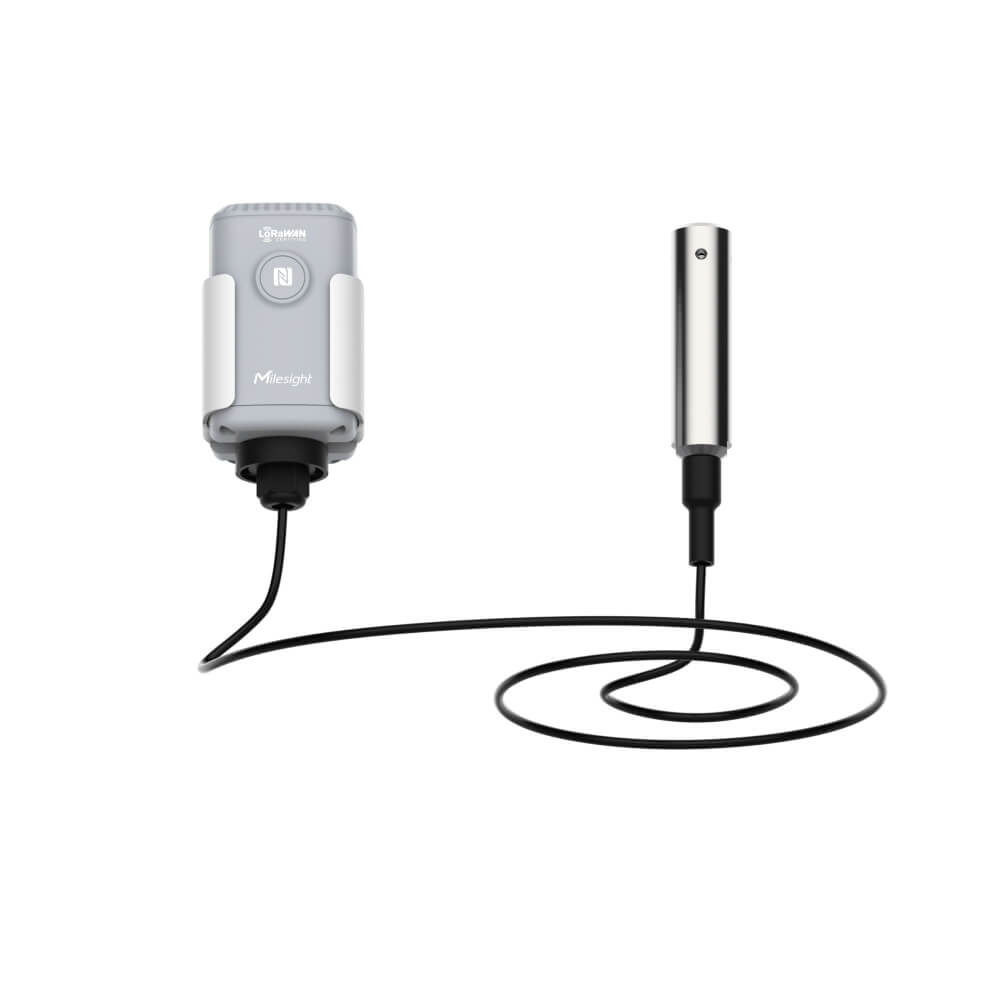

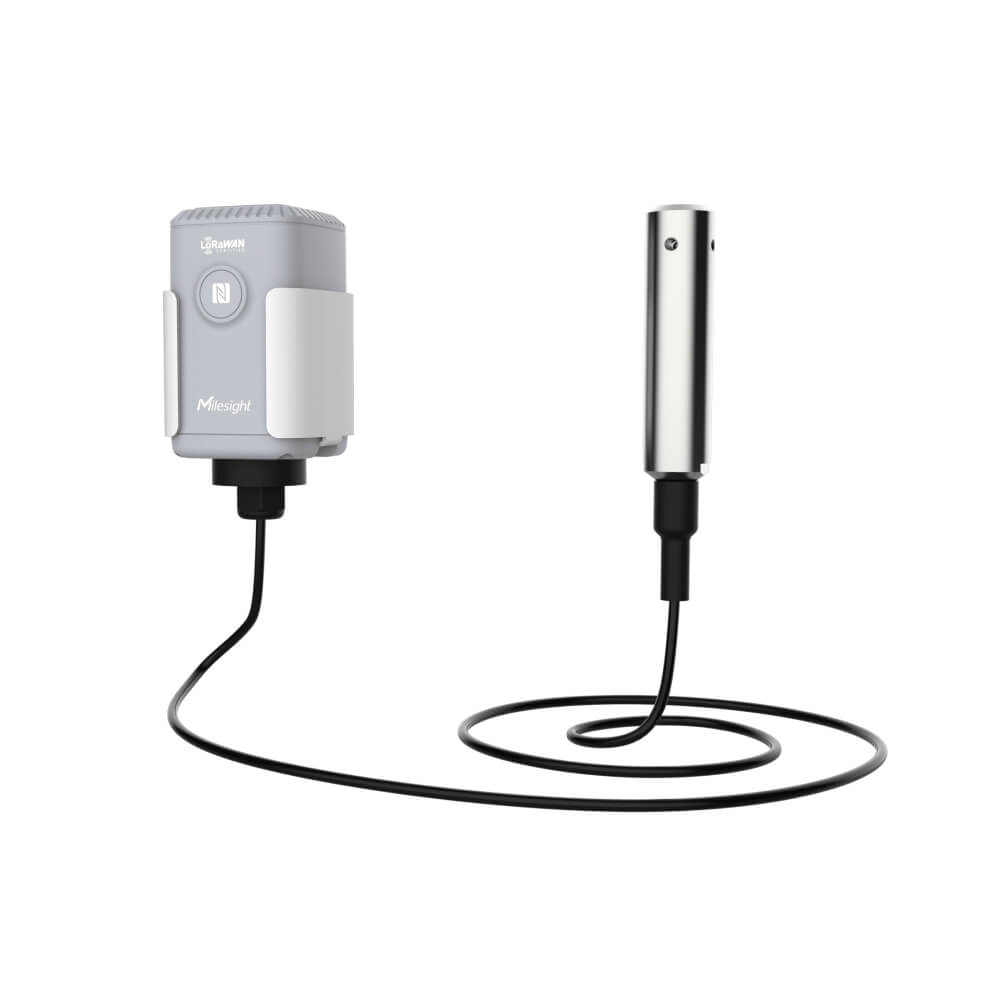

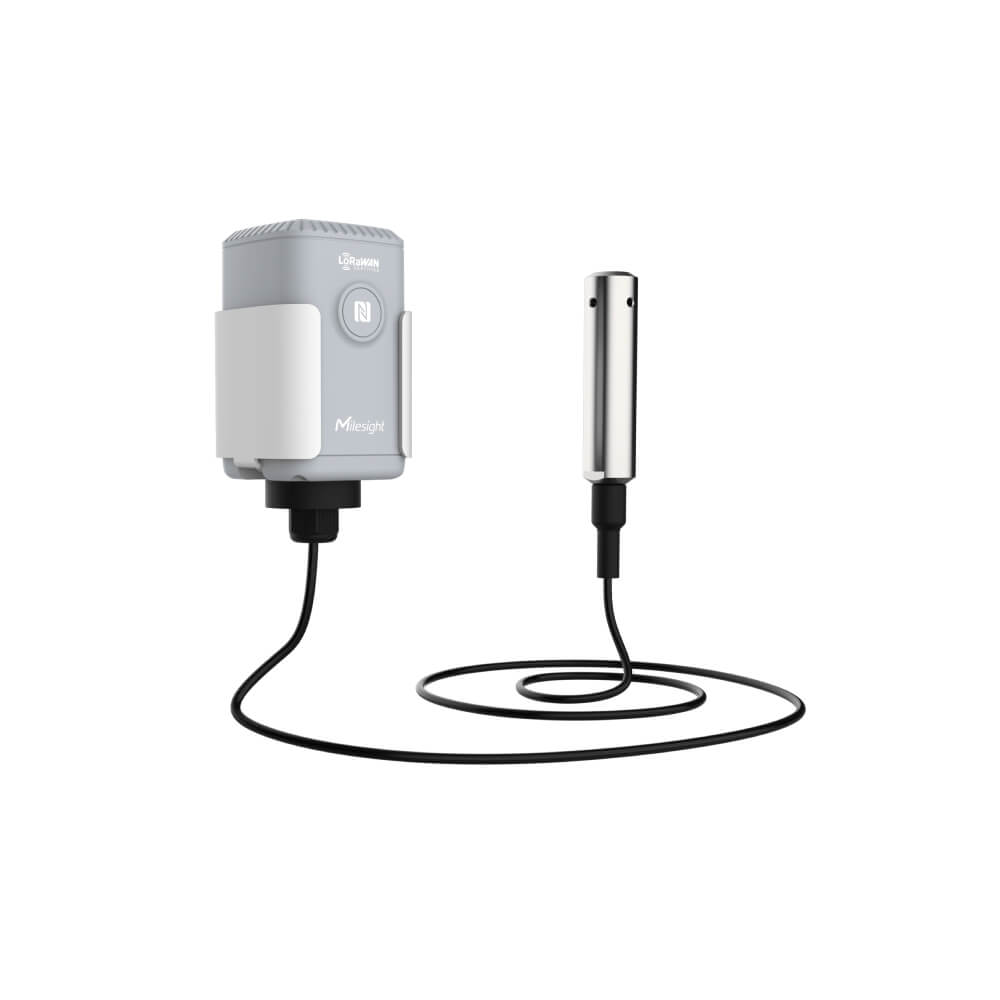

The Milesight EM500-SWL is a high-performance LoRaWAN Submersible Liquid Level Sensor engineered for precision monitoring in challenging conditions. Utilizing a high-quality stainless steel pressure probe, the EM500-SWL measures the hydrostatic pressure of a liquid to determine its height with exceptional accuracy. By transmitting data over long-range LoRaWAN networks, it provides a reliable, wireless solution for tracking water resources, fuel tanks, or chemical containers without the need for manual dipping or complex wiring.

Industrial Precision & Longevity

Hydrostatic Pressure Sensing Features a corrosion-resistant stainless steel probe that stays submerged, providing a 0.01m resolution and high-term stability for years of accurate readings.

Extreme Deployment Life Powered by a built-in 19,000 mAh replaceable Li-SOCl2 battery, enabling up to a 10-year lifespan even in remote locations where power is unavailable.

Professional Usage Scenarios

• Water Resource Management: Monitor river, lake, and groundwater levels for flood prevention and environmental tracking.

• Industrial Tank Monitoring: Remotely track liquid inventory in oil, chemical, or water storage tanks in real-time to optimize supply chains.

• Smart Agriculture: Maintain precise water levels in reservoirs and irrigation systems to ensure consistent supply for livestock and crops.

What is in the Box?

• 1 x Milesight EM500-SWL Transceiver

• 1 x Submersible Pressure Probe (Selected Length)

• 1 x 19,000 mAh ER34615 Battery (Pre-installed)

• 1 x Mounting Kit & Quick Start Guide

Product Certifications

CE FCC IP67 RoHS

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

Internal
Configuration Method

NFC, USB
Activation Method

OTAA, ABP
Environment Rating

Outdoor, Industrial
IP Rating

IP67
Operating Temperature

-30°C to 70°C
Enclosure Material

ABS Plastic, Stainless Steel, PC (Polycarbonate)
Battery Type

Li-SOCl2
Battery Capacity

19000mAh
Power Consumption

10 years (10 min interval)
Measurement Technology
- Gauge Pressure Sensing: Utilizes advanced gauge pressure measurement to determine liquid depth, providing high stability and resistance to corrosion.
- Submersible Design: Features a stainless steel probe with a high-durability cable for continuous submersion in harsh environments.
- LoRaWAN Connectivity: Leverages ultra-wide-distance transmission (up to 10km line of sight) for remote data acquisition.
- Local Data Management: Supports local storage of historical records with retransmission and retrievability features to prevent data loss.
- Maintenance-Free Operation: Powered by a massive 19,000 mAh battery designed for a service life of up to 10 years.
Measurement Range
- Standard Depths: Factory-configured options for 0–3m, 0–5m, and 0–10m (H2O) coverage.
- High-Depth Customization: Capable of measuring liquid levels up to 200 meters upon request.
- Versatile Application: Optimized for water but customizable for use with other liquids like oil and ISO tanks.
Measurement Accuracy
- Precision Tolerance: High-accuracy readings maintained at ±0.5% Full Scale (FS).
- Long-term Reliability: Exceptional stability rated at ≤ ±0.3% FS per year.
- Industrial Stability: Maintains performance across wide operating temperatures (-30°C to +70°C for transceiver).
Measurement Resolution
- Fine Granularity: Delivers precise liquid level increments of 0.01 meters.
- Configurable Reporting: Reporting intervals can be set from 1 to 1,080 minutes to balance data resolution with battery longevity.
- Calibration Flexibility: Supports numerical calibration via NFC or software to fine-tune final reported values.
Monitoring Parameters

Liquid Level (Pressure)

Document Library

EM500-SWL Datasheet

EM500-SWL User Manual
