Milesight  |  SKU: GS101-868M

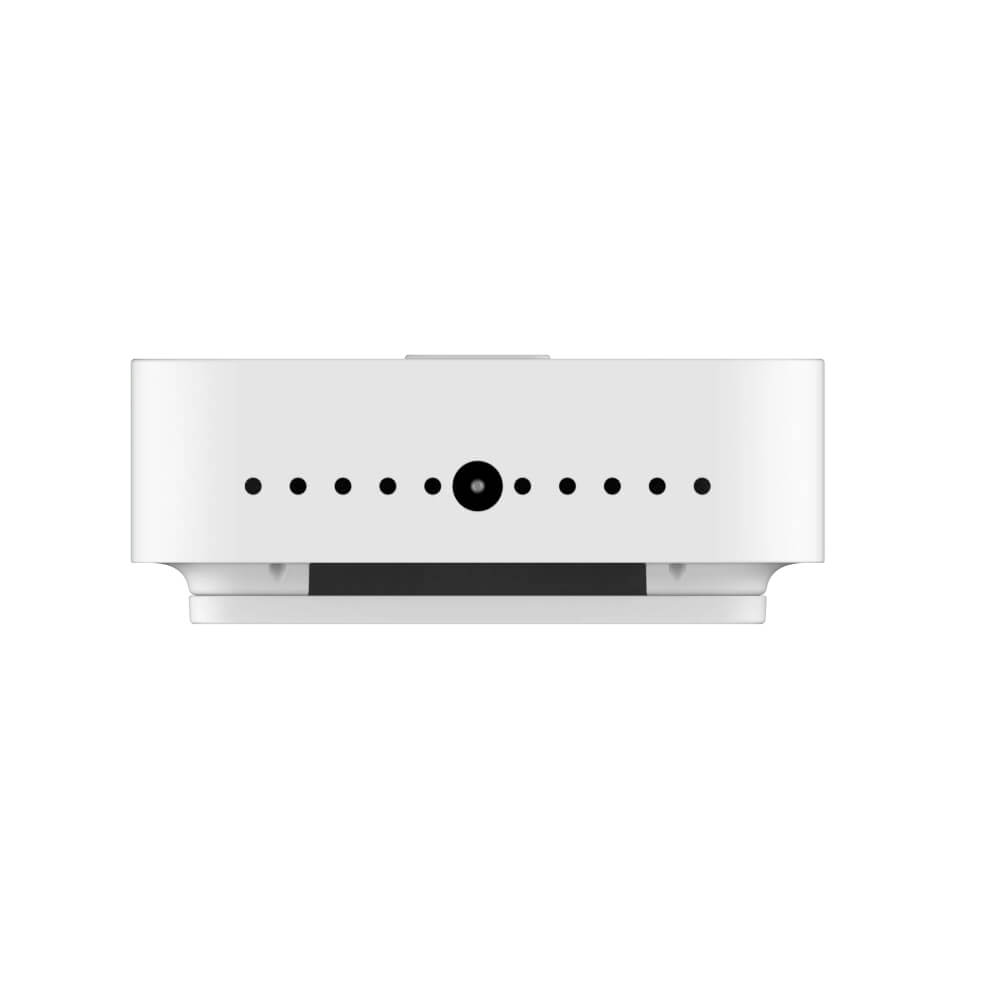

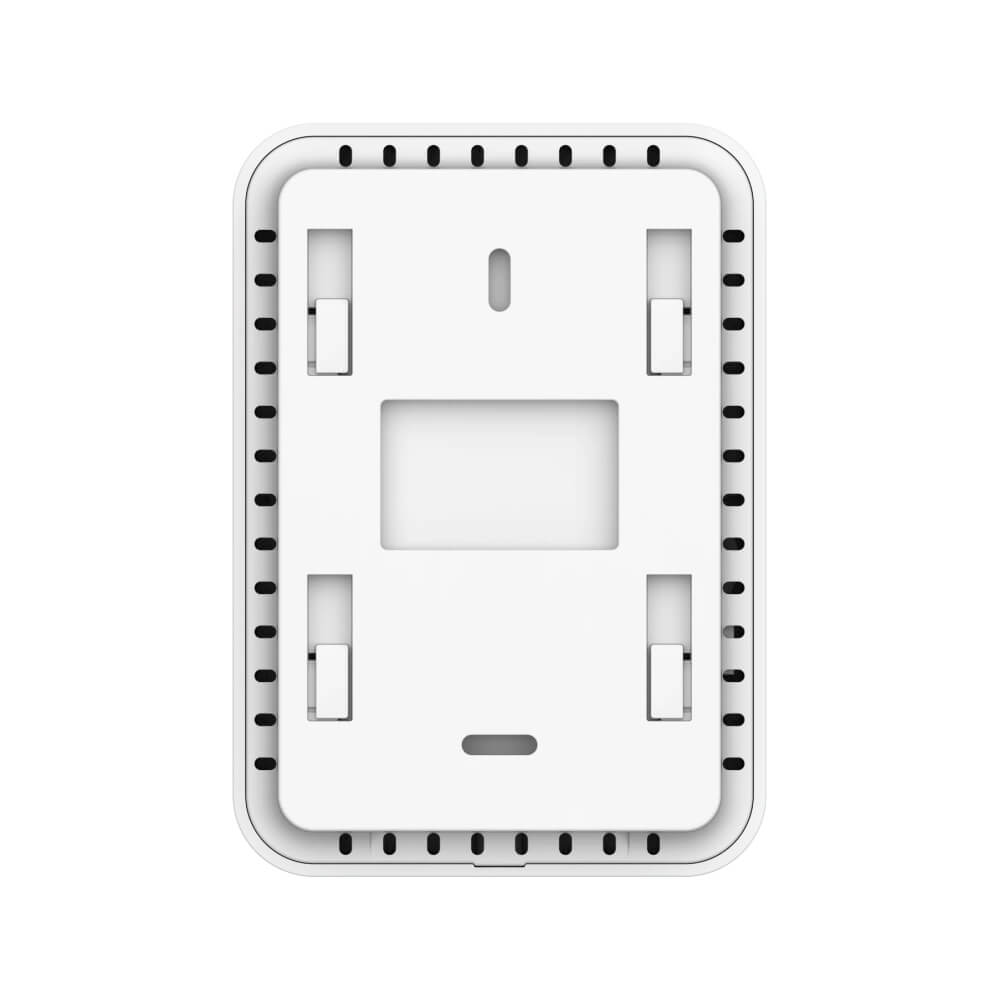

Milesight GS101 | LoRaWAN Residential Natural Gas (CH4) Detector (EoL)

€99,00
Shipping calculated at checkout.

A professional semiconductor-based LoRaWAN gas detector designed to identify methane leaks and trigger automated safety shut-offs.

  • • Safety Control: Integrated relay and solenoid valve outputs.
  • • High Sensitivity: 8% LEL alarm threshold for early leak warning.
  • • D2D Protocol: Direct device-to-device control without gateways.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight GS101 is a carrier-grade Residential Gas Detector engineered to detect Methane (CH4) leaks with industrial-level reliability. Designed for smart homes, apartments, and commercial kitchens, the GS101 utilizes a high-sensitivity semiconductor sensor with a 5-year life expectancy that requires no calibration. When gas concentrations reach the 8% LEL threshold, the device triggers a powerful 85dB buzzer and visual LED alarms. Beyond local alerting, the GS101 provides active protection via a relay output and solenoid valve output, allowing it to automatically shut off gas lines or activate ventilation fans. With support for the Milesight D2D protocol, it can also trigger other local IoT devices in under one second, ensuring safety even if the central network is offline.

Active Safety & Automation

Milesight D2D Controller The GS101 acts as a D2D controller to instantly trigger sirens, light switches, or vent fans locally via LoRa, bypassing the need for gateway processing.
Hardware Output Controls Equipped with one normally open relay (250 VAC/10A) and one 12V solenoid valve output to provide physical fail-safe gas isolation.

Smart Safety Scenarios

• Apartment Complexes: Centralized monitoring of gas safety for multi-tenant buildings with remote management.
• Commercial Kitchens: Detect natural gas leaks near stoves and boilers to prevent fire hazards and explosions.
• Property Management: Reduce insurance risks by deploying automated gas shut-off systems in rental properties.

What is in the Box?

• 1 x Milesight GS101 Gas Detector
• 1 x 12VDC Power Adapter
• 1 x Wall Mounting Bracket & Hardware
• 1 x Quick Start Guide

Product Certifications

CE FCC IP30 RoHS

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • Configuration Method
    NFC
  • Activation Method
    OTAA, ABP
  • Environment Rating
    Indoor
  • IP Rating
    IP30
  • Operating Temperature
    -10°C to 50°C
  • Enclosure Material
    PC (Polycarbonate), ABS Plastic
  • Power Consumption
    Max 5W
  • Measurement Technology
    • Semiconductor Sensor: High-sensitivity semiconductor technology optimized for Methane (CH4) detection with a 5-year life expectancy.
    • Hardware Interlock: Integrated Solenoid Valve Output (12V Pulse) and Relay Output (Max 250 VAC/10A) for automated safety response.

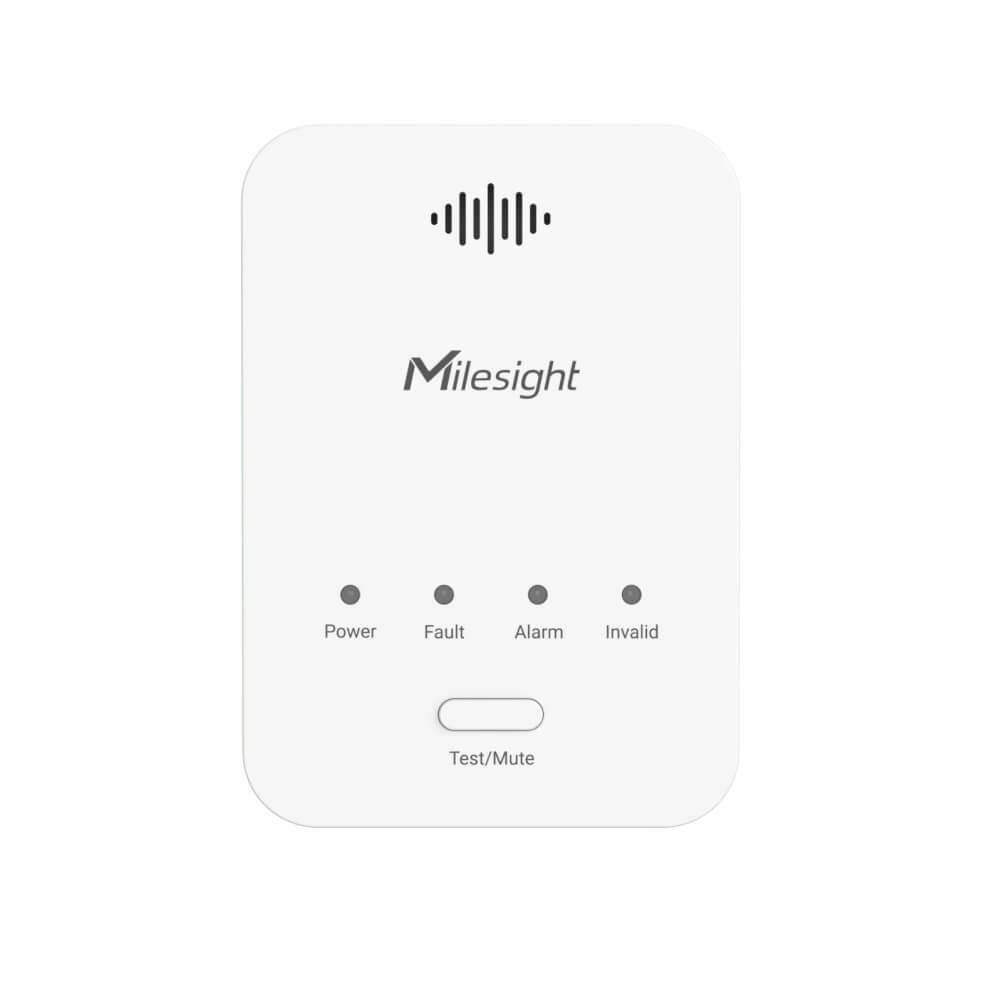

    • Local Feedback: Features a high-decibel buzzer (85dB @1m) and multiple LED indicators for Power, Fault, Alarm, and Invalid status.
    • Data Security: Local storage for 800 historical records including alarms, faults, and power status.
  • Measurement Range
    • Gas Detection: Methane (CH4) / Natural Gas.
    • Alarm Threshold: 8% LEL (Lower Explosive Limit).
    • Warm-up Time: Approximately 180 seconds upon power-on.
  • Measurement Accuracy
    • Precision Detection: Designed for high sensitivity to natural gas leaks to prevent accidents before they reach explosive levels.
    • Calibration: Factory calibrated for a 5-year maintenance-free lifespan in clear air.
  • Measurement Resolution
    • Alarm Level: Binary status (Normal/Alarm) based on the 8% LEL threshold.
    • Status Monitoring: Real-time reporting of device health, including internal fault detection and sensor validity.
  • Interfaces (I/O)
    Digital Output (Relay), Solenoid Valve Output
  • Monitoring Parameters
    CH4 (Methane)

Document Library

GS101 Datasheet

GS101 User Manual
