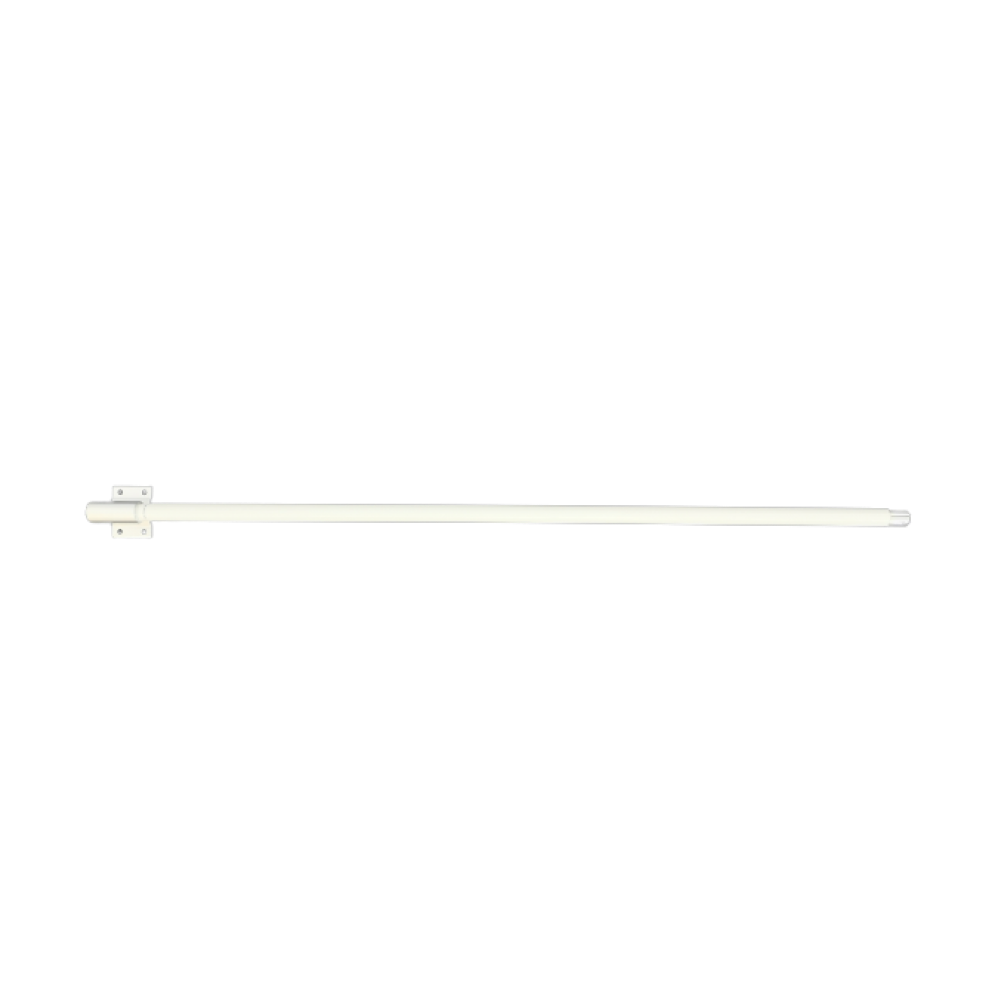

Kerlink Wirnet iBTS Omni-Directional LoRaWAN® Antenna Kit - 6 dBi (EU868)

Kerlink Wirnet iBTS Omni-Directional LoRaWAN® Antenna Kit - 6 dBi (EU868)

• Frequency range: 865MHz +/- 5MHz
• Impedance: 50 ohms
• Technology : Collinear, dipole array
• Polarization: Vertical
• Vertical Beam width: 25°
• Power handling: 50W

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

€99,00 €116,00
Availability:
In stock
Product type:

Product Description

The KERLINK Wirnet iBTS Kit - 6dBi 868Mhz Antenna is a robust and efficient solution designed to significantly enhance the communication range of your LoRaWAN Kerlink outdoor gateway. This high-quality antenna is particularly suitable for applications in smart cities, IoT networks, industrial setups, and rural communication systems where extended coverage is essential.

The antenna operates on a frequency range of 865MHz +/- 5MHz, making it ideal for LoRaWAN applications. It features a vertical polarization and a vertical beam width of 25°, ensuring focused and efficient signal distribution. The VSWR is <1.5:1 at 868MHz and <2.0:1 at 860-870MHz, indicating a low level of reflected power and high transmission efficiency.

Constructed with durability in mind, the antenna is made from fiberglass and comes with a stainless steel/aluminum mounting kit, ensuring resistance to various environmental factors. It boasts an IP66K rating, indicating high levels of protection against dust and water, making it suitable for outdoor use in challenging conditions. Additionally, the antenna can withstand wind speeds up to 150MPH, making it ideal for deployment in areas prone to strong winds.

Product Features

  • Frequency Range: 865MHz +/- 5MHz, optimized for LoRaWAN applications.
  • High Gain: 6dBi gain for extended communication range.
  • Vertical Polarization: Ensures efficient signal distribution.
  • VSWR Ratings: Low reflected power, enhancing transmission efficiency.
  • Durable Construction: Made from fiberglass with a stainless steel/aluminum mounting kit.
  • Waterproof and Wind Resistant: Rated IP66K for protection against harsh weather conditions.
  • DC Grounded: Provides additional safety and protection from surges.
  • Mounting Kit Included: Comes with tilt and swivel mast mounting brackets.

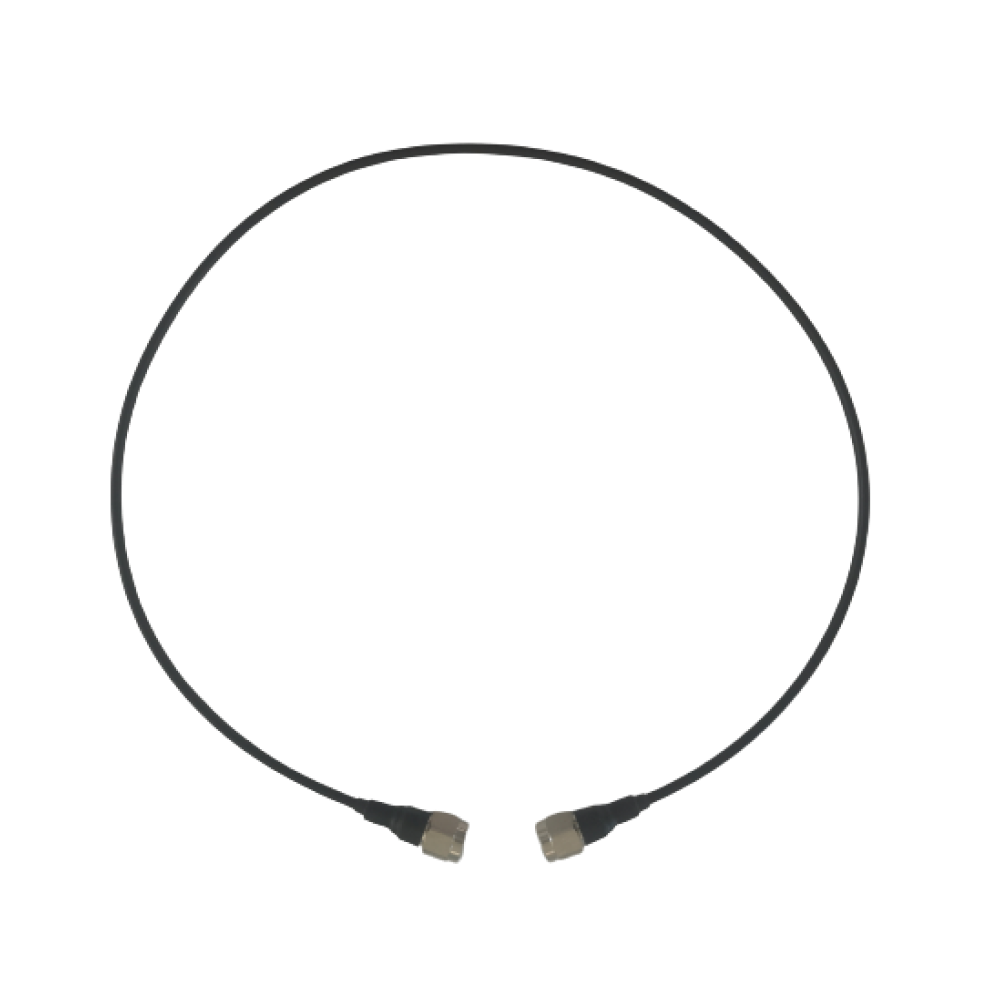

  • Coaxial Cable: Includes a 1m coaxial cable with N-male connectors for easy connectivity.
  • Operating Conditions: Suitable for temperatures ranging from -20°C to +60°C and humidity from 10% to 80% non-condensing.

The KERLINK Wirnet iBTS Kit - 6dBi 868Mhz Antenna is a powerful and resilient addition to any LoRaWAN network, offering enhanced communication range and reliability, especially in outdoor and challenging environments.

Product Downloads

Frequency range 865MHz   +/- 5MHz
Impedance 50 ohms
Technology Collinear, dipole array
VSWR <1.5 1 at 868MHz
<2 1 at 860-870MHz
Polarization Vertical
Vertical Beam width 25°
Power handling 50W
DC ground Yes
Whip material Fiberglass

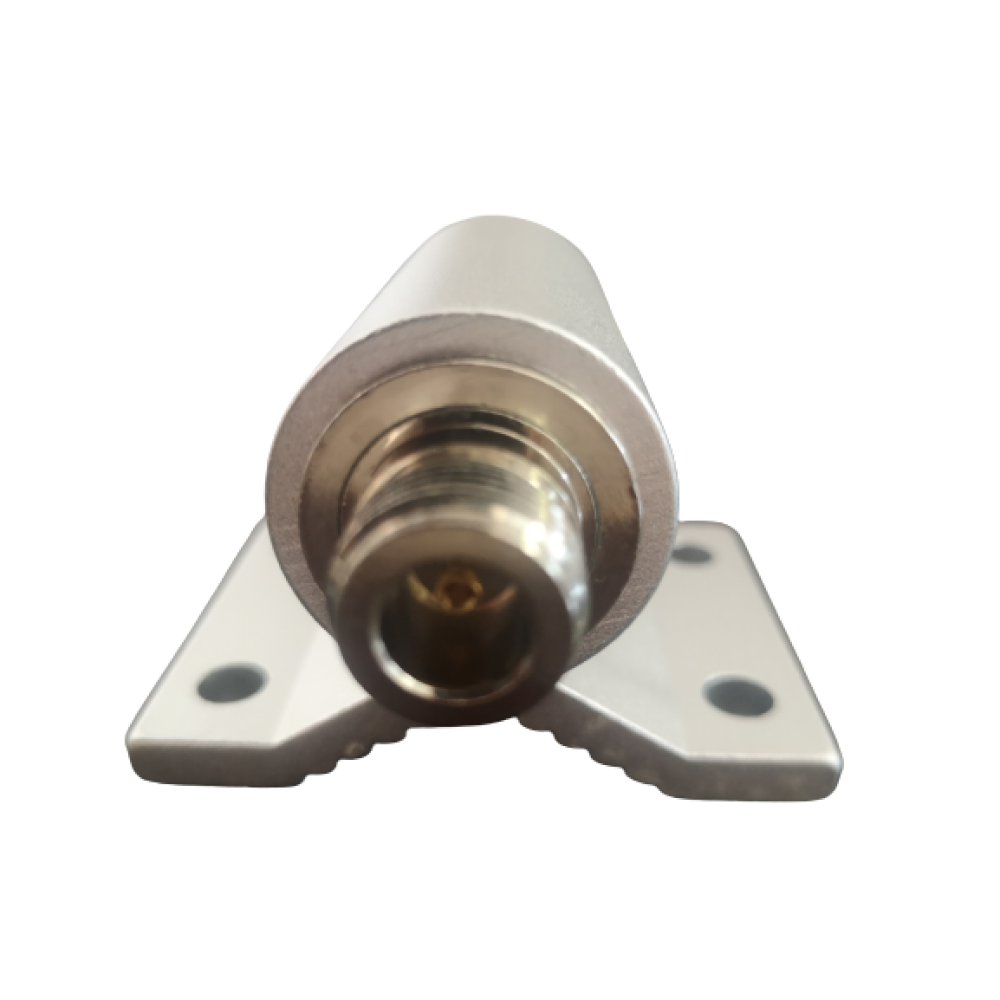

Connector N female
Length 110 cm
Weight 540g
Mounting kit Stainless steel / Aluminium
IP rating IP66K
Shock resistance IK08
Wind resistance 150MPH
Operating temperature range -20°C to +60°C
Operating humidity 10% to 80% non-condensing
Salt, fog EN 60068-2-52, severity 1
Cable length 1m
Cable connectors N-male x2
