Kit Features
- Compact and futuristic design to suit offices, classrooms and any other indoor environment
- Plug and play, set up a LoRaWAN® solution quickly within a few steps
- Support worldwide LoRaWAN® frequency plans including 470 MHz to 928 MHz
- Monitor data locally via E-ink screen or remotely via cloud webpage or mobile App
- Support local alarms via traffic light indicator and buzzer or remote email & mobile push notifications
- Customize dashboards and maps to know the indoor environment status intuitively
[SHORTDESCRIPTION]

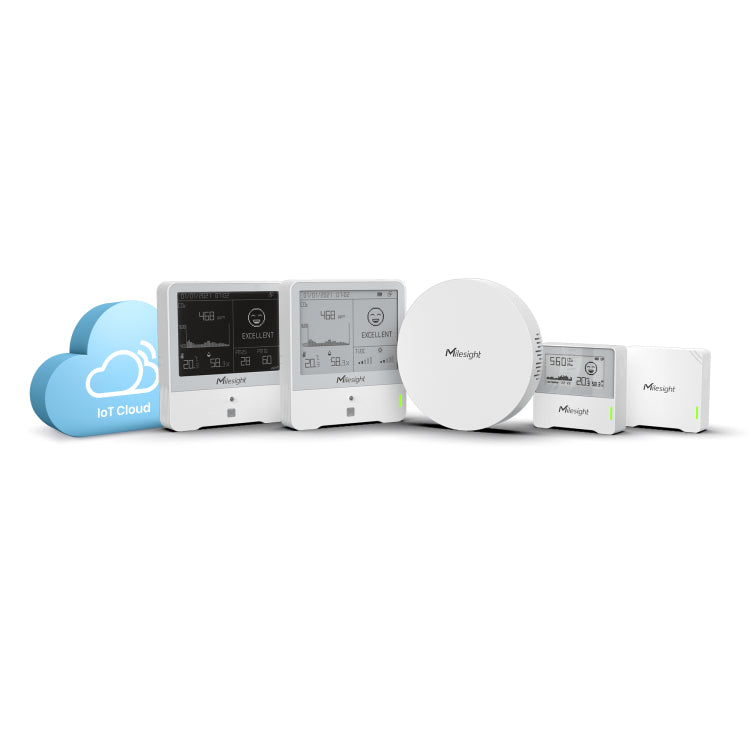

Milesight iBox IAQ Kit offers an easy-to-install LoRaWAN® indoor air quality monitoring solution including ambience monitoring sensors, gateway and cloud platform. This kit can definitely bring comfort feels to your indoor space by monitoring the temperature, humidity, concentration of CO2, and many more environment data

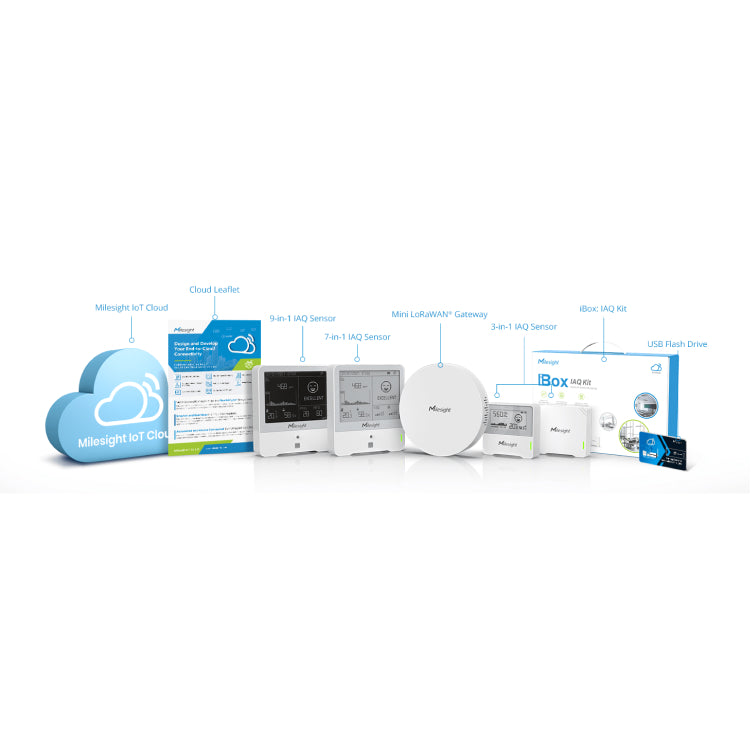

Kit Devices List
| Qty | Model | Description |
| 1 | AM103 | Indoor Ambience Monitoring IAQ Sensor |
| 1 | AM103L | Indoor Ambience Monitoring IAQ Sensor |
| 1 | AM307 | Indoor Ambience Monitoring IAQ Sensor |
| 1 | AM319 | Indoor Ambience Monitoring IAQ Sensor |
| 1 | UG63 | Mini LoRaWAN® Gateway |
| 1 Year | Milesight IoT Cloud | Pro 1 Standard Subscription |
Kit/Devices Features
| Image | Device Description | Applications | Device Applications |
 |
AM103L IAQ Sensor AM103 is a 3-in-1 ambience monitoring sensor including the measurement of temperature, humidity and CO2 concentration and can transmit to network server using LoRaWAN® technology |
|
|
 |
AM103 IAQ Sensor AM103 is a 3-in-1 ambience monitoring sensor including the measurement of temperature, humidity and CO2 concentration and can display indoor status visually on the E-ink screen in real-time and transmit to network server using LoRaWAN® technology. |
|
|
 |
AM307 IAQ Sensor AM307 is a 7-in-1 ambience monitoring sensor including the measurement of temperature, humidity, CO2 concentration, TVOC, pressure, light, motion, etc. It can show visually with differ modes on the E-ink screen in real-time and transmit to network server using LoRaWAN® technology. |
|
|
 |
AM319 IAQ Sensor AM319 is a 9-in-1 ambience monitoring sensor including the measurement of temperature, humidity, CO2 concentration, TVOC, pressure, light, motion, PM2.5&PM10, HCHO/O3, etc. It can show visually with differ modes on the E-ink screen in real-time and transmit to network server using LoRaWAN® technology. |
|
|
 |

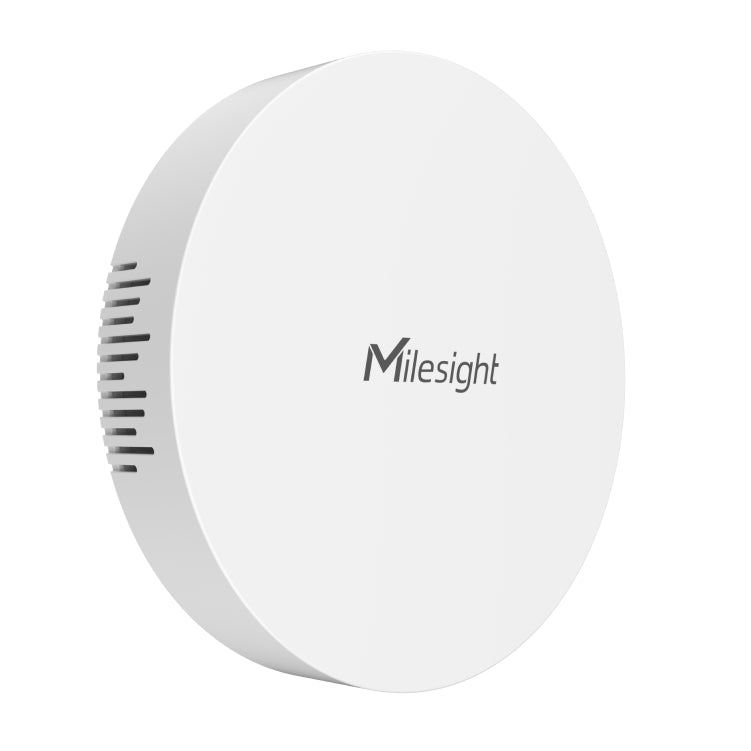

UG63 Mini LoRaWAN® Gateway UG63 mini indoor LoRaWAN® gateway provides stable connectivity between sensors and mainstream network servers or Milesight IoT cloud. |
|
|
 |

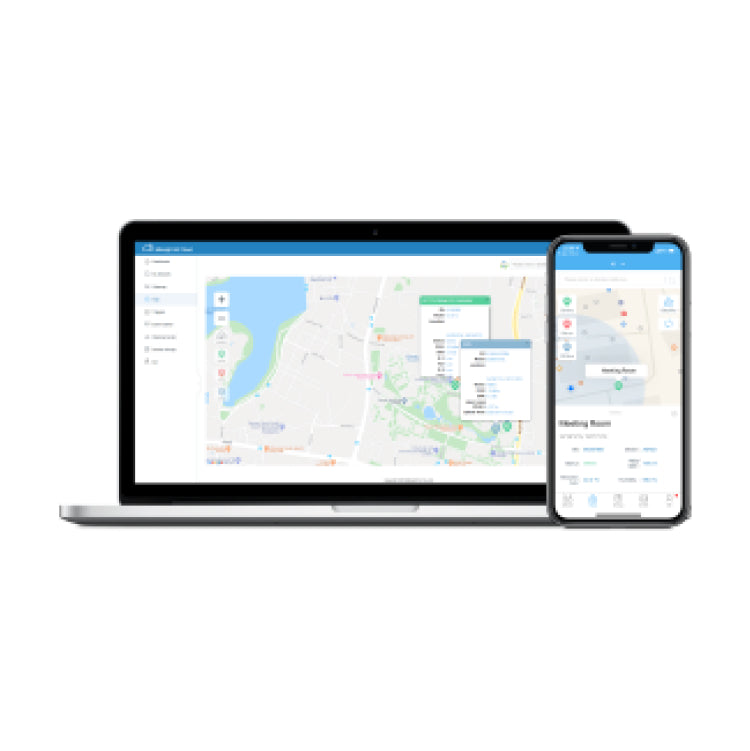

Milesight IoT Cloud Milesight IoT Cloud provides unparalleled levels of vertical integration with Milesight LoRaWAN® gateways and sensors. It visualizes field data and enables user to monitor and control remote assets on an intuitive dashboard |
|
Products Specification
| Model | AM319 | AM307 | AM103 | AM103L |
| Hardware Interfaces | ||||
| Screen | 4.2 Inch E-ink | 2.13 Inch E-Ink | - | |
| LED | 1 × Traffic Light Status Indicator | |||
| Buzzer | Support | - | - | |
| Configuration | NFC or USB Type- C Port | NFC or USB Type-C Port | NFC | NFC |
| Sensors | ||||
| Temperature | ✓ | ✓ | ✓ | ✓ |
| Humidity | ✓ | ✓ | ✓ | ✓ |
| CO2 | ✓ | ✓ | ✓ | ✓ |
| PIR | ✓ | ✓ | - | - |
| Light | ✓ | ✓ | - | - |
| TVOC | ✓ | ✓ | - | - |
| Barometric Pressure | ✓ | ✓- | - | - |
| PM 2.5 & PM 10 | ✓ | - | - | - |
| HCHO/O3 | Alternative | - | - | - |
| Physical Characteristics | ||||
| Power Supply | 5V/1A by Type-C Port | 4 × 2700 mAh ER14505 Li-SOCl2 Batteries or Type-C Port | 2 × 2700 mAh ER14505 Li-SOCl2 Batteries | 2 × 2700mAhER14505Li-SOCl2Batteries |
| Battery Life | - | Up to 3 Years | Up to 3 Years | Up to 4 Years |
| Dimension | 100.8 × 114 × 22 mm | 68 × 65 × 20.5 mm | ||
| Operating Temperature | -20 to +60 °C (E-Ink Screen: 0 to +40 °C) | |||
| Ingress Protection | IP30 | |||
| Installation | Wall Mounting | |||
Product Downloads
