Mileisght iBox CoWork LoRaWAN® Starter Kit is the perfect way to kick start your Smart Work Place/Building IoT Solution. It offers a variety of the IoT devices/sensors, the LoRaWAN connectivity (Gateway) and the required online platform (Milesight IoT Cloud). The Kit can transform your environment into a smart, interconnected and comfortable space.
[SHORTDESCRIPTION]

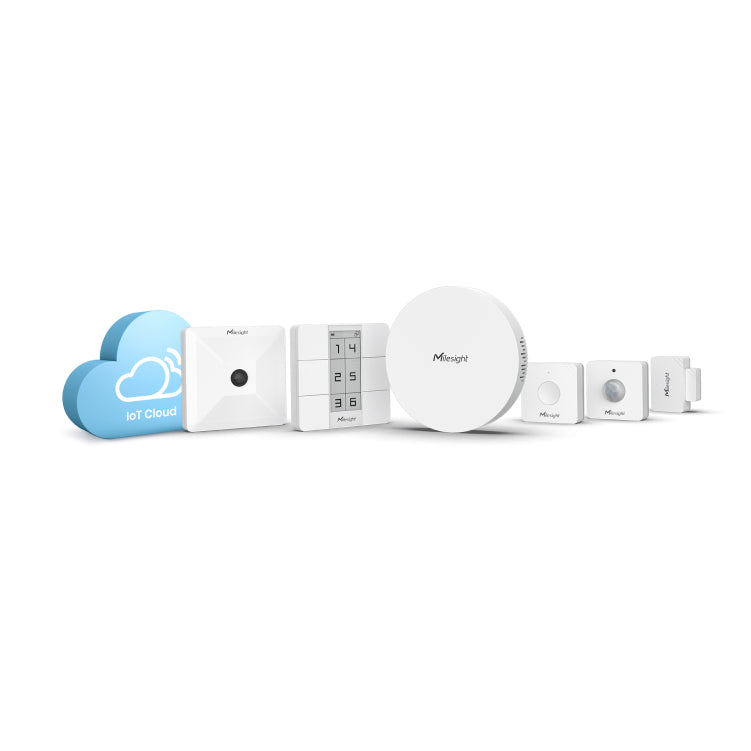

Kit Devices List
| Qty | Model | Description |
| 1 | WS101 | Smart Button |
| 1 | WS202 | PIR & Light Sensor |
| 1 | WS301 | Magnetic Contact Switch |
| 1 | WS156 | Smart Scene Panel |
| 1 | VS121 | AI Workplace Sensor |
| 1 | UG63 | Mini LoRaWAN® Gateway |
| 1 Year | Milesight IoT Cloud | Pro 1 Standard Subscription |
Kit/Devices Features
| Image | Device Description | Device Applications |
 |

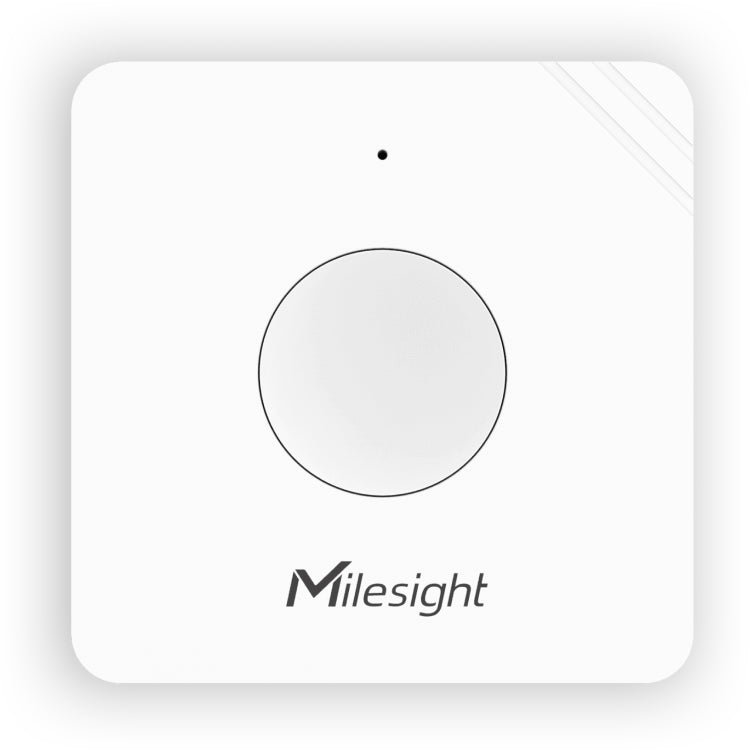

WS101 Smart Button WS101 smart button sensor supports different alerts depending on various press actions and can be used in emergency alarm system, remote control or other remote push button applications |
|
 |

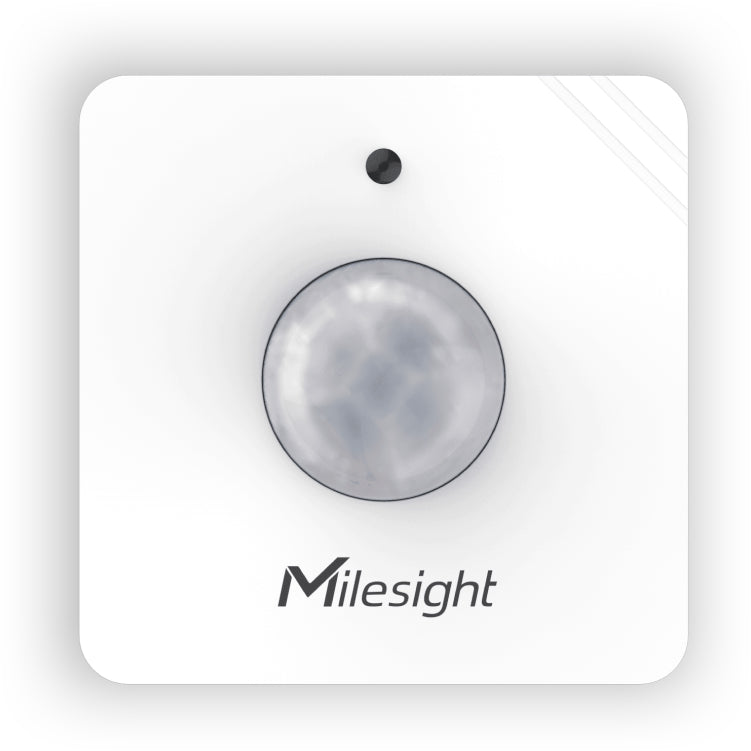

WS202 PIR & Light Sensor WS202 sensor detects the movement based on passive infrared technology and also equips with light sensor which can link PIR detection so as to control the lights to turn on/off automatically when people are coming or leaving. |
|
 |

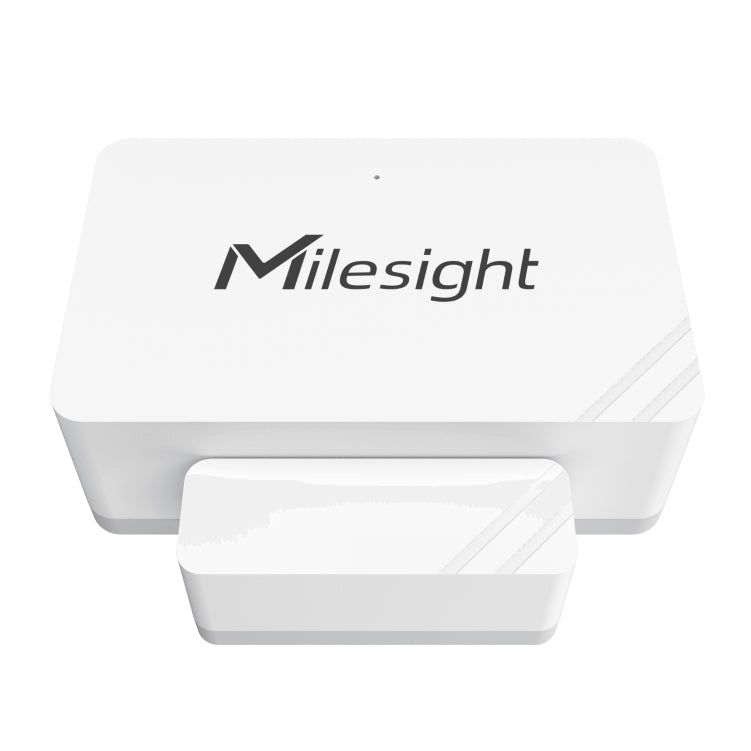

WS301 Magnetic Contact Switch WS301 sensor uses a magnet to detect the open/close status of door/window or something has been moved. It’s wire-free and can be easily mounted on the doors, panes, cabinets, etc. |
|
 |

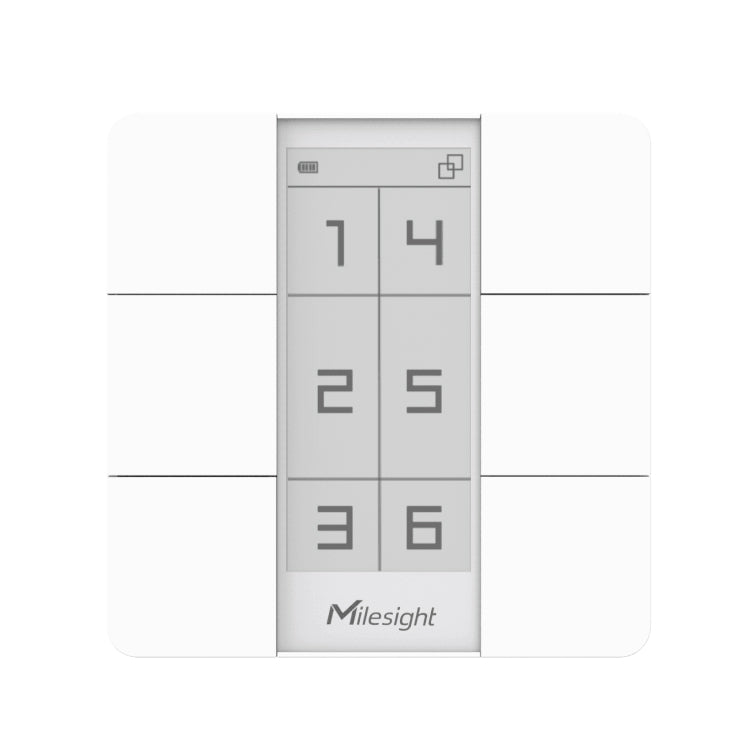

WS156 Smart Scene Panel WS156 has 6 buttons to define 6 scenes and each scene can consist of multiple device controls. Besides, it equips a programmable E-ink screen which can customize the display content depending on scenarios. |
|
 |

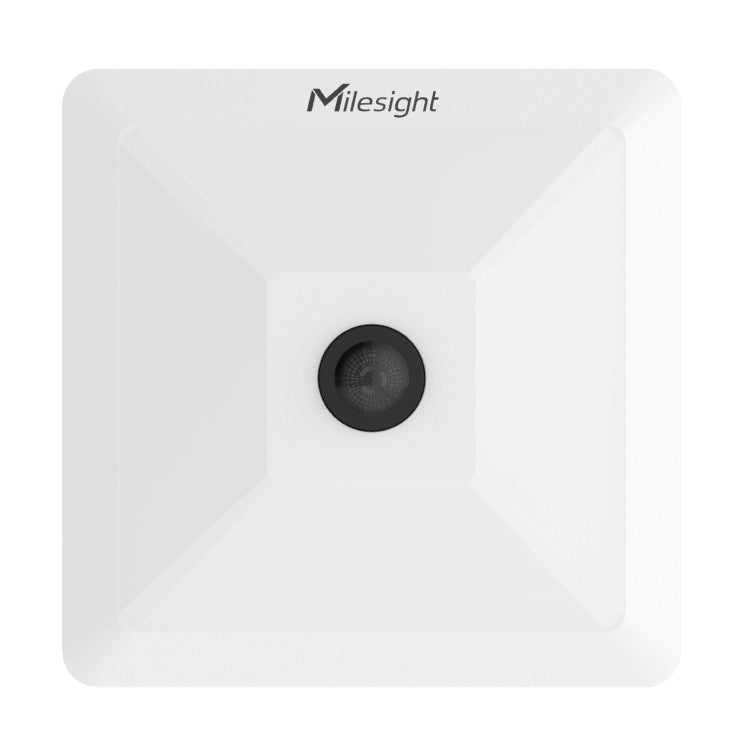

VS121 AI Workplace Sensor VS121 counts people based on AI technology and can monitor the occupancy and utilization in workplaces. |
|
 |

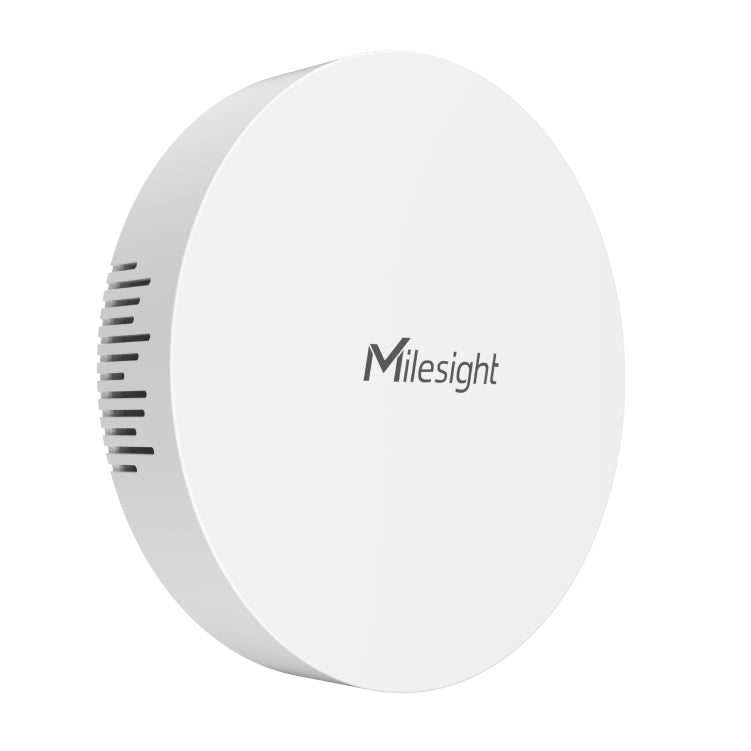

UG63 Mini LoRaWAN® Gateway UG63 mini indoor LoRaWAN® gateway provides stable connectivity between sensors and mainstream network servers or Milesight IoT cloud. |
|
 |

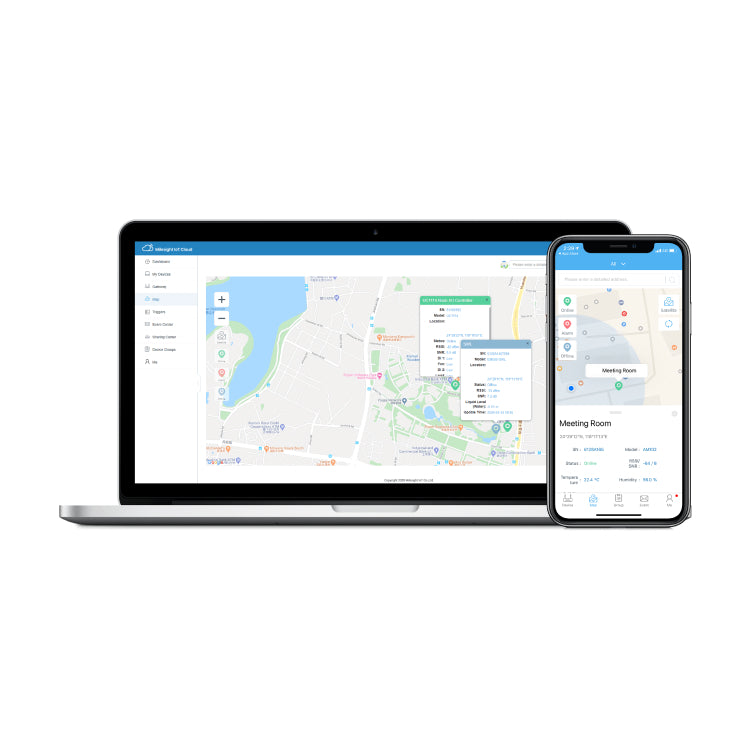

Milesight IoT Cloud Milesight IoT Cloud provides unparalleled levels of vertical integration with Milesight LoRaWAN® gateways and sensors. It visualizes field data and enables user to monitor and control remote assets on an intuitive dashboard |
|
Products Specification
| Model | WS101 | WS202 | WS301 | WS156 | VS121 |
| Sensors | |||||
| Sensor Type | Push Button | Movement & Light Status | Magnetic Contact Switch | 6 Scenes Controls | People Counting |
| Detection Range | - | 120 ° H, 100 ° V, Max 8 m | 15-20 mm Distance | - | 190 ° H, 112° V, 3mHeight |
| LoRa D2D | ✓ | ✓ | ✓ | ✓ | ✓ |
| Hardware Interfaces | |||||
| Screen | - | - | - | 2.9 Inch E-ink | - |
| LED | ✓ | ✓ | ✓ | ✓ | ✓ |
| Buzzer | ✓ | - | - | - | - |
| Reset Button | ✓ | ✓- | ✓ | ✓ | ✓ |
| Tamper Button | - | - | ✓ | - | - |
| Configuration | NFC | NFC | NFC | NFC | NFC |
| Physical Characteristics | |||||
| Power Supply | 1 × 1650 mAh ER14335 Li-SOCl2 Battery | 1 × 1200 mAh ER14250 Li-SOCl2 | 2 × 590 mAh CR2450 Lithium | 5V/1Aby Type-C | |
| Battery Life | Over 3 Years | Over 4 Years | Over 5 Years | Over 3 Years | - |
| Dimension | 50 × 50 × 18 mm | 50 × 50 × 23.8 mm |
|
86 × 86 × 14 mm | 85 × 85 × 20mm |
| Operating Temperature | 30 to +60 °C | -30 to +60 °C | -20 to +60 °C | -10 to +50 °C (E-Ink Screen: 0 to +50 °C) | -5 to +55°C |
| Ingress Protection | IP30 | IP30 | IP20 | IP30 | IP20 |
| Installation | On Flat Surfaces with Screws or 3M Tapes | Ceiling Mount | |||
Product Downloads
- Datasheet
- Quick Start Guide
- Collection overview
- Milesight IoT Cloud Guide
