Product Description
The Milesight UC100 IoT Controller is a highly efficient and sophisticated device designed for modern IoT applications, particularly in indoor environments like smart metering, smart cities, and building automation. As an IoT controller, its primary function is to facilitate remote control and data acquisition from Modbus RS485 devices via LoRaWAN® networks. This device stands out for its capability to read up to 16 Modbus RTU devices, making it an integral component in systems where multiple devices need to be monitored and managed simultaneously.
One of the key features of the UC100 is its role as a Modbus to LoRaWAN® converter. It supports Modbus transparent transmission, allowing seamless communication between the server and RS485 devices. This feature ensures that data is transmitted reliably and efficiently across the network.
Furthermore, the UC100 is known for its autonomous functionality. It supports multiple trigger conditions and actions, allowing it to work independently even in situations where the network connection is lost. This ensures continuous operation and reliability in critical monitoring and control applications.
Integration with the Milesight IoT Cloud solution enhances the UC100's capabilities, enabling users to monitor and control remote assets easily via a web server or mobile app. This cloud-based management system offers a user-friendly interface and real-time data access, simplifying the process of managing extensive IoT networks.
Product Features
- Support for 16 Modbus Registers: Can connect and read up to 16 Modbus devices, making it ideal for complex systems.
- Ultra-Wide-Distance Transmission: Offers a line of sight transmission range of up to 15 km.
- Multiple Triggering Conditions and Actions: Ensures flexibility and autonomy in operation, especially in network downtime.
- Embedded Watchdog: Enhances device working stability, ensuring continuous and reliable operation.
- Milesight LoRa D2D Protocol Support: Enables ultra-low latency and direct control without a LoRaWAN® gateway.
- Standard LoRaWAN® Compliance: Compatible with standard LoRaWAN® gateways and network servers for seamless integration.
- Milesight IoT Cloud Solution: Facilitates quick and easy management, monitoring, and control of remote assets via a web server or mobile app.
- Ideal for Indoor Applications: Widely used in smart metering, smart cities, and building automation.
The UC100 IoT Controller by Milesight is a versatile and powerful tool for modern IoT infrastructures, offering advanced features for efficient remote control and data acquisition in a range of indoor applications.
Product Downloads
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, LoRa D2D |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Frequency | EU868 |
| Tx Power | 16dBm (868 MHz) |
| Sensitivity | -137dBm @300bps |
| Work Mode | OTAA/ABP Class C |
| Data Interfaces | |

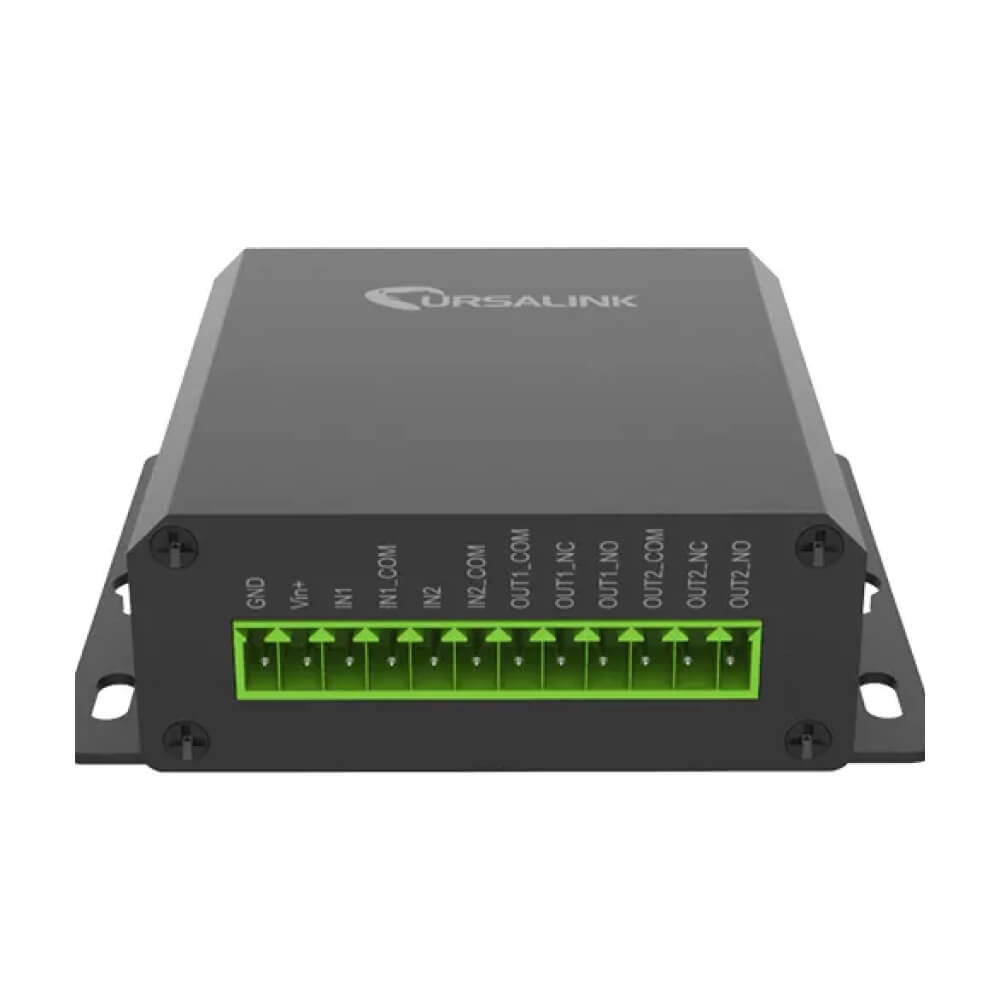

| Interface Type | 3.5 mm Terminal Block |
| IO | |
| Digital Input | 2 x Opto-isolated Digital Inputs, 3-24VDC (pulse counter support) |
| Digital Output | 2 x SPDT Relay Contact Rating: 3A@DC Max: 30 V or AC Max: 250 V |
| Others | |
| Ports | 2 × PT100 RTD Input |
| Input Connections | 2, 3-wire |
| Resolution | 12 bit |
| Range | -200°C ~ 800°C |
| Others | |
| Configuration Port | 1 × Micro USB |
| LED Indicators | 1 × System, 1 × ACT |
| Built-in | Watchdog, Timer |
| Physical Characteristics | |
| Power Connector | 3.5 mm Terminal Block |
| Power Supply | 5-24 VDC |
| Power Consumption | ≤0.24W |
| Ingress Protection | IP30 |
| Operating Temperature | 40°C to +70°C (-40℉ to +158℉) |
| Relative Humidity | 0% ~ 95% (non-condensing) at 25°C/77℉ |
| Dimensions | 79 × 60 × 24 mm (3.11 × 2.36 × 0.94 in) |
| Installation | Desktop, Wall mounting |
| Approvals | |
| Regulatory | CE, FCC, RoHS |
