Seeed Studio | SKU: 314990619_0.5-4.5V_Water (0-4m - 4m L)

Seeed Studio Industrial Submersible Liquid Level Transmitter | 0.5-4.5V & 4-20mA Versions

€135,00

Shipping calculated at checkout.

A professional-grade submersible pressure transducer designed for high-accuracy liquid level monitoring in tanks and industrial wells.

• Rugged Build: 304 stainless steel with IP68 waterproof rating.
• Dual Output: Available in 0.5-4.5V or 4-20mA industrial signals.
• Anti-Interference: Built-in circuit for stable signal transmission.

Data Output Protocol

Measuring Range

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

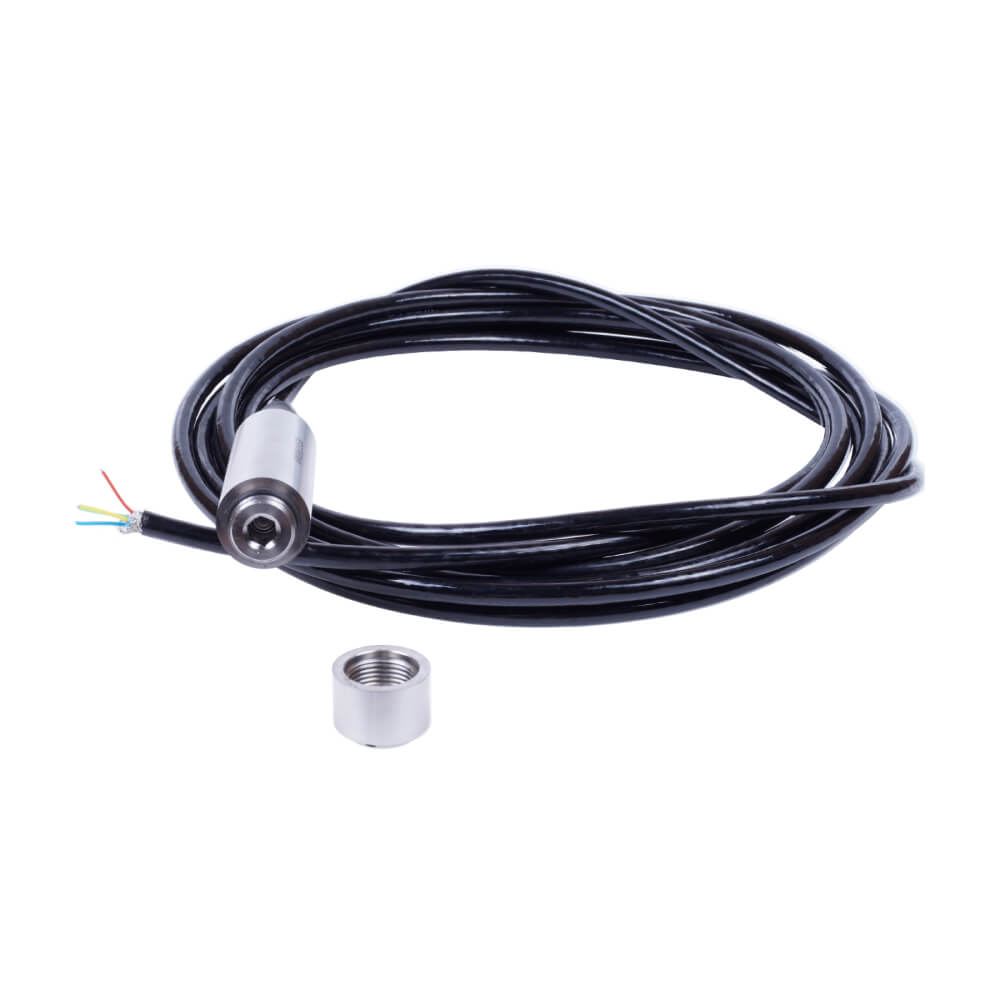

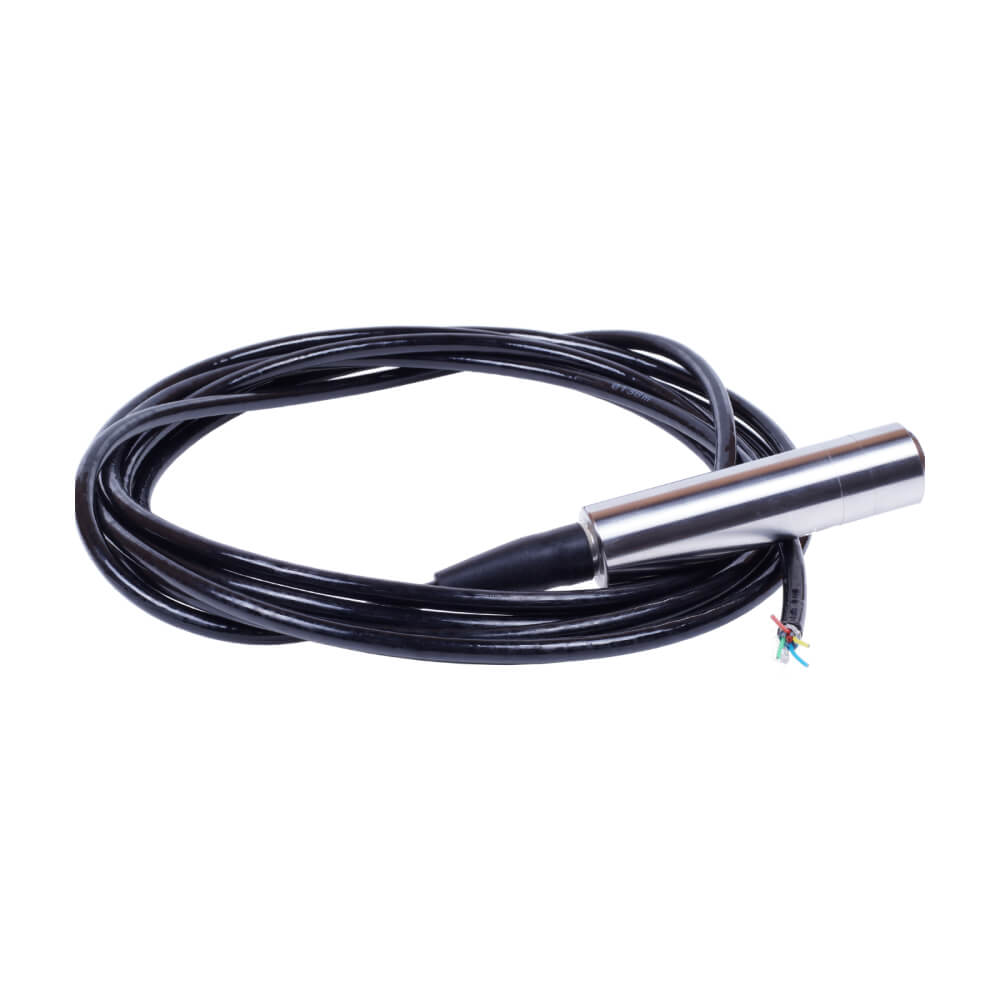

The Industrial Submersible Liquid Level Transmitter is a high-precision pressure sensing solution engineered for continuous monitoring of water and other non-corrosive liquids. By measuring the hydrostatic pressure at the bottom of a container, it provides a stable and linear signal proportional to the fluid depth. This sensor is available in two professional output configurations: a 0.5 - 4.5V voltage version for easy integration with standard microcontrollers and a 4 - 20mA current loop version for long-distance, interference-free industrial deployments.

Advanced Sensing & Signal Stability

Industrial Grade Durability Constructed with 304 stainless steel and a fully sealed IP68 structure to resist moisture, corrosion, and pressure in deep-water environments.

Versatile Output Integration Choose between the high-sensitivity 4-20mA signal for remote PLC monitoring or the 0.5-4.5V output for direct analog-to-digital conversion.

Industrial Monitoring Scenarios

• Reservoir & Tank Monitoring: Accurate tracking of water levels in fire tanks, reservoirs, and industrial storage.

• Wastewater Treatment: Reliable level sensing for sumps and non-corrosive wastewater management systems.

• Smart Agriculture: Monitor irrigation pond levels and deep-well water availability for automated pumping control.

What is in the Box?

• 1 x Submersible Liquid Level Sensor (Selected Output)

• 1 x Integrated Multi-core Cable

Product Certifications

IP68 CE RoHS

Specifications

Primary Communication Protocol

Analog
Activation Method

Plug & Play
Environment Rating

Outdoor, Industrial
IP Rating

IP68
Operating Temperature

-40°C to 80°C
Enclosure Material

Stainless Steel
Power Consumption

Low (Analog Signal)
Measurement Technology
- Piezoresistive Sensing: Features a high-performance silicon piezoresistive core for sensitive and stable pressure measurement.
- Dual Output Options: Available in 0.5~4.5V (standard voltage) and 4~20mA (industrial current loop) versions for compatibility with PLCs and data loggers.

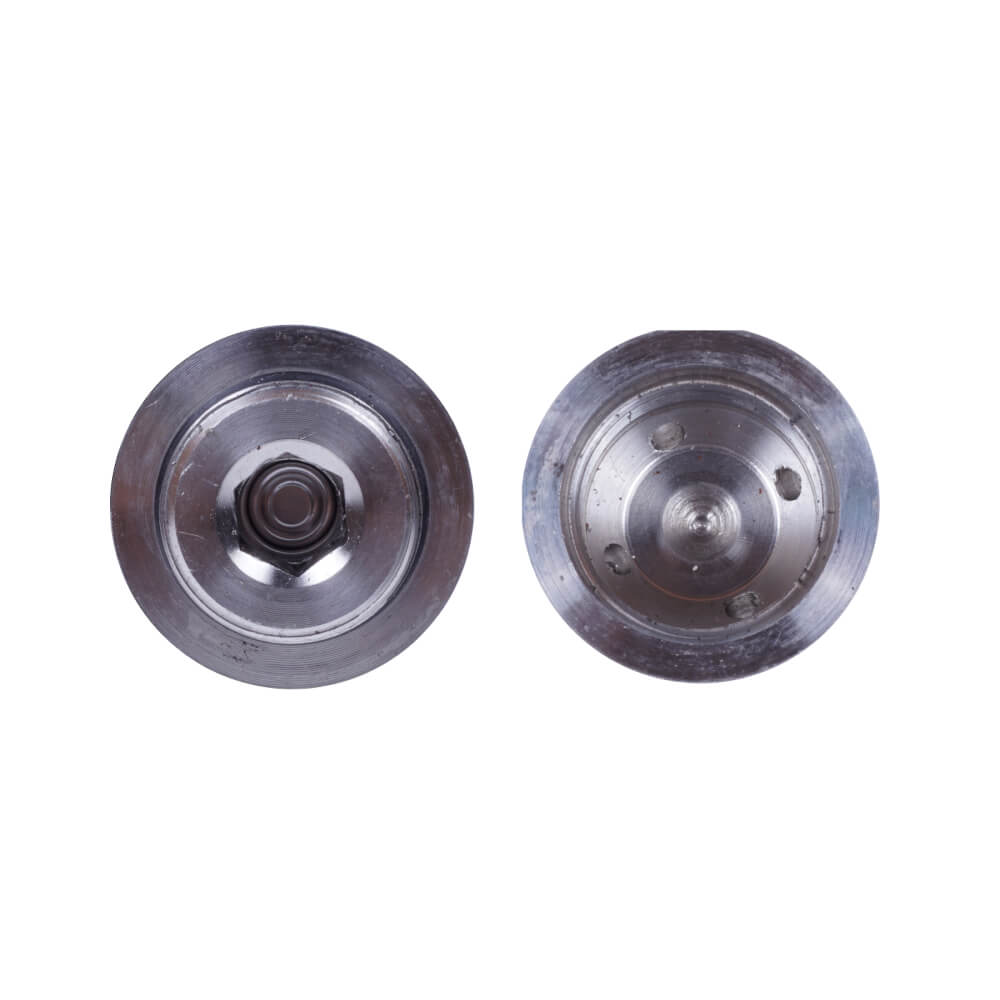

- Anti-Blocking Design: Specialized probe structure that is easy to clean and prevents debris from affecting sensor accuracy.

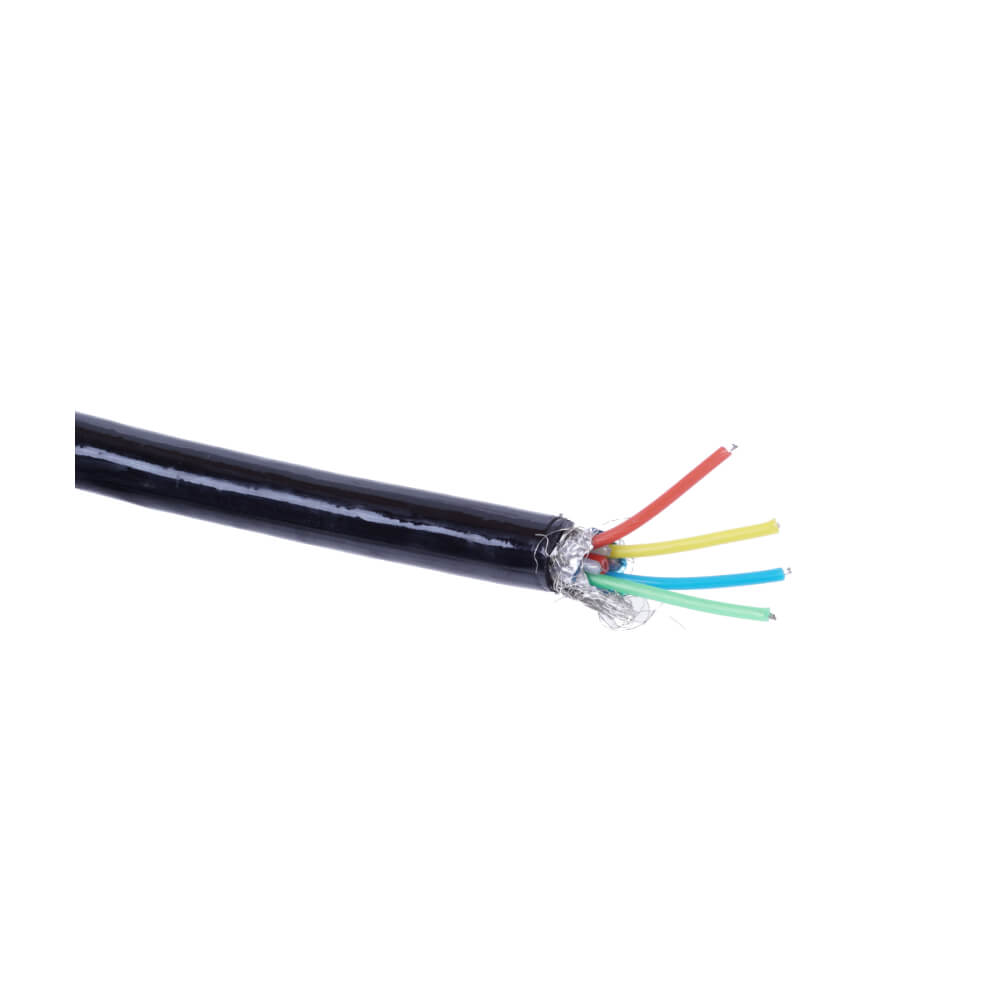

- Rugged Construction: Stainless steel sealing with IP68 waterproof rating and special rubber-insulated cables for long-term submersion.
Measurement Range
- Level Measurement: 0 to 5 meters.
- Cable Length: 5.3 meters (Standard).
- Overload Capacity: 200% Full Scale (F.S).
- Medium Compatibility: Slightly corrosive liquids, including water and edible oils.
Measurement Accuracy
- Static Accuracy: ±0.25% Full Scale (F.S).
- Thermal Stability: ±0.03% F.S/°C for both zero and sensitivity temperature drift.
- Long-term Stability: ≤ 0.2% F.S per year.
- Response Time: 5ms (up to 90% F.S).
Measurement Resolution
- Voltage Resolution (0.5~4.5V Version): Continuous analog output mapped to 0-5m.
- Current Resolution (4~20mA Version): Continuous analog loop signal optimized for long-distance transmission.
- Sensitivity: Designed for high-resolution tracking of slight level fluctuations in tank and reservoir applications.
Interfaces (I/O)

3-Wire (Voltage), 2-Wire (Current)
Monitoring Parameters

Liquid Level (Pressure)
