Milesight SP12-125-150 | DS18B20 Independent Calibration Temperature Probe
The Milesight SP12-125-150 is a rugged, individually-calibrated temperature probe.
- Wide temperature range: −40 to +125 °C, ±0.5 °C, 0.1 °C resolution
- Sensing: DS18B20, individually calibrated, IP67 SS316 probe
- Drop-in fit: TS201, TS602, TS301 and TS302, 1.5 m cable
Milesight SP12-125-150 | DS18B20 Independent Calibration Temperature Probe is backordered and will ship as soon as it is back in stock.
VAT & Business Purchases
VAT & Business Purchases
Prices include VAT at the rate of your EU delivery country, so the price shown is the price you pay. EU businesses with a valid VAT number can buy VAT-free: enter your company name and VAT number at checkout and VAT is removed under the intra-community reverse-charge rules. Orders delivered within Cyprus always include Cyprus VAT.
Secure Payment & Warranty
Secure Payment & Warranty
- Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
- B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
- Warranty & Support: Consumer purchases are covered by the 2-year legal guarantee of conformity, and manufacturer warranty terms apply per brand. Our engineering team at shopioT provides technical support.
Delivery and Shipping
Delivery and Shipping
Tracked delivery within Cyprus by ACS Courier, and to all EU member states, the United Kingdom and Switzerland by FedEx International Priority. Orders ship from our warehouse in Nicosia, Cyprus, typically within 1–3 business days. Shipping cost is calculated at checkout by destination and parcel weight. See our Shipping Policy for rates and delivery times.
Milesight SP12-125-150 | DS18B20 Independent Calibration Temperatur...
Milesight SP12-125-150 | DS18B20 Independent Calibration Temperature Probe is backordered and will ship as soon as it is back in stock.
Description
Description

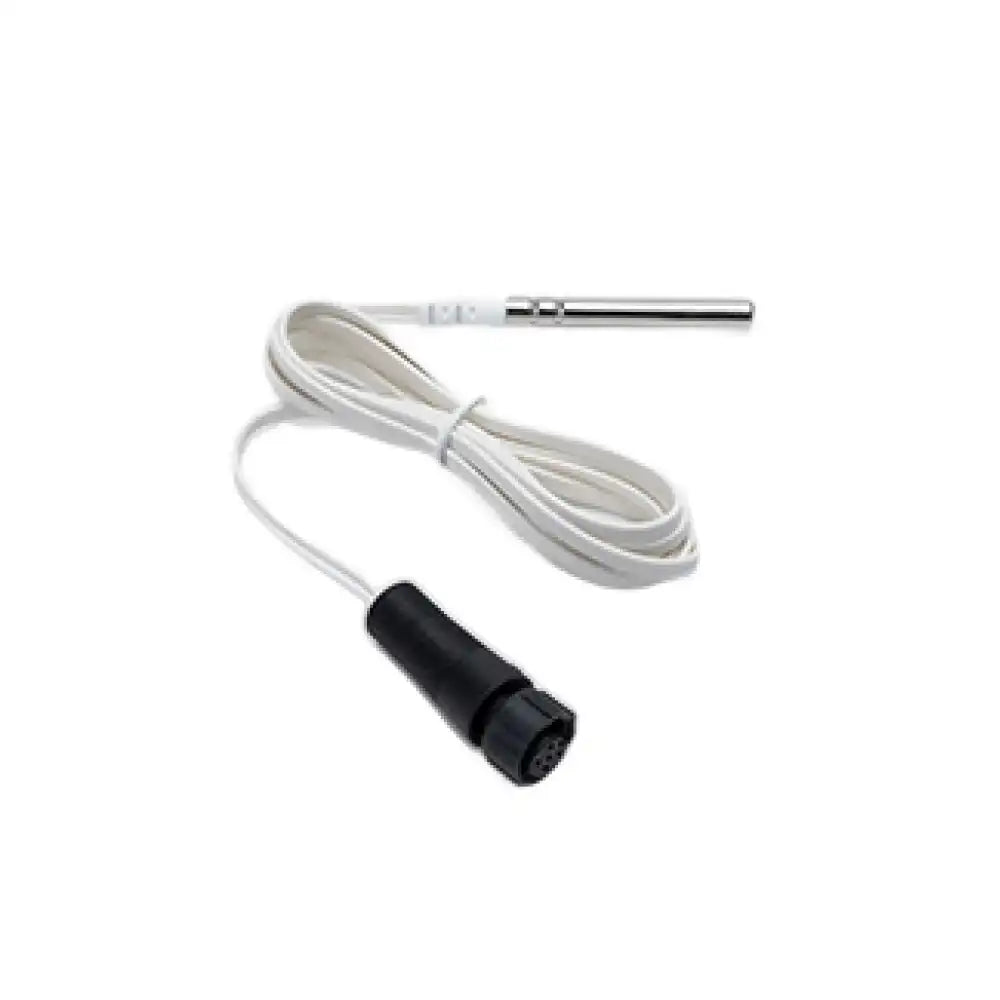

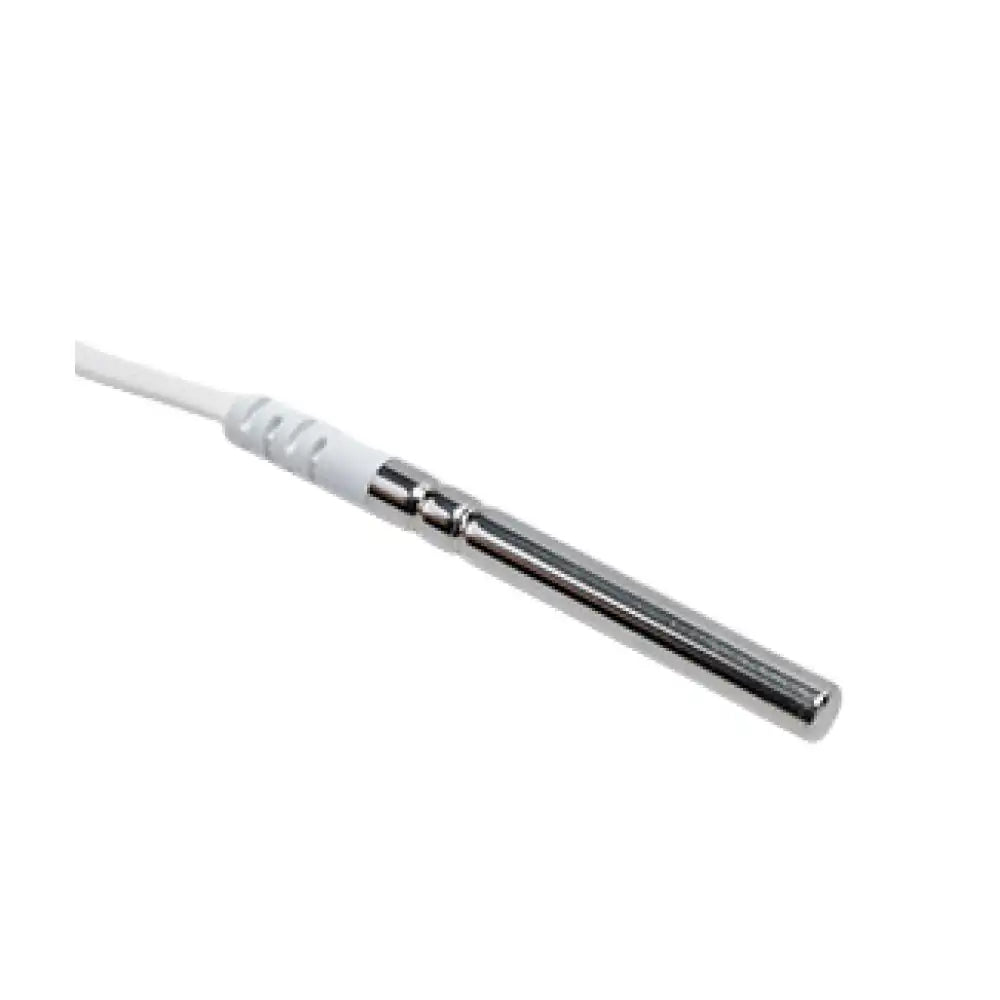

The Milesight SP12-125-150 is a robust external DS18B20 digital temperature probe designed for independent calibration applications. Featuring a straight-tube 316 stainless steel probe (IP67-rated, Φ6×50mm) and a 1.5m PVC cable rated across the full operating range of -40°C to +125°C, it is suited for direct contact temperature measurement in cold chain logistics, pharmaceutical storage, food processing, and industrial environments. Its detachable design enables field replacement and independent sensor calibration without replacing the host device.
Key Features
Compatibility

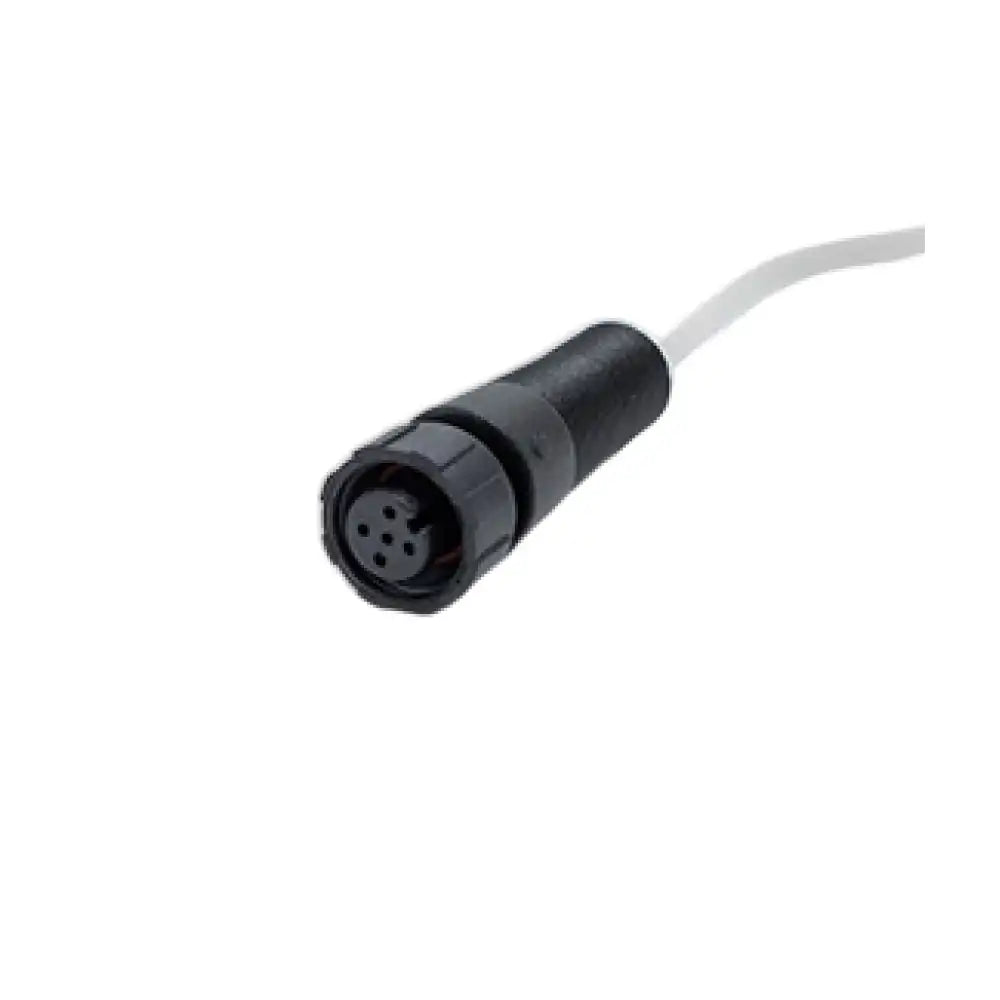

The SP12-125-150 connects via the 5-pin M12 A-Coded Male Connector and is designed for use with the following Milesight devices: TS201, TS602, TS301 and TS302. Ensure the target device is configured for an external DS18B20 probe before ordering.
Specifications
Specifications
-
Interfaces (I/O)M12/F 5-pin Connector
-
Monitoring ParametersTemperature
-
Measurement Technology
-
Measurement Range
-
Measurement Accuracy
-
Dimensions
-
Enclosure MaterialStainless Steel
-
IP RatingIP67
-
Environment RatingOutdoor, Industrial
-
Operating Temperature-40°C to +125°C
-
CertificationsCE
-
Warranty2 Years
