Milesight  |  SKU: TS301-868M

Milesight TS301 | LoRaWAN Temperature Sensor with LCD Display

Price incl. 19% VAT
€92,00
Price excl. VAT
€77,31
Shipping calculated at checkout. Shipping policy

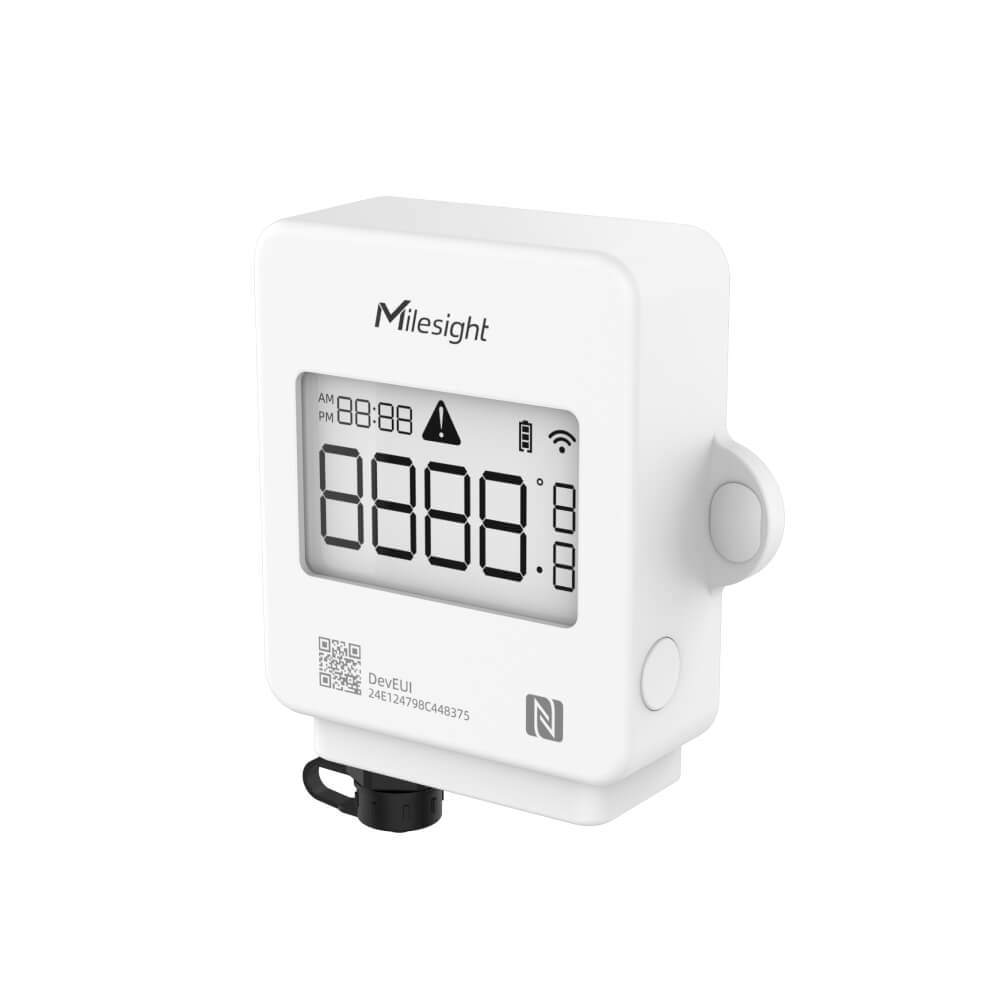

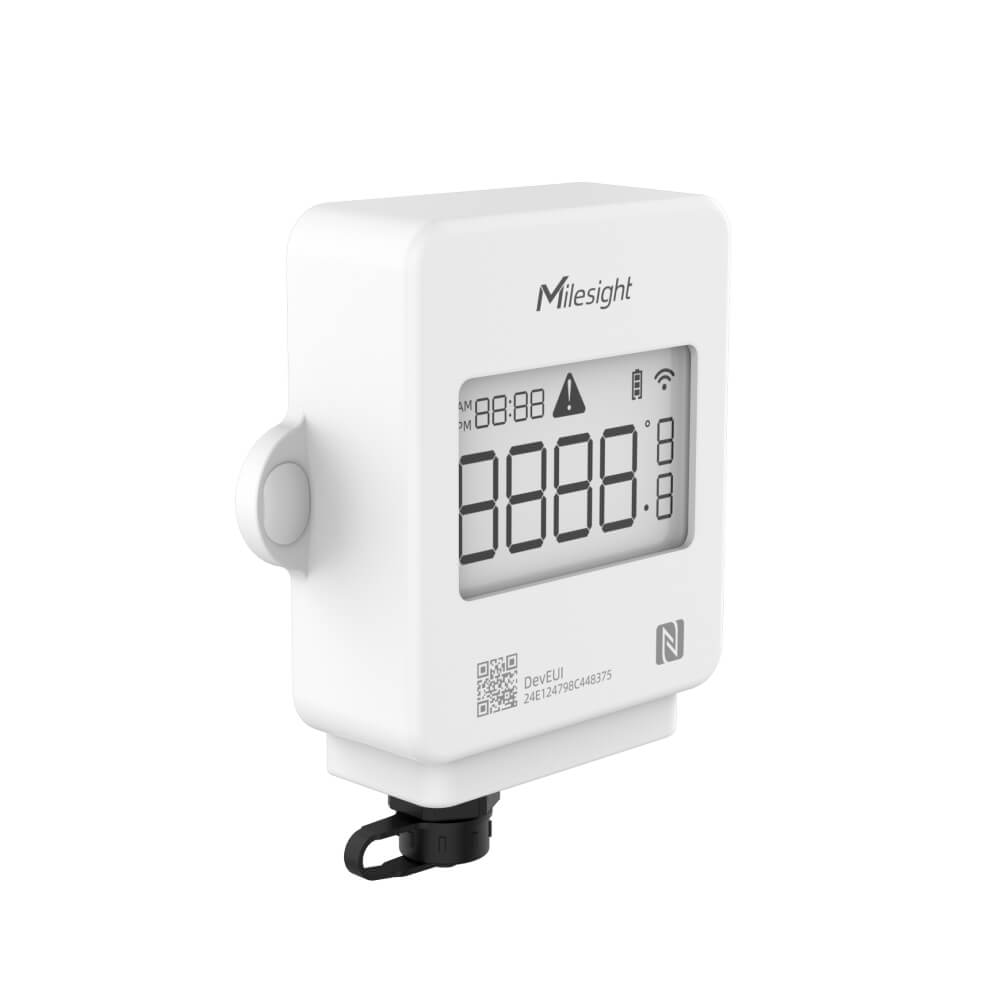

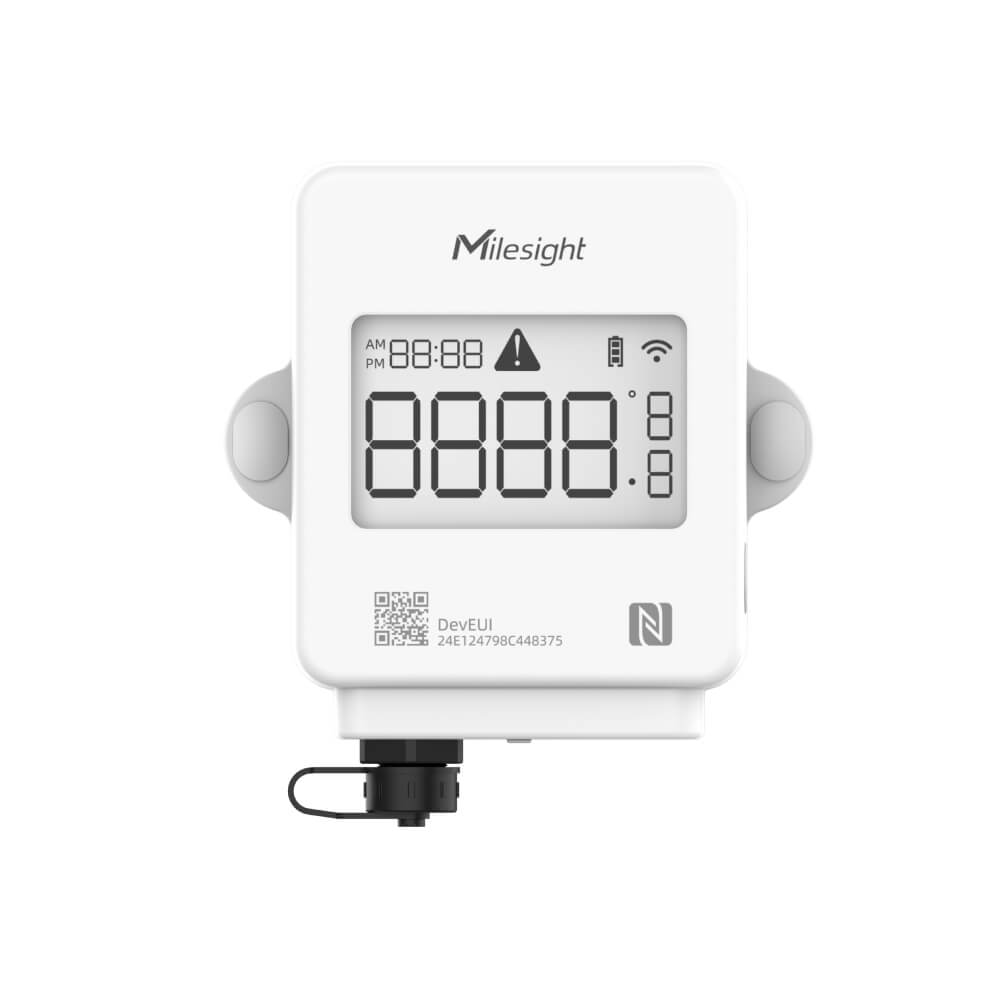

The Milesight TS301 is a LoRaWAN temperature sensor with a local LCD and external probe.

  • LCD display: shows the current temperature on site
  • D2D: device-to-device control without a gateway
  • Data logging: stores readings for audit records

VAT & Business Purchases

Prices include VAT at the rate of your EU delivery country, so the price shown is the price you pay. EU businesses with a valid VAT number can buy VAT-free: enter your company name and VAT number at checkout and VAT is removed under the intra-community reverse-charge rules. Orders delivered within Cyprus always include Cyprus VAT.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Warranty & Support: Consumer purchases are covered by the 2-year legal guarantee of conformity, and manufacturer warranty terms apply per brand. Our engineering team at shopioT provides technical support.

Delivery and Shipping

Tracked delivery within Cyprus by ACS Courier, and to all EU member states, the United Kingdom and Switzerland by FedEx International Priority. Orders ship from our warehouse in Nicosia, Cyprus, typically within 1–3 business days. Shipping cost is calculated at checkout by destination and parcel weight. See our Shipping Policy for rates and delivery times.

EU business? Enter your company name and a valid EU VAT number at checkout to remove VAT (reverse charge).

Description

The Milesight TS301 is a high-performance LoRaWAN Temperature Sensor designed for critical monitoring in cold chain, food processing, and medical storage. It stands out with a built-in LCD display, providing on-site personnel with immediate access to temperature readings without checking a dashboard. The TS301 supports a variety of external PT100 probes, enabling accurate measurement in extreme environments. Fully compatible with the Milesight D2D protocol, it can act as a controller to trigger local alarms or ventilation systems in under one second. With support for massive data storage (up to 10,000 sets) and retransmission, it ensures absolute data integrity for regulatory compliance.

Industrial Temperature Intelligence

Milesight D2D Support Leverage ultra-low latency communication to link the TS301 directly with D2D agents, enabling instant local responses to temperature threshold breaches.
Traceable Compliance Data Meets HACCP and 21 CFR Part 11B requirements with anti-tamper data recording and effortless data exports for auditing and food safety.

Professional Monitoring Scenarios

• Cold Chain Logistics: Monitor refrigerated trucks and warehouses with Class-A PT100 precision.
• Pharmacy & Medical: Secure vaccines and sensitive medicines with high-accuracy temperature alerts.
• Industrial Processing: Track oven or furnace temperatures using specialized high-temp industrial probes.

What is in the Box?

• 1 x Milesight TS301 Sensor Node
• 2 x ER14505 Li-SOCl2 Batteries
• 1 x Mounting Kit (Screws & Wall Plugs)
• 1 x Quick Start Guide

Product Certifications

CE FCC RoHS EN12830 IP65

Specifications
  • Primary Communication Protocol
    LoRaWAN, Milesight D2D
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • LoRaWAN Class
    Class A
  • Radio & Range

    TX power: 16 dBm (EU868)

    Sensitivity: -137 dBm @ 300 bps

  • Interfaces (I/O)
    M12/F 5-pin Connector
  • Configuration Method
    NFC
  • Activation Method
    OTAA, ABP
  • Monitoring Parameters
    Temperature
  • Measurement Technology

    Temperature: PT100 RTD (SP11), DS18B20 digital probe (SP12), or temperature-humidity probe (SP13)

    Door/contact: magnetic switch (SS21)

  • Measurement Range

    Inputs: 1 × 5-pin M12 A-coded connector (temperature/humidity probe or magnetic switch)

    Temperature (SP11 PT100 probes): -200°C to +500°C overall, depending on probe (Regular/Food -40°C to +125°C, Industrial -50°C to +500°C, Low temperature -200°C to +50°C, Pipe -20°C to +85°C)

    Temperature (SP12 DS18B20 probe): -40°C to +125°C

    Temperature (SP13 TH probe): up to +125°C

    Humidity (SP13 TH probe): 0–100% RH

  • Measurement Accuracy

    Temperature (SP11 Regular, Class B): ±0.5°C (-40°C to +40°C), ±1°C (+40°C to +125°C)

    Temperature (SP11 Food, Class A): ±0.4°C

    Temperature (SP11 Industrial, Class A): ±0.4°C (-50°C to +125°C), ±1.15°C (+125°C to +500°C)

    Temperature (SP11 Low temperature, Class A): ±0.5°C (-175°C to +50°C), ±0.55°C (-200°C to -175°C)

    Temperature (SP11 Pipe, Class A): ±0.4°C

    Temperature (SP12 DS18B20): ±0.5°C (10°C to 85°C), ±2°C outside

    Temperature (SP13 TH): ±0.3°C (-40°C to 0°C), ±0.2°C (0°C to 65°C), ±0.5°C (65°C to 125°C)

    Humidity (SP13 TH): ±2% RH

  • Measurement Resolution

    Temperature: 0.1°C (reported)

    Humidity: 0.1% RH (reported, with TH probe)

  • Power Source
    Battery (Non-rechargeable)
  • Power Input
    2 × 4000 mAh ER18505 Li-SOCl2 batteries, or 5 V / 1 A via USB Type-C
  • Battery Type
    Li-SOCl2
  • Battery Capacity
    4800mAh
  • Battery Life
    TS301 + one PT100 probe: 5.2+ years (SF7, EU868) / 4+ years (SF10, EU868); TS301 + magnetic switch (10 triggers/day): 10+ years (SF7) / ~7.3 years (SF10, EU868); 10-min interval, 30°C, lab figures (varies with battery, environment, probe type)
  • Dimensions
    109.35 × 75 × 29 mm
  • Weight
    175 g
  • Enclosure Material
    PC (Polycarbonate), ABS Plastic
  • Mounting Options
    Wall Mount
  • IP Rating
    IP65
  • Environment Rating
    Outdoor, Industrial
  • Operating Temperature
    -30°C to +70°C
  • Certifications
    CE, FCC, EN12830, RoHS

Document Library

TS301 Datasheet

TS301 User Manual
