Milesight | SKU: UC501-868M

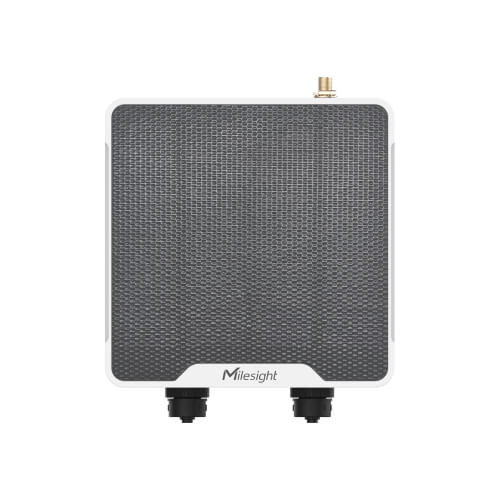

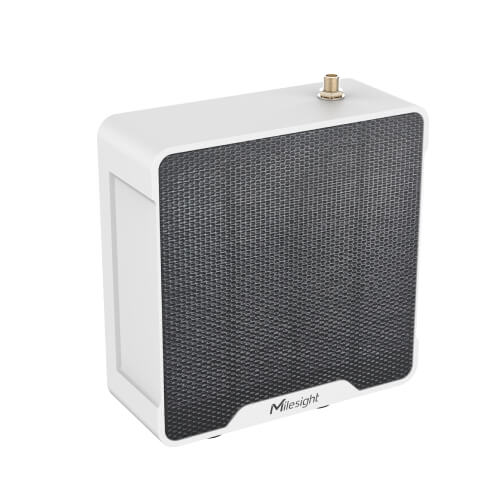

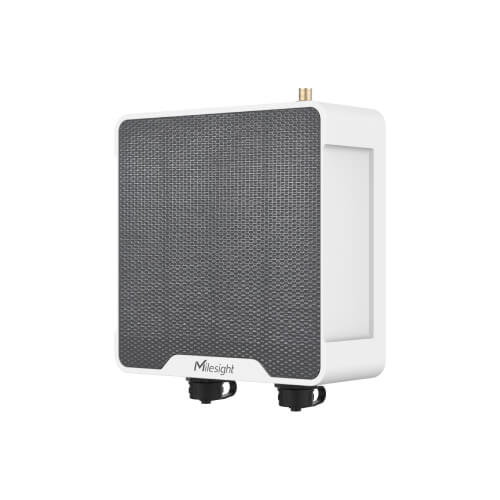

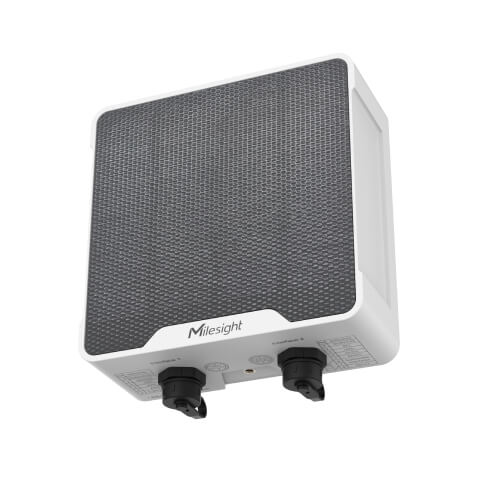

Milesight UC501 | Solar-Powered LoRaWAN IoT Controller

€139,00

Shipping calculated at checkout.

A professional all-in-one outdoor RTU featuring integrated solar charging and a versatile multi-interface for industrial sensor networks.

• Sustainable Power: Built-in 1.6W solar panel and rechargeable battery.
• Multi-Interface: RS485, RS232, 2 x AI (0-10V/4-20mA), and 2 x GPIOs.
• Rugged Protection: IP67-rated enclosure with industrial M12 connectors.

Frequency/Region

With External Antenna

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight UC501 is a carrier-grade Solar-Powered LoRaWAN IoT Controller designed for autonomous data acquisition in the most demanding outdoor environments. Unlike traditional battery-only units, the UC501 integrates a 1.6W solar panel and a high-capacity rechargeable battery, ensuring long-term maintenance-free operation. With its diverse range of I/O interfaces, including serial Modbus, analog, and digital ports, it serves as a universal wireless bridge for industrial sensors, flow meters, and environmental instruments.

Industrial Resilience & Versatile Power

Rugged Outdoor Reliability Features an IP67 waterproof enclosure and M12 industrial-grade connectors to protect internal electronics against water intrusion, dust, and corrosive elements.

Smart Power Output Capable of powering external sensors directly with switchable 5V, 9V, or 12V outputs, eliminating the need for local secondary power sources in remote field sites.

Professional Remote Monitoring Scenarios

• Precision Agriculture: Connect Modbus soil moisture probes and analog weather sensors in remote fields with full solar autonomy.

• Smart Water Management: Monitor reservoir levels and flow meters in off-grid locations using the dual 4-20mA/0-10V analog inputs.

• Industrial Asset Tracking: Relay data from legacy RS485/RS232 machines to a central dashboard via the transparent bridge mode.

What is in the Box?

• 1 x Milesight UC501 Controller (Solar Powered)

• 1 x M12 Connector Cable Kit

• 1 x Mounting Bracket & Screw Set

• 1 x Quick Start Guide

Product Certifications

CE FCC IP67 RoHS

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

Internal, External
Configuration Method

NFC, USB
Activation Method

OTAA, ABP
Environment Rating

Outdoor
IP Rating

IP67
Operating Temperature

-20°C to 60°C
Enclosure Material

PC (Polycarbonate), ABS Plastic
Battery Type

Li-ion
Battery Capacity

5100mAh
Power Consumption

Ultra-low (Solar-assisted)
Measurement Technology
- All-in-One Power System: Combines a 1.6W solar panel with dual rechargeable batteries and 5-24 VDC external input for 24/7 autonomous operation.
- Versatile Interface Hub: Connects to multiple wired sensors simultaneously via GPIO, Analog Input, RS232, RS485, and SDI-12.
- Switchable Power Output: Provides 3.3V, 5V, 9V, or 12V DC power directly to connected sensors, eliminating the need for separate sensor power supplies.
- Industrial Grade Protection: IP67-rated enclosure and M12 waterproof connectors ensure reliability in harsh outdoor or dusty environments.
- Edge Control: Supports Multicast for bulk control commands and autonomous "IF-THEN" rules for localized threshold responses.
Measurement Range
- Analog Input: 4-20 mA or 0-10 V (Software switchable).
- Digital Input: Low (0 to 0.9 V) / High (2.5 to 3.3 V).
- RS485/RS232: Supports Modbus RTU and Transparent transmission at 1200~115200 bps.
- Transmission: Up to 15km line-of-sight and 2km in dense urban areas.
Measurement Accuracy
- Analog Resolution: 12-bit ADC for high-precision data acquisition from industrial sensors.
- Data Security: Reliable transmission with confirmed mode and local storage for 600 data records with retransmission support.
- Internal Watchdog: Embedded hardware watchdog to prevent system hangs in critical remote deployments.
Measurement Resolution
- Reporting Interval: Configurable from 10 seconds to 18 hours (Default 20 mins).
- Modbus Capacity: Supports reading up to 16 Modbus channels for complex machinery monitoring.
- Pulse Counting: High-resolution counter mode for flow meters and utility monitoring.
Interfaces (I/O)

RS485 (Modbus RTU), RS232, GPIO, SDI-12

Document Library

UC501 Datasheet

UC501 User Manual
