RAK Wireless | SKU: 205005

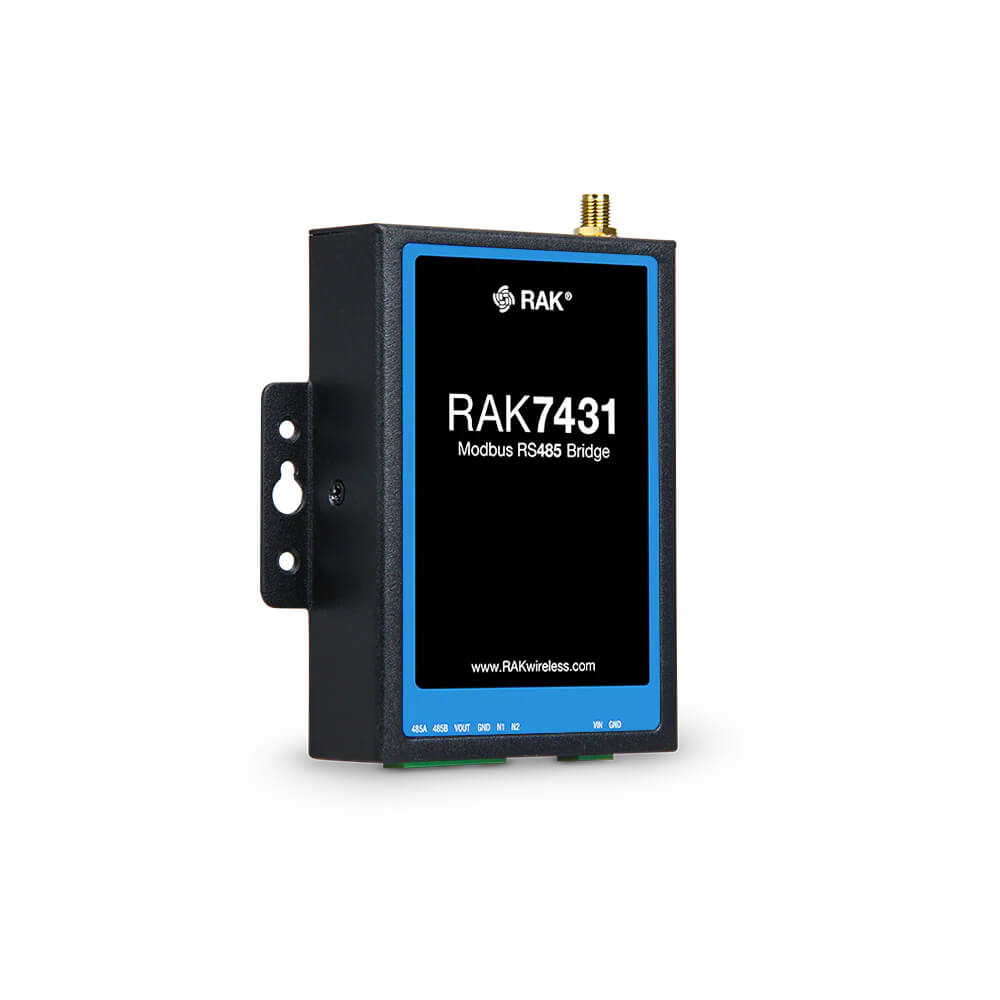

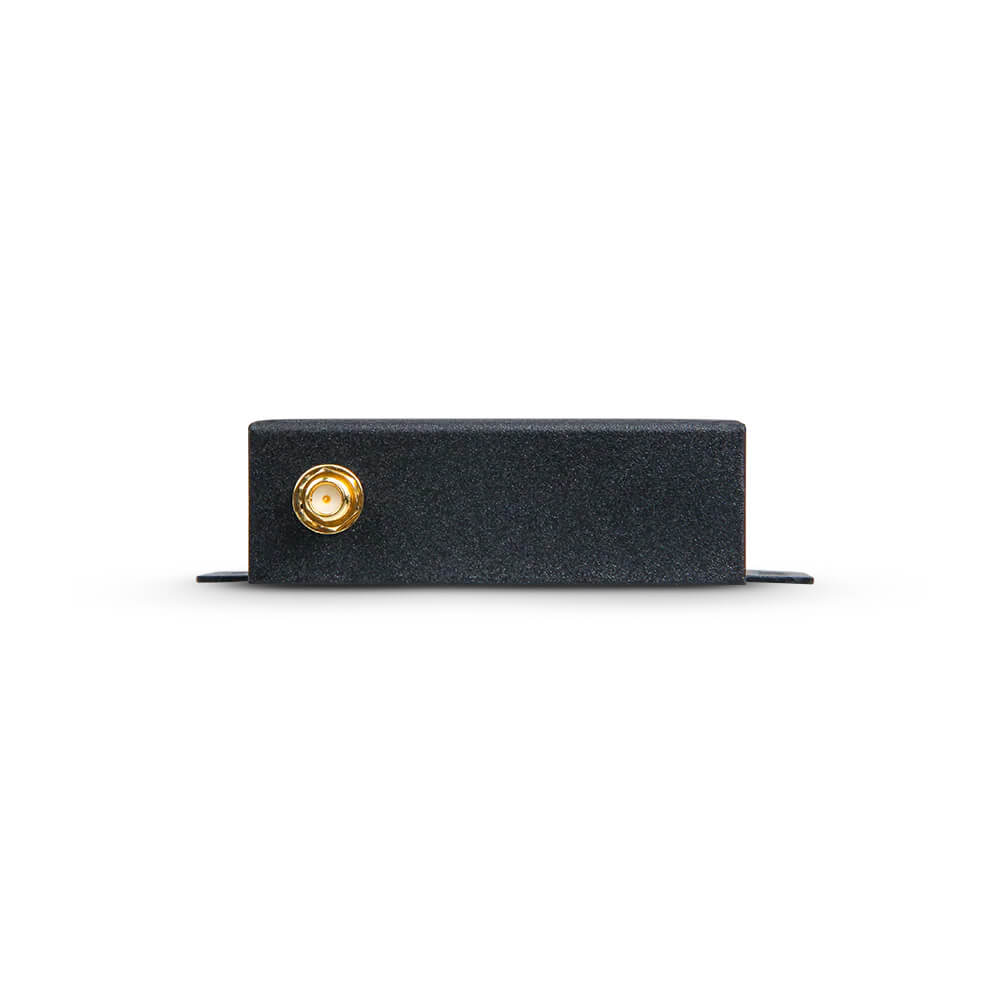

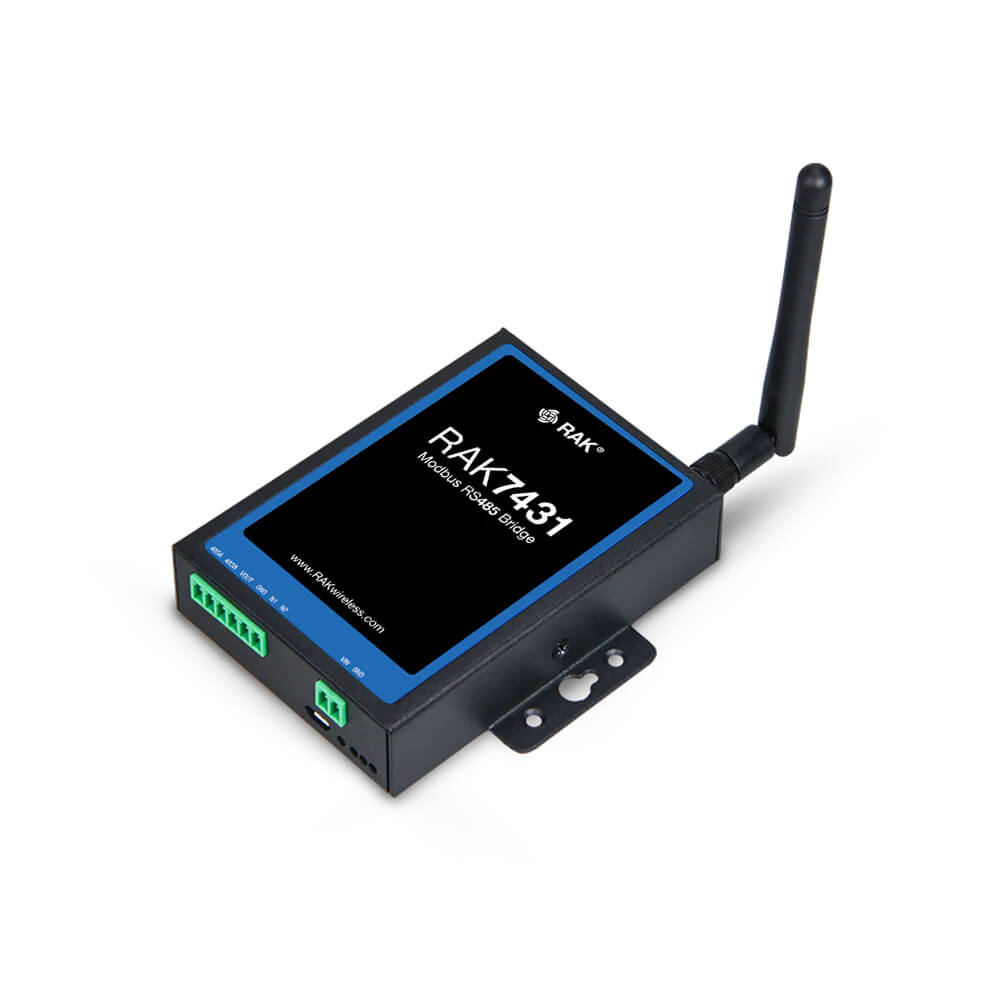

RAK7431 WisNode Bridge Serial | Industrial RS485 to LoRaWAN Converter

€65,00

Shipping calculated at checkout.

A rugged industrial bridge designed to relay Modbus RTU data over LoRaWAN networks for long-range wireless field control.

• Multi-Device: Connect and address up to 16 RS485 terminal nodes.
• Industrial Power: Wide 8-48V DC input range for flexible deployment.
• Versatile Mounting: Supports DIN rail, wall, and magnetic mounting.

Frequency/Region

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The RAK7431 WisNode Bridge Serial is a professional RS485 to LoRaWAN converter engineered to bring wireless connectivity to industrial field devices. By seamlessly relaying Modbus RTU data over LoRaWAN, it enables the remote monitoring and real-time control of multiple RS485 nodes across distances exceeding 15km in open environments. Its industrial-grade metal housing and wide voltage support make it an ideal choice for complex factory floors, large-scale warehouses, and smart city infrastructure.

Industrial Grade Serial Bridging

Polling & Transparent Modes Supports both a polling mode for scheduled data acquisition and a transparent mode for bi-directional serial communication, ensuring compatibility with varied industrial protocols.

Robust Field Deployment Equipped with a hardware watchdog for system stability and a micro-USB port for simplified local configuration, all housed in a durable IP31 metal casing.

Industrial Control Scenarios

• Factory Automation: Monitor and control PLCs, motors, and industrial sensors wirelessly over a central LoRaWAN network.

• Smart Metering: Aggregate data from multiple RS485 energy, water, or gas meters across large industrial sites for centralized billing.

• Warehouse Logistics: Track and manage environmental controllers and automated systems in densely populated storage facilities.

What is in the Box?

• 1 x RAK7431 WisNode Bridge Serial

• 1 x LoRa Antenna (RP-SMA)

• 1 x Micro USB Cable

• 1 x Mounting Kit (Wall and DIN Rail)

Product Certifications

CE FCC IP31 RoHS

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

External (SMA)
Configuration Method

USB
Activation Method

OTAA, ABP
Environment Rating

Indoor
IP Rating

IP31
Operating Temperature

-30°C to 60°C
Enclosure Material

Metal
Power Consumption

Low (Industrial Grade)
Measurement Technology
- Modbus RTU Bridge: Seamlessly converts RS485 serial data into LoRaWAN frames, supporting up to 16 cascading client nodes.
- Polling & Transparent Modes: Features a dedicated "Polling Mode" for automated data retrieval and a "Transparent Mode" for bi-directional communication.
- Industrial Power Management: Supports a wide input voltage range (8-48 VDC) and can provide a 12V/VCC output to power connected RS485 sensors.
- Rugged Reliability: Housed in a durable metal casing with an embedded hardware watchdog to ensure 24/7 operational stability.
Measurement Range
- Transmission Distance: 15km+ in open environments; significantly improved signal penetration in obstructed industrial settings.
- Modbus Capacity: Supports addressing and polling for up to 16 unique Modbus slave IDs.
- Serial Parameters: Configurable baud rates and parity to match any industrial RS485 terminal node.
Measurement Accuracy
- Data Integrity: Utilizes LoRa modulation to maintain consistent signal quality in high-interference environments like large factories.
- Stability: Designed for -30°C to +65°C operation, ensuring reliability in unconditioned industrial cabinets or storehouses.
Measurement Resolution
- Protocol Support: LoRaWAN 1.0.3 stack compatible with Class A, B, and C for varied latency requirements.

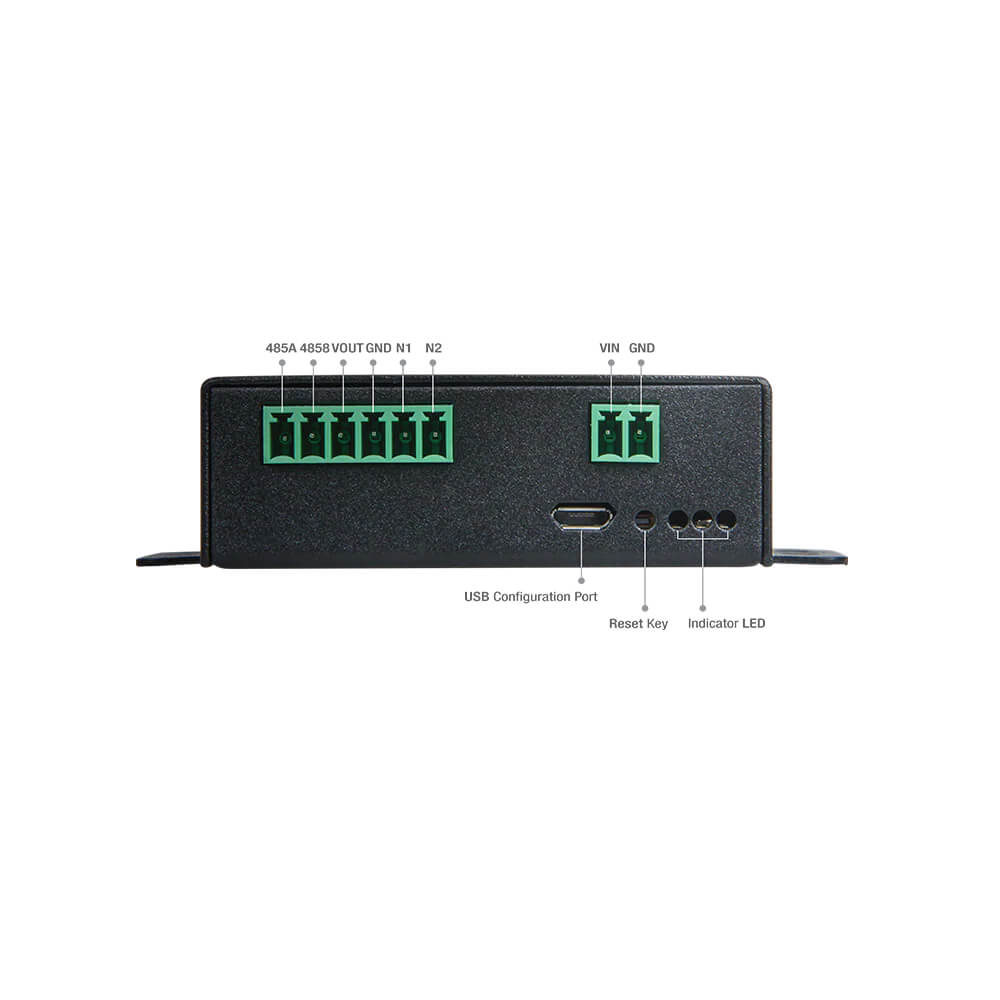

- Interface Resolution: 1 x RS485 port via terminal block for secure, industrial-grade wiring.
Interfaces (I/O)

RS485 (Modbus RTU)
Monitoring Parameters

RS485 Register Data

Document Library

RAK7431 Datasheet

RAK7431 User Manual
