Seeed Studio  |  SKU: 101991041
Sold out

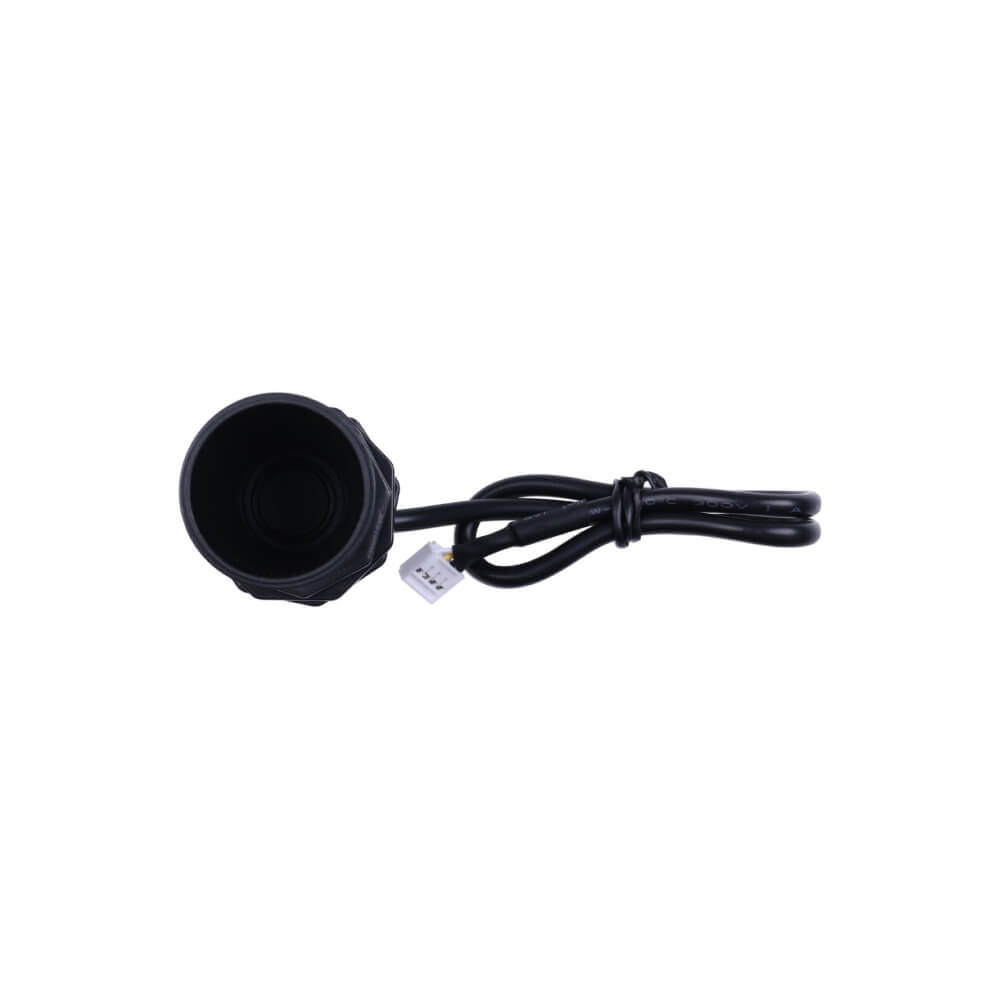

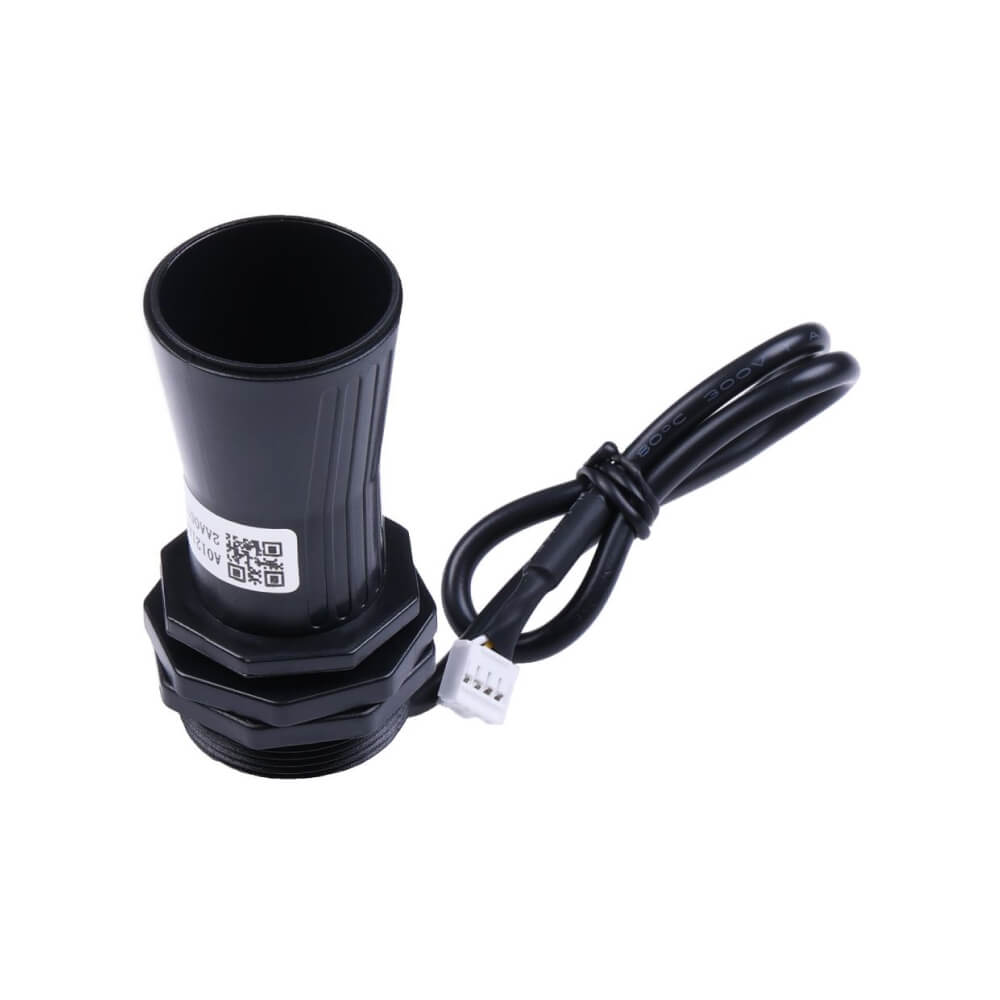

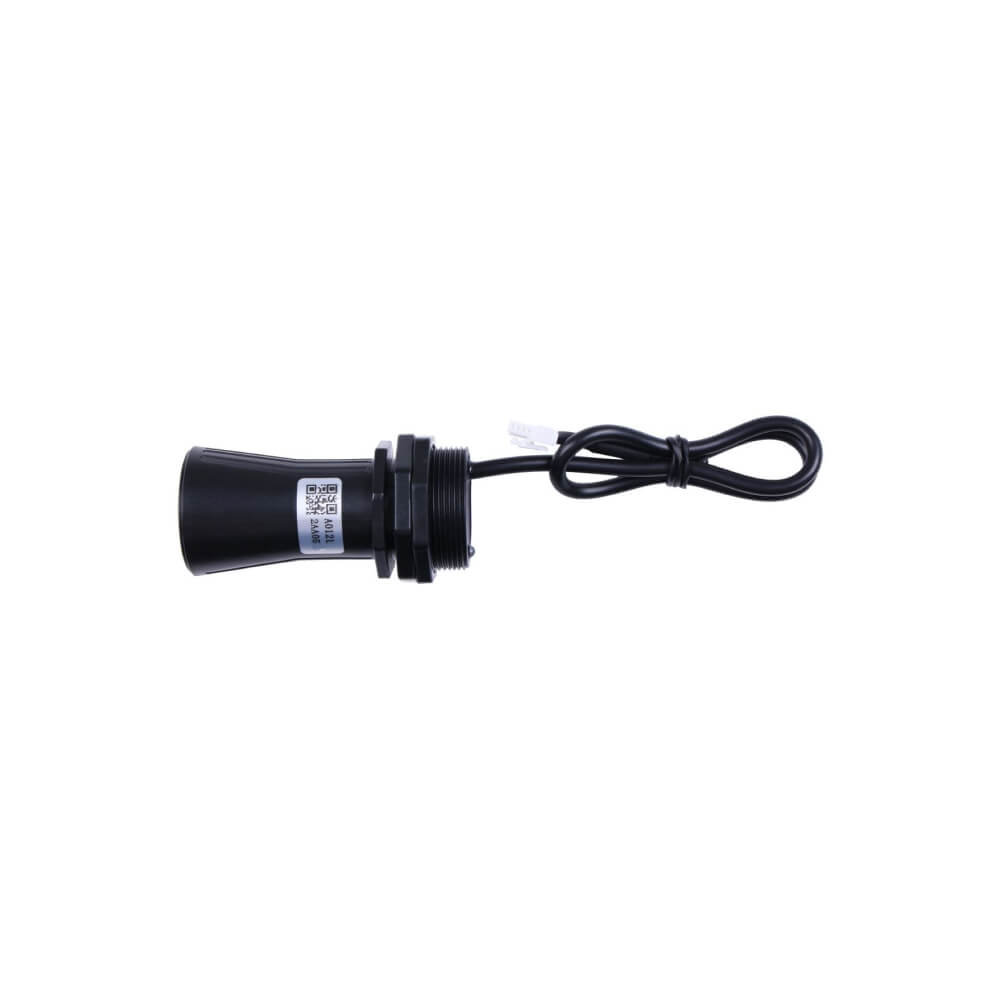

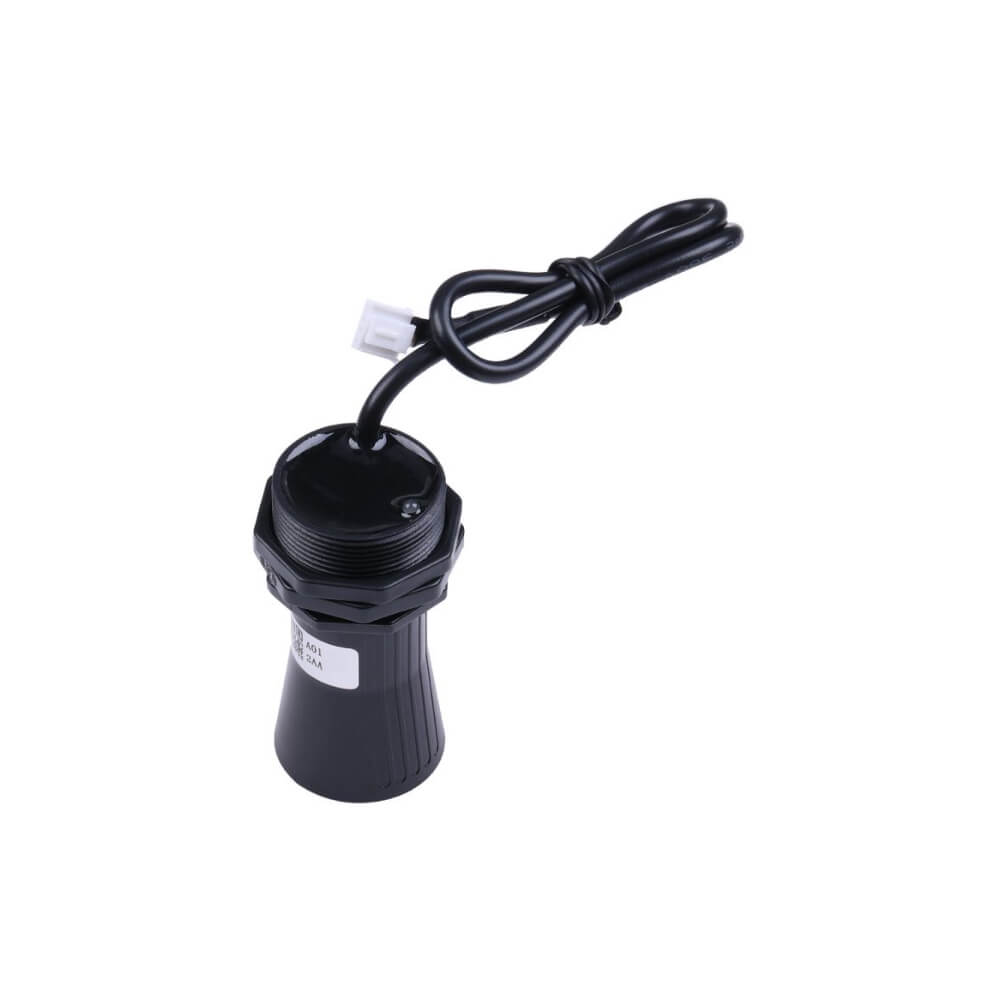

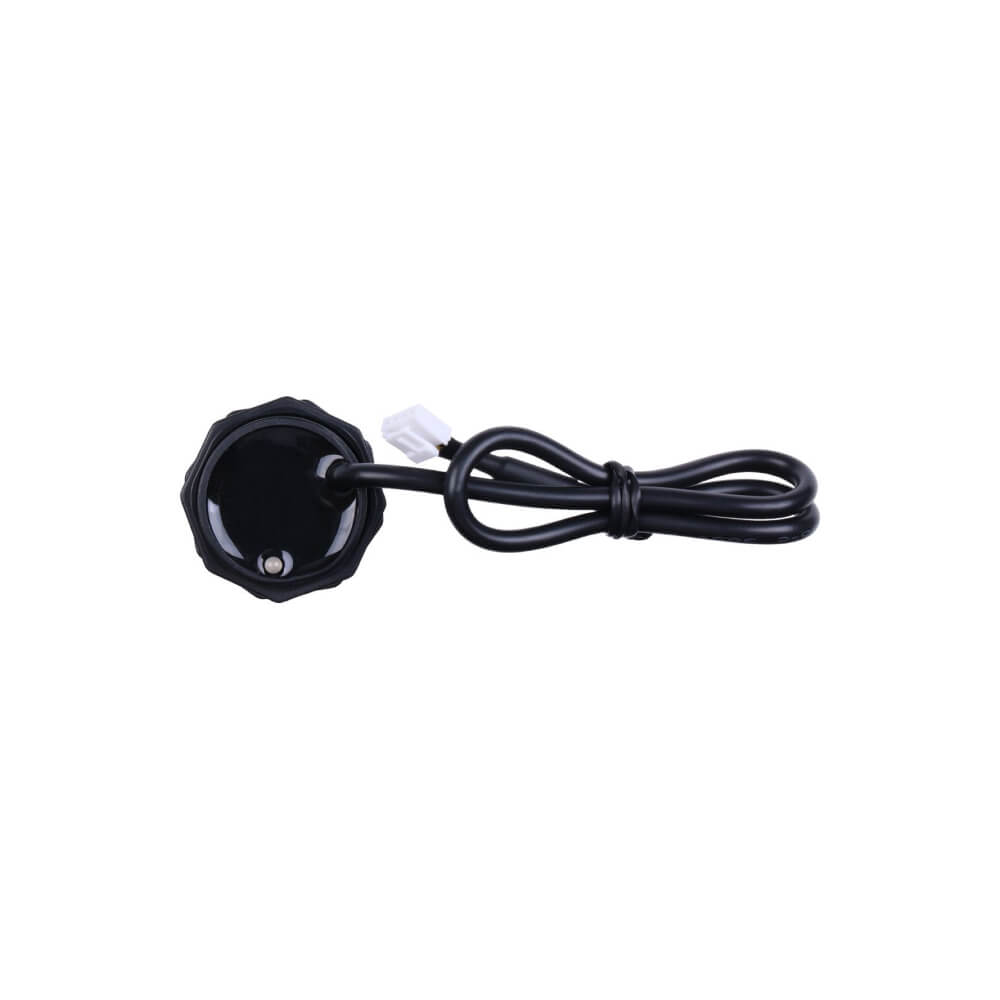

Seeed Studio Industrial RS485 Ultrasonic Level Sensor (750cm)

Price incl. 19% VAT
€32,00
Price excl. VAT
€26,89
Shipping calculated at checkout. Shipping policy

The Seeed Studio RS485 Ultrasonic Level Sensor (750 cm) measures liquid level and distance without contact.

  • Range: 20 cm to 750 cm
  • Compensation: built-in temperature compensation
  • Output: RS485 Modbus RTU, sealed housing

VAT & Business Purchases

Prices include VAT at the rate of your EU delivery country, so the price shown is the price you pay. EU businesses with a valid VAT number can buy VAT-free: enter your company name and VAT number at checkout and VAT is removed under the intra-community reverse-charge rules. Orders delivered within Cyprus always include Cyprus VAT.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Warranty & Support: Consumer purchases are covered by the 2-year legal guarantee of conformity, and manufacturer warranty terms apply per brand. Our engineering team at shopioT provides technical support.

Delivery and Shipping

Tracked delivery within Cyprus by ACS Courier, and to all EU member states, the United Kingdom and Switzerland by FedEx International Priority. Orders ship from our warehouse in Nicosia, Cyprus, typically within 1–3 business days. Shipping cost is calculated at checkout by destination and parcel weight. See our Shipping Policy for rates and delivery times.

EU business? Enter your company name and a valid EU VAT number at checkout to remove VAT (reverse charge).

Description

The Seeed Studio RS485 Ultrasonic Level Sensor is an industrial-standard solution for non-contact spatial measurement and liquid level monitoring. Utilizing high-frequency ultrasonic waves, this sensor calculates the distance to a target based on Time-of-Flight (ToF) principles, covering a vast range up to 750cm (7.5 meters). Designed for reliability in harsh environments, it features internal temperature compensation to maintain accuracy despite thermal fluctuations. Its sealed housing protects it against dust and water, while the industry-standard RS485 interface ensures seamless data collection for smart city, agricultural, and industrial automation networks.

Precision Non-Contact Sensing

Sealed Housing The sensor is fully protected against immersion, making it suitable for outdoor use in sewers, flood monitoring, and open water tanks.
Advanced Signal Processing Features integrated algorithms for interference suppression and stable data output via Modbus RTU RS485.

Industrial Monitoring Scenarios

• Liquid Level Monitoring: Real-time tracking of water tanks, reservoirs, and chemical containers without probe contact.
• Smart Waste Management: Monitor fill levels in public trash bins and containers to optimize collection routes.
• Flood Early Warning: Deploy in rivers and drainage channels to monitor water rising during extreme weather events.

What is in the Box?

• 1 x Seeed Studio RS485 750cm Ultrasonic Sensor
• 1 x Integrated Multi-core Cable
• 1 x Quick Start Guide

Specifications
  • Primary Communication Protocol
    RS485 / Modbus RTU
  • Configuration Method
    Modbus Commands
  • Activation Method
    Plug & Play
  • Monitoring Parameters
    Distance (Ultrasonic), Temperature
  • Measurement Technology

    Distance: ultrasonic, with integrated temperature compensation

  • Measurement Range

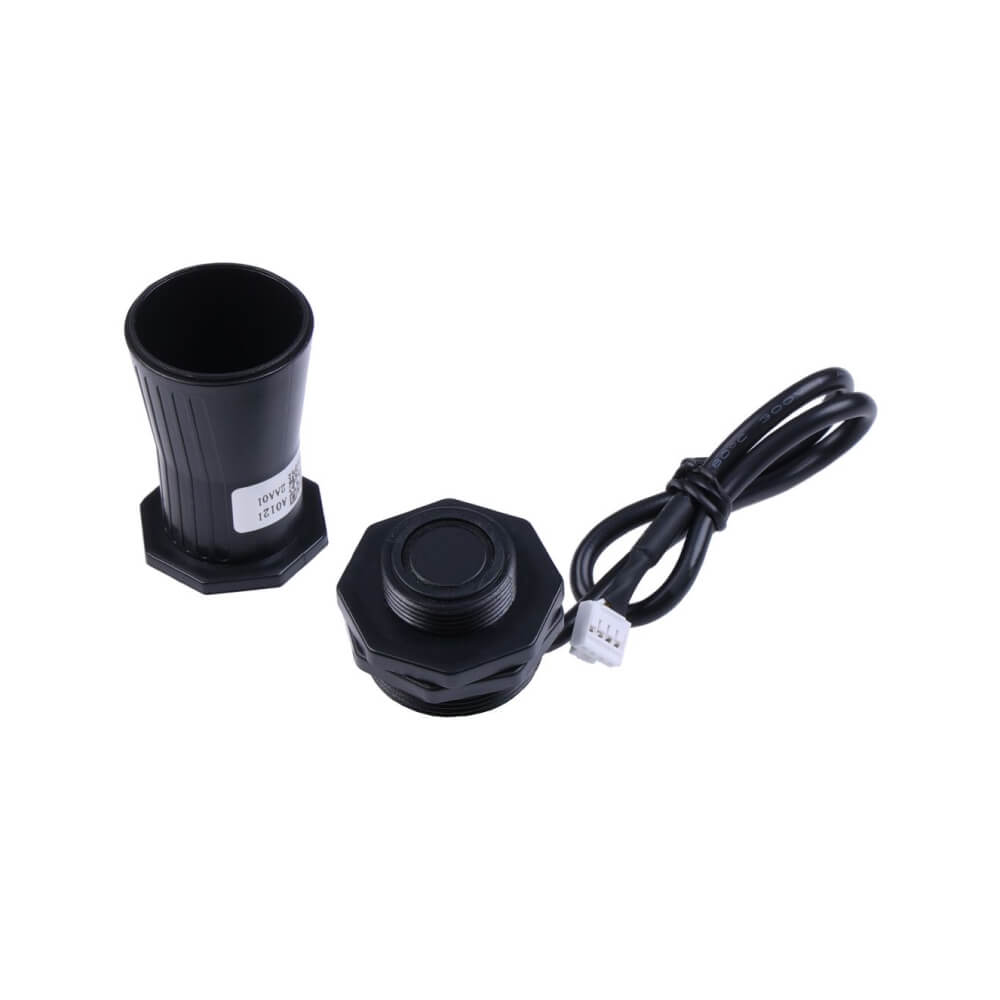

    Distance (with bell mouth): 28–750 cm

    Distance (without bell mouth): 28–450 cm

    Blind zone: ≤ 28 cm

    Detection angle (with bell mouth): ≈40°

  • Measurement Accuracy

    Distance: ±(1 cm + S × 0.3%), S = measured value

  • Measurement Resolution

    Distance: 1 mm

  • Power Source
    DC Input
  • Power Input
    5–12 VDC (RS485 Modbus-RTU, default 9600 bps)
  • Power Consumption
    Average: < 10 mA (5.0 V, 100 ms cycle), Standby: < 10 µA, Peak: 50–75 mA
  • Environment Rating
    Outdoor, Industrial
  • Operating Temperature
    -15°C to +60°C
  • Warranty
    2 Years

Document Library

Ultrasonic Sensor Datasheet
