Watteco | SKU: 50-70-145

12% off

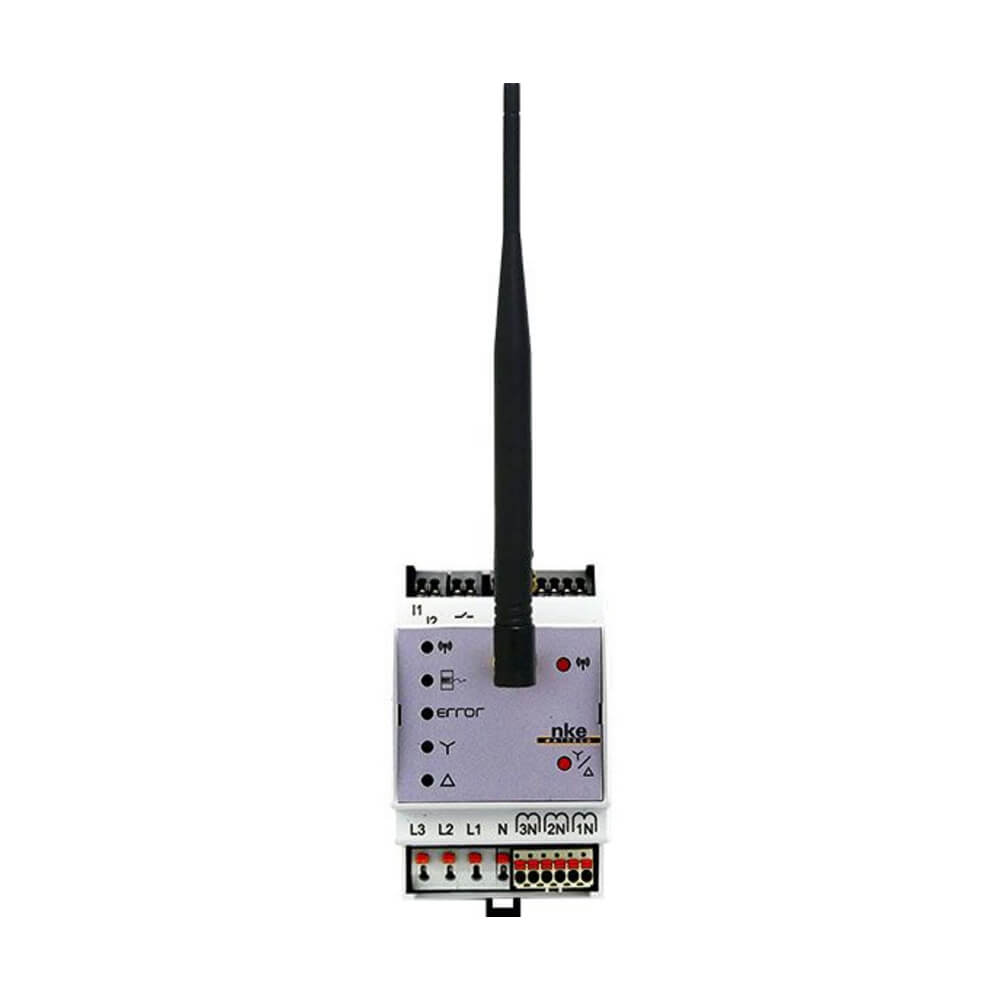

Watteco Triphas'O | LoRaWAN Three-Phase Energy Meter

€385,00 €438,00

Shipping calculated at checkout.

A professional Class C LoRaWAN sensor designed for non-intrusive telemetry and submetering of three-phase or multiple single-phase electrical installations.

• Comprehensive Metrics: Measures Active/Reactive power, energy, and RMS values.
• High Capacity: Supports CT Toroids (60A/400A) or Rogowski loops (up to 4000A).
• DIN Rail Ready: Compact 3-module housing for standard electrical cabinets.

Frequency/Region

Primary Current

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Watteco Triphas'O is a high-performance LoRaWAN Three-Phase Energy Meter engineered for advanced telemetry in industrial and tertiary buildings. Designed for non-intrusive installation, it allows for real-time monitoring of electricity consumption without disrupting existing wiring. The Triphas'O is highly versatile; it can monitor a full three-phase system or be configured for submetering on up to three independent single-phase circuits. Operating in LoRaWAN Class C, it provides continuous connectivity and the ability to handle high-frequency data sampling, making it a cornerstone for energy management, cost allocation, and distribution network optimization.

Advanced Power Intelligence

Multi-Parameter Analysis Tracks active and reactive energy/power alongside instantaneous RMS voltage and current for a complete overview of electrical health.

Scalable Sensor Options Compatible with opening toroids for low power (up to 400A) or flexible Rogowski loops for high-power industrial feeders (up to 4000A).

Professional Energy Scenarios

• Smart Industry: Monitor consumption of heavy machinery to analyze load profiles and improve maintenance regimes.

• Data Centers: Gain granular submetering data for individual racks or server blocks to manage cooling and power efficiency.

• Commercial Complexes: Automate tenant billing and identify energy waste in HVAC and lighting systems across multiple floors.

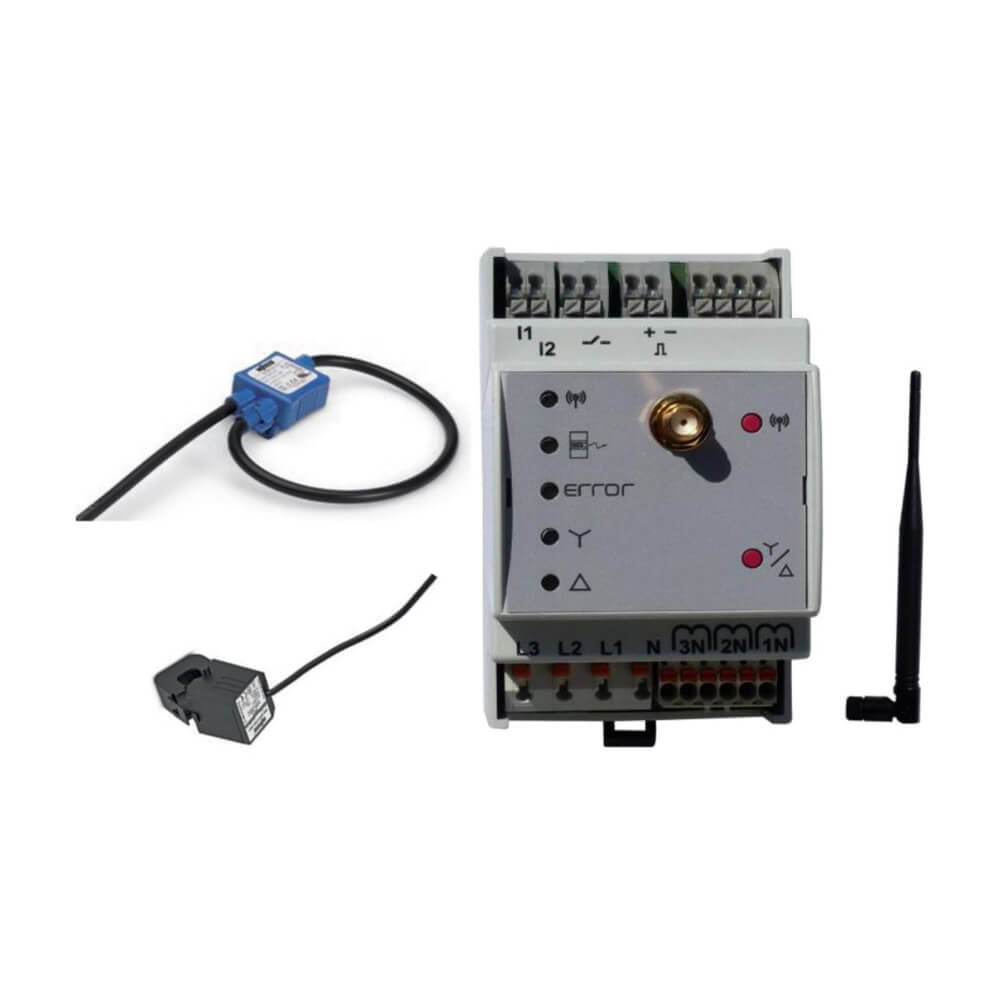

What is in the Box?

• 1 x Watteco Triphas'O Sensor

• 1 x External RF Antenna (Remote mountable)

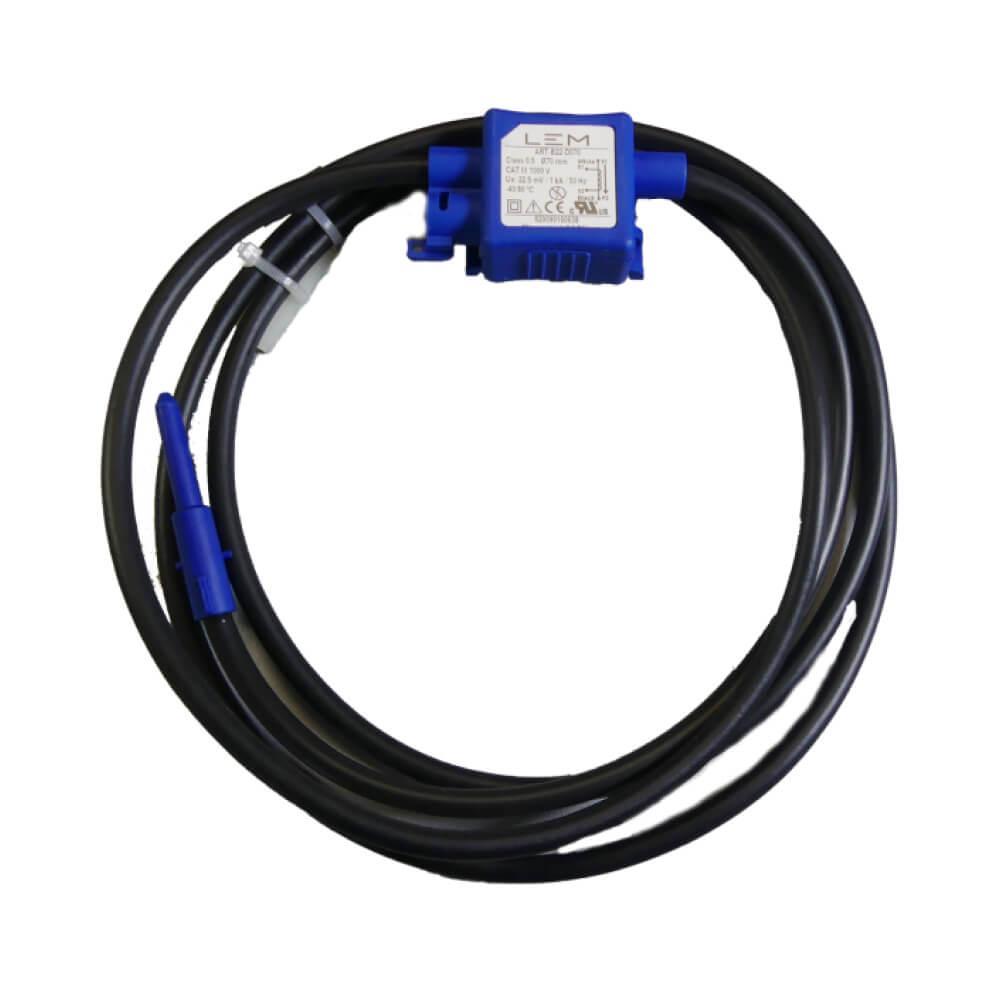

• Selected Current Probes (Toroids or Rogowski loops per model)

• 1 x Installation Guide

Product Certifications

CE RED LoRaWAN Class C RoHS

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

External (SMA)
Configuration Method

NFC, Downlink
Activation Method

OTAA, ABP
Environment Rating

Indoor
IP Rating

IP20
Operating Temperature

-20°C to 50°C
Enclosure Material

ABS Plastic
Measurement Technology
- Sensing Method: Non-intrusive Current Transformers (CT) or Rogowski Loops
- Phase Support: Three-phase (Wye/Star) or up to 3 independent single-phase circuits
Measurement Range
- Voltage Range: 3 x 230V + Neutral (Single Phase: 230V)
- Current Options: 0-60A (CT), 0-400A (CT), or 0-4000A (Rogowski)
- Power Range: Up to 100kW (CTs) or 1MW (Rogowski) per phase
Measurement Accuracy
- Energy Class: Class 1 (Active Energy), Class 2 (Reactive Energy)
- Power Resolution: 1W (CT) / 1kW (Rogowski)
Measurement Resolution
- Analysis Modes: Average or Instantaneous power monitoring
- Configurable Intervals: 10 min (default) up to 60 min for average power calculation
Monitoring Parameters

Active Power (W), Reactive Power (var), Voltage (V), Current (A)

Document Library

Triphas'o Datasheet
